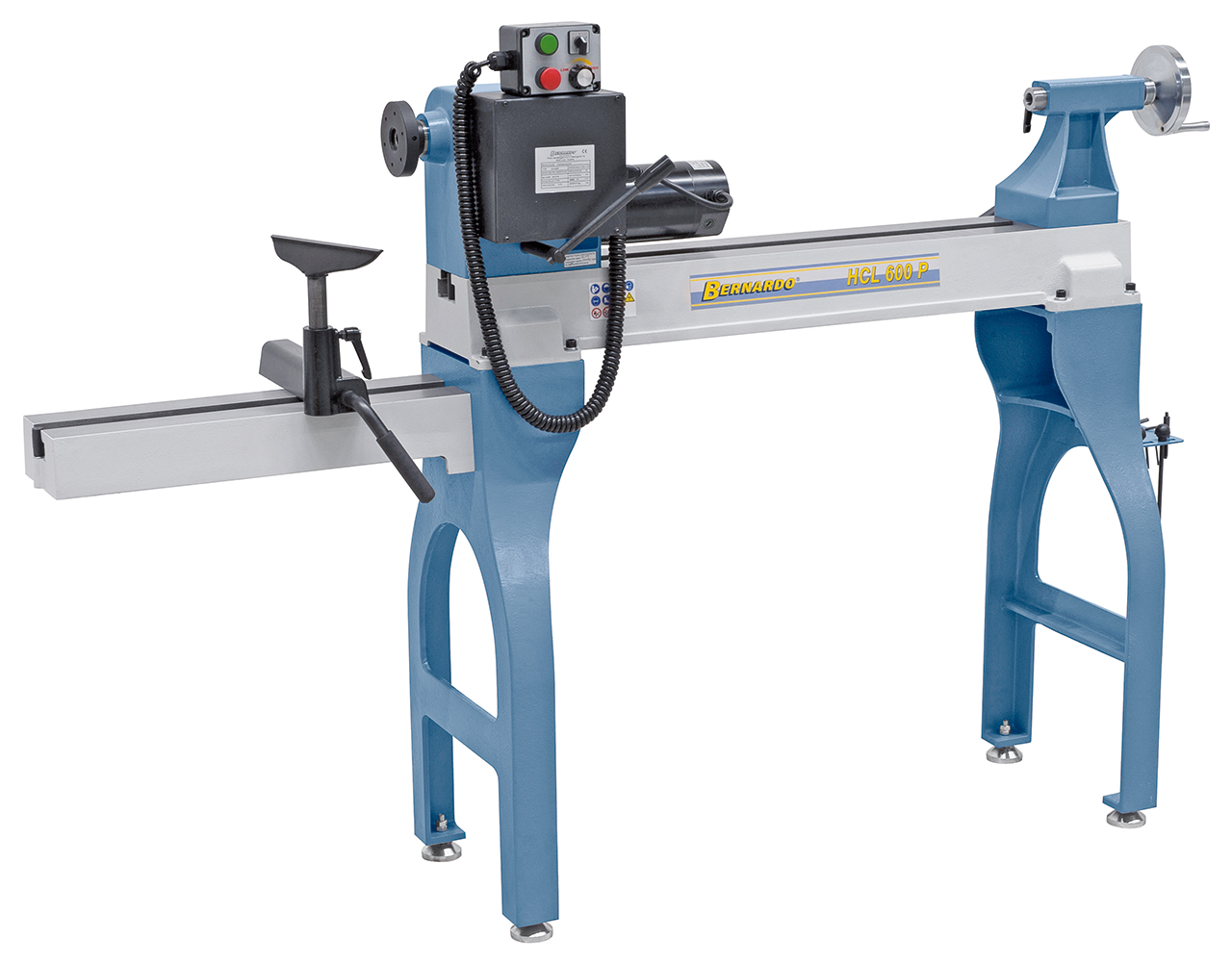

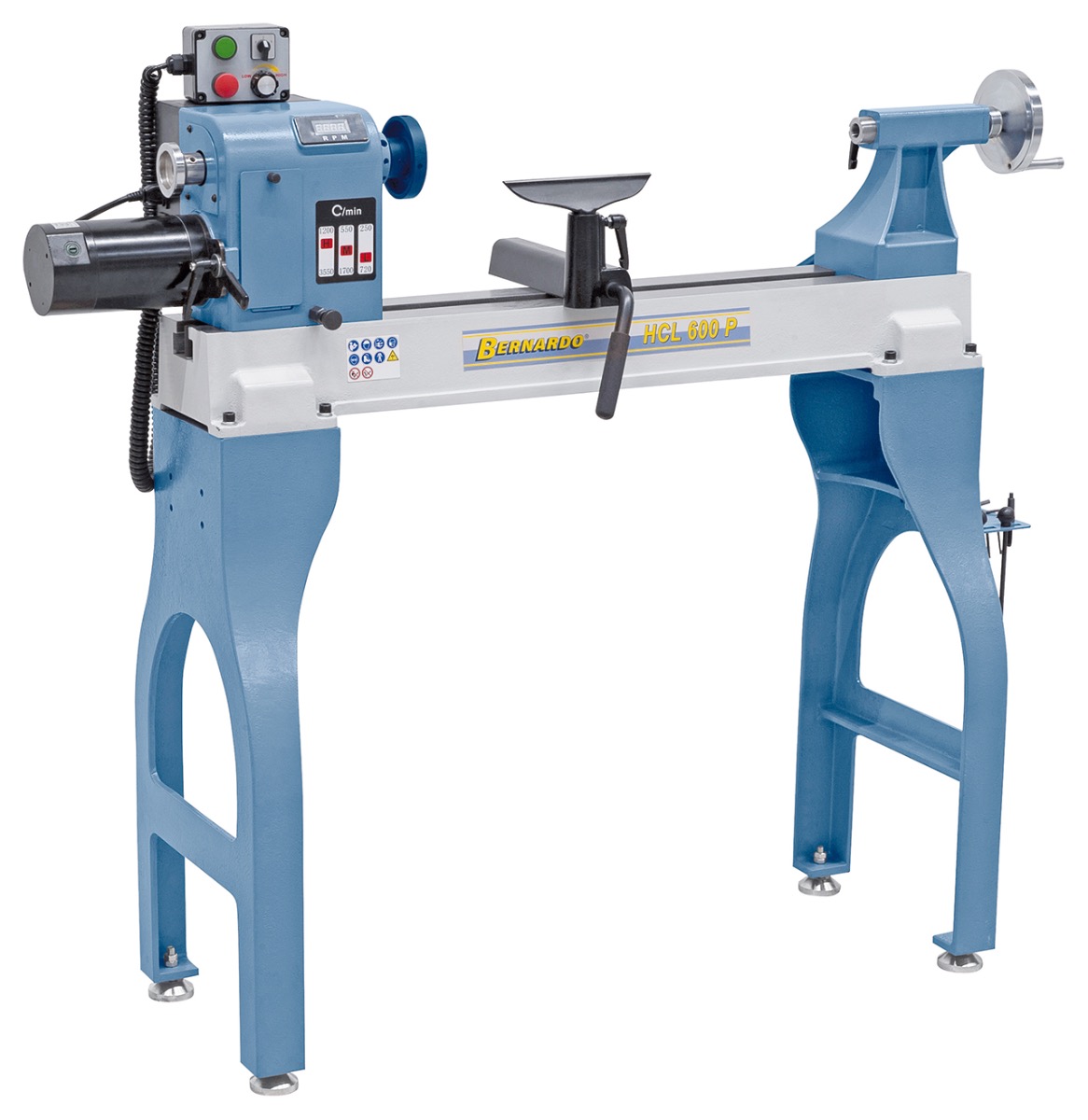

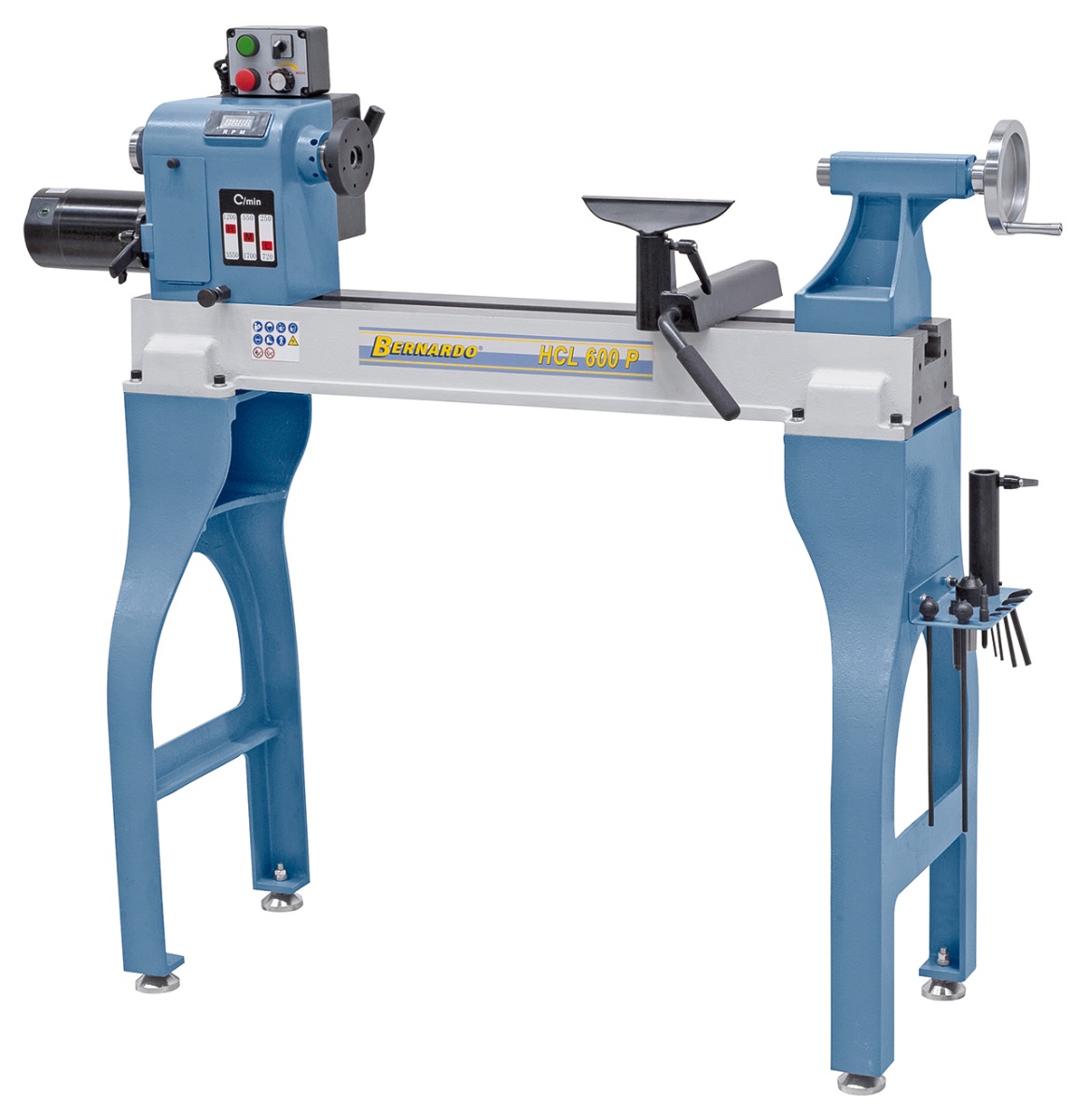

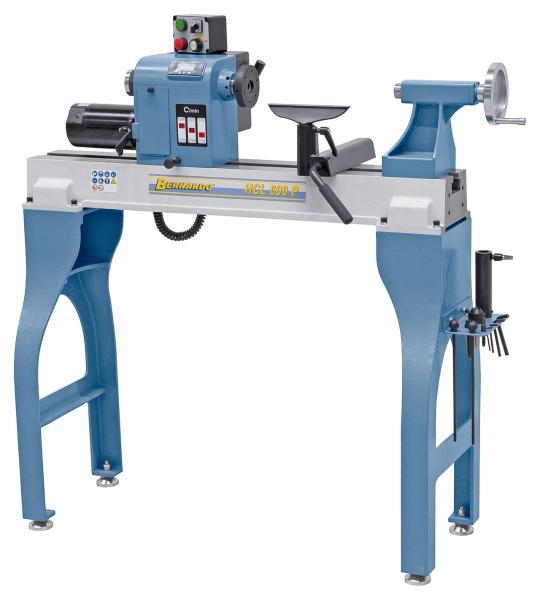

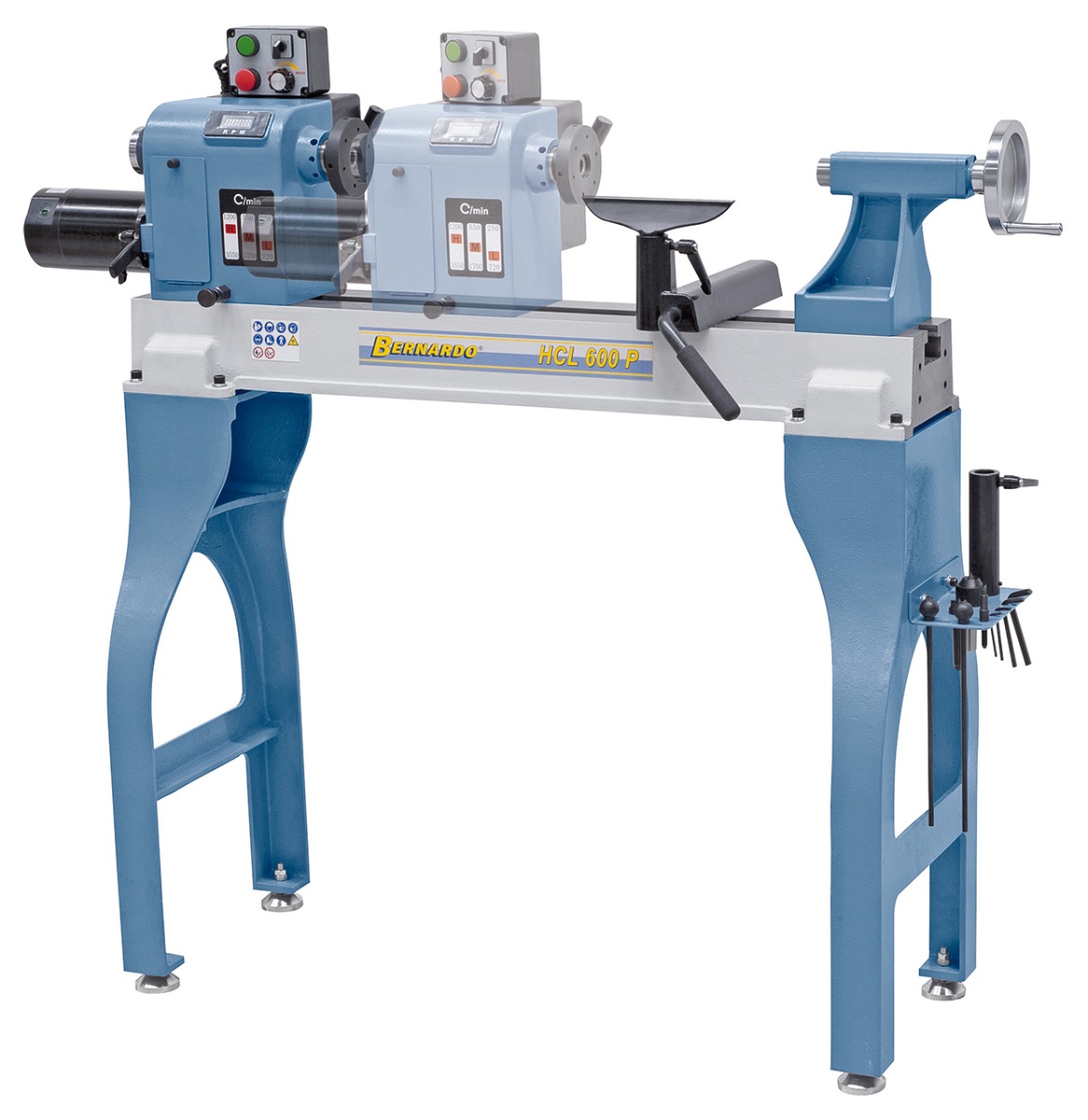

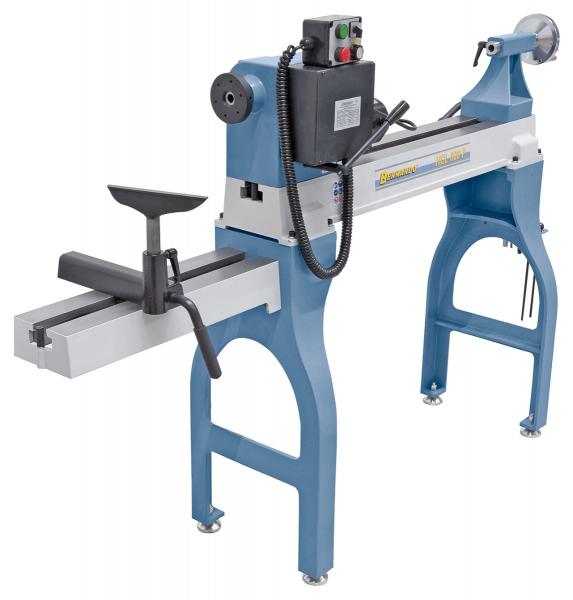

The HCL 600 P lathe features an electronic, steplessly adjustable speed setting as part of the standard accessoires which allows ideal adjustment to each workpiece. This model is predominantely used among experienced, high-level amateurs.
Scope of delivery Woodturning lathes Bernardo HCL 600 P
- Tool rest 200 mm
- Face plate 100 mm
- Live center
- Spore drive center
- LED speed indication
- Tools
Features Woodturning lathes Bernardo HCL 600 P
- Solid tailstock sleeve with MT 2 taper and bore to allow operating of long workpieces
- Quick clamping lever ensures fast clamping of tailstock to machine bed
- Includes steel tool rest, easily adjustable for various workpiece diameters
- Heavy cast-iron construction eliminates vibrations

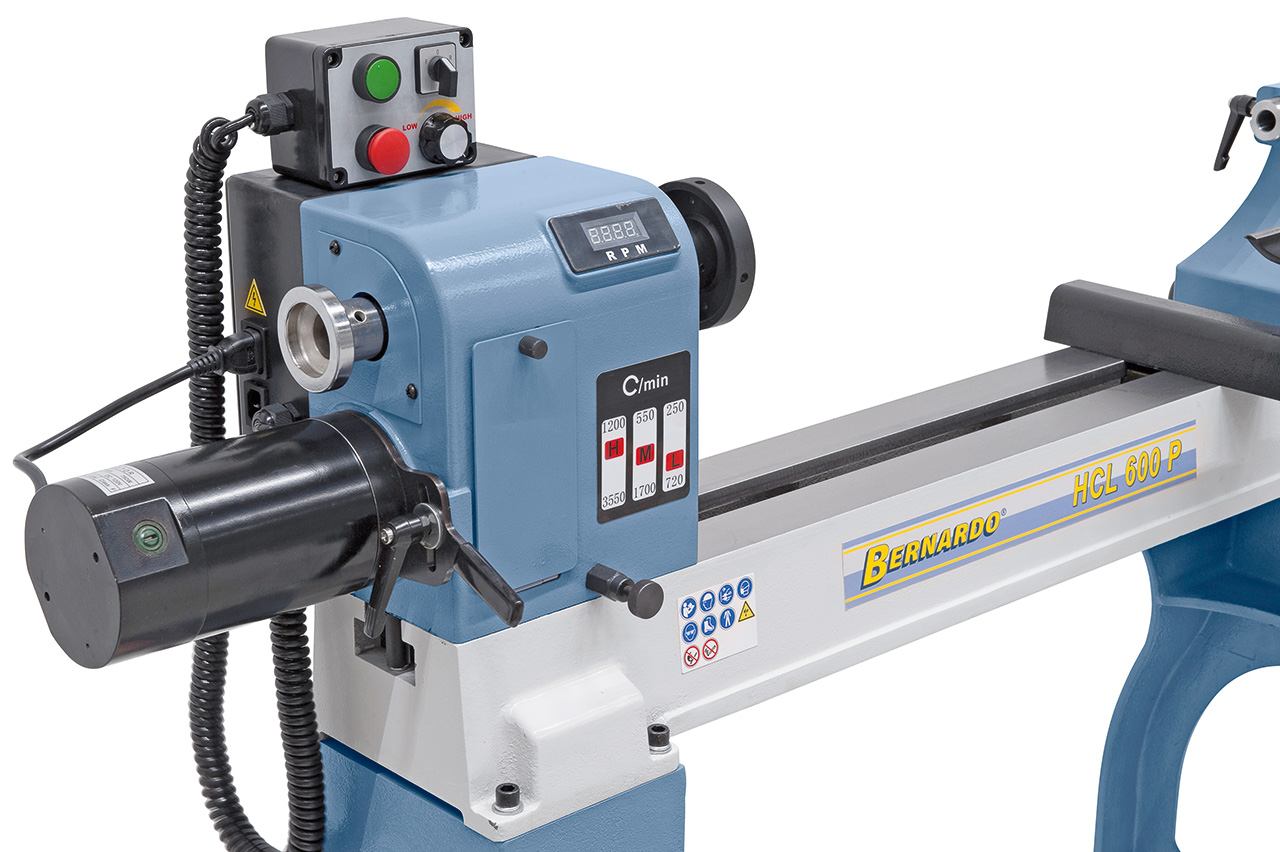

- Digital display allows for convenient adjustment of speed settings
- Comes complete with right and left turning device
- Precisely bedded spindle ensures high concentricity
- Smooth running, powerful DC drive, steplessly adjustable
Technical details Woodturning lathes Bernardo HCL 600 P
| Distance between centers | 600 mm |

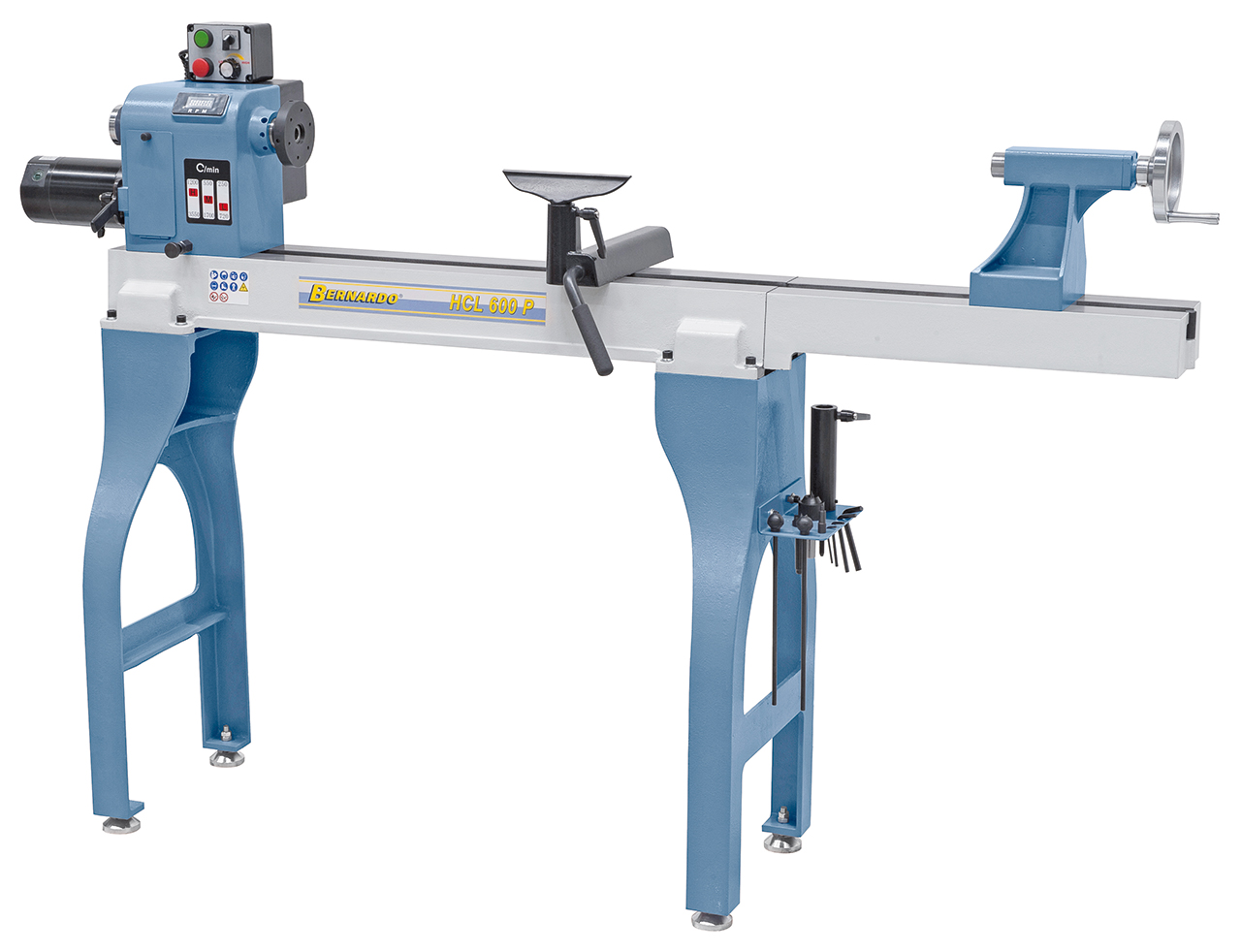

| Distance between centers with extension* | 1180 mm |
| Working diameter | |
| - over guideway | 370 mm |
| - over support | 270 mm |
| Spindle speed, stepless | 250 – 720 rpm |
| | 550 – 1700 rpm |
| | 1200 - 3550 rpm |
| Speed steps | stepless, 3 steps |
| Spindle thread | M 33 x 3,5 mm |
| Tailstock | |
| Taper of tailstock sleeve | MK 2 |
| Travel of tailstock sleeve | 95 mm |
| Motor power output S1 100% | 0,75 kW (1,0 HP) |
| Motor power input S6 40% | 1,1 kW (1,5 HP) |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 1500 x 540 x 1180 mm |
| Weight approx. | 125 kg |
| |
* optional
