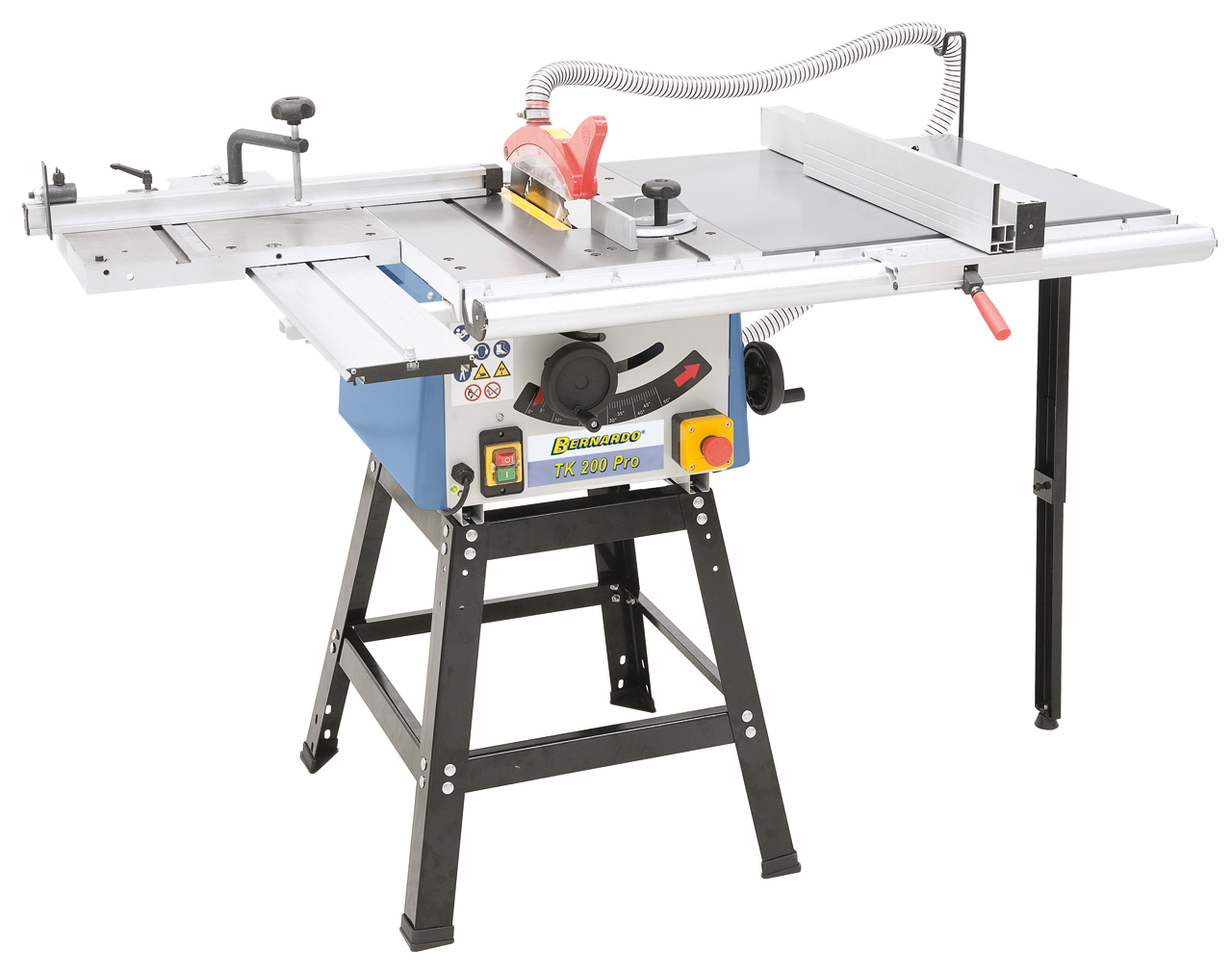

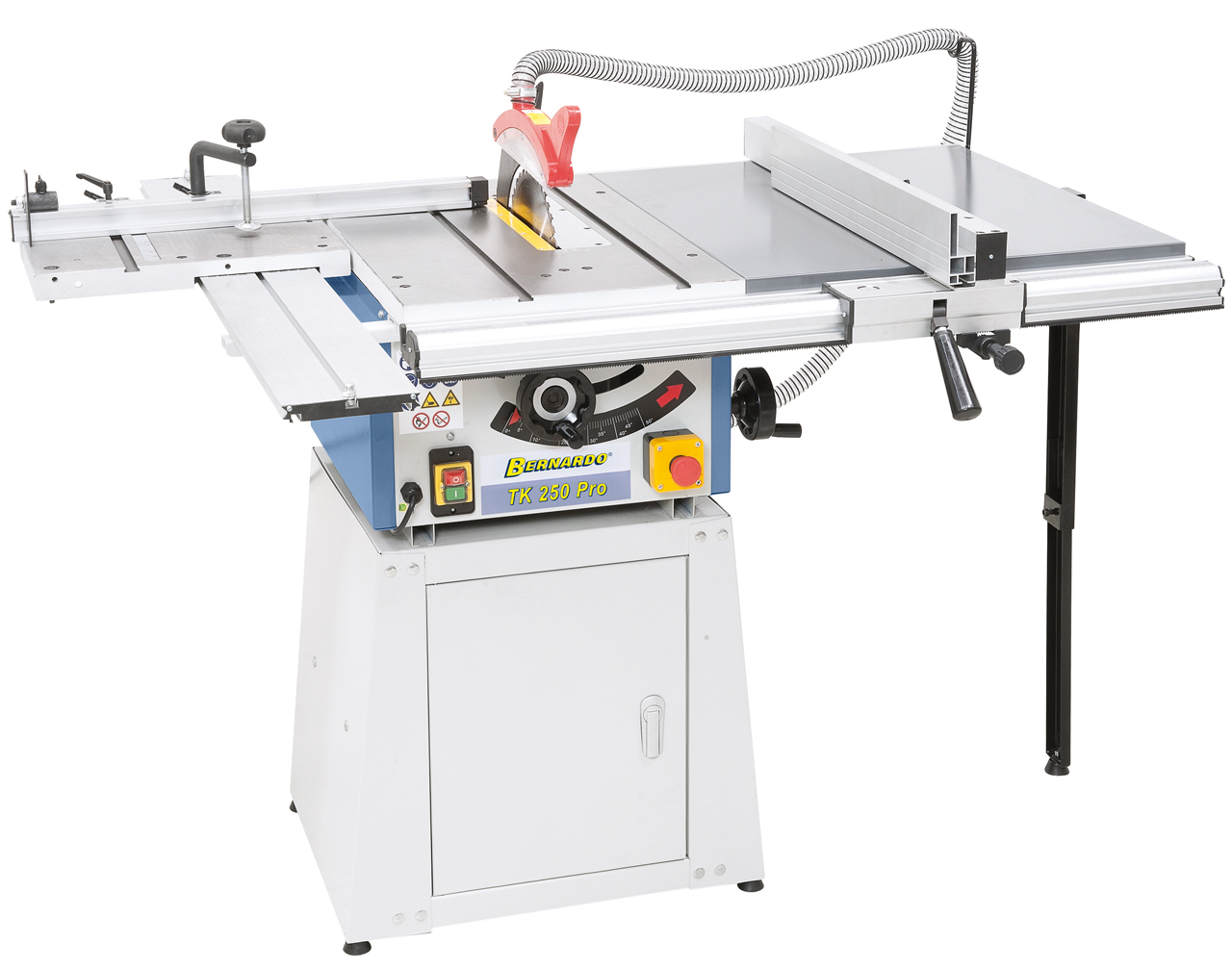

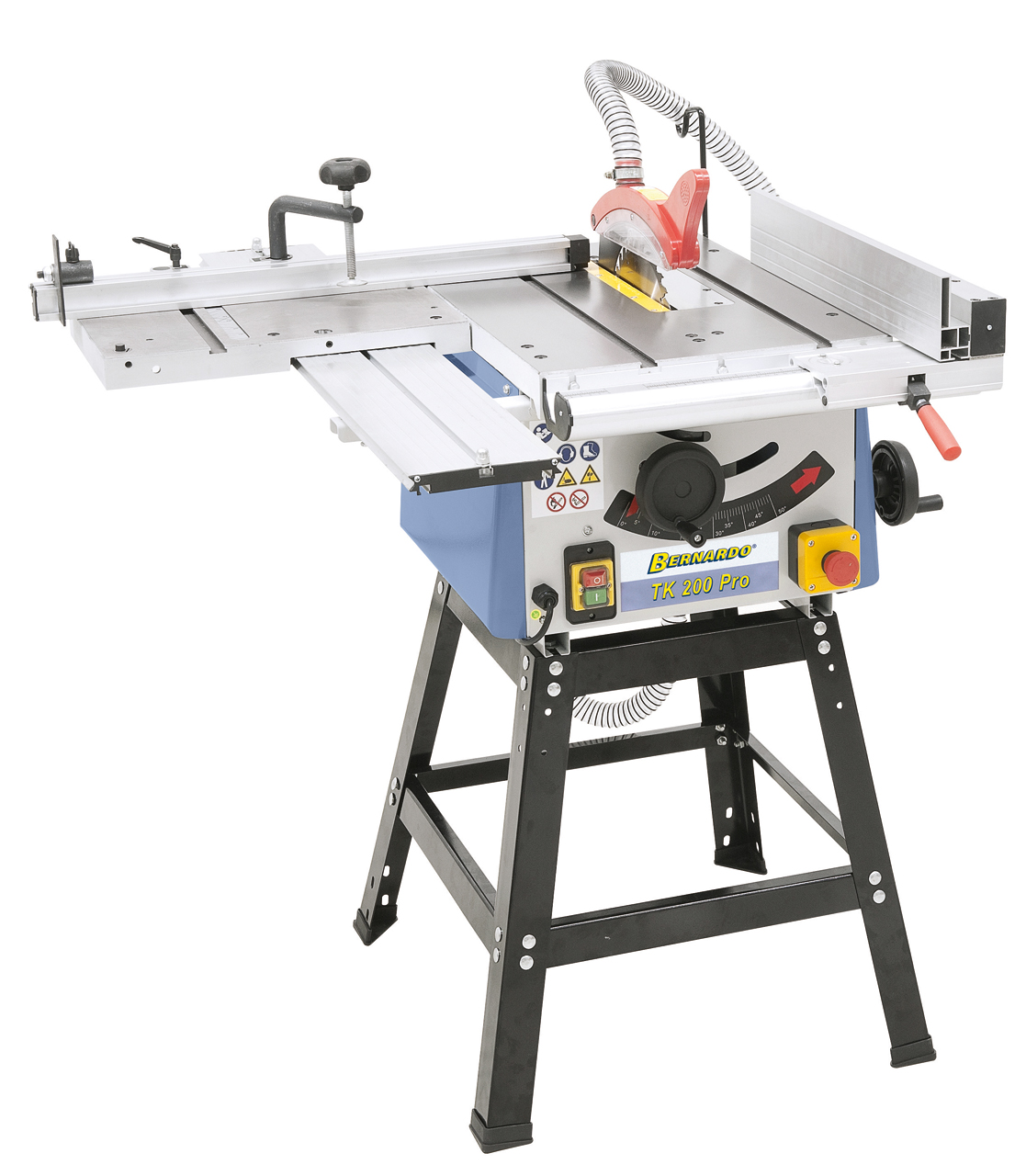

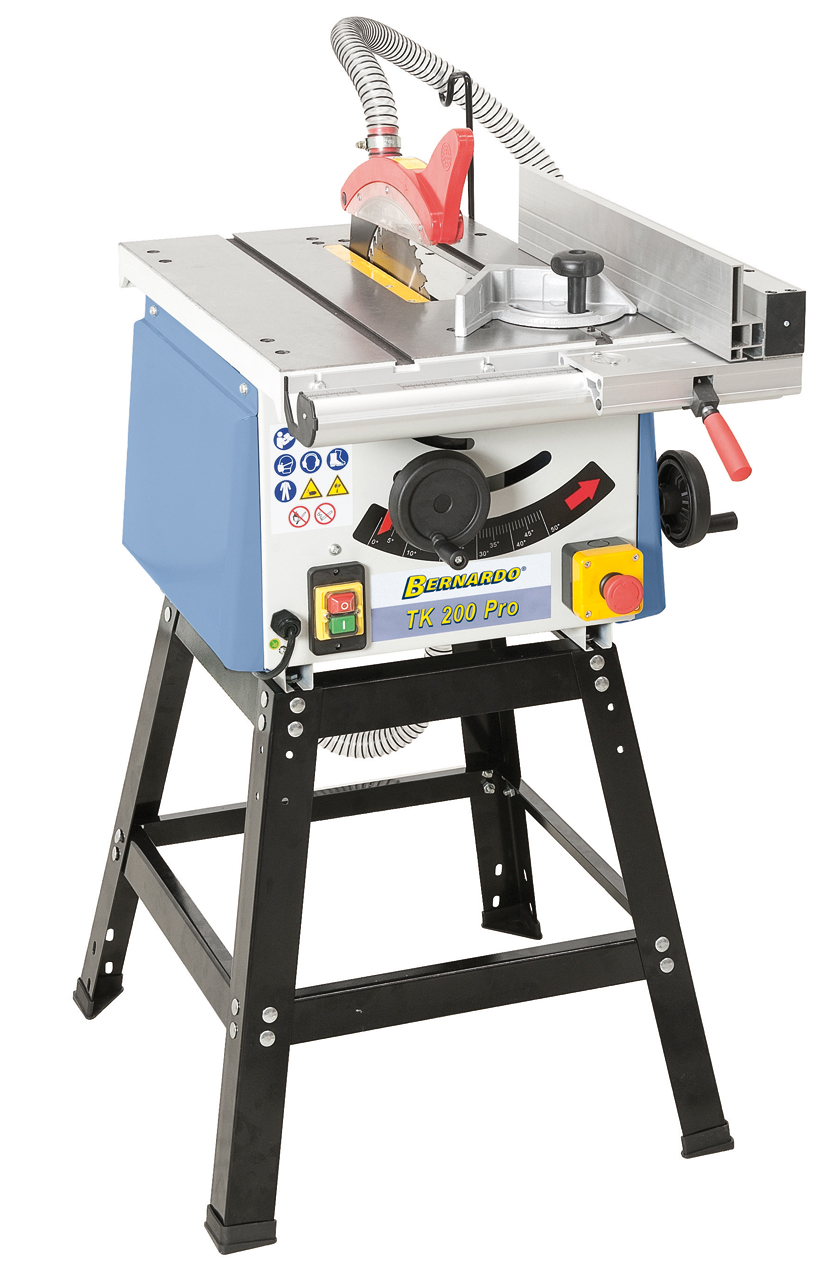

Circular table saw Bernardo TK 250 PRO
The table saw TK 250 PRO is a cost-effective base model for quick machining of small workpieces. Through the extensive range of accessories (roller table, extension table, open and closed stand, this machine allowing individual adaption to suits the needs of the user and can be expanded at any time.
Scope of delivery Circular table saw Bernardo TK 250 PRO
- Carbide sawblade 250 x 2,8 x 30 mm / 40T

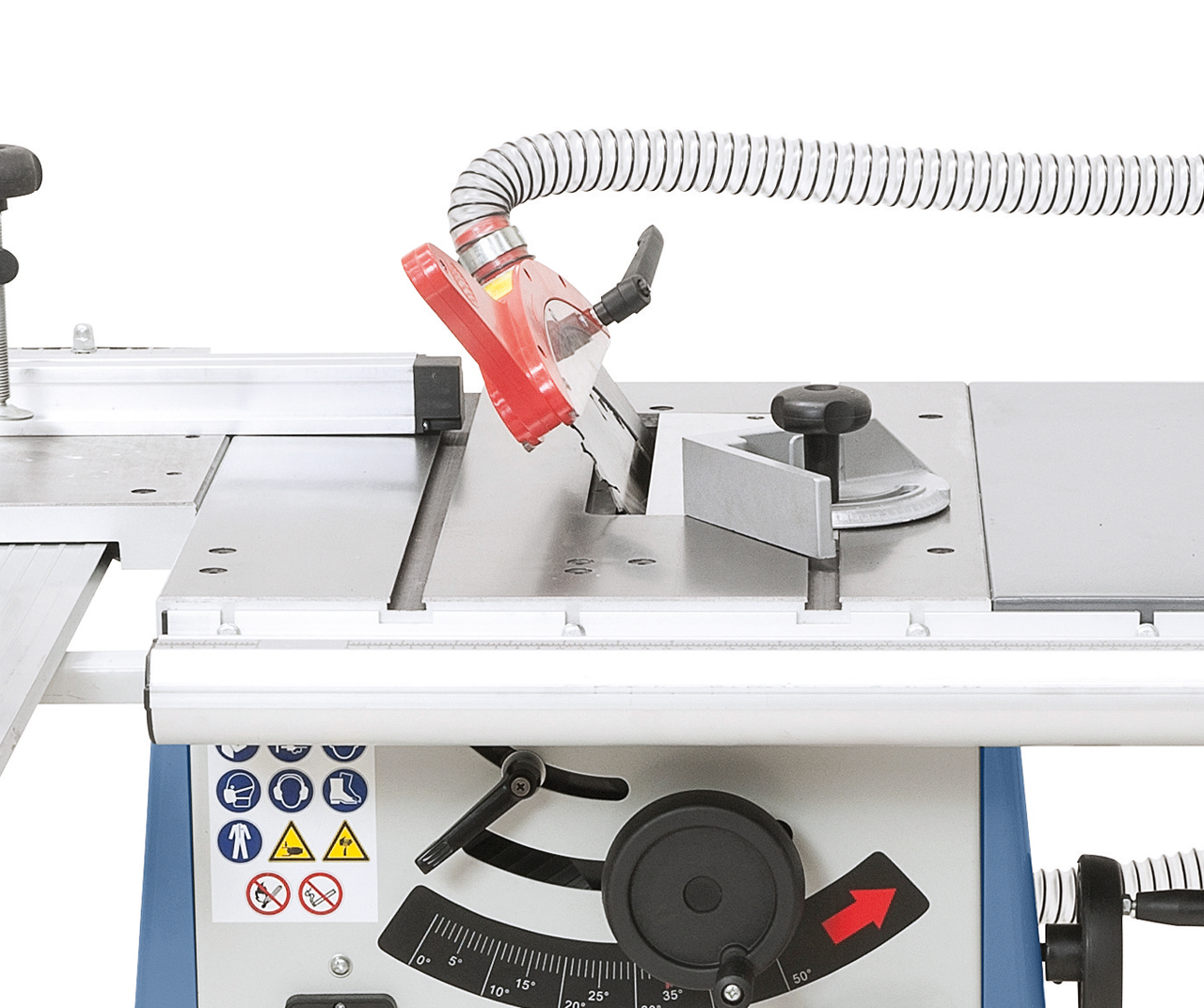

- Protective cover with dust extraction outlet
- Double sided mitre fence
- Rip fence with loupe
- Separate emergency stop
- Braking motor
- Tools
Features Wood Circular table saw Bernardo TK 250 PRO
- Mitre fence either useable on right or left of sawblade, suitable for angle cuts up to 45°
- Powerful drive motor ensures constant cutting speed, even at 80 mm cutting height

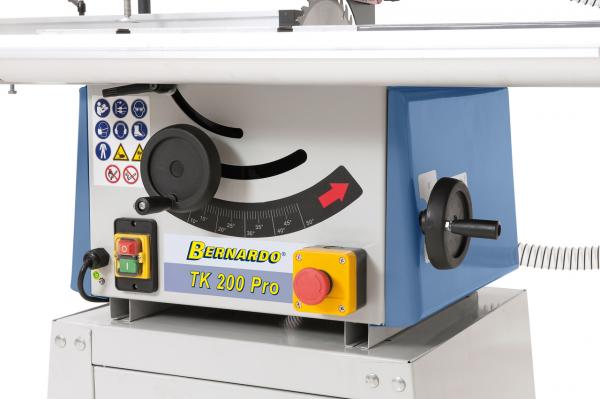

- ON-OFF switch in accordance with IP 54 features undervoltage release and separate emergency stop
- Cost-effective base model, extensive range of accessories for expanded use
- Left tilting sawblade ensures better cutting guide on longitudinal fence
- Casting machine table features high accuracy and two T-slots
- Standard accessories include mitre fence and sawblade
- Including rip fence for cutting of narrow and thin workpieces
- Handwheel allows for tilting of saw unit up to 45°
Technical details v
Table size | 670 x 430 mm |

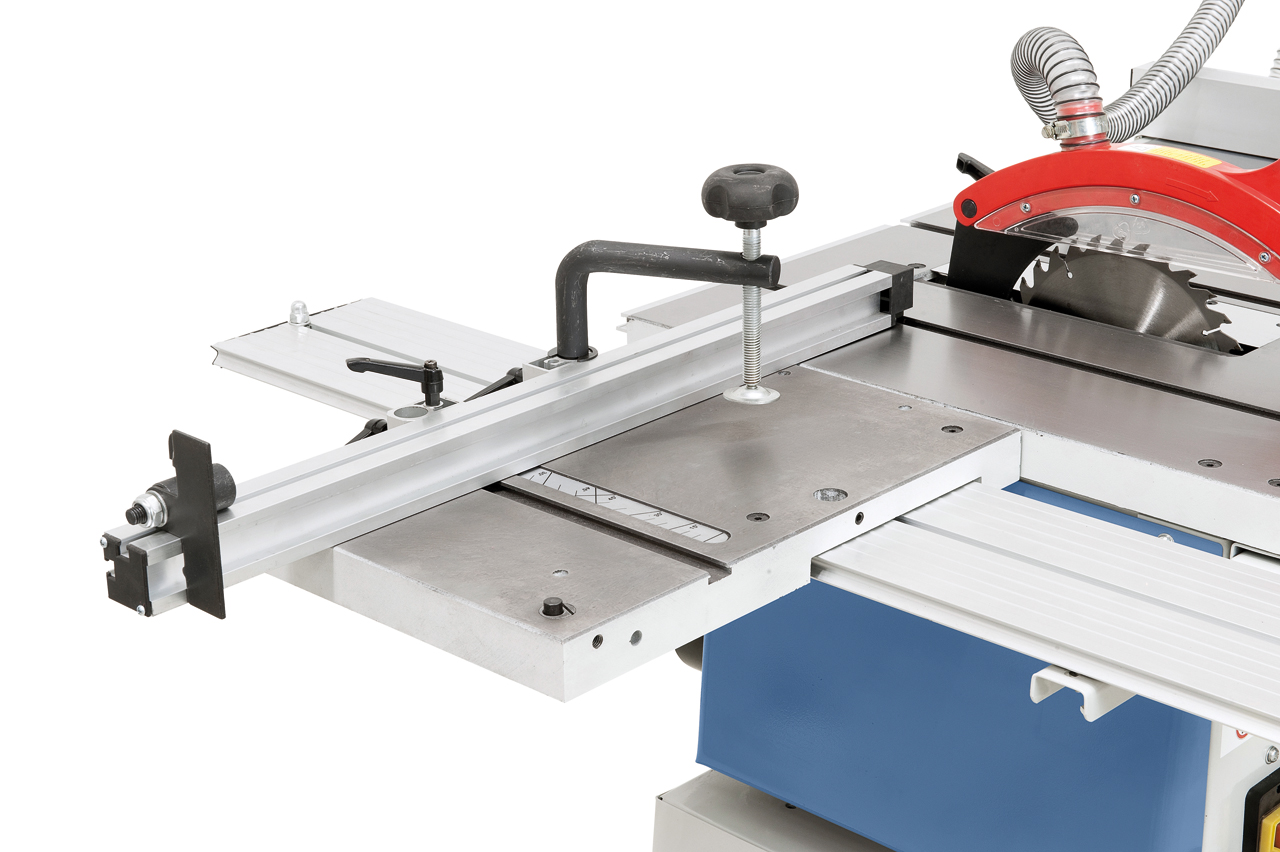

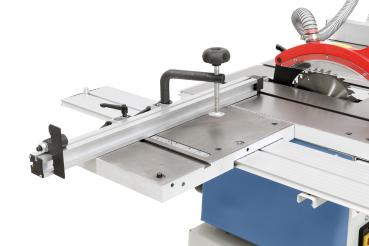

Roller table* | 400 x 250 mm |
Travel of roller table* | 920 mm |
Max. sawblade diameter | 250 x 30 mm |
Max. cutting height 90° / 45° | 80 / 60 mm |
Cutting width on rip fence | 200 mm** |
Table height | 355 mm |

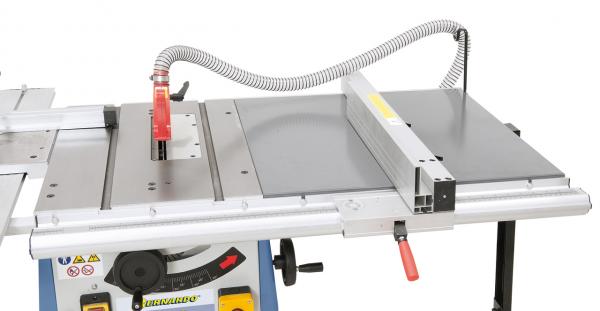

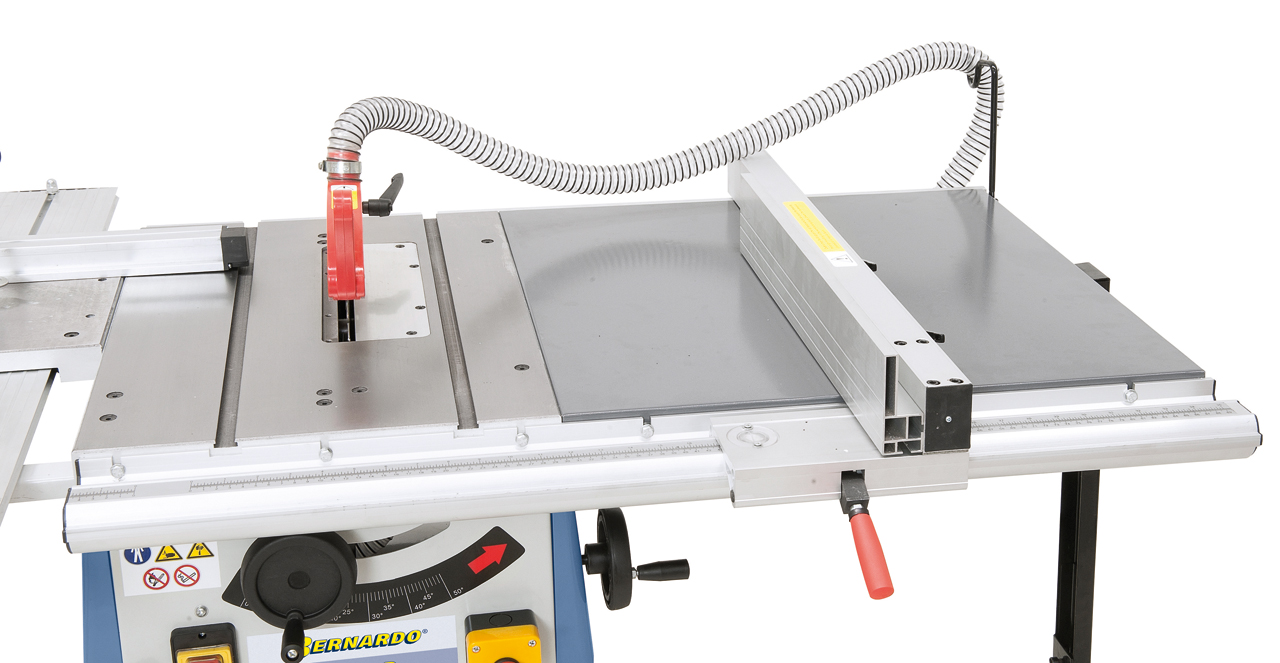

Table extension* | 600 x 670 mm |
Speed main sawblade | 4750 rpm |
Dust extraction outlet | 100 mm |
Motor power output S1 100% | 1,5 kW (2,0 HP) |
Motor power input S6 40% | 2,1 kW (2,8 HP) |
Voltage | 230 V |
Machine dimension (W x D x H) | 850 x 600 x 550 mm |
Weight approx. | 67 kg |
* optional
** 725 mm with optional table extension
