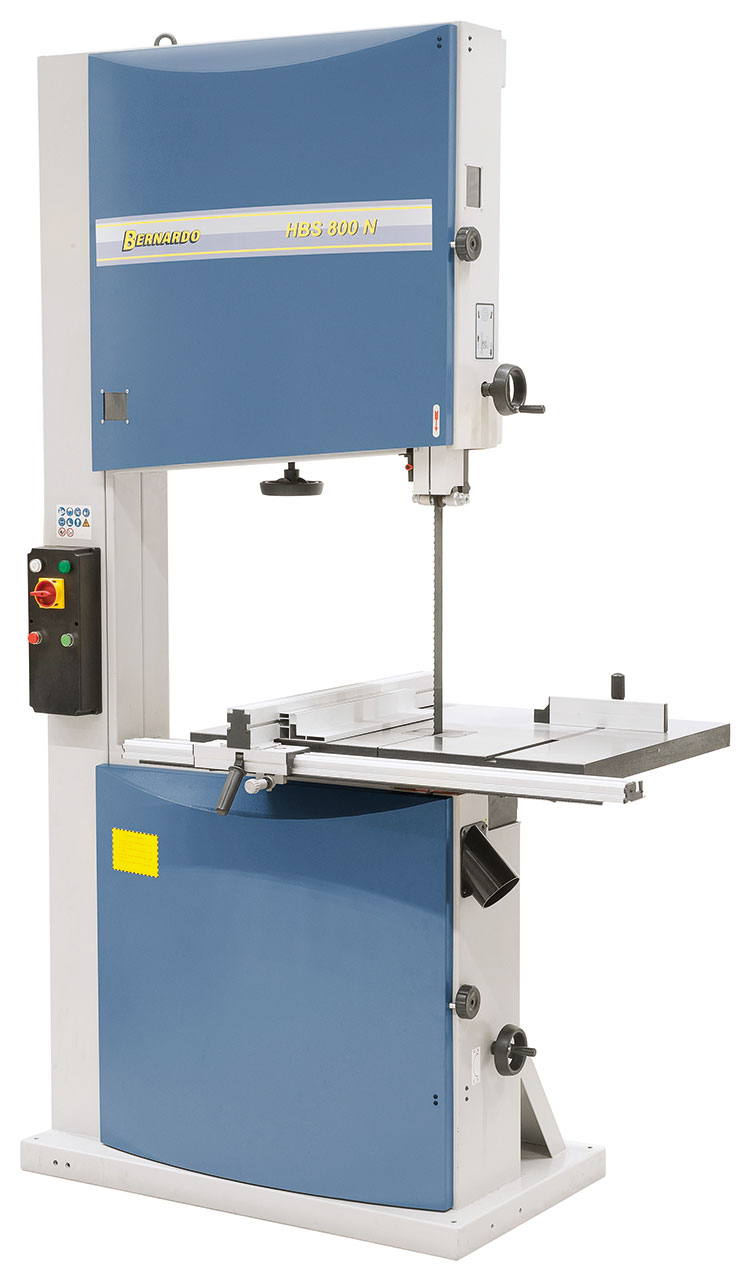

Our top model HBS 800 N is the optimal machine for the professional user. This model is serially equipped with a brake motor, a precision 3-roller bandsaw blade guiding as well as cast iron flywheels. Further, this model allows a quick bandsaw blade changing using the quick clamping lever.
Scope of delivery Wood bandsaws Bernardo HBS 800 N
- Bandsaw blade
- Rip fence with loupe
- Mitre fence

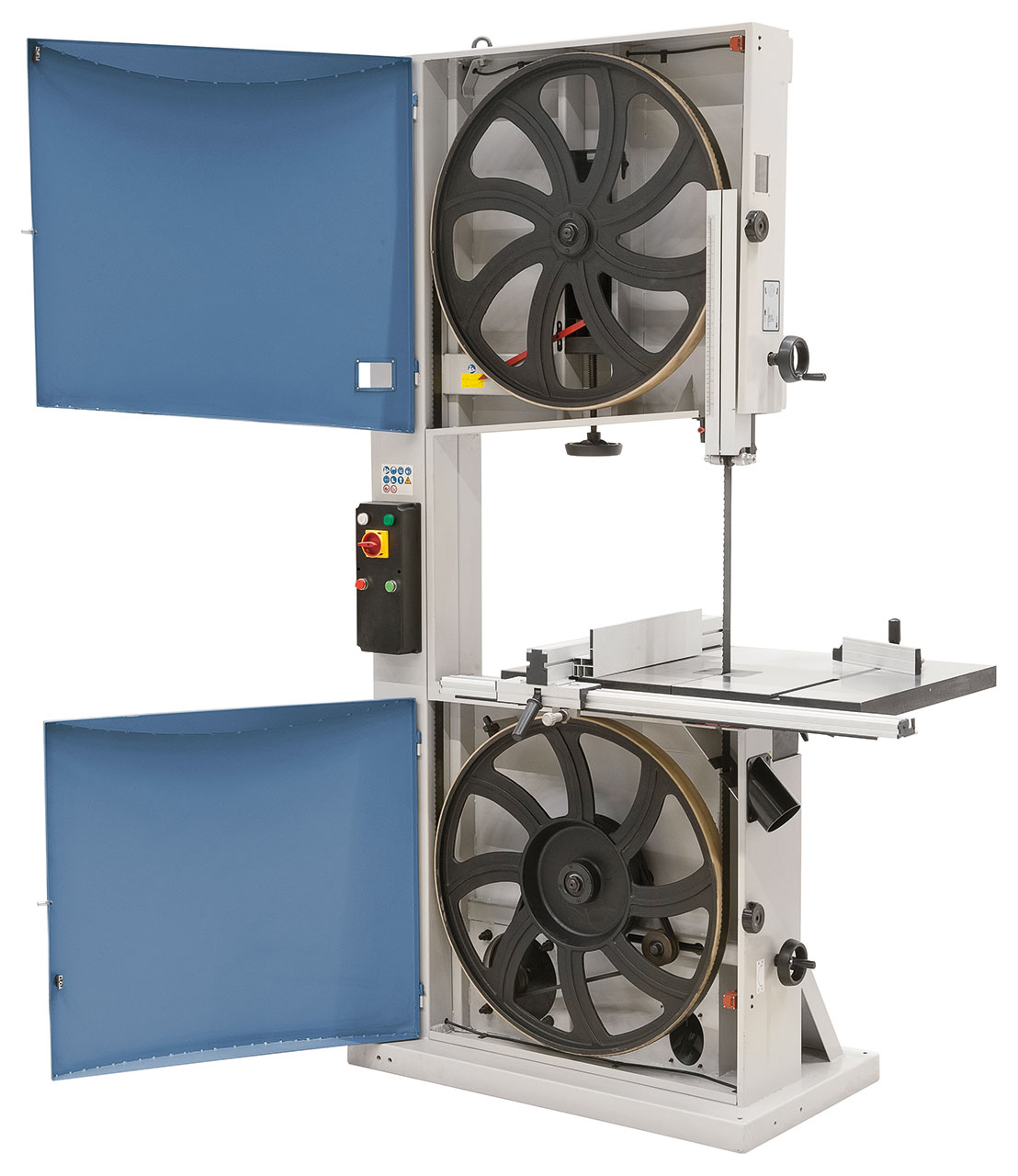

- Cast iron flywheels
- Precision-3-roller bandsaw blade guiding

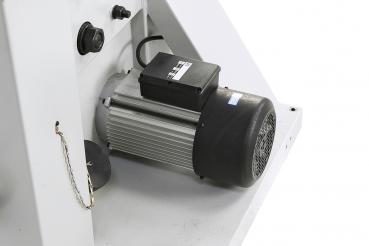

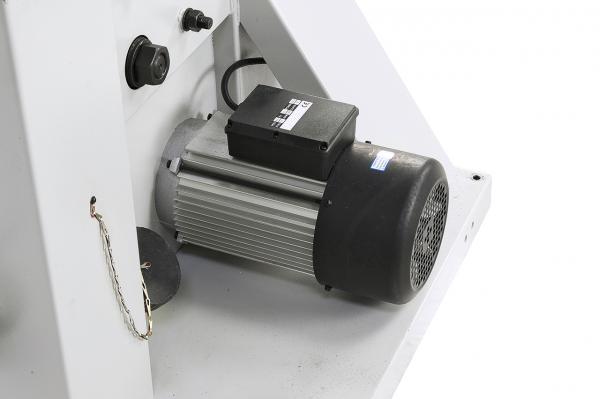

- Motor incl. brake
- Push stick
- Tools
Features Wood bandsaws Bernardo HBS 800 N

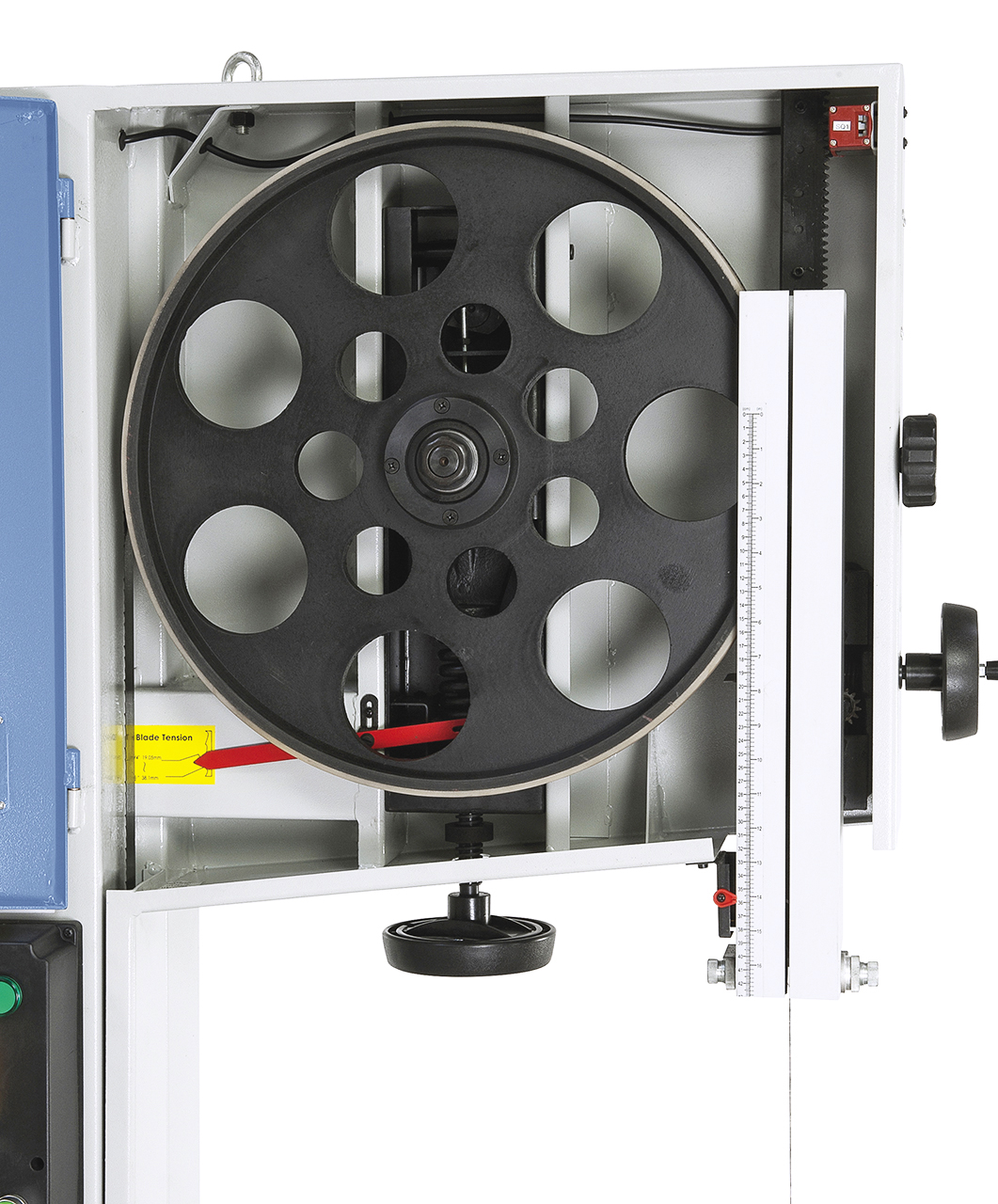

- Dynamically balanced flywheels for smooth run
- Cutting height adjustment via gear rack with mm-scale using a handwheel

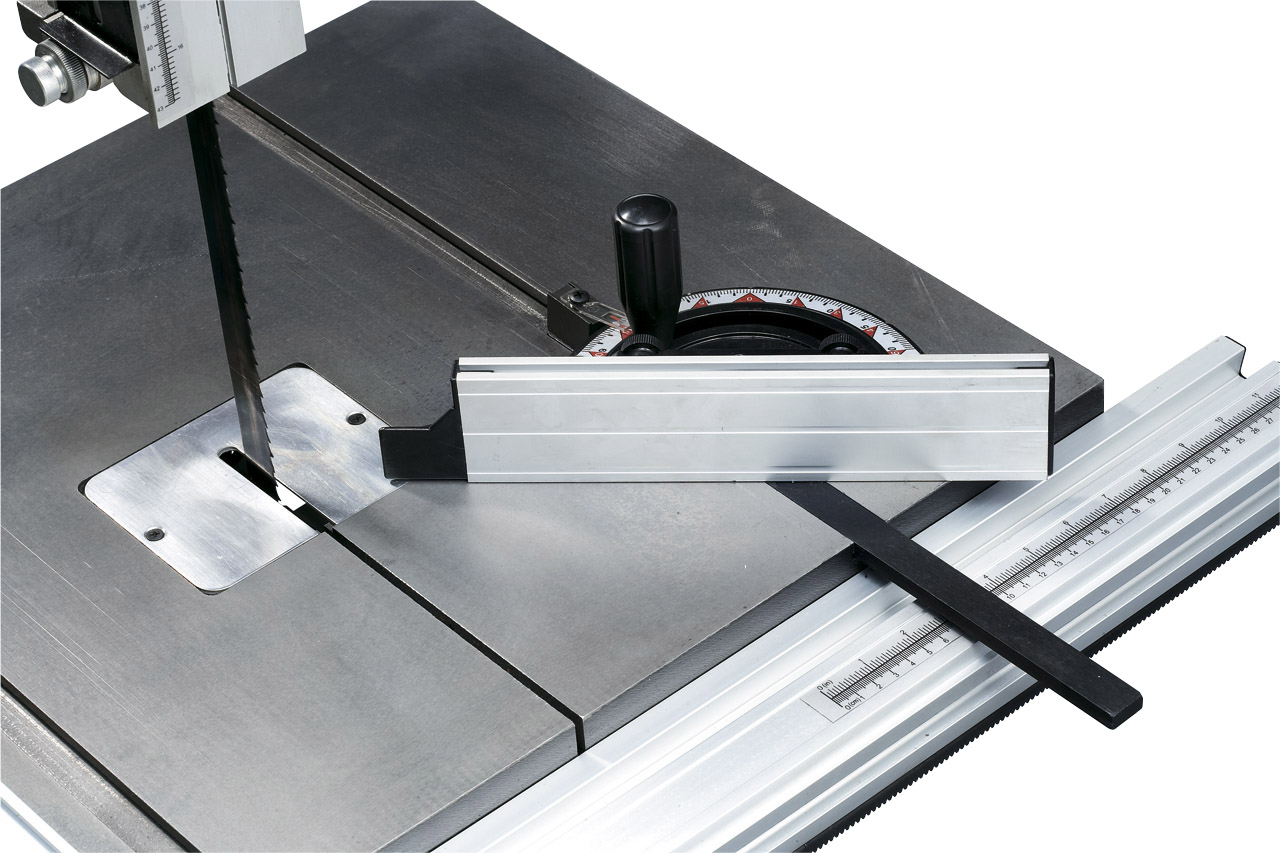

- Working table with grounded surface and T-slot for the mitre fence

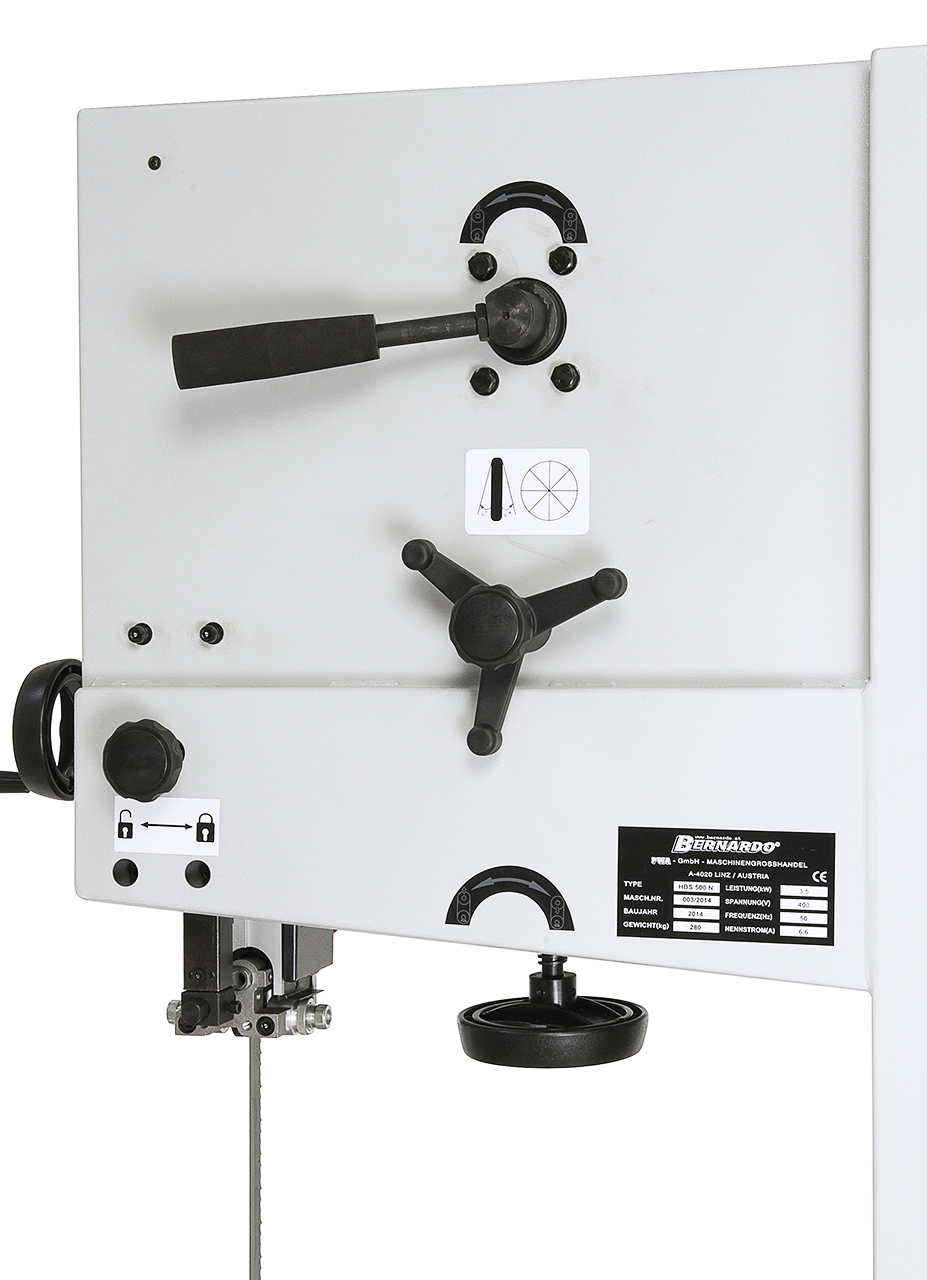

- Easy bandsaw blade change using the quick clamping lever on the backside.

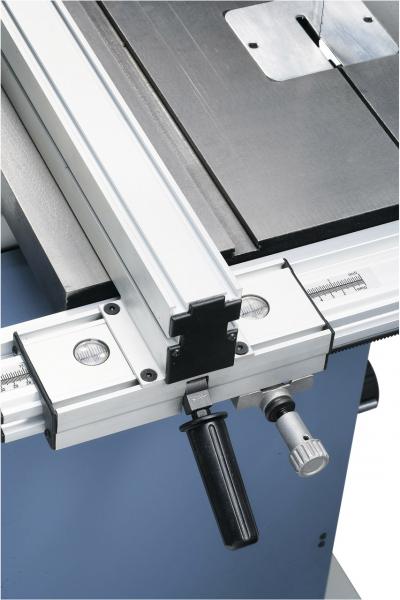

- Precise guided aluminium rip fence, removable on each position
- Inspection window on the front for checking the run of the bandsaw blade
- Generously dimensioned cast iron table, tiltable from -5° to +45°
- High-power drive motor allow handling of bigger workpieces
- Professional wooden bandsaw – heavy self-weight for maximum smoothness
Technical details Wood bandsaws Bernardo HBS 800 N
| Cutting width | 800 mm |
| Cutting height | 460 mm |
| Blade dimension | 5611 x 38 x 0,6 - 2 TPI |
| Blade width | 19 - 50 mm |
| Cutting speed | 1080 m/min |
| Table size | 900 x 700 mm |
| Table height | 1050 mm |

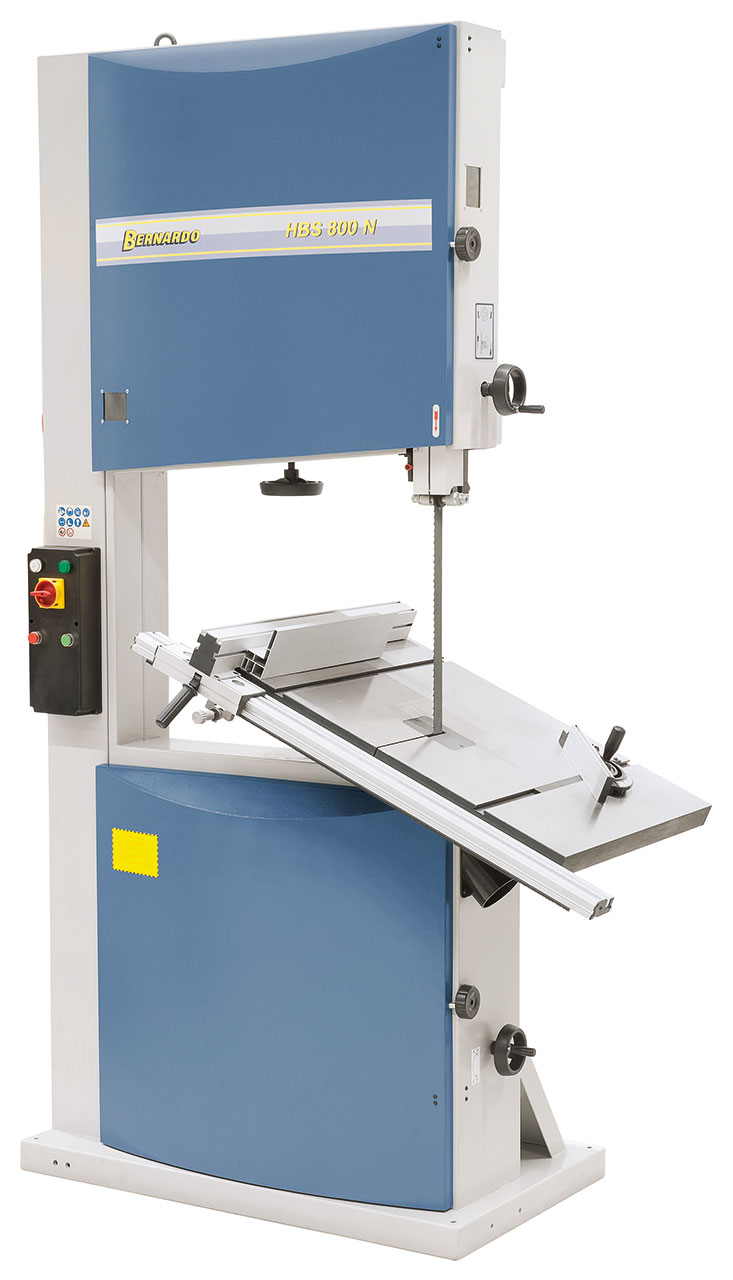

| Tilting table | -5° to +45° |
| Dust extraction outlet | 2x 100 mm |
| Motor power output S1 100% | 5,5 kW (7,5 HP) |
| Motor power input S6 40% | 7,1 KW (9,7 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 1600 x 1000 x 2480 mm |
| Weight approx. | 524 kg |
