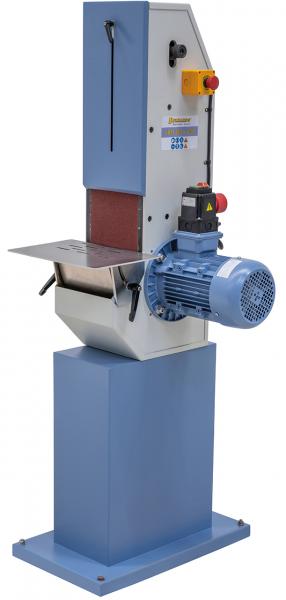

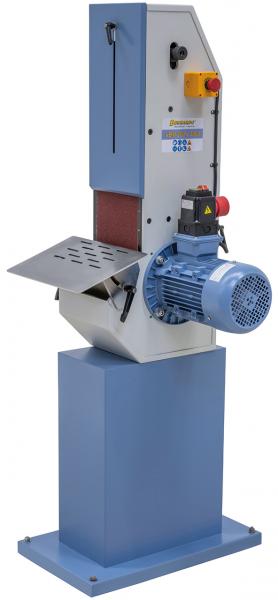

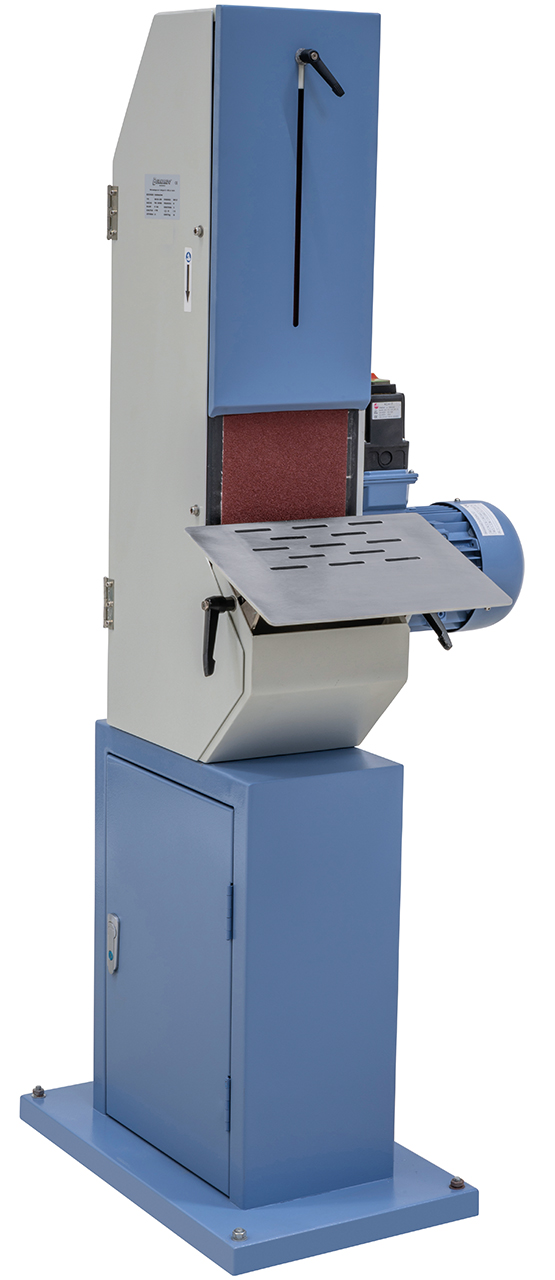

Vertical belt sander Bernardo VBM 200 x 2000
NEW
Scope of delivery Vertical belt sander Bernardo VBM 200 x 2000
- Sanding belt 200 x 2000 - K80

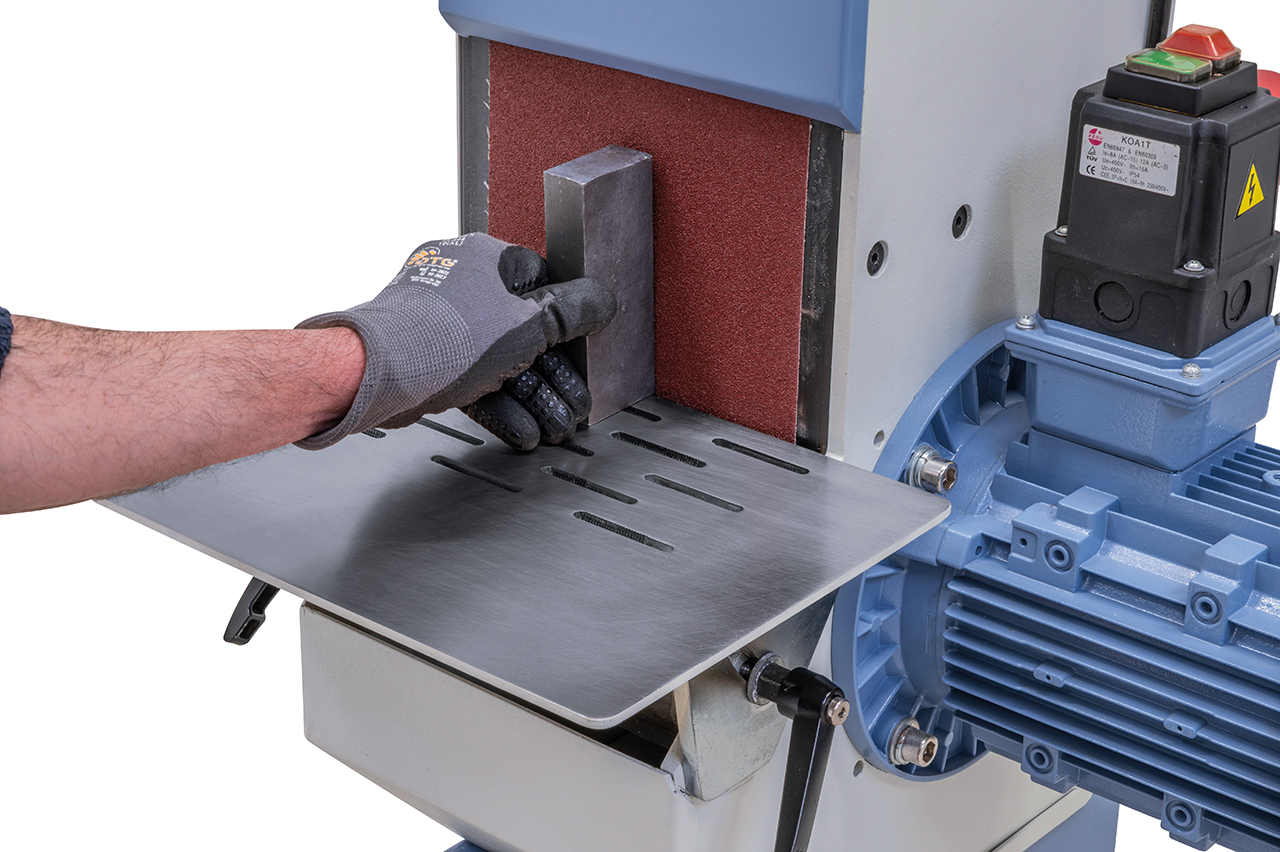

- Sanding and support table
- Dust extraction connection
- Base with tool compartment
Features Vertical belt sander Bernardo VBM 200 x 2000
- Base frame with lockable tool compartment included in delivery
- Powerful drive motor for optimum grinding results even during prolonged use
- Vertical design for reduced space requirements
- Time-saving deburring of edges, smoothing of weld seams
- Easily replaceable grinding belt, manually adjustable belt tension
- Low-vibration operation thanks to stable and torsion-free machine housing
- Universally applicable for a wide range of materials (metal, plastic, wood)
Technical details Vertical belt sander Bernardo VBM 200 x 2000
| Grinding |
|
| Belt dimensions | 200 x 2000 mm |
| Belt speed | 19 m/sec. |
| Surface grinding table | 240 x 480 mm |
| Table size | 380 x 250 mm |
| Tiltable table | 0° – 60° |
| Extraction port Ø | 100 mm |
| Motor Data |
|
| Motor power | 3.0 kW |
| Voltage | 400 V |
| General Dimensions |
|
| Width | 700 mm |
| Depth | 700 mm |
| Height | 1650 mm |
| Weight |
|
| Weight approx. | 124 kg |
