Main page » Metal » Bernardo sanding machine » Bernardo belt sander » Vertical belt sander Bernardo VBM 100 x 2000

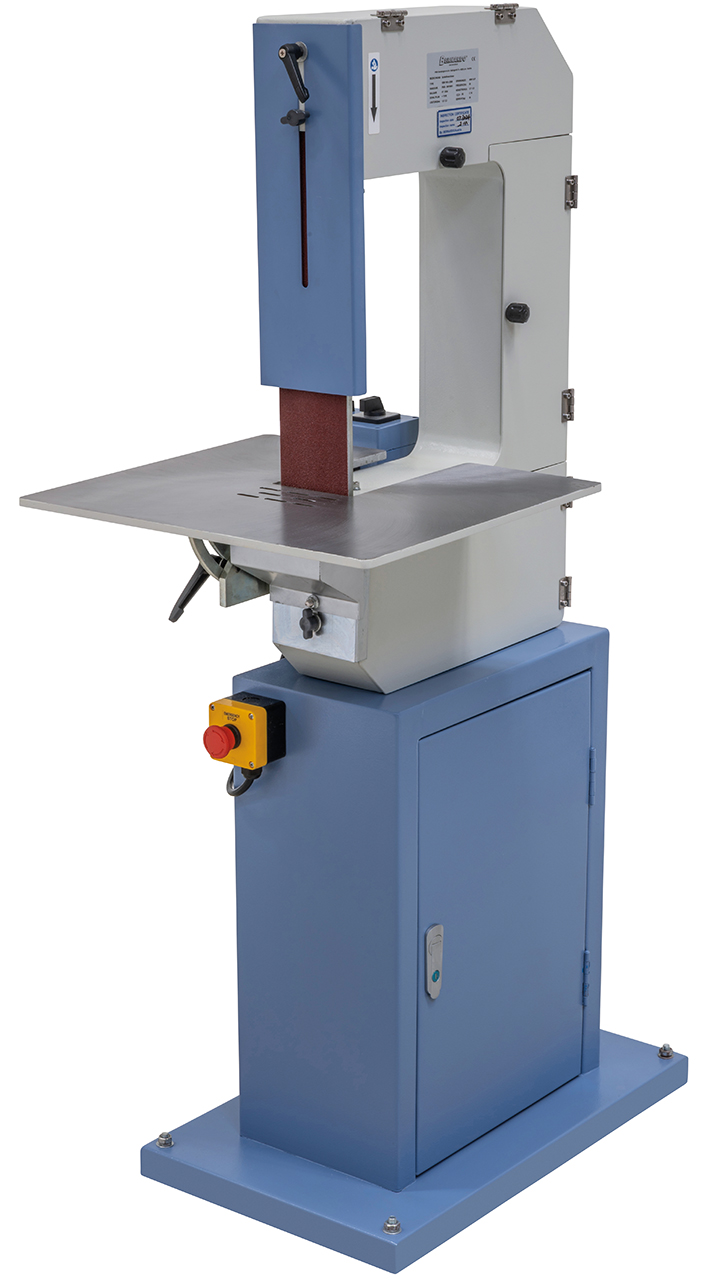

Vertical belt sander Bernardo VBM 100 x 2000
NEW
Scope of delivery Vertical belt sander Bernardo VBM 100 x 2000
- Sanding belt 50 x 2000 - K80
- Sanding belt 75 x 2000 - K80
- Sanding belt 100 x 2000 - K80

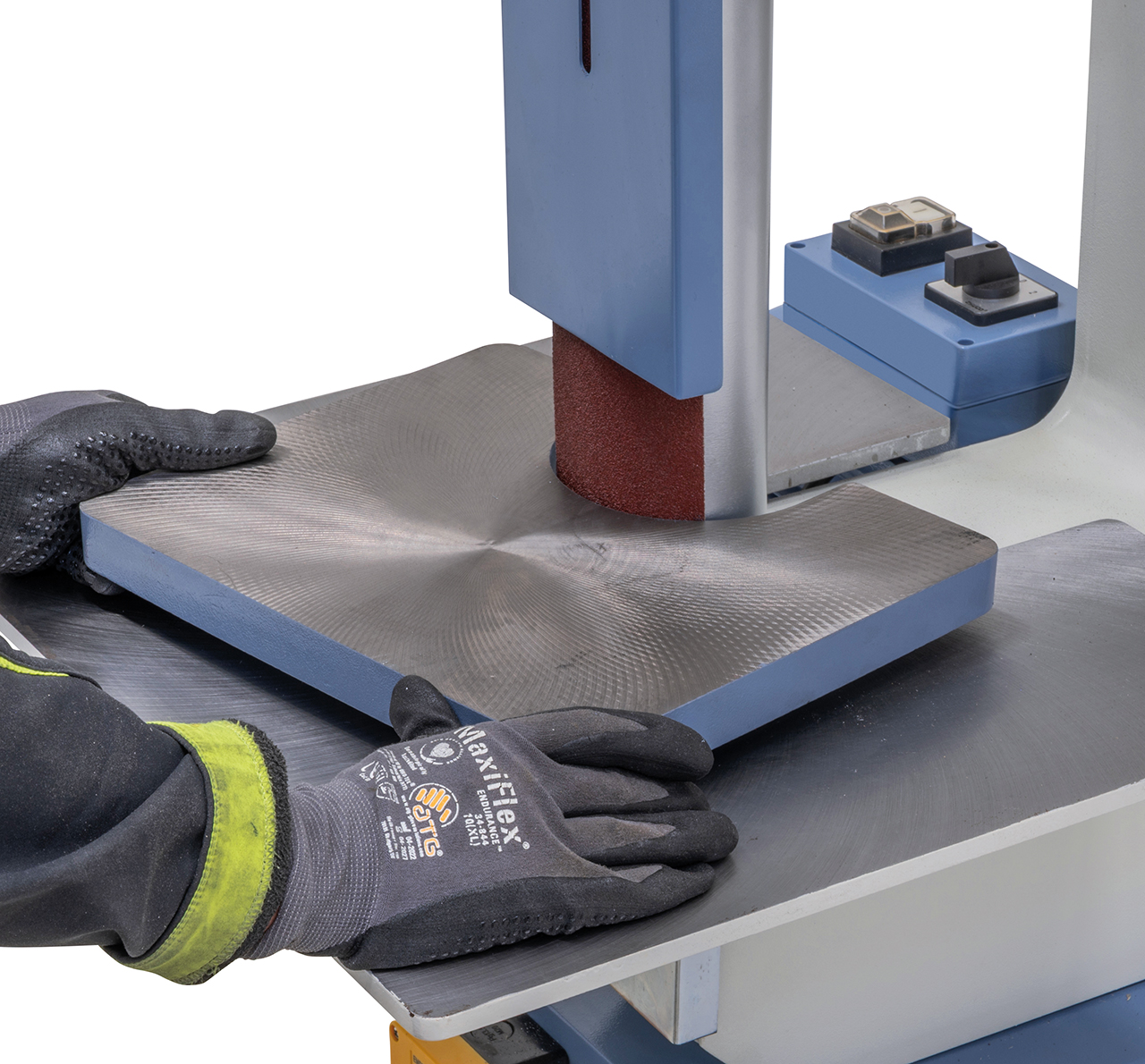

- 3x round sanding device Ø 30 / 47 / 74 mm

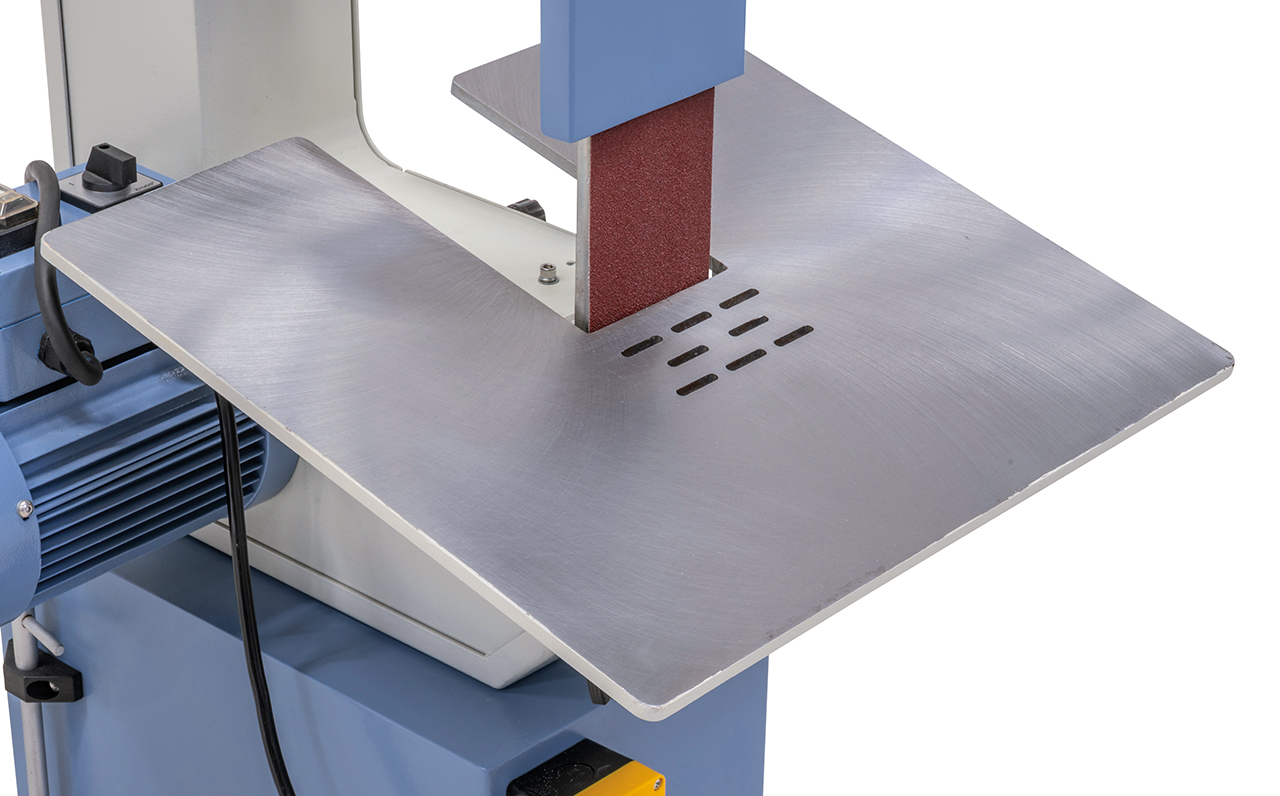

- Sanding and support table
- Dust extraction connection

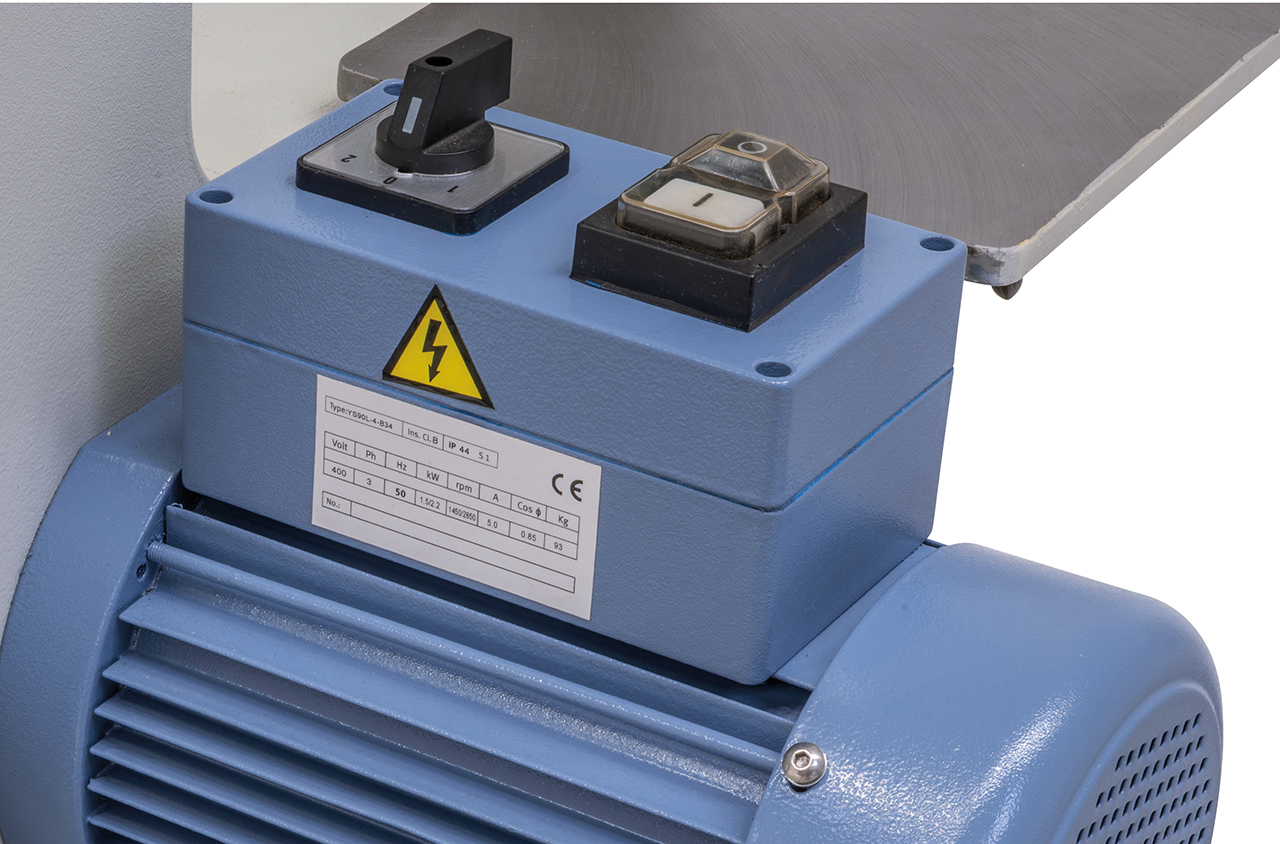

- 2-speed switch
- Base with tool compartment
Features Vertical belt sander Bernardo VBM 100 x 2000
- Standard with 2 speeds, ideal for grinding stainless steel
- Extended range of applications thanks to standard round grinding attachments (Ø 30 / 47 / 74 mm)
- Base frame with lockable tool compartment included in delivery
- Good grinding performance thanks to high belt speed
- Vertical design for reduced space requirements
- Universally applicable for grinding edges, surfaces and for round grinding
- Time-saving deburring of edges, smoothing of weld seams

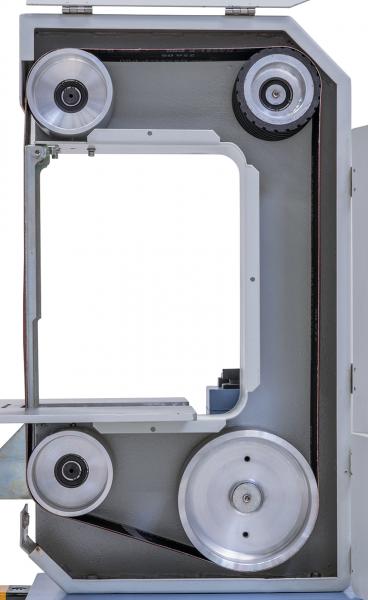

- Easily replaceable grinding belt, manually adjustable belt tension
- Low-vibration operation thanks to stable and torsion-free machine housing
- Universally applicable for a wide range of materials (metal, plastic, wood, etc.)
Technical details Vertical belt sander Bernardo VBM 100 x 2000
| Grinding |
|
| Belt dimensions | 100 x 2000 mm |
| Belt speed | 15 / 30 m/sec. |
| Surface grinding table | 100 x 290 mm |
| Table size | 500 x 450 mm |
| Tiltable table | 0° – 60° |
| Extraction port Ø | 50 mm |
| Motor Data |
|
| Motor power | 1.5 kW / 2.2 kW |
| Voltage | 400 V |
| General Dimensions |
|
| Width | 580 mm |
| Depth | 730 mm |
| Height | 1420 mm |
| Weight |
|
| Weight approx. | 95 kg |
