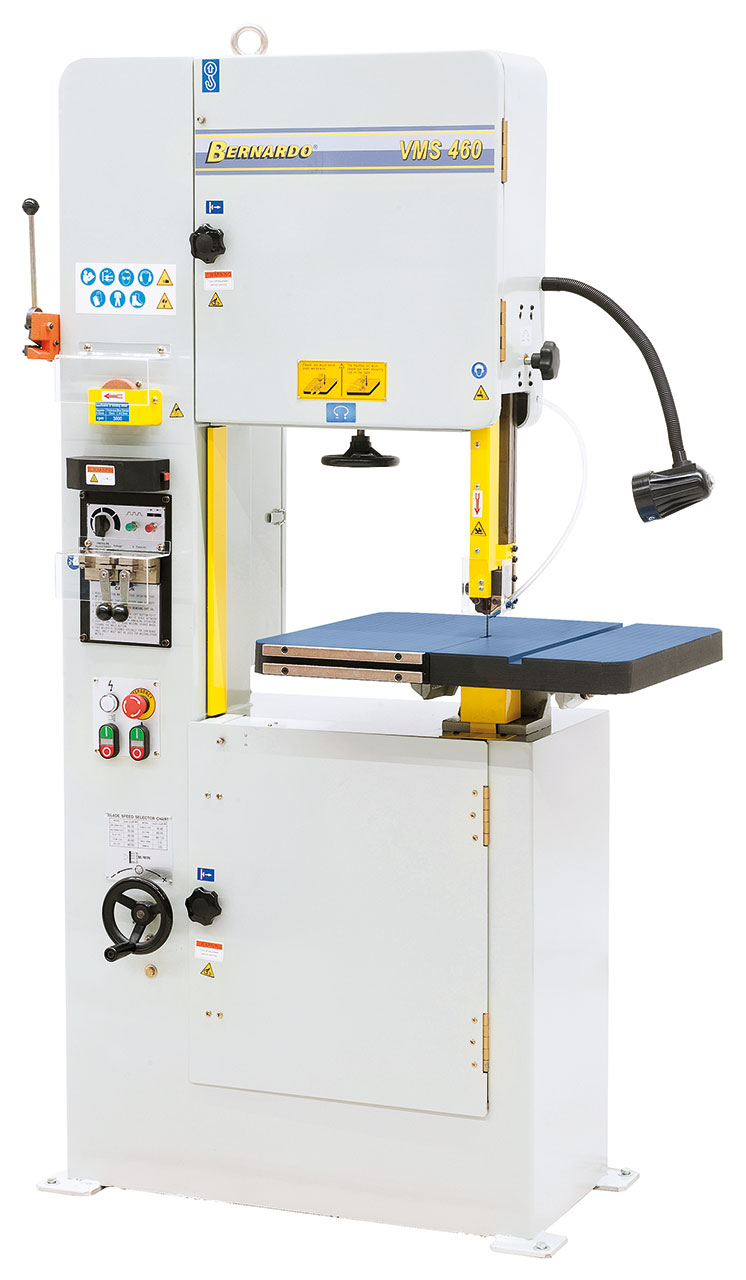

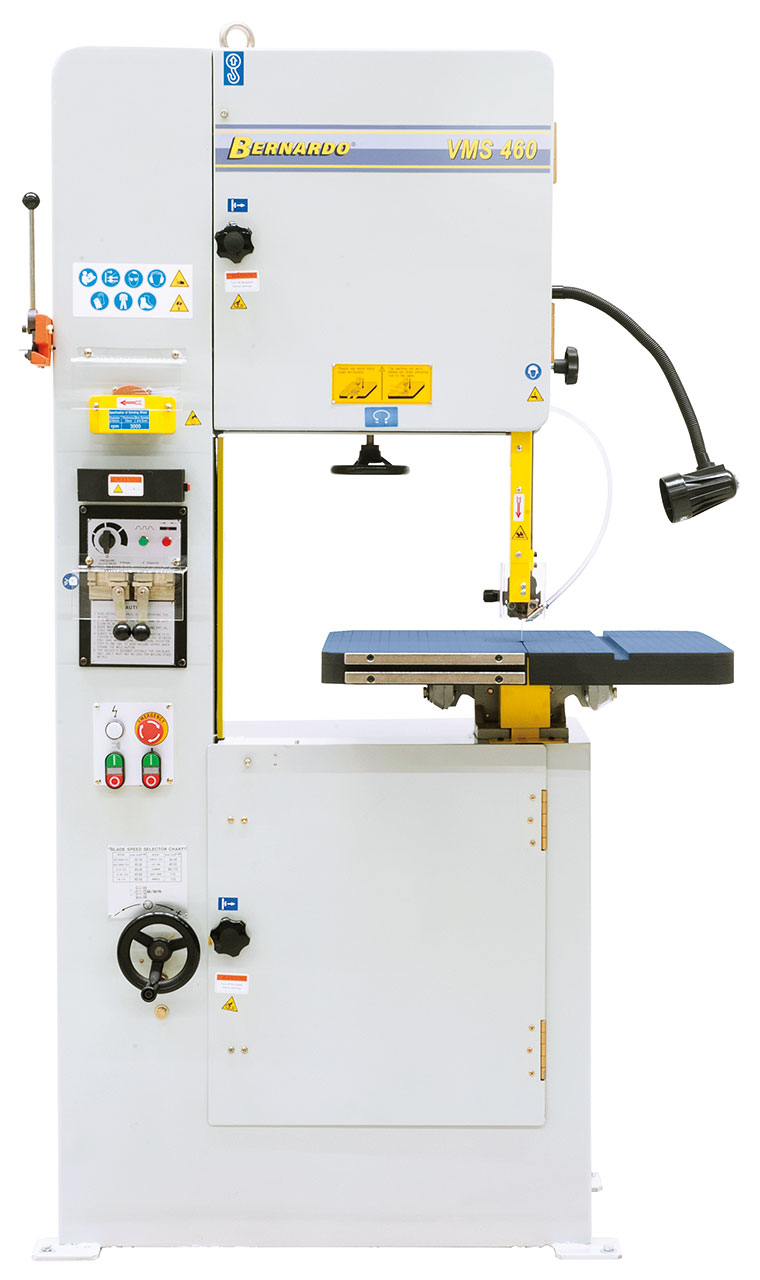

The vertical bandsaws VMS 460 is designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.). The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.
Scope of delivery Vertical bandsaws Bernardo VMS 460
- Bandsaw blade

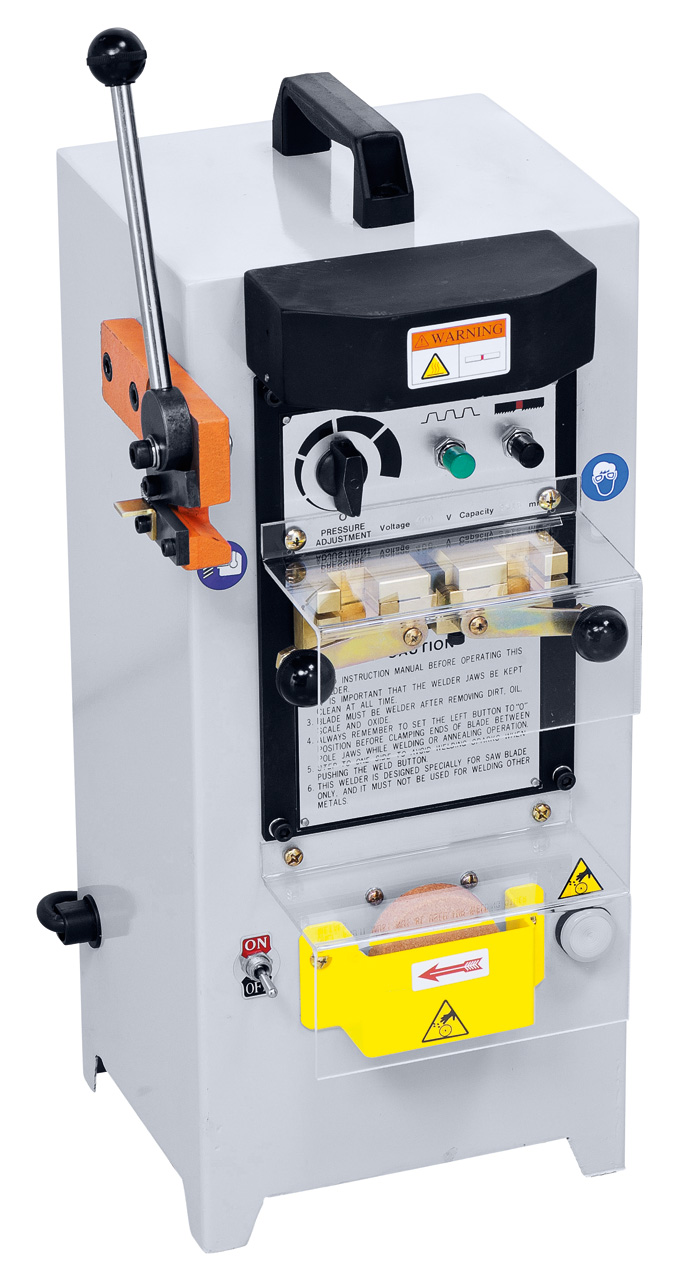

- Blade welding device with annealing device
- Halogen light
- Shear
- Grinder

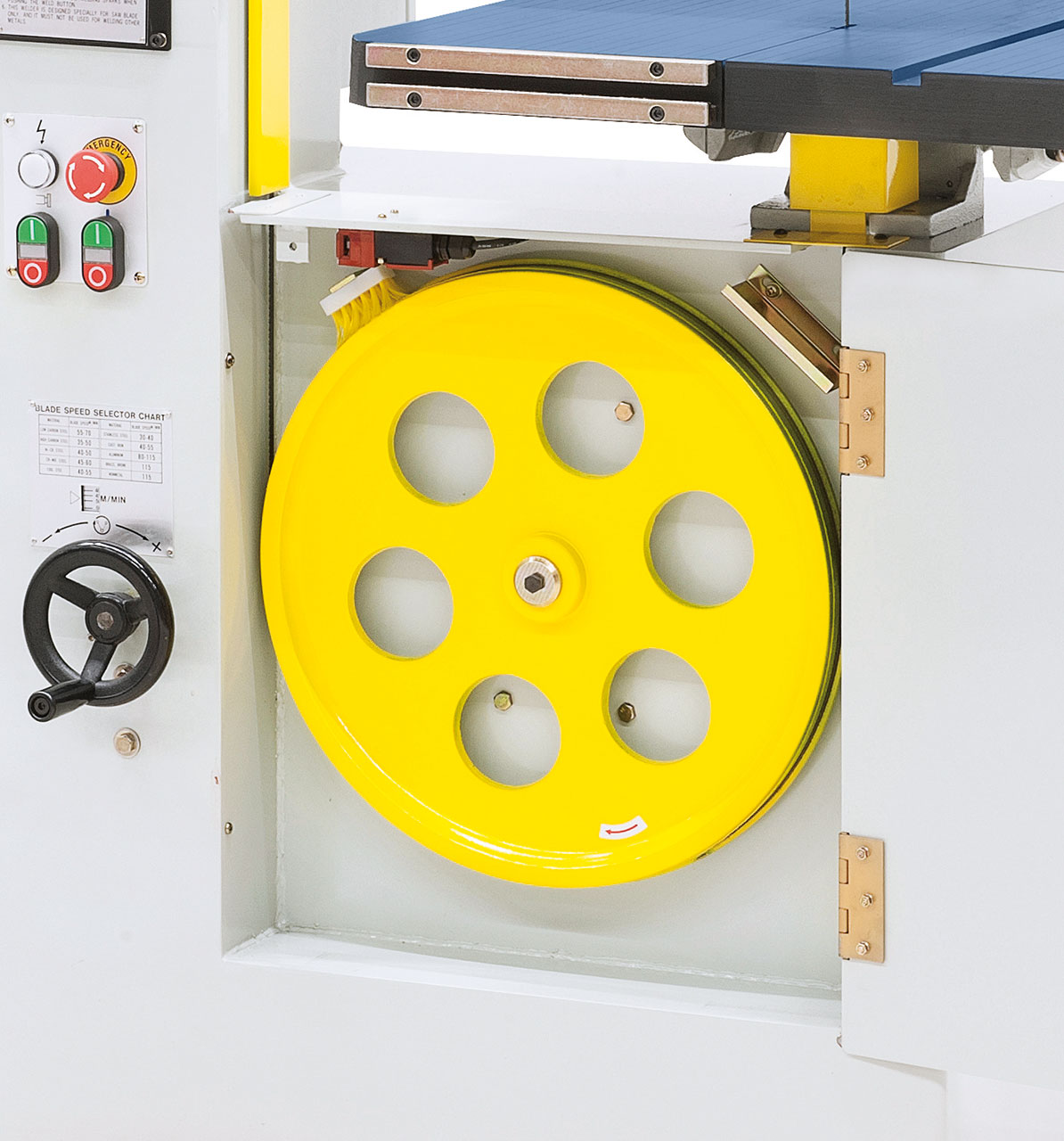

- Chip brush
- Blow gun
- Groove table
Features Vertical bandsaws Bernardo VMS 460
- Solid grey cast-iron table – the large surface improves safety aspects
- Blade welding device, annealing device, shear and grinder come standard

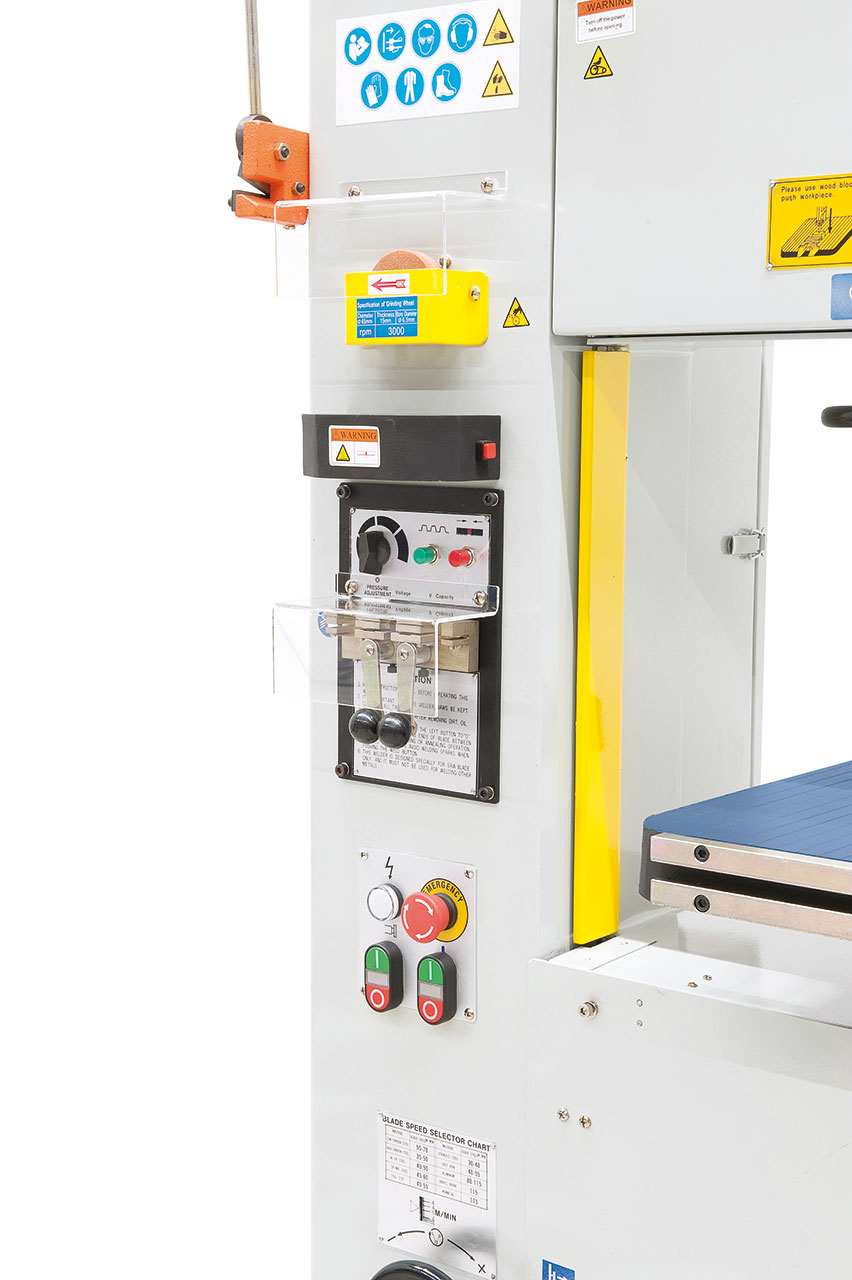

- Complete with stepless speed adjustment

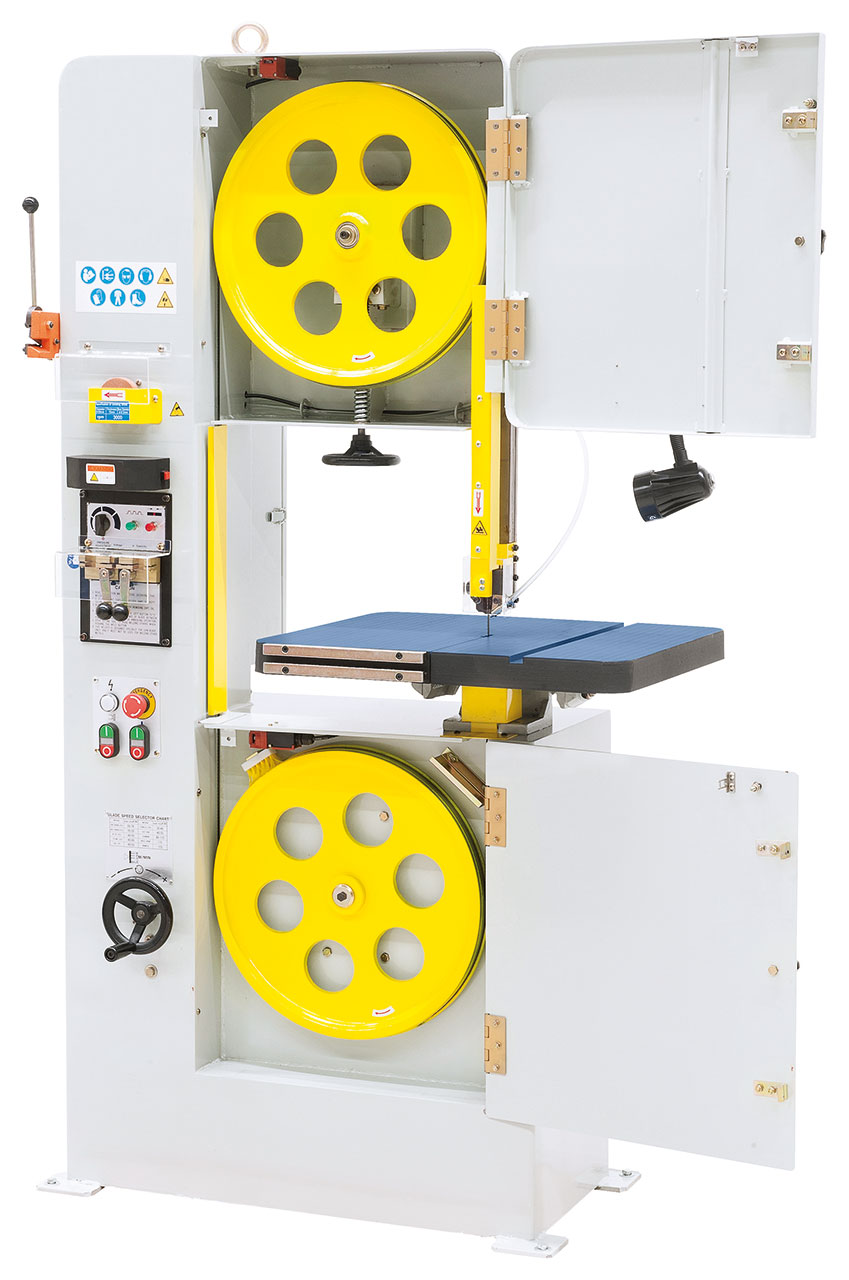

- Solidly constructed steel body ensures smooth running

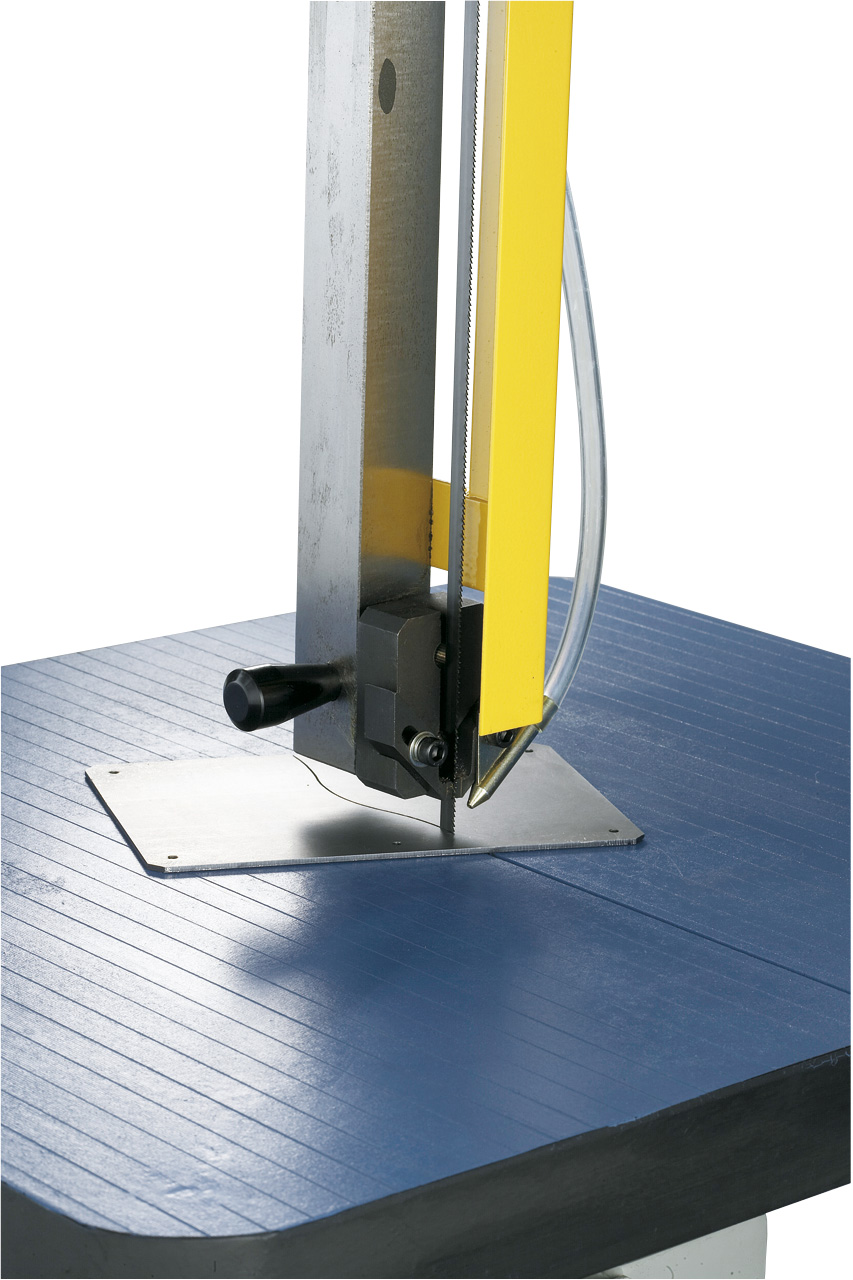

- High-quality bandsaw blade guide guarantees precise results
- Convenient cutting of irregular shaped workpieces
- Work table tilts 15º to all sides
- Blow gun with compressor is a standard accessory
- 3 mm bandsaw blades are optionally available for radius cutting
Technical details Vertical bandsaws Bernardo VMS 460
|
Cutting width
|
455 mm
|
|
Cutting height
|
255 mm
|
|
Working height
|
935 mm
|
|
Cutting speed setting 1
|
25 - 115 m/min
|
|
Bandsaw blade length
|
3490 mm
|
|
Bandsaw blade width
|
3 - 16 mm
|
|
Table size
|
600 x 500 mm
|
|
Table tilting range (in 4 directions)
|
15°
|
|
Motor power
|
0,75 kW
|
|
Blade welding device
|
2,4 kVA
|
|
Machine dimension (L x D x H)
|
1110 x 660 x 2020 mm
|
|
Weight approx.
|
300 kg
|
