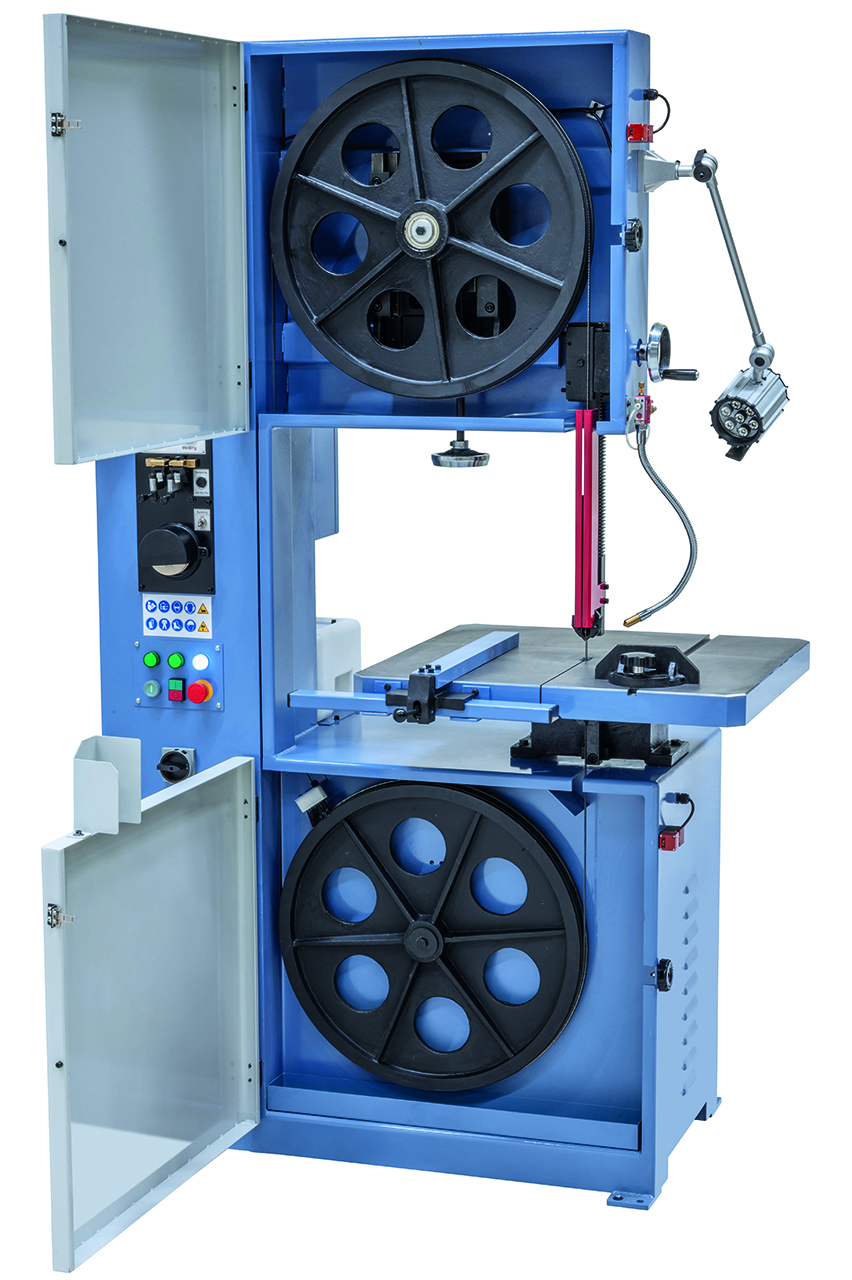

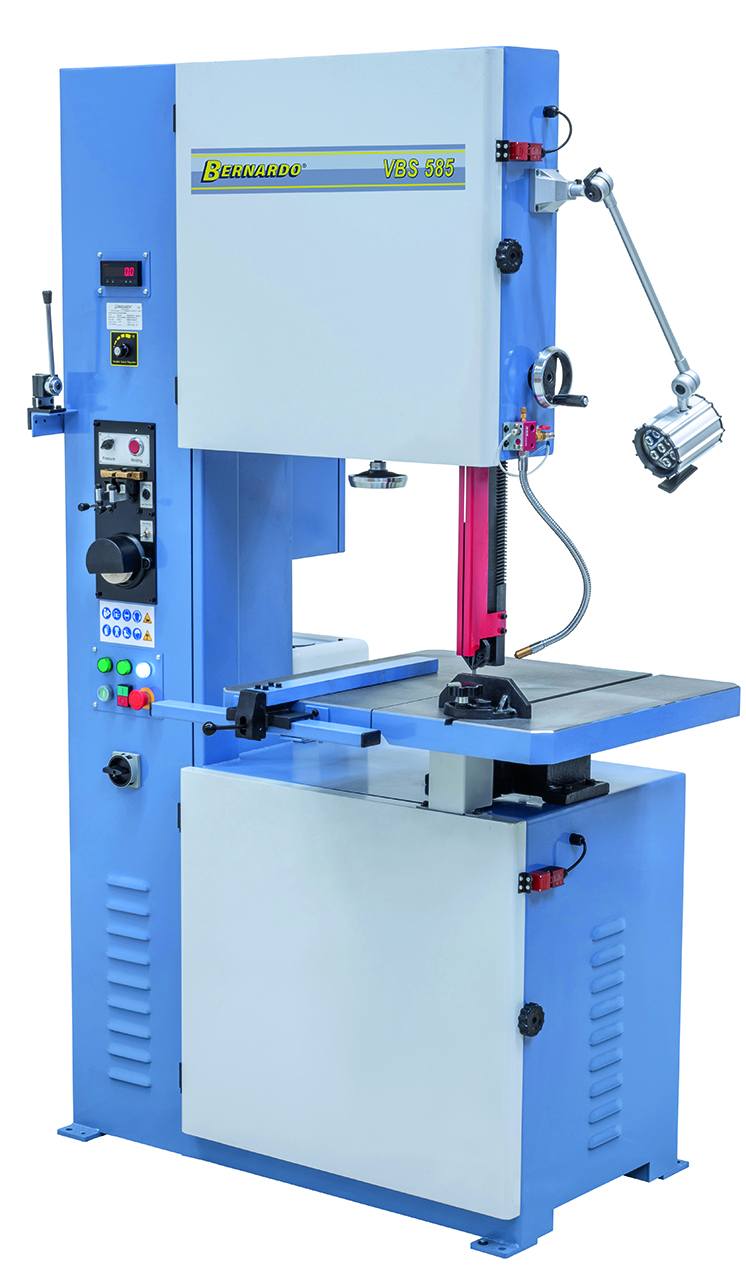

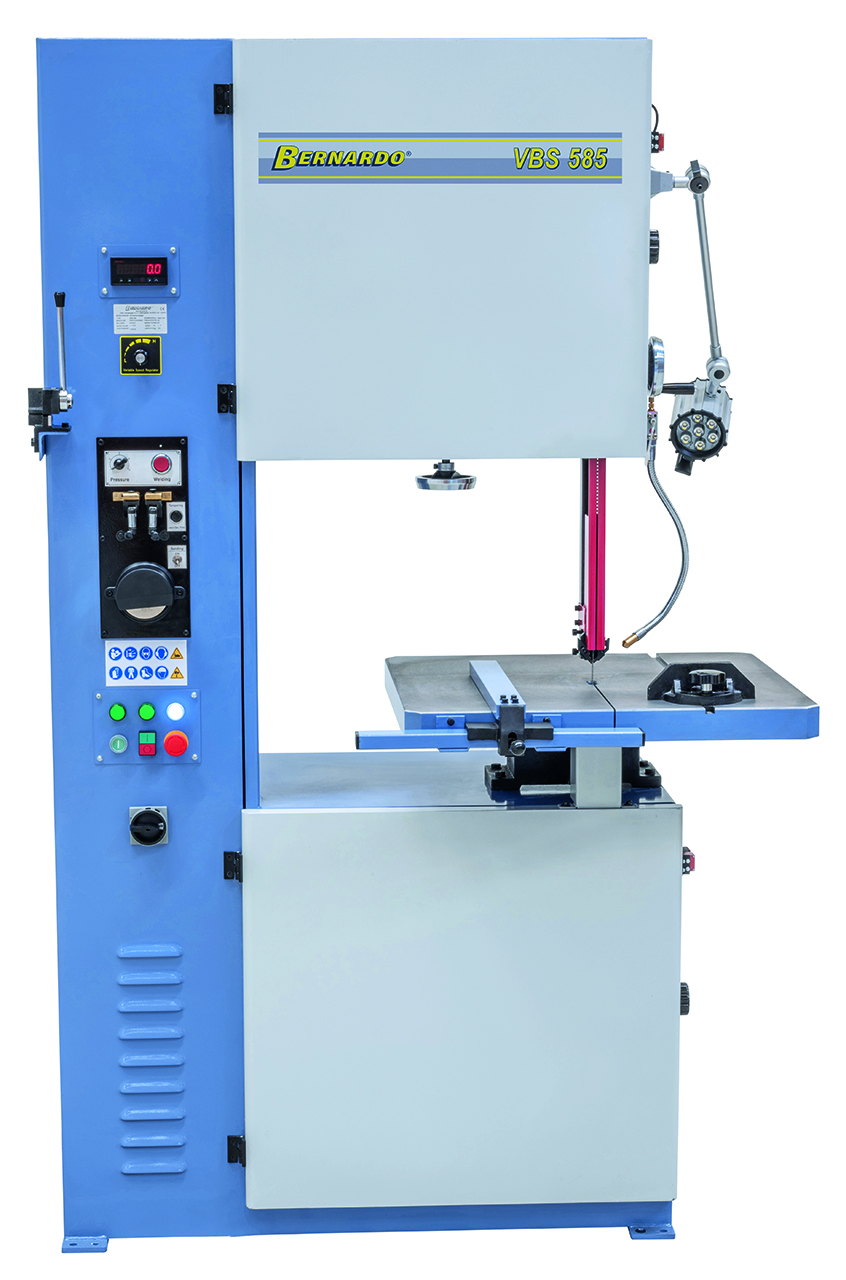

Vertical Band Saw Bernardo VBS 585
NEW
Scope of delivery Vertical Band Saw Bernardo VBS 585
- Saw blade
- Band welding device with annealing device
- Work light
- Scissors
- Grinding stone
- Chip brush
- LED digital display
- Micro spray system
- Frequency converter
- Longitudinal stop
- Table longitudinal groove
- Mitre stop
Features Vertical Band Saw Bernardo VBS 585
The vertical band saws in the VBS series are suitable for sawing almost all sawable materials (e.g. steel, plastic, non-ferrous metals, non-ferrous metals, etc.). They are mainly used in general production, tool and fixture construction, and in the manufacture of punching and cutting tools.

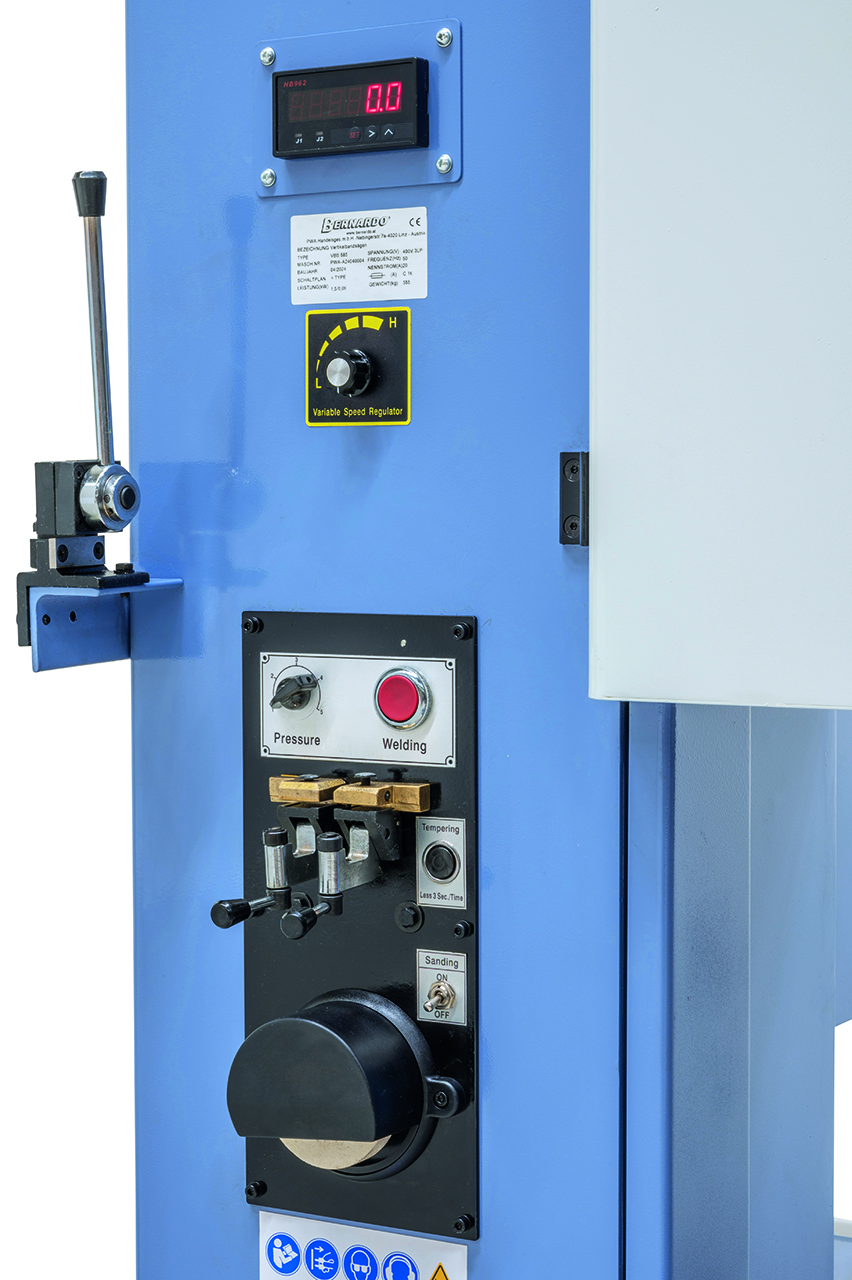

- Standard with LED speed display for setting the desired cutting speed
- Solid grey cast iron table with large support surface for safe working
- Standard with belt welding device, annealing device, shears and grinding stone
- Mitre fence for angle cuts included in scope of delivery.
- Comes standard with continuously adjustable cutting speed.
- Machine body made of robust steel construction for smooth running.

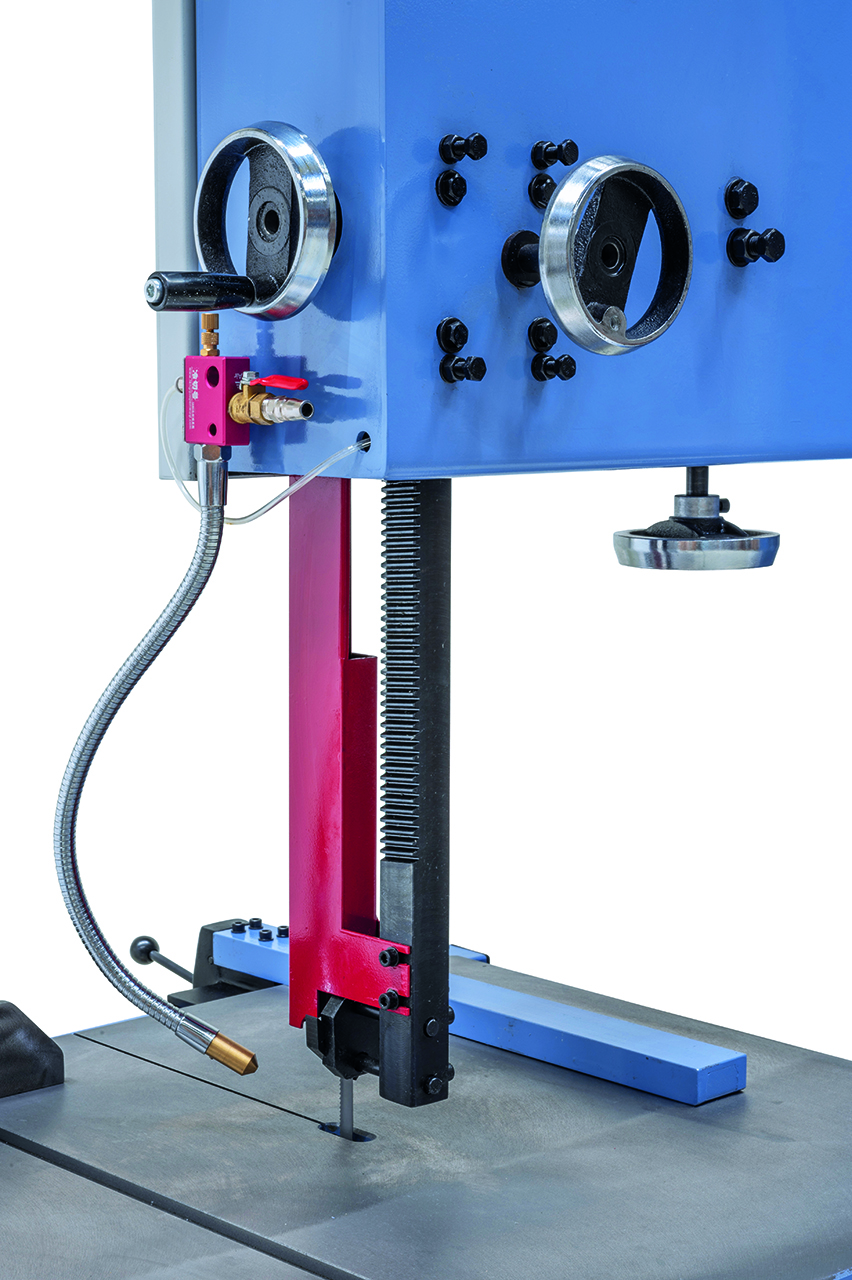

- Precision blade guide for optimum cutting results.
- Ideal for sawing complicated contours and shapes.
- Saw blades from 3 mm width available for radius sawing.
Technical details Vertical Band Saw Bernardo VBS 585
| Sawing |
|
| Cutting width | 585 mm |
| Cutting height | 360 mm |
| Working height | 995 mm |
| Cutting speed | 15 – 328 m/min |
| Saw blade length | 4520 mm |
| Saw blade width | 3 – 16 mm |
| Table size | 700 x 660 mm |
| Table tilt range | -15° to +30° |
| Motor Data |
|
| Motor power | 1.5 kW |
| Blade welding unit | 2.4 kVA |
| General Dimensions |
|
| Machine dimensions (L x W x H) | 1335 x 1060 x 2110 mm |
| Weight |
|
| Weight approx. | 560 kg |
