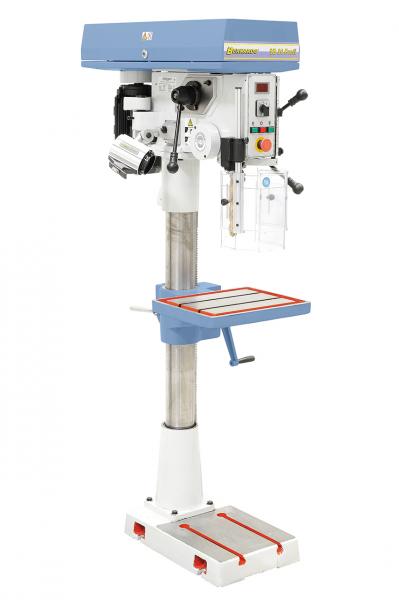

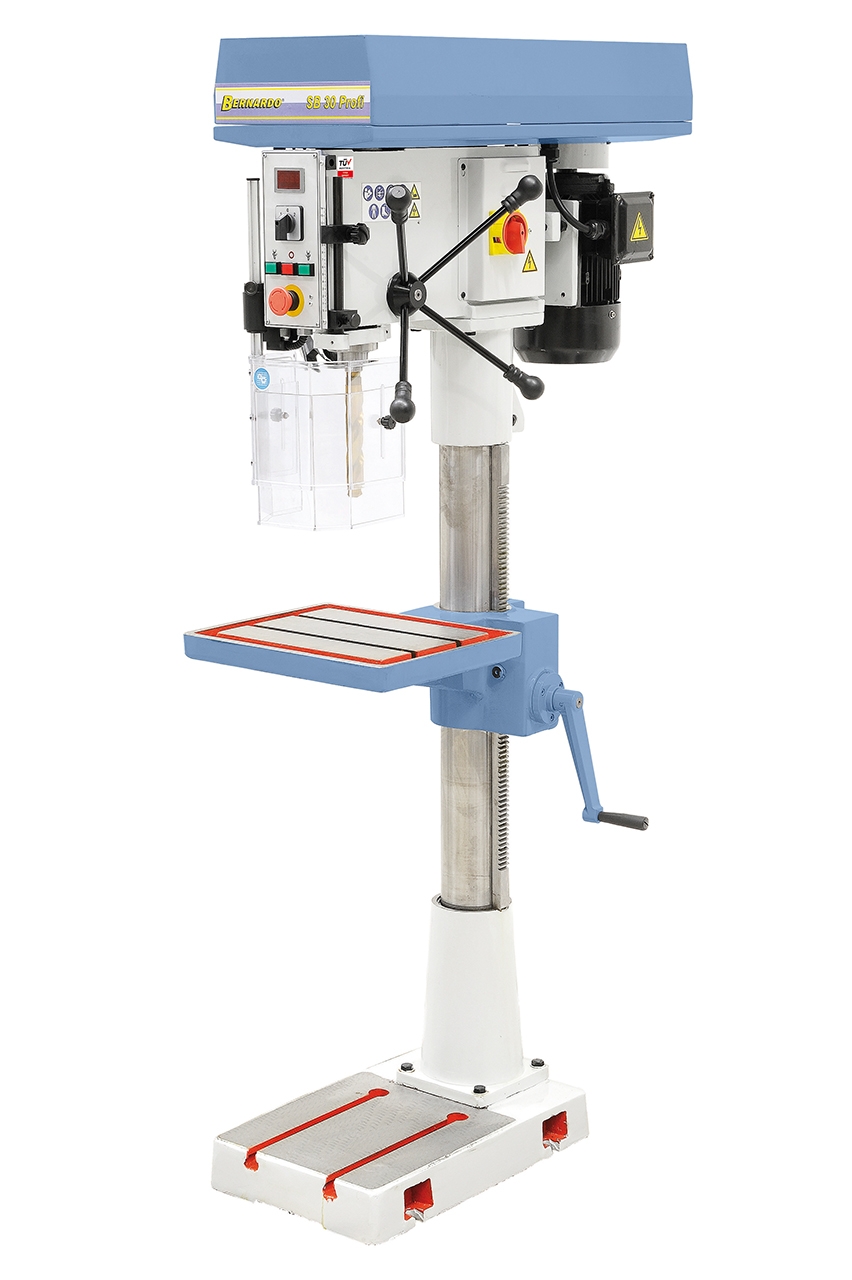

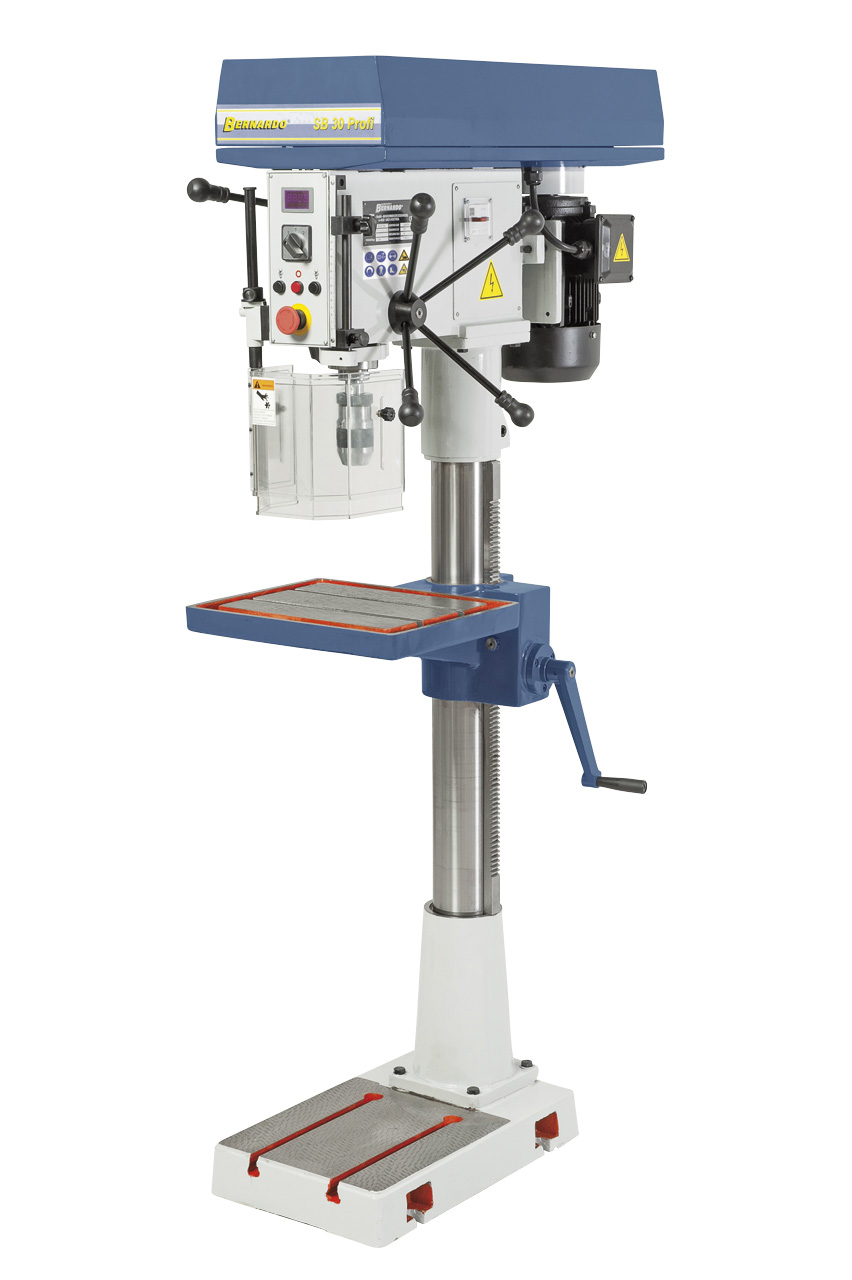

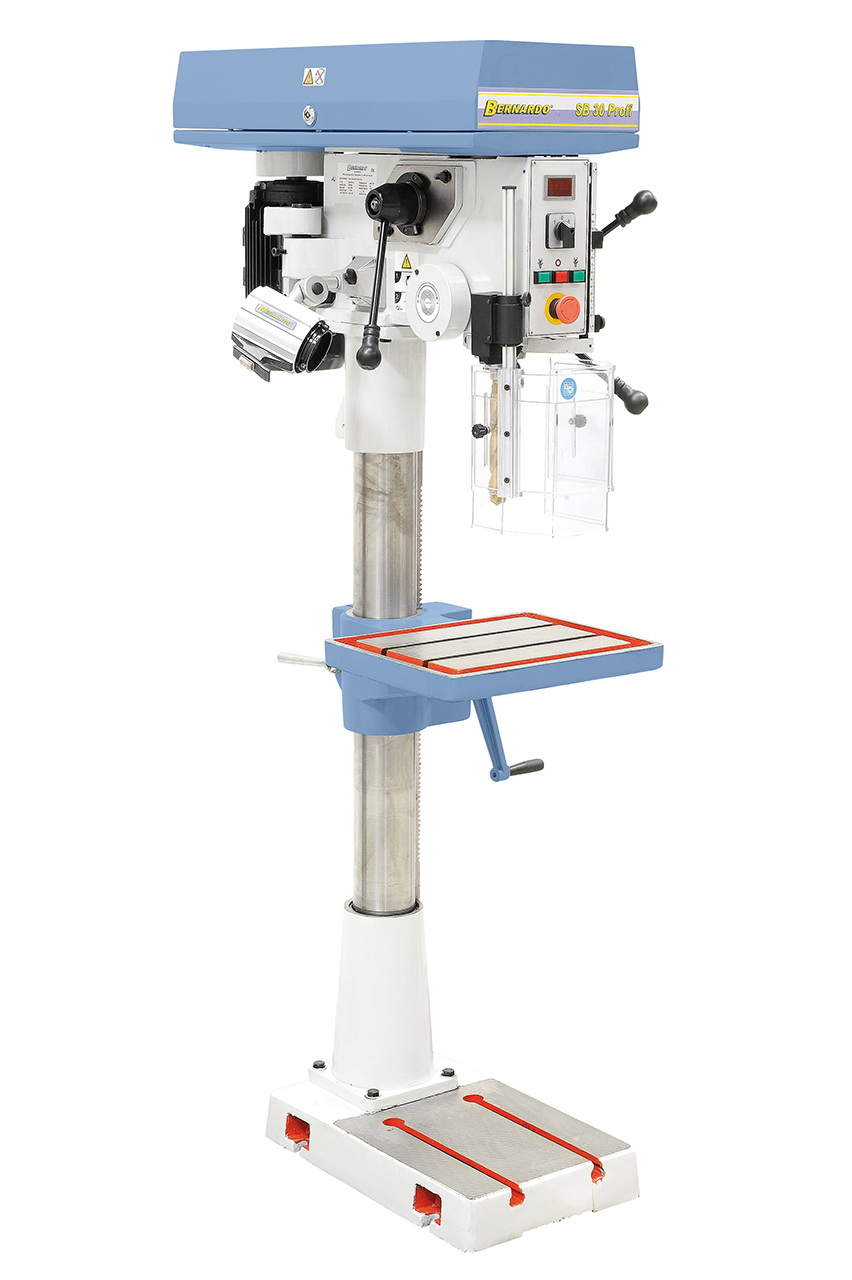

Vario bench and column drilling machine Bernardo SB 30 Profi

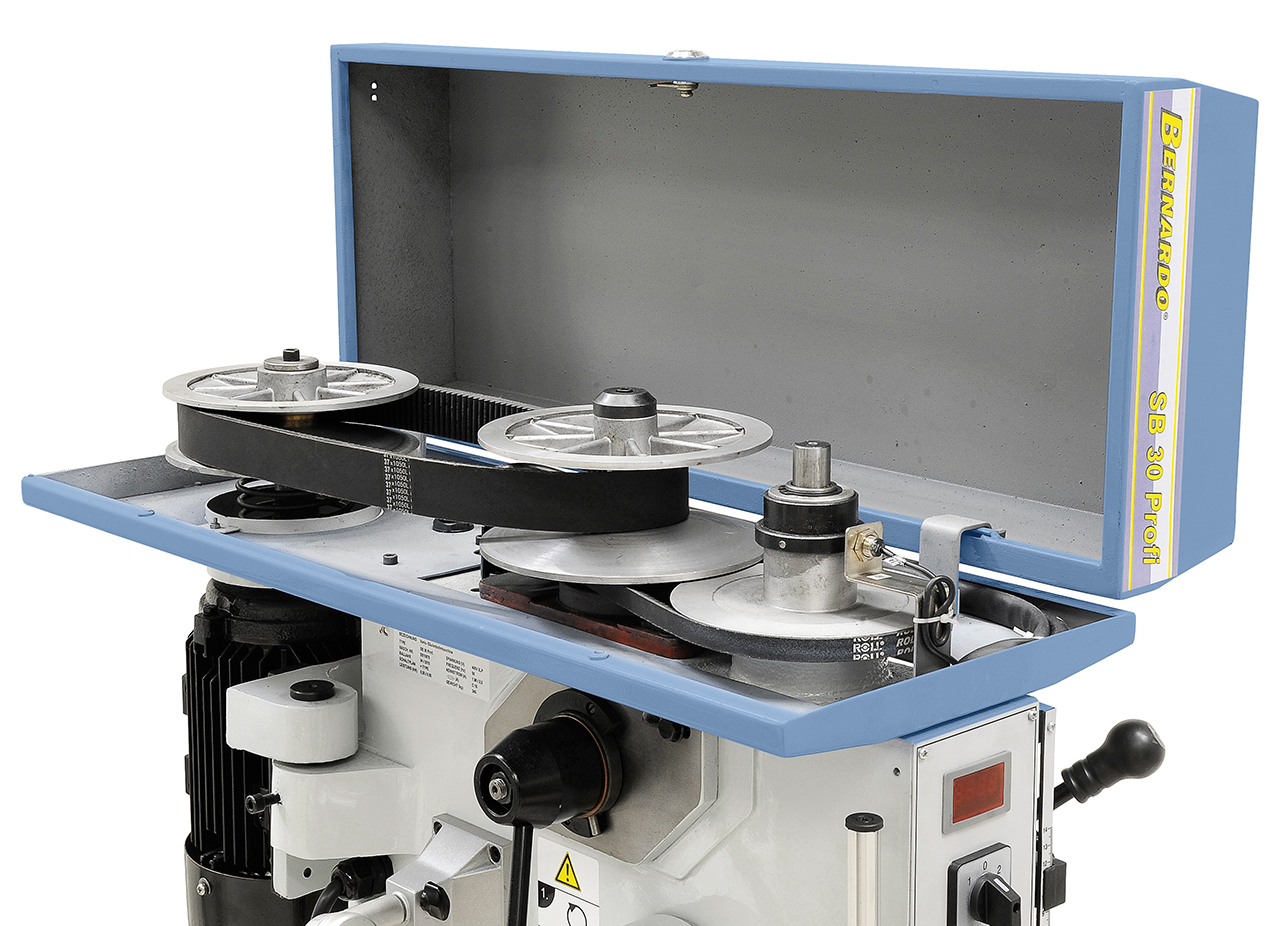

The SB 30 Profi vario drilling machine is serially equipped with a powerful 2-step motor. The solid variator-drive guarantees ideal power transmission to spindle.
Scope of delivery Vario bench and column drilling machine Bernardo SB 30 Profi
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2

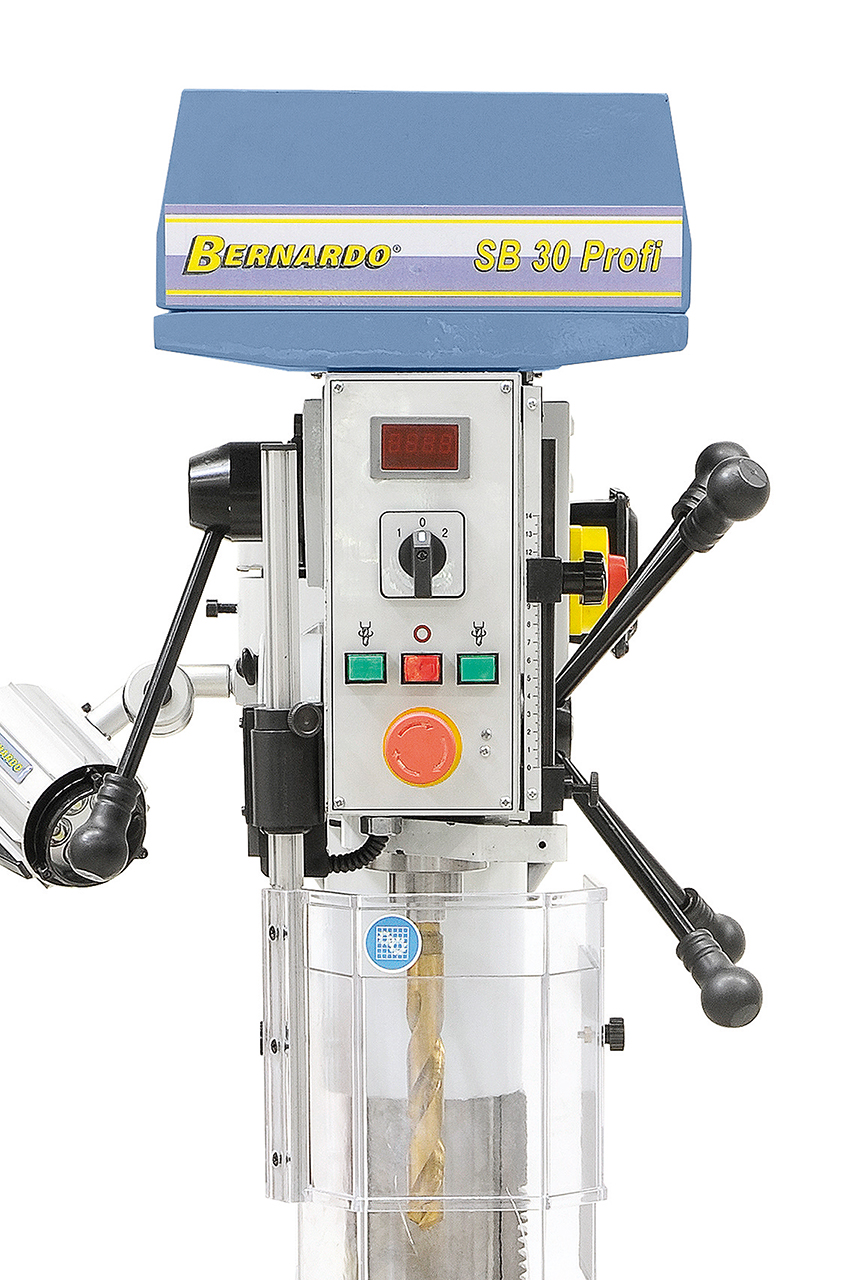

- Digital readout of speeds
- LED working light
- Height adjustable protective cover
Features Vario bench and column drilling machine Bernardo SB 30 Profi
- Solid, grey cast iron construction with modern design
- Stepless speed adjustment - speed setting can be read on digital readout
- Height adjustment to table via gear rack and crank handle
- Right and left spindle rotation for thread cutting
- Powerful 2-step motor, ranging from 105 – 1725 rpm
- Base with T-slots for mounting of large workpieces
- Safety switch with undervoltage release
- Spindle runs on high-quality ball bearings
Technical details Vario bench and column drilling machine Bernardo SB 30 Profi
| Drilling capacity max. | 32 mm |
| Drill chuck | 1 - 13 mm / B 16 |
| Morse taper | MT 3 |
| Spindle speed, stepless | 105 - 1725 rpm |
| Distance spindle to column | 230 mm |
| Distance spindle to table max. | 690 mm |
| Distance spindle to base | 1180 mm |
| Spindle stroke | 120 mm |
| Column diameter | 100 mm |
| Table size | 400 x 320 mm |
| T-slot size | 14 mm |
| Working surface of base | 320 x 340 mm |
| Motor power output S1 100% | 0,55 / 0,85 kW |
| Motor power input S6 40% | 0,80 / 1,2 kW |
| Machine dimensions (W x D x H) | 470 x 810 x 1710 mm |
| Weight approx. | 245 kg |
