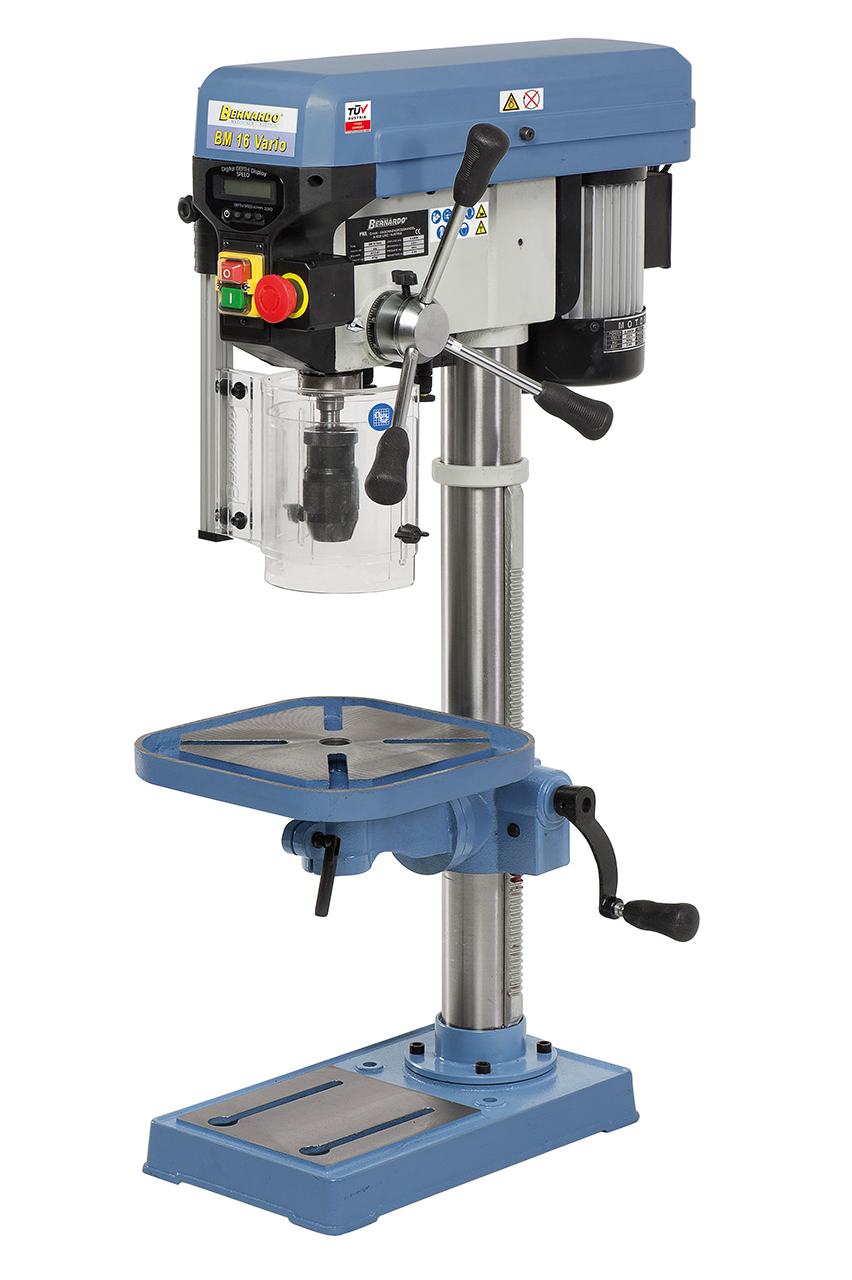

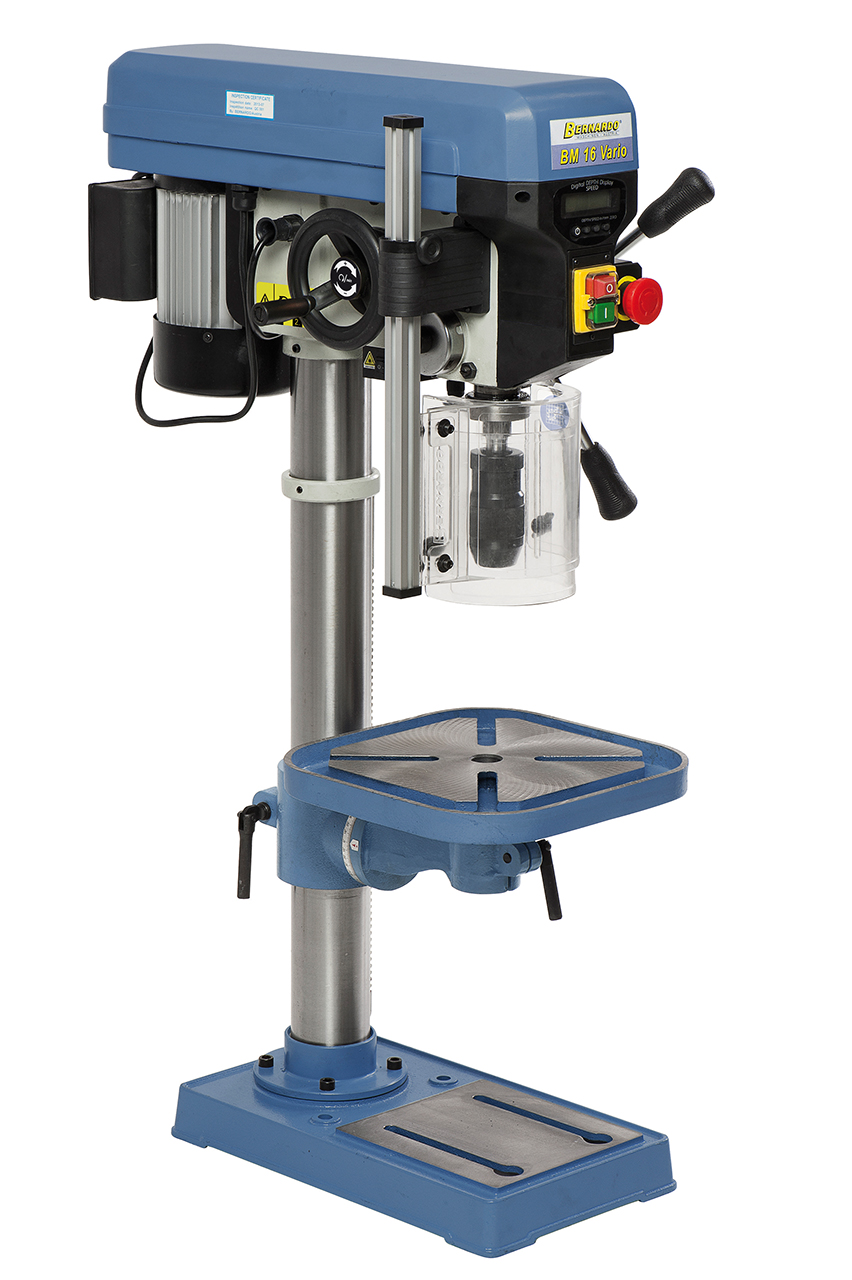

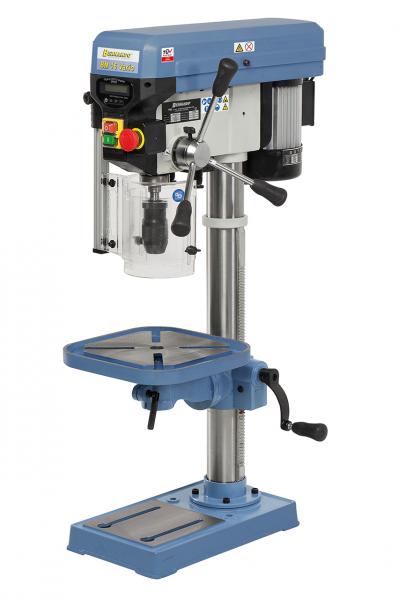

Vario bench and column drilling machine Bernardo BM 16 Vario - 400 V
The solid drilling machine featuring vario drive is characterized by high torque even at low speed. Most commonly this model is used by amateurs and for training purposes.
Scope of delivery Vario bench and column drilling machine Bernardo BM 16 Vario - 400 V
- Keyless drill chuck 1 – 16 mm / B 18
- Drill chuck arbor MT 2 / B 18
- Digital spindle stroke indication
- Digital readout of speed
- Cross line laser device
- T-slot nuts

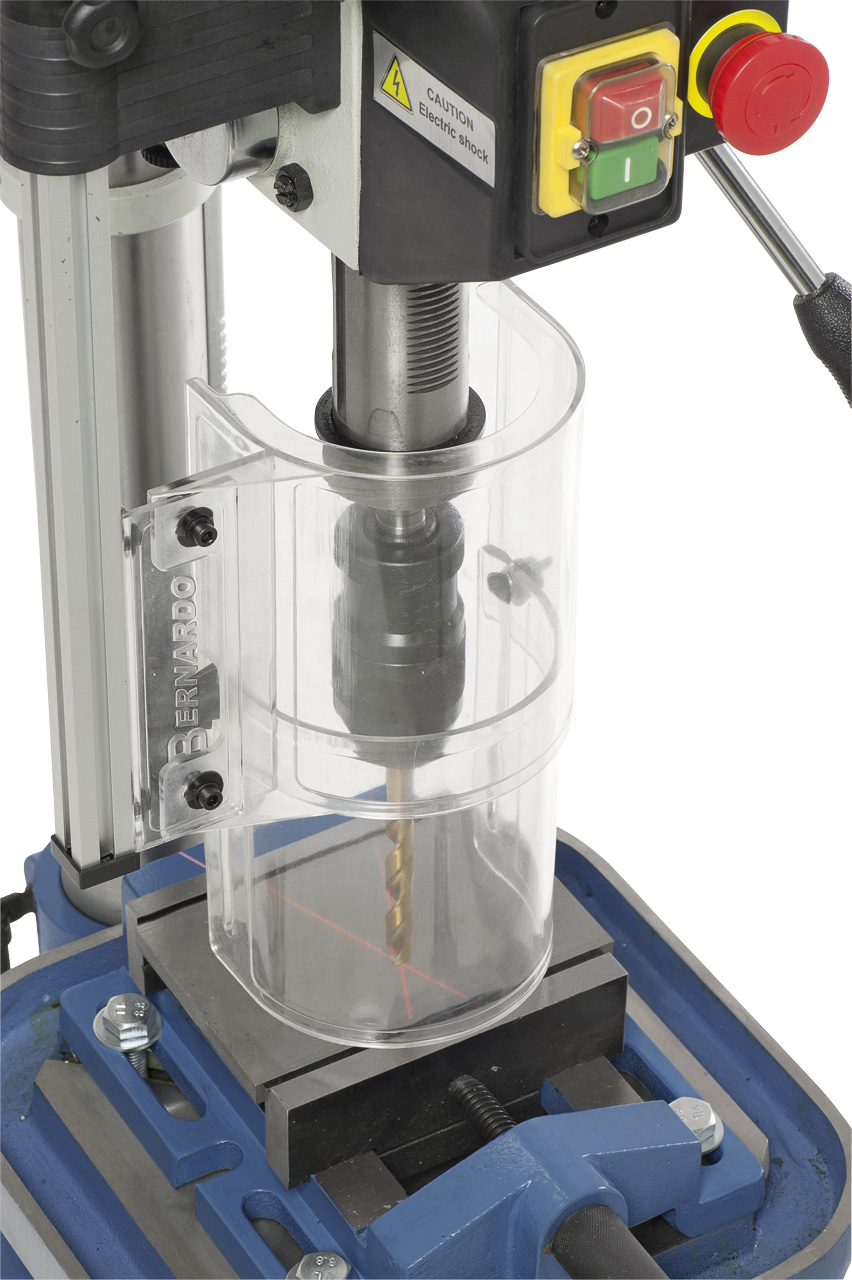

- Height adjustable protective cover
- Separate emergency stop switch
- Tools
Features Vario bench and column drilling machine Bernardo BM 16 Vario - 400 V

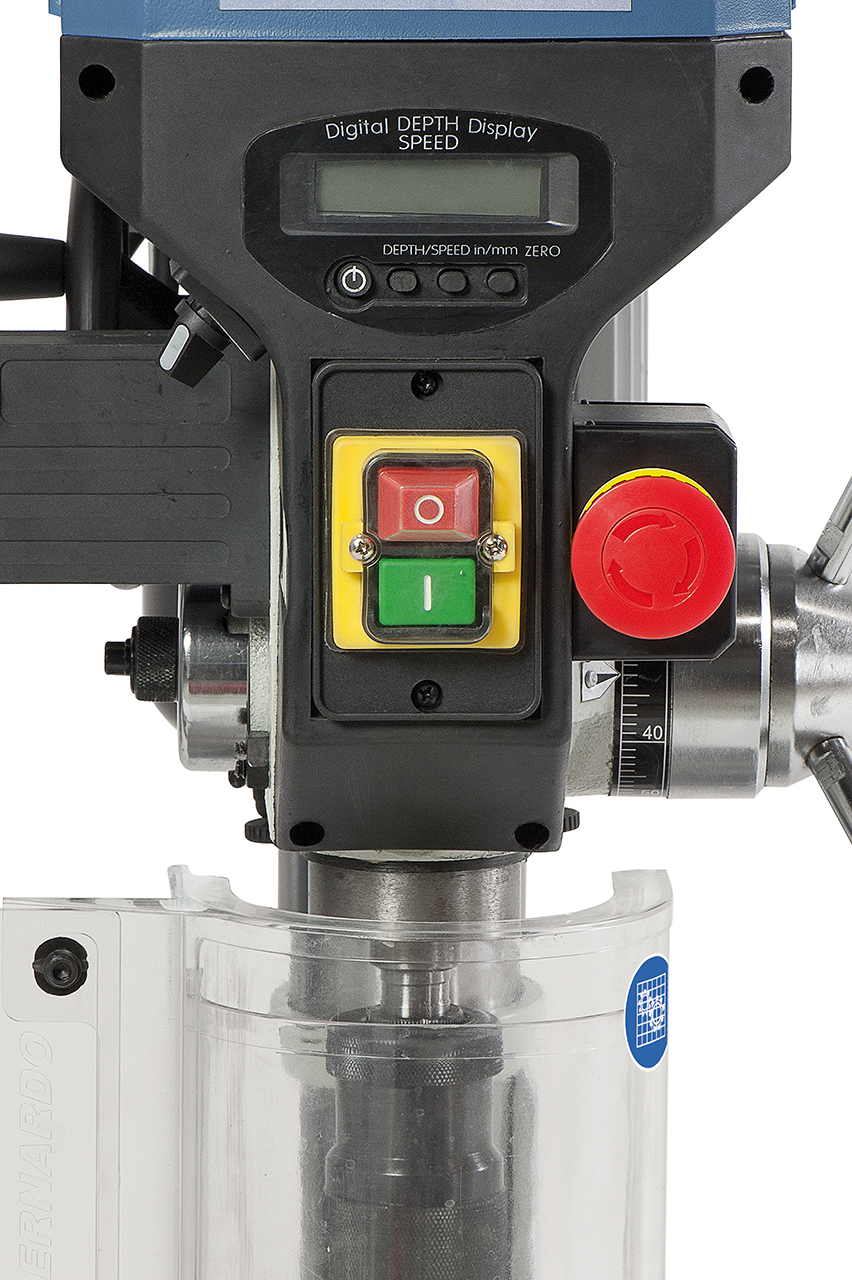

- Digital display allows easy readout of set speed or spindle stroke
- Grey cast iron pulley ensures smooth operation
- High-quality ball bearings guarantee high concentricity
- Large drill table features diagonal T-slots
- Drill table tilts (±45°) – gear rack allows height adjustment
- Powerful, high performance aluminium motor in accordance with IP 54 standards
- Precise keyless drill chuck comes as part of the standard accessories
- Complete with T-slots in polished base plate
- Ergonomically designed handles maximises work comfort
Technical details Vario bench and column drilling machine Bernardo BM 16 Vario - 400 V
Drilling capacity in steel | 16 mm |
Drill chuck | 1 - 16 mm / B 18 |
Morse taper | MT 2 |
Spindle speed, stepless | 400 - 1950 rpm |
Distance spindle to column | 160 mm |
Table tiltable | -45° to +45° |
Distance spindle to table max. | 440 mm |
Distance spindle to base | 630 mm |
Spindle stroke | 80 mm |
Column diameter | 72 mm |
Table size / T-slot size | 285 x 285 mm / 16 mm |
Working surface of base | 200 x 190 mm |
Motor power output S1 1 100% | 0,55 kW / 400 V |
Motor power input S6 40% | 0,80 kW / 400 V |
Machine dimension (W x D x H) | 400 x 590 x 980 mm |
Weight approx. | 46 kg |
