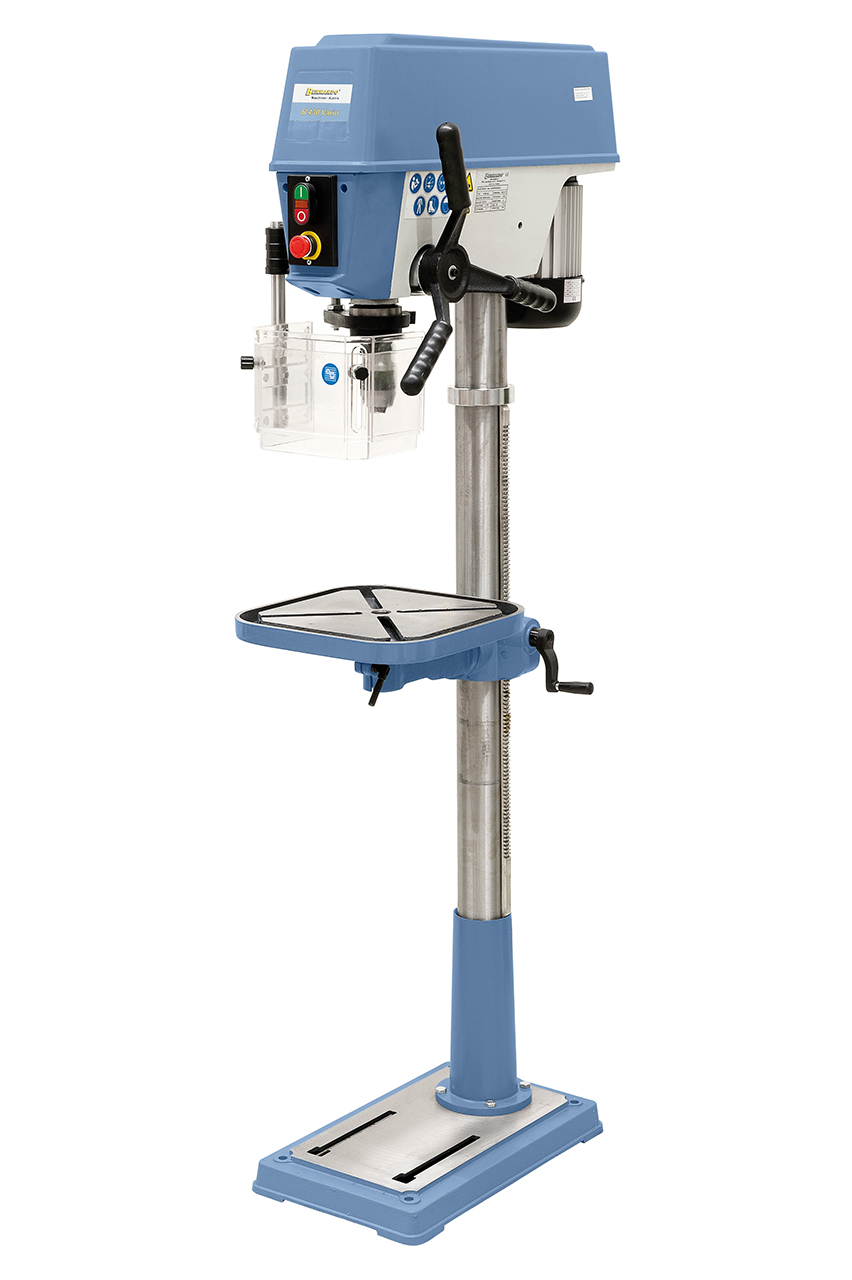

Vario bench and column drilling machine Bernardo B 430 Vario
The drilling machine B 430 Vario is serially equipped with a stepless speed regulation, ensuring ideal adjustment to the workpiece.
Scope of delivery Vario bench and column drilling machine Bernardo B 430 Vario
- Drill chuck arbor MT 3 / B 16
- Keyless drill chuck 3 - 16 mm / B 16
- T-slot nuts
- Height adjustable protecive cover

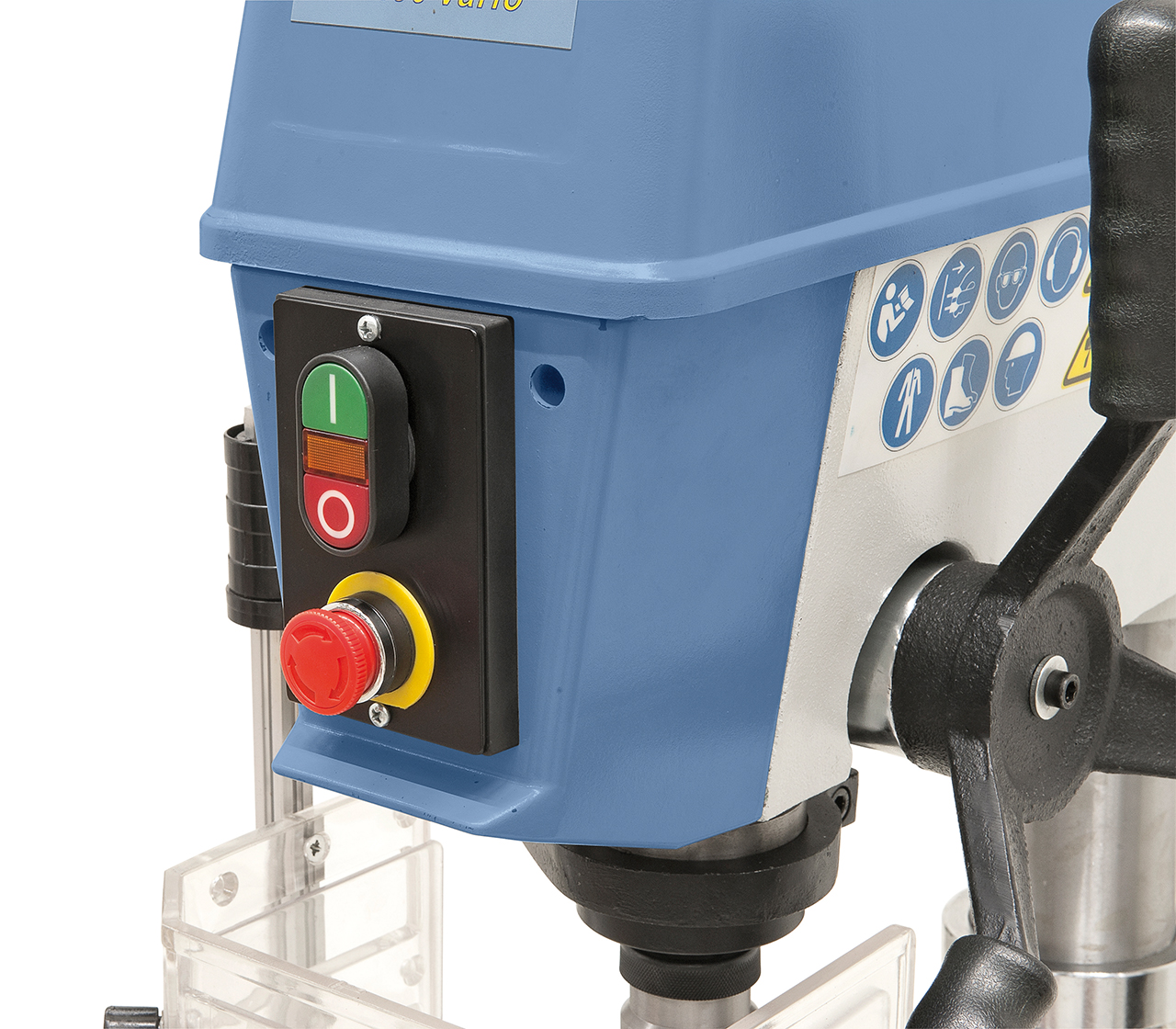

- Separate emergency stop switch
- Tools
Features Vario bench and column drilling machine Bernardo B 430 Vario
- Safety switch with undervoltage release

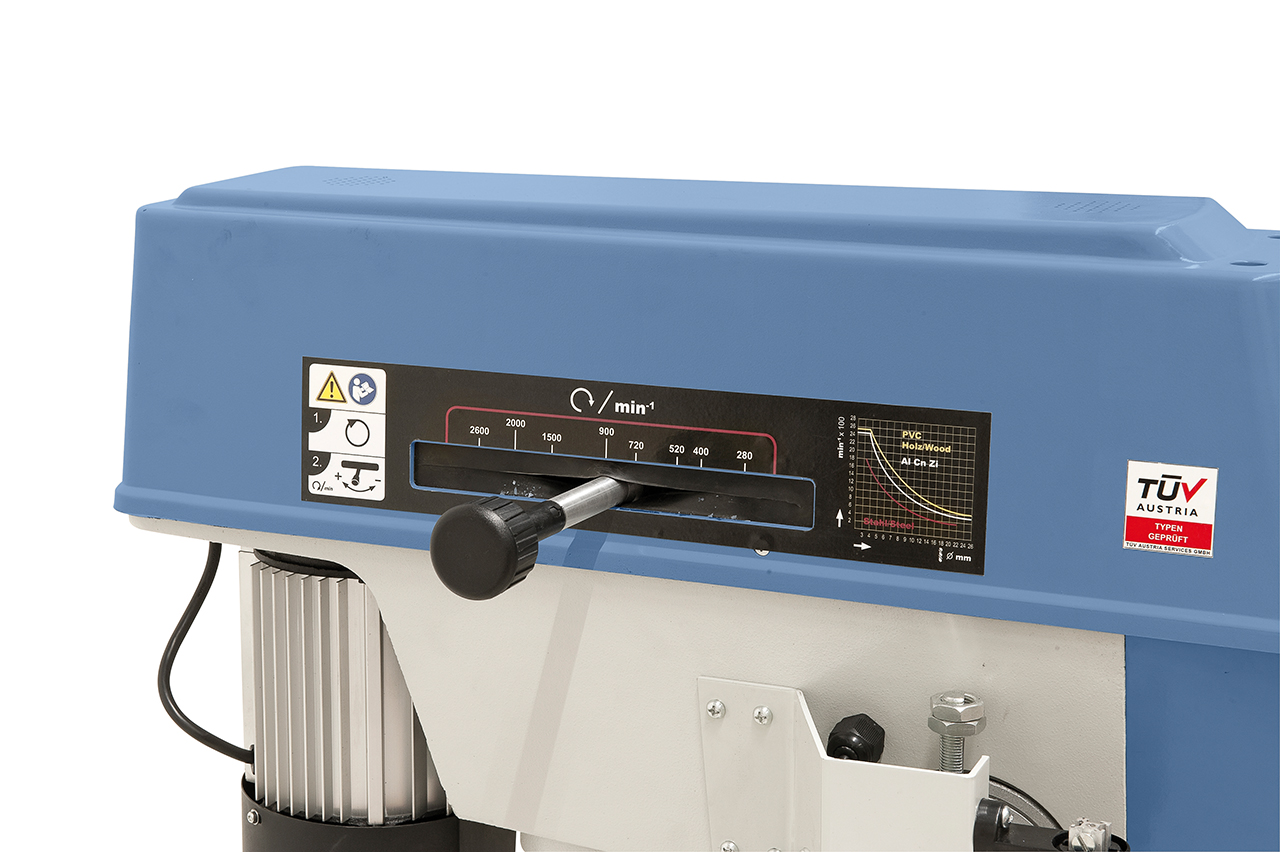

- Stepless speed adjustment
- Compact, solid construction with modern design
- Aluminium-motor according to IP 54 - 400 V

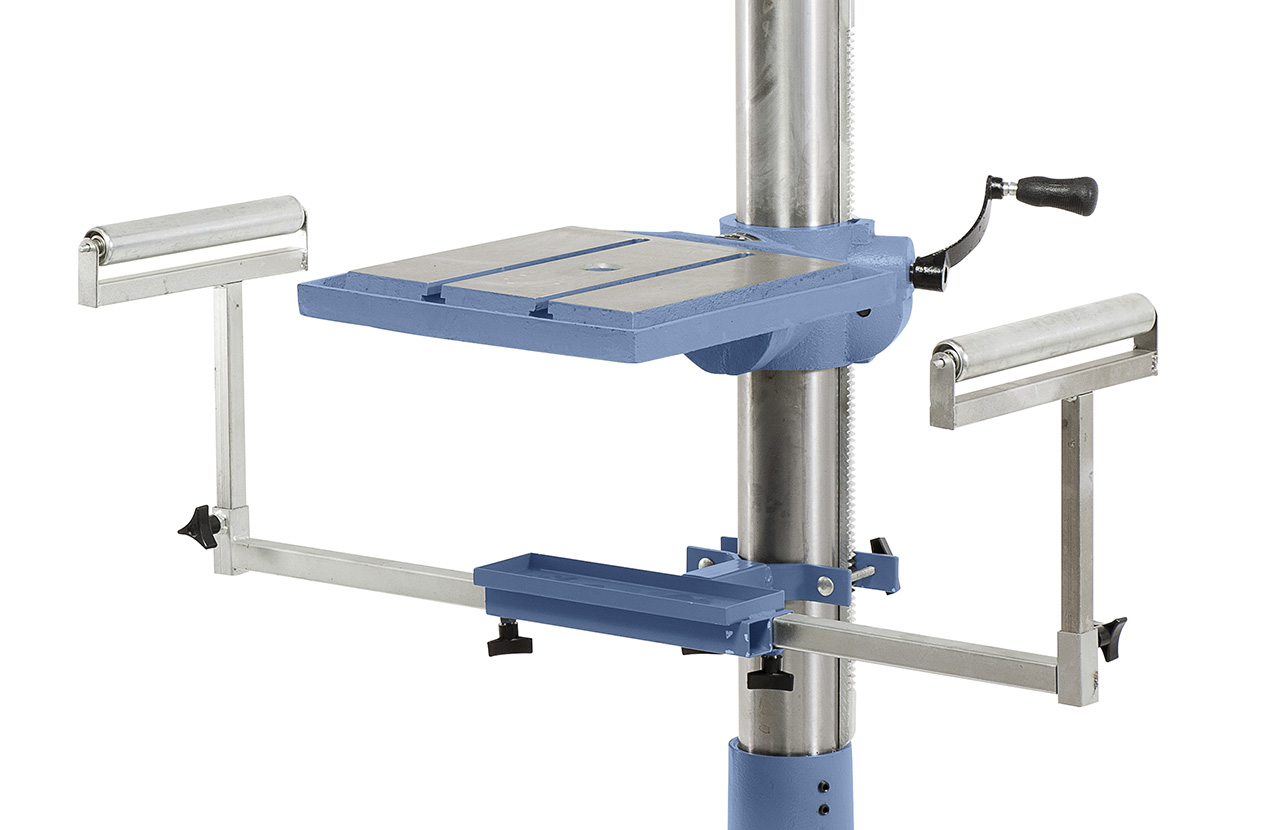

- Table rotates 360°
- Solid, polished steel column
- Top quality at a reasonable price
- Scale for drill depth
- Cast iron table with cooling grooves
- Spindle runs on high-quality ball bearings
- Gear rack allows easy table height adjustment
Technical details Vario bench and column drilling machine Bernardo B 430 Vario
| Drilling capacity max. | 25 mm |
| Keyless drill chuck | 3 - 16 mm / B 16 |
| Morse taper | MT 3 |
| Spindle speed, stepless | 280 - 2600 rpm |
| Distance spindle to column | 220 mm |
| Table rotatable | 360° |
| Distance spindle to table max. | 790 mm |
| Distance spindle to base | 1250 mm |
| Spindle stroke | 80 mm |
| Column diameter | 80 mm |
| Table size / T-slot size | 345 x 345 mm / 16 mm |
| Working surface of base | 240 x 275 mm |
| Motor power output S1 100% | 0,75 kW (1,1 HP) / 400 V |
| Motor power input S6 40% | 1,1 kW (1,5 HP) / 400 V |
| Machine dimension (W x D x H) | 350 x 720 x 1710 mm |
| Weight approx. | 100 kg |
