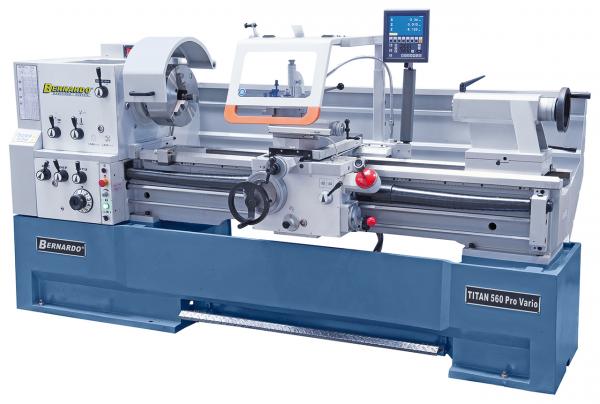

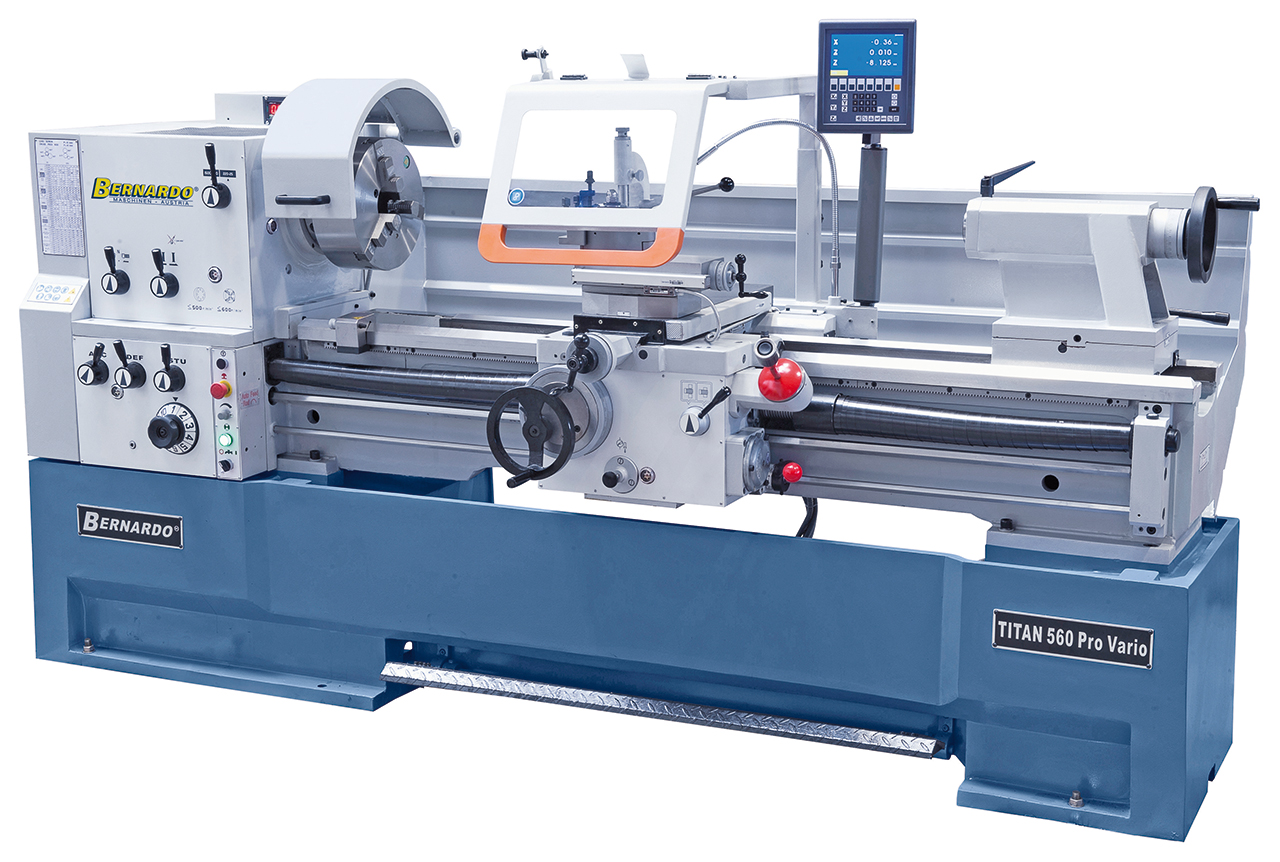

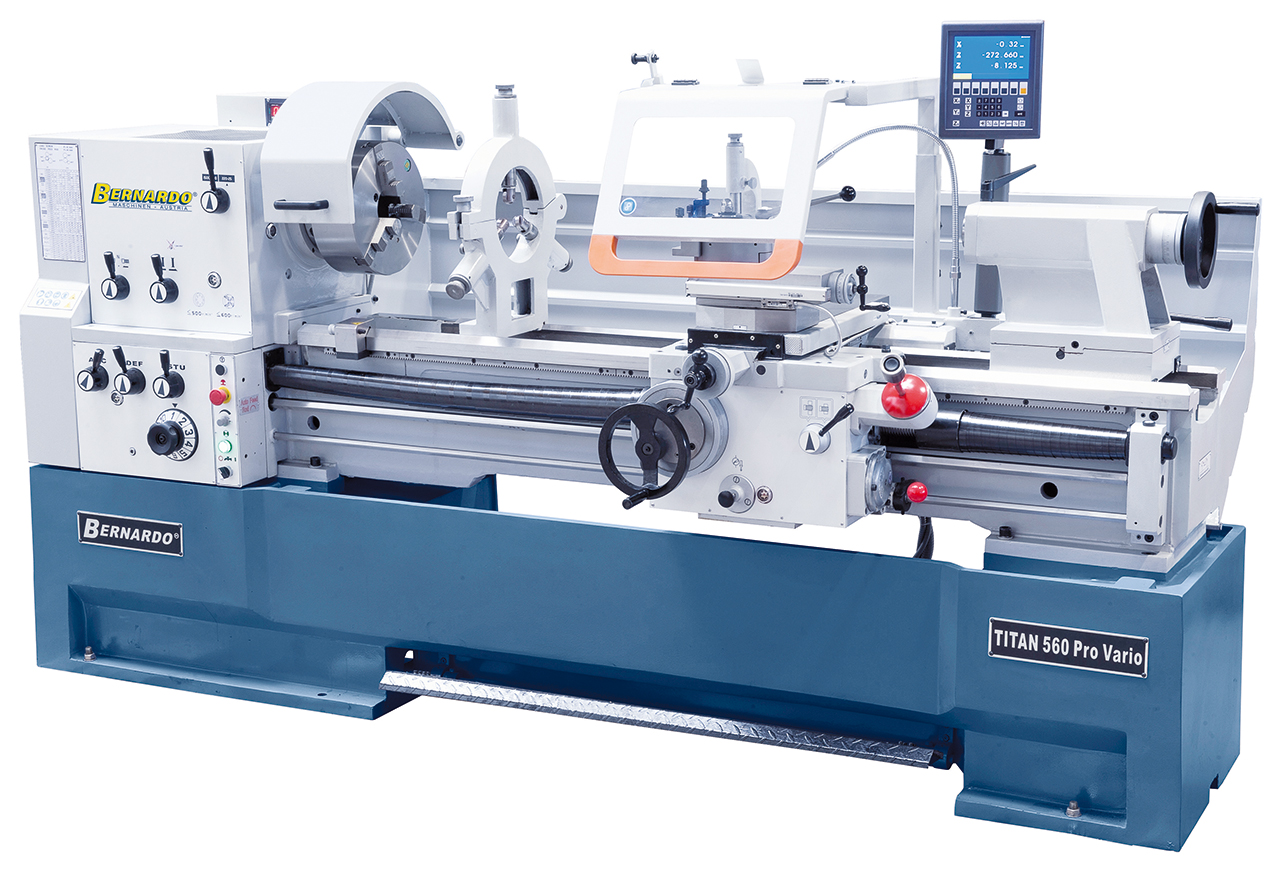

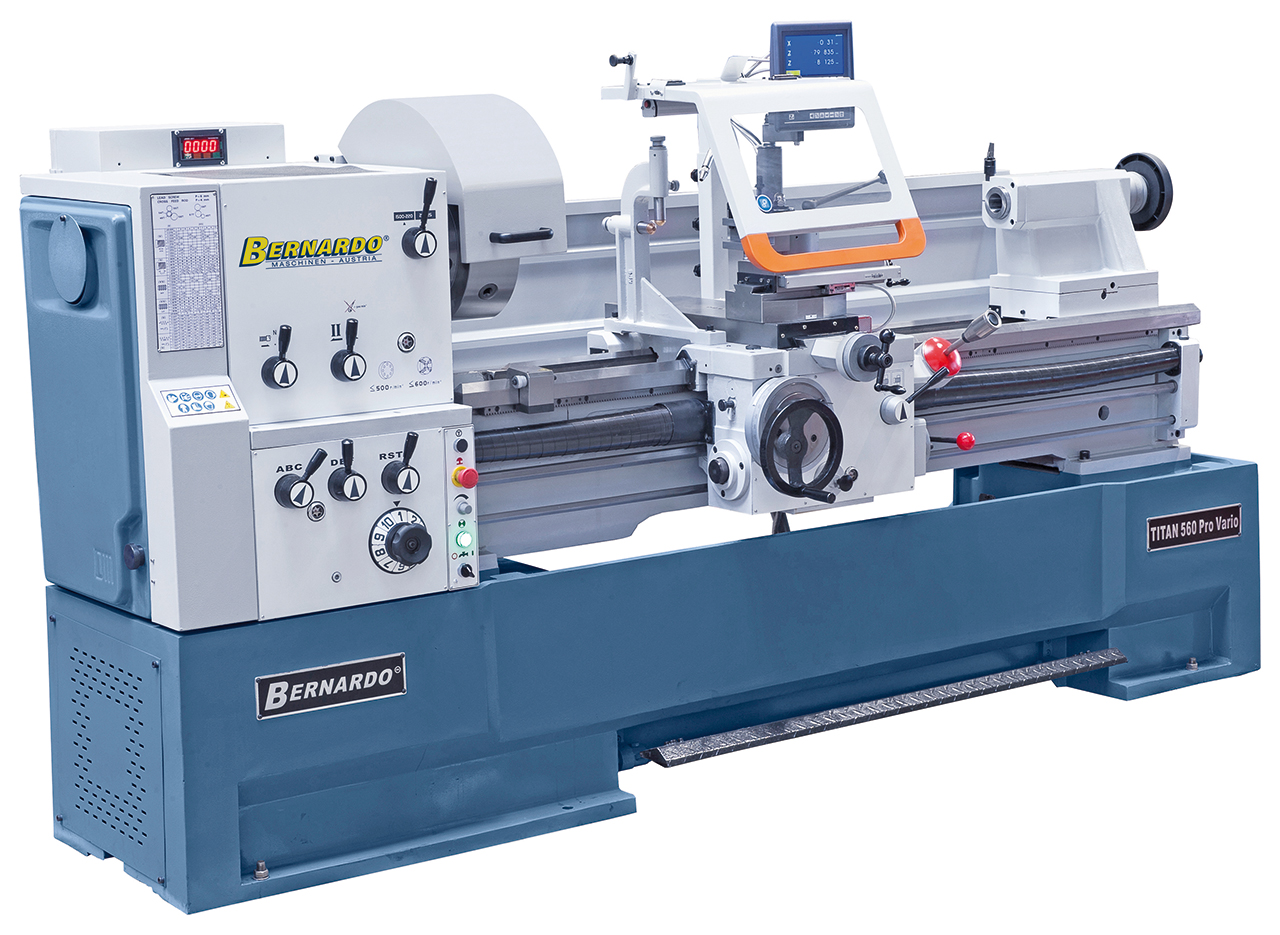

Universal turning lathes with stepless speed Bernardo Titan 560 x 1500 Pro Vario
The Titan 560 Pro Vario is a state-of-the-art, revolutionary manufacturing lathe. The wide range of standard equipment, such as the 3-jaw chuck, steady and follow rest, change gears and the 3-axis digital readout, 40 pos. tool post and holder set, make this model extremely versatile. Furthermore, this model comes equipped with a stepless speed adjustment up to 1500 rpm, allowing the speed to be optimally adjusted to the workpiece and the feed rate.
Scope of delivery Universal turning lathes with stepless speed Bernardo Titan 560 x 1500 Pro Vario
- 3-axis digital readout ES-12 V with LCD display
- 3-jaw chuck PS3-315 mm / D8
- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 120 mm
- Foot pedal with brake function according to CE

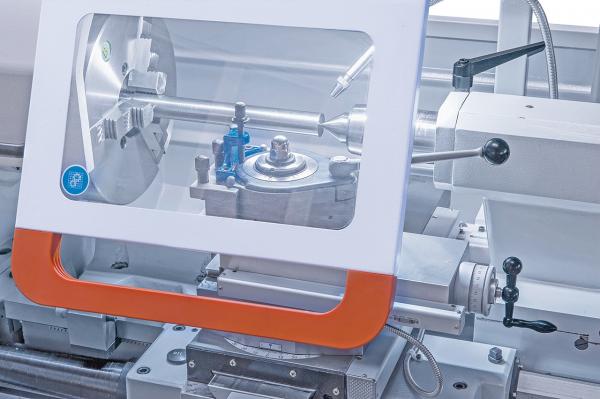

- Protective device at tool post holder
- LED machine light
- Initial filling with Shell Tellus 46
- Face plate 450 mm
- 2 dead centers
- Frequency inverter
- Digital readout of speeds
- Safety clutch
- Rapid feed longitudinal and cross
- Coolant device

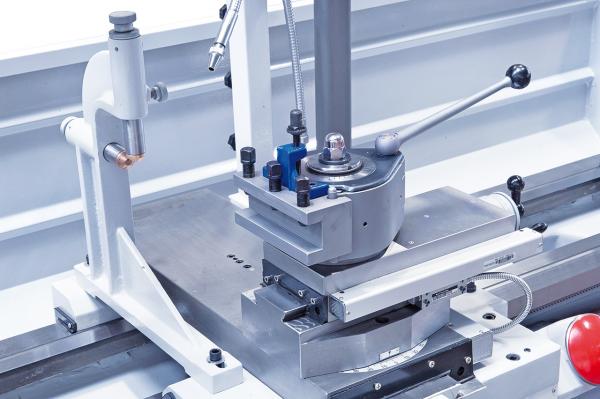

- 40 pos. tool post and holder set with 4 inserts
- Change gears
- Morse taper drill sleeve
- Splash guard
- Tools
Features Universal turning lathes with stepless speed Bernardo Titan 560 x 1500 Pro Vario
- Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

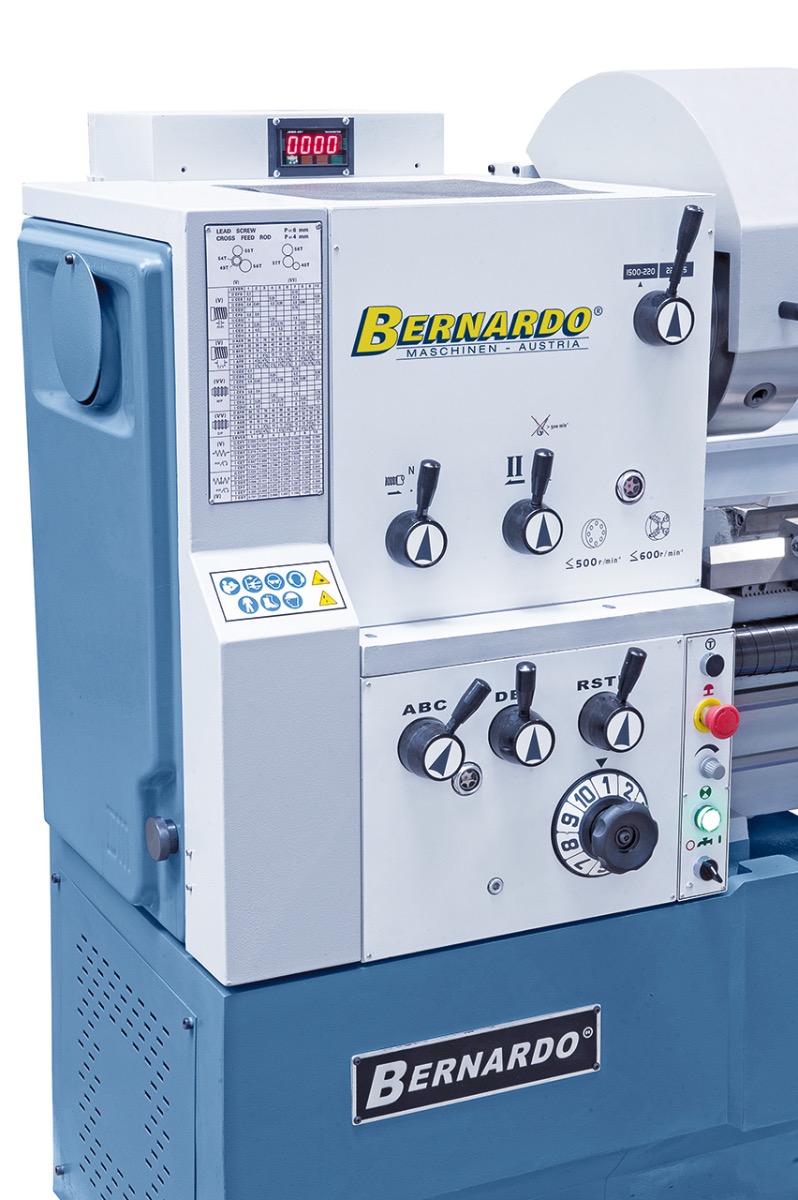

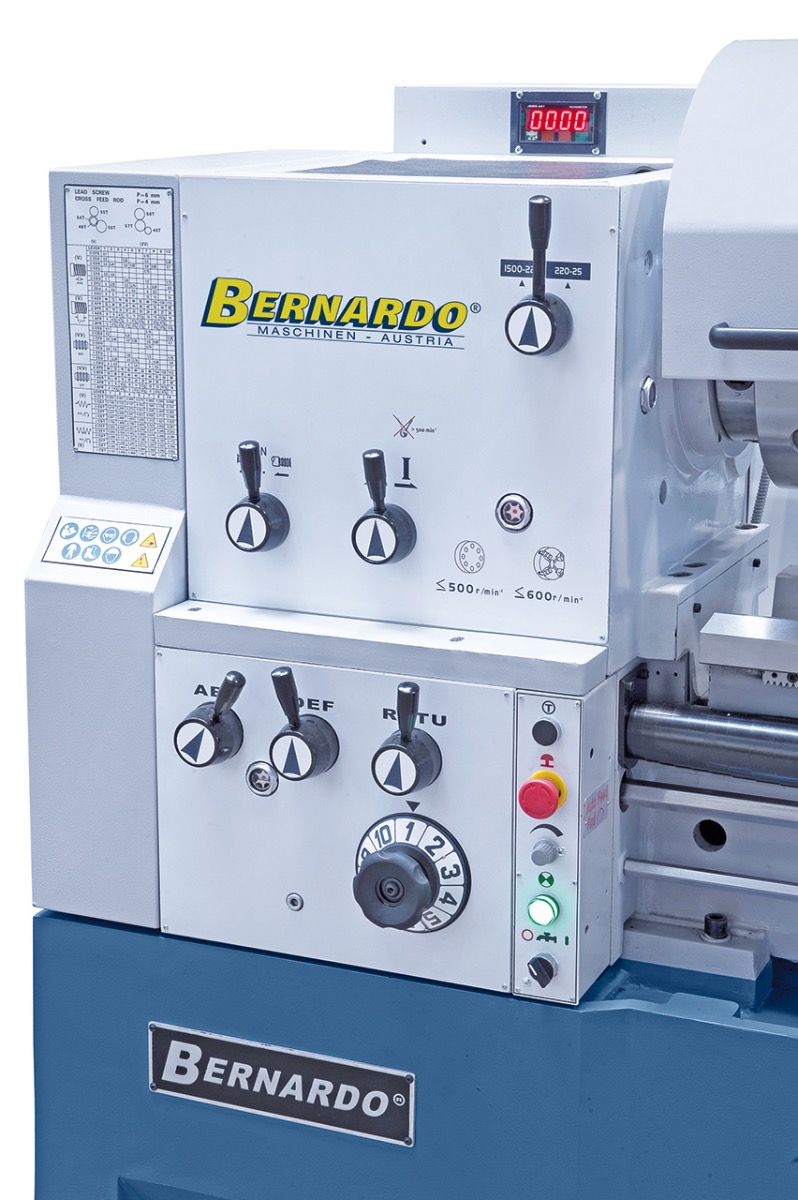

- Stepless speed adjustment, set speed can be read on digital display
- Various areas of application, such as general engineering, production, single part manufacturing etc.
- Removable bridge allows operating of oversize workpieces
- Complete with rapid traverse longitudinal and cross to reduce downtime
- State-of-the-art main spindle bearing features high quality angular ball bearings
- Machine bed, cast in one piece, is rigid and emilinates vibrations, allowing accurate turning
- Tailstock can be repositioned for taper turning

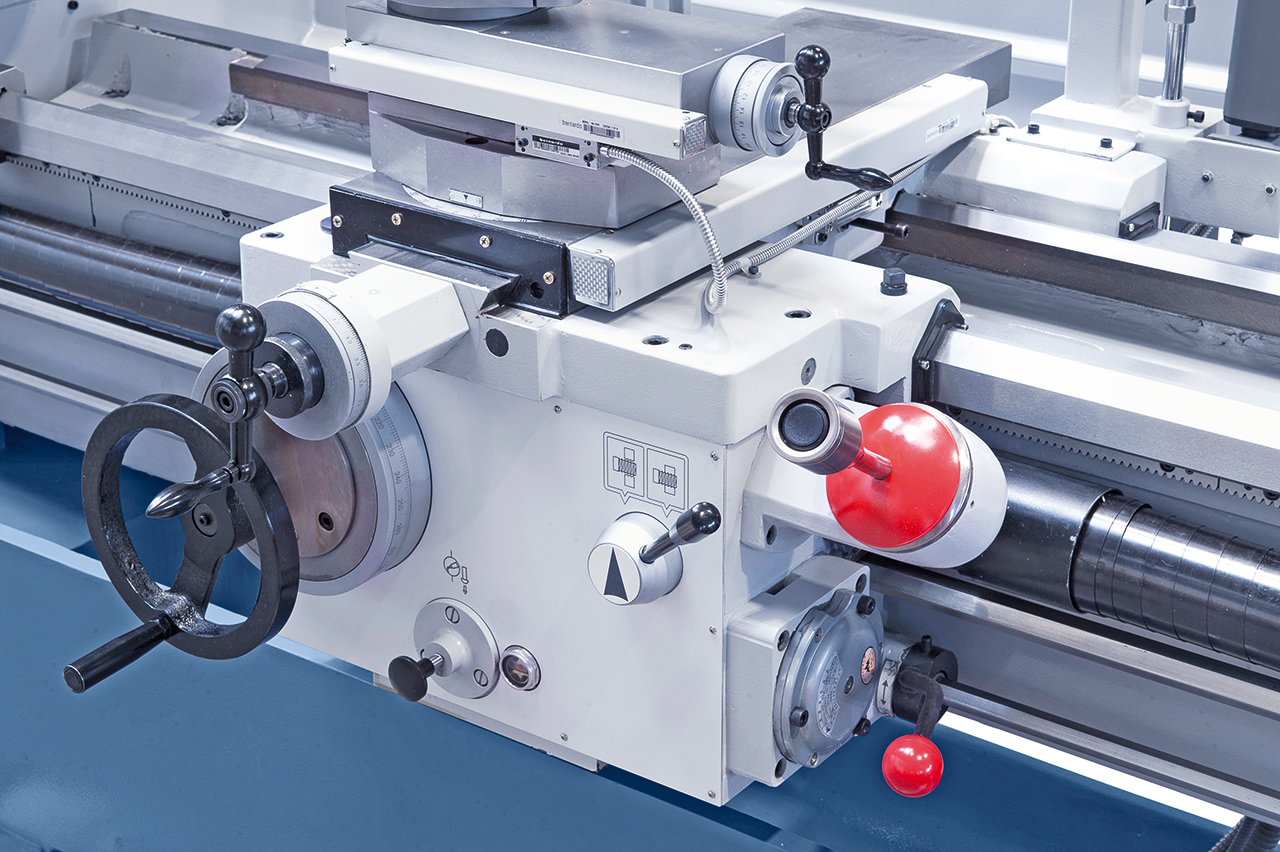

- Central lubrication of apron
Technical details Universal turning lathes with stepless speed Bernardo Titan 560 x 1500 Pro Vario
Distance between centers | 1500 mm | |
Center height | 280 mm | |
Swing over bed | 560 mm | |
Swing over gap | 785 mm | |
Swing over cross slide | 350 mm | |
Bed width | 350 mm | |
Spindle bore | 105 mm | |
Spindle nose fixture | DIN 55029, D1 - 8 | |
Speed range, 2 steps | 25 - 220 / 220 - 1500 rpm | |
Longitudinal feed | (42) 0,055 - 3,061 mm/rev. | |
Cross feed | (42) 0,025 - 1,384 mm/rev. | |
Metric thread | (41) 0,1 - 14 mm | |
Inch thread | (60) 2 - 112 threads/1“ | |
Diameter of tailstock sleeve | 75 mm | |
Travel of tailstock sleeve | 185 mm | |
Taper of tailstock sleeve | MT 5 | |
Motor power | 7,5 kW (10,0 HP) | |
Machine dimension | Length | 2840 mm |
Depth x Height | 1150 x 1610 mm | |
Weight approx. | 2420 kg |
