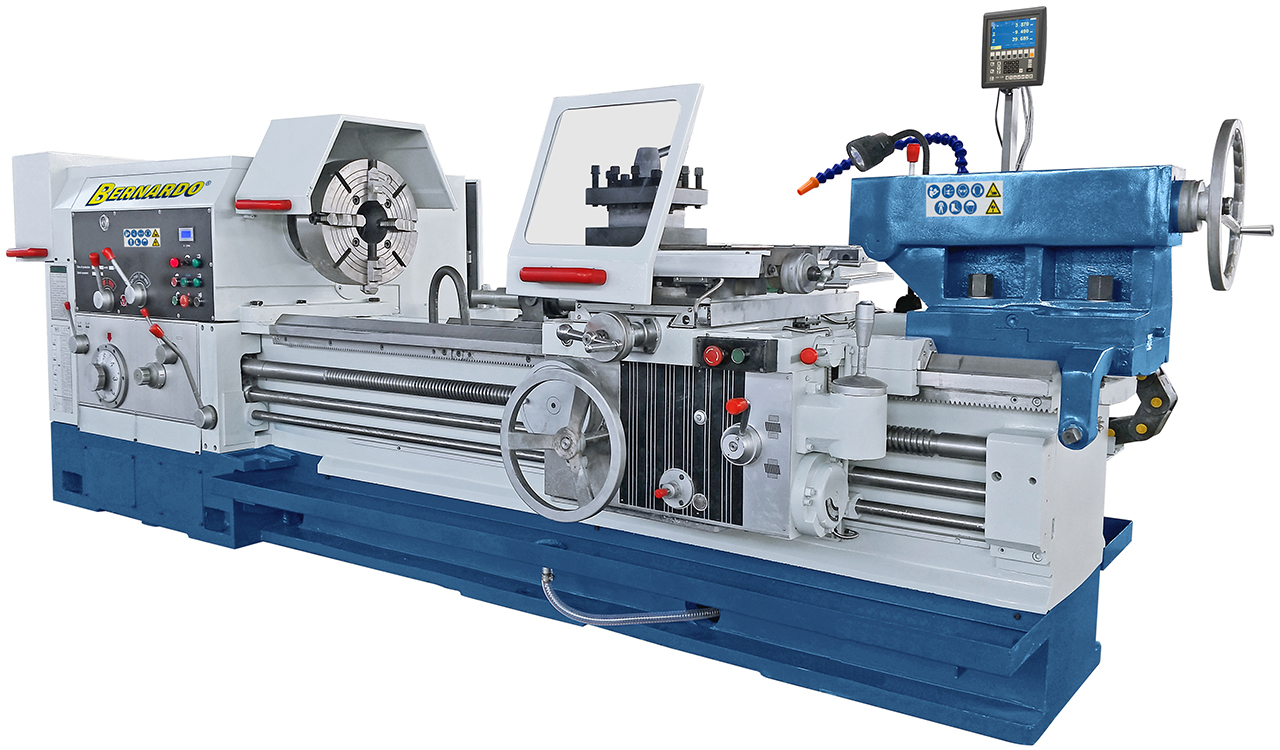

Universal turning lathes with digital readout Bernardo RDM 225
Universal turning lathes with digital readout Bernardo RDM 225
Universal turning lathes with digital readout Bernardo RDM 225

Universal turning lathes with digital readout Bernardo RDM 225

Product No.:
03-1369XL1
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Price on request
Ask about product
Description

Scope of delivery Universal turning lathes with digital readout Bernardo RDM 225

  • 3-axis digital readout ES-12 V with LCD-display
  • 3-jaw chuck 500 mm
  • Independent chuck 520 mm
  • Initial filling with Shell Tellus 46
  • Coolant device
  • 4-way tool post holder
  • Protective device at 4-way tool post holder
  • LED machine light
  • Taper turning attachment L-500 mm
  • Tools

Technical details Universal turning lathes with digital readout Bernardo RDM 225

Max. workpiece length 1500 mm
Max. turning length 1300 mm
Swing over bed 630 mm
Swing over cross slide 340 mm
Tube diameter min./max. 50 – 220 mm
Bed width 490 mm
Max. workpiece weight 3000 kg
Travel x-axis 340 mm
Travel z-axis 1300 mm
Speed range (12) 24 – 300 rpm
Spindle bore 225 mm
Longitudinal feed (26) 0,07 – 1,33 mm/rev.
Cross feed (22) 0,02 – 0,45 mm/rev.
Metric thread (24) 1 – 14 mm
Inch thread (40) 2 – 28 threads/1“
Rapid feed x-axis 3000 mm/min
Rapid feed z-axis 4000 mm/min
Dimension tool shaft 32 x 32 mm
Taper of tailstock sleeve MT 5
Diameter of tailstock sleeve 100 mm
Travel of tailstock sleeve 250 mm
Motor power 7,5 kW
Machine dimension (W x D x H) 3700 x 1900 x 1600 mm
Weight approx. 4300 kg
