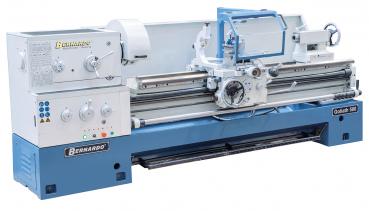

Universal turning lathes with digital readout Bernardo Goliath 500 x 2000
The Goliath 500 production lathe is characterized by high accuracy and performance and is particularly suitable for medium to heavy turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is equipped with a 3-axis digital readout.
Scope of delivery Universal turning lathes with digital readout Bernardo Goliath 500 x 2000
- Safety clutch
- Rapid feed longitudinal and cross
- LED machine light

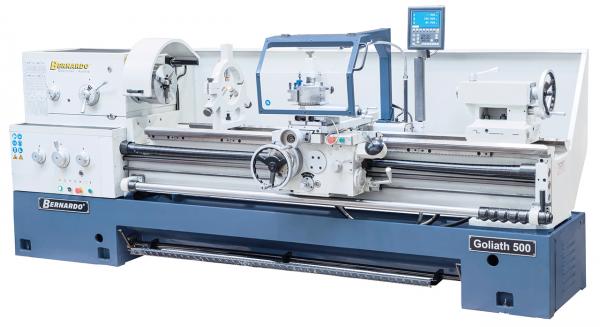

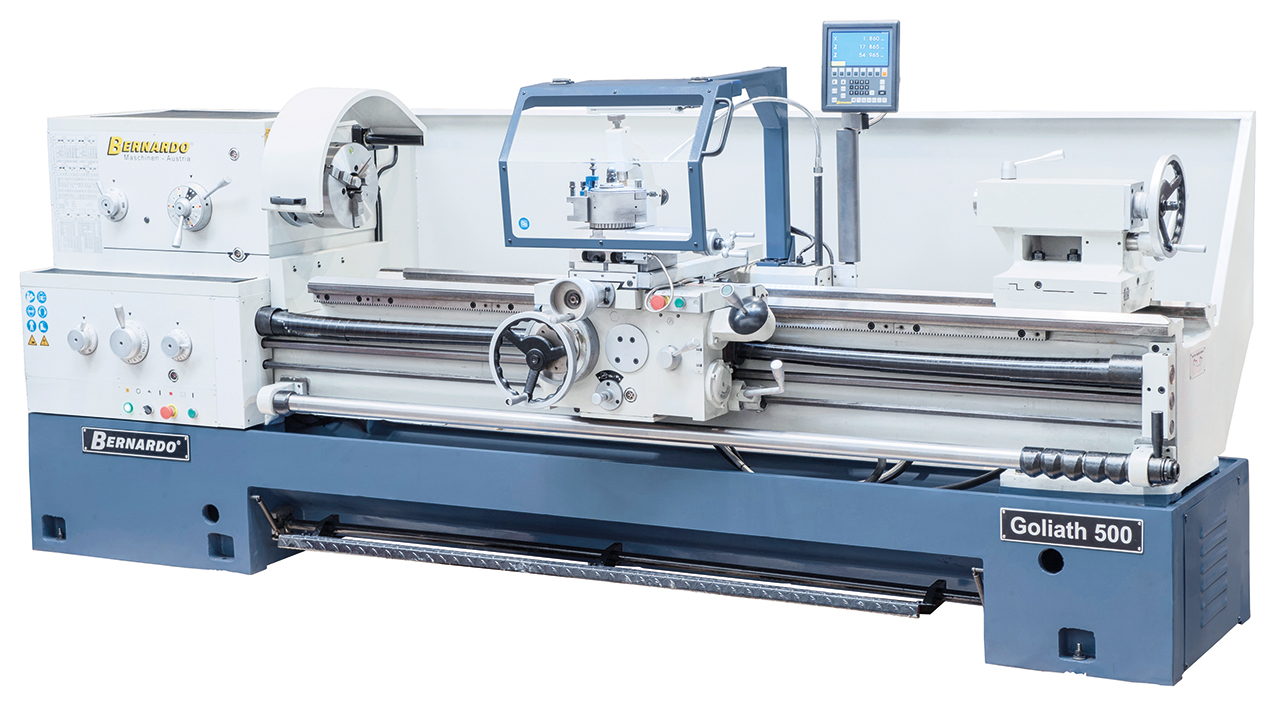

- 3-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck PS3-250 mm / D8

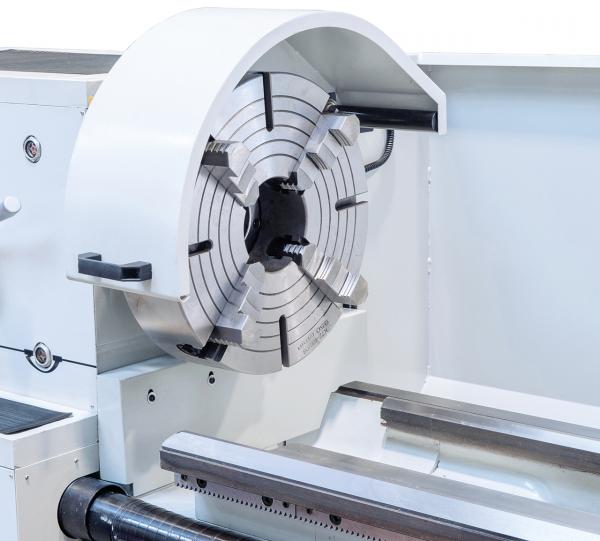

- Face plate 400 mm
- Steady rest - Passage up to max. 200 mm
- Follow rest - Passage up to max. 110 mm
- 1 dead center / 1 live center
- Motor with magnetic brake according to CE
- Foot pedal with brake function acc. to CE
- Initial filling with Shell Tellus 46
- Coolant device
- 40 pos. tool post and holder set with 4 inserts

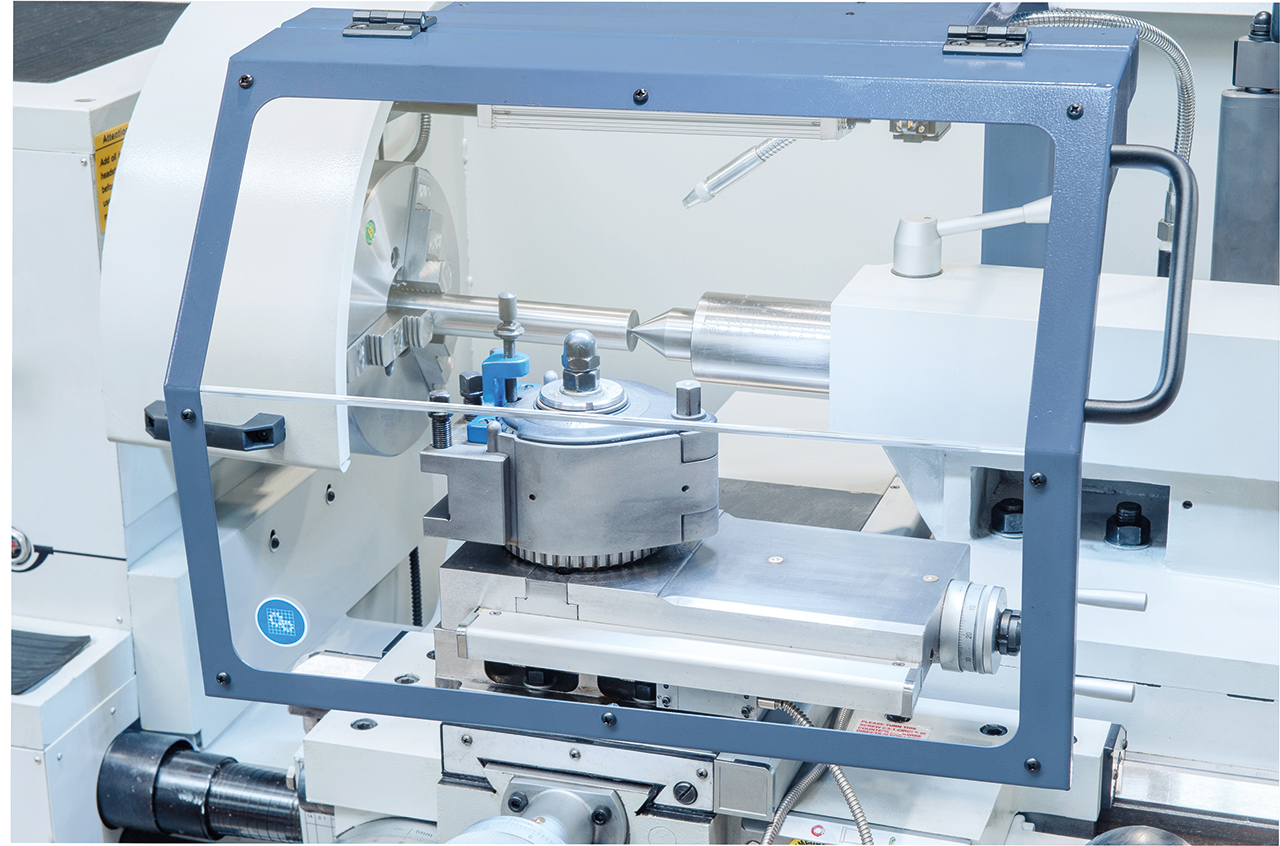

- Protective device at tool post holder
- Morse taper drill sleeve
- Splash guard
- Tools
Features Universal turning lathes with digital readout Bernardo Goliath 500 x 2000
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
- State-of-the-art main spindle bearing with high-quality angular ball bearings

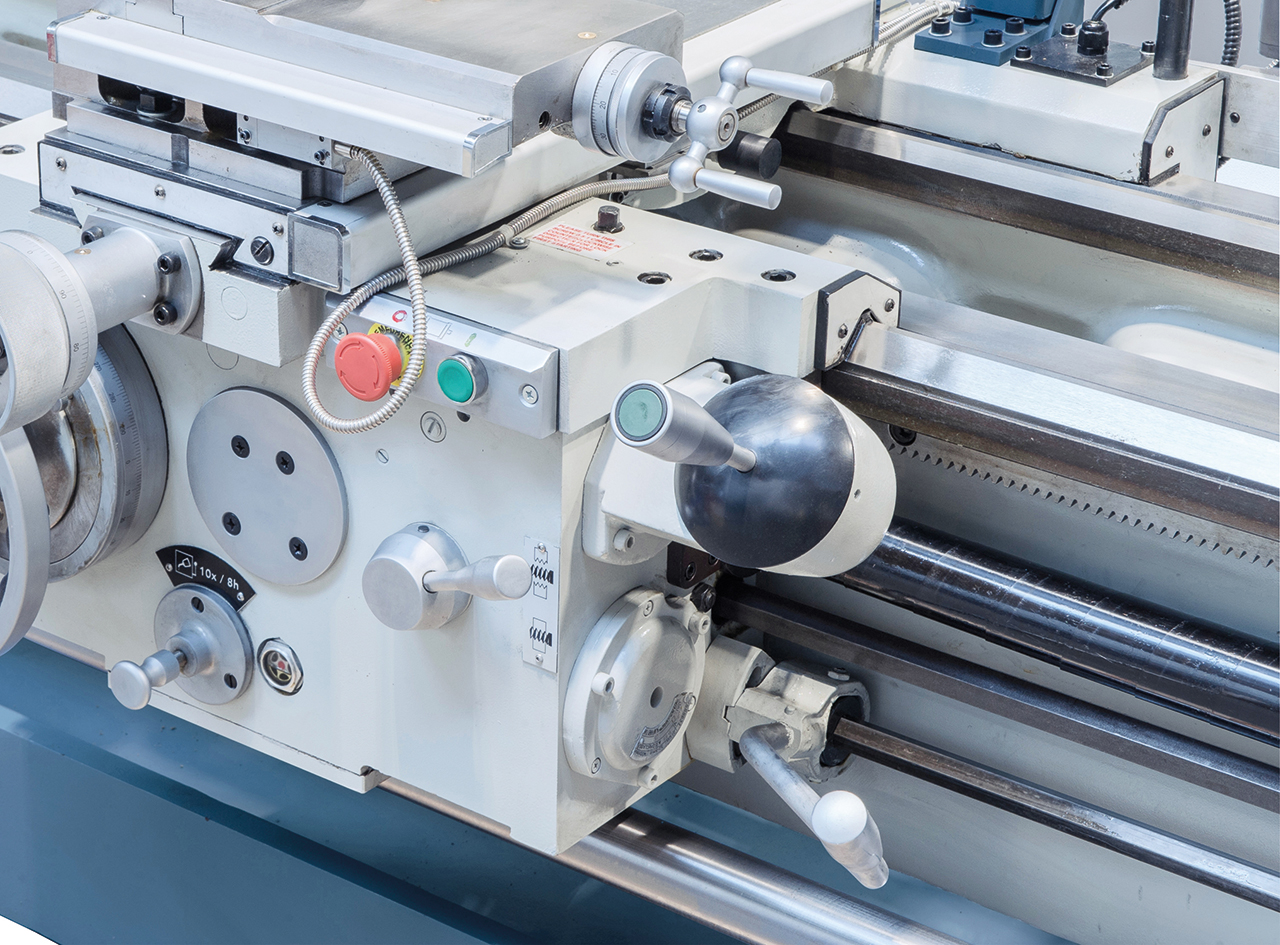

- Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
- Complete with longitudinal and cross rapid feed to reduce downtime
- Large gear wheels, hardened and polished
- Removable bridge allows machining of oversize workpieces
- Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
- Electro-mechanical foot brake keeps downtime to a minimum
- High performance even at face turning
Technical details Universal turning lathes with digital readout Bernardo Goliath 500 x 2000
| Distance between centers | 2000 mm |
| Center height | 250 mm |
| Swing over bed | 500 mm |
| Swing over gap* | 720 mm |
| Swing over cross slide | 310 mm |
| Bed with | 400 mm |
| Spindle bore | 80 mm |
| Spindle nose fixture | DIN 55029, D1-8 |
| Speed range | (24) 9 - 1600 rpm |
| Longitudinal feed | (80) 0,063 - 6,43 mm/rev. |
| Cross feed | (80) 0,027 - 2,73 mm/rev. |

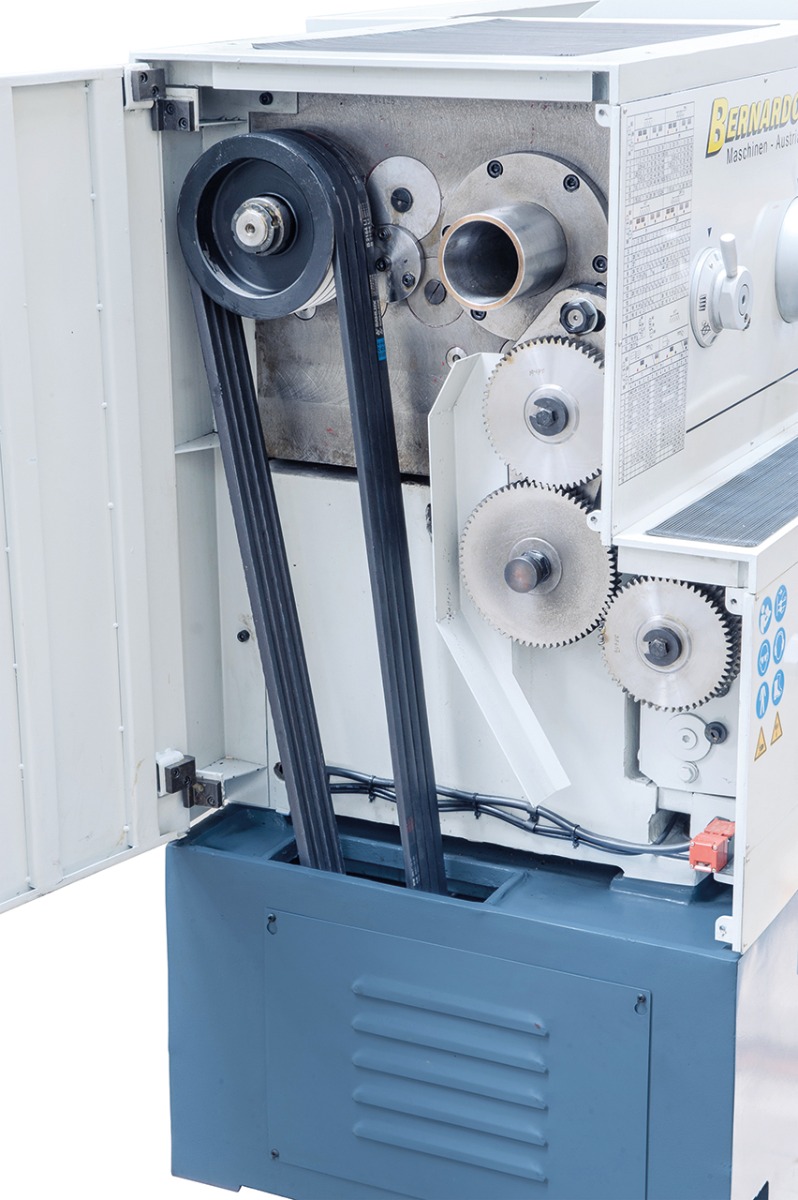

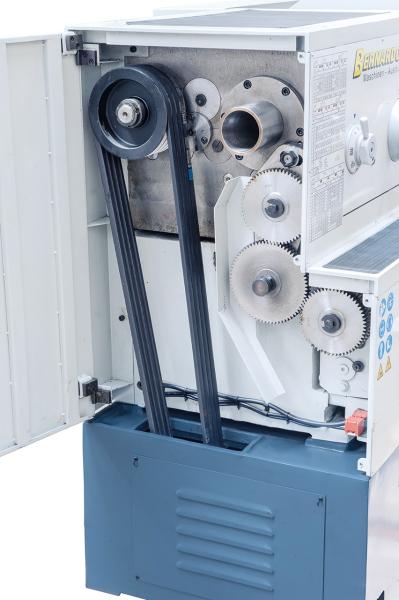

| Metric thread | (46) 1 - 224 mm |
| Inch thread | (44) 1/8 - 28 threads/1“ |
| Diameter of tailstock sleeve | 75 mm |
| Travel of tailstock sleeve | 150 mm |
| Taper of tailstock sleeve | MT 5 |
| Motor power | 7,5 kW (10,0 HP) |
| Machine dimension (W x D x H) | 3520 x 1240 x 1550 mm |
| Weight approx. | 3375 kg |
* Removeable bed length: 200 mm
