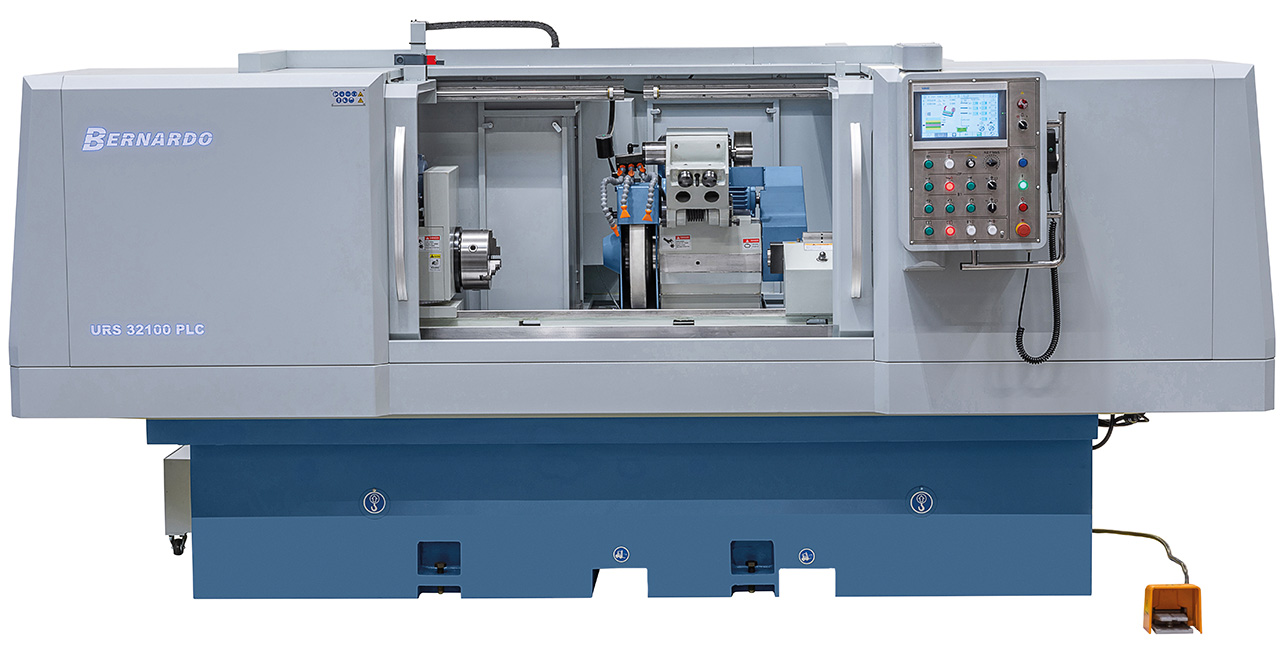

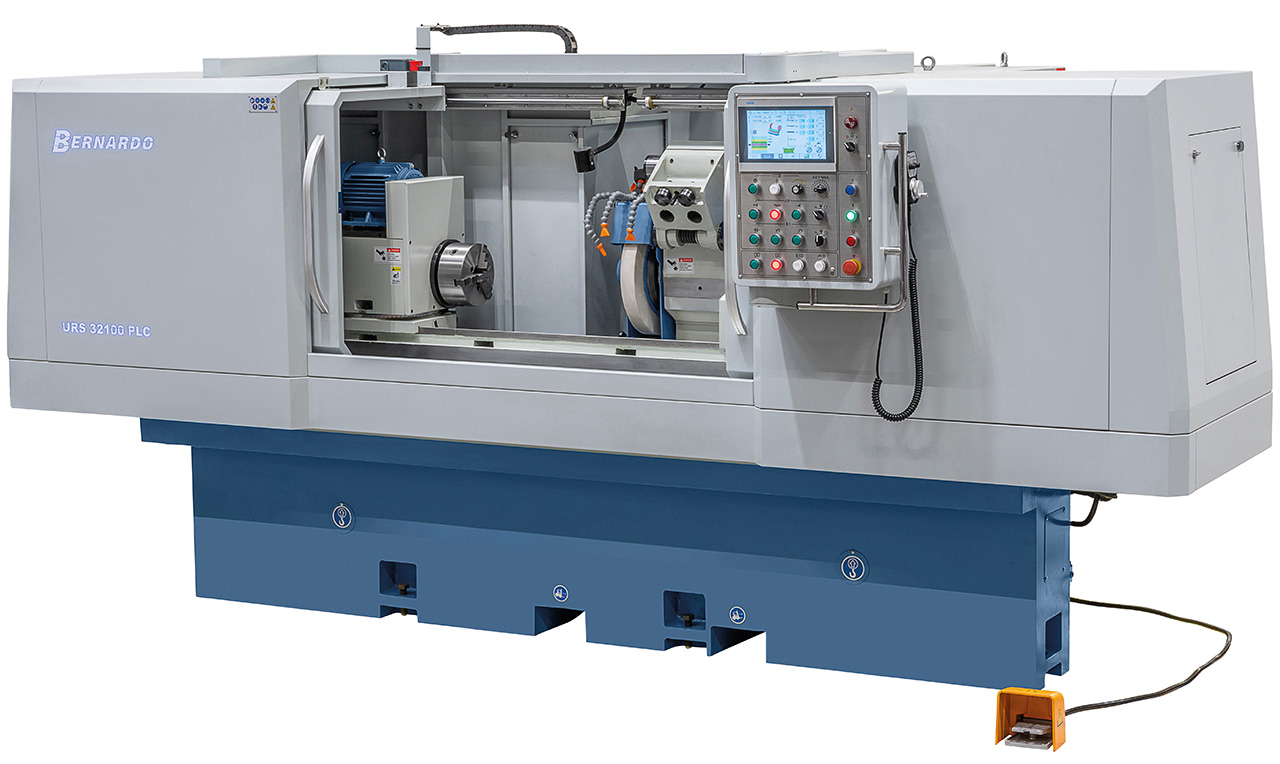

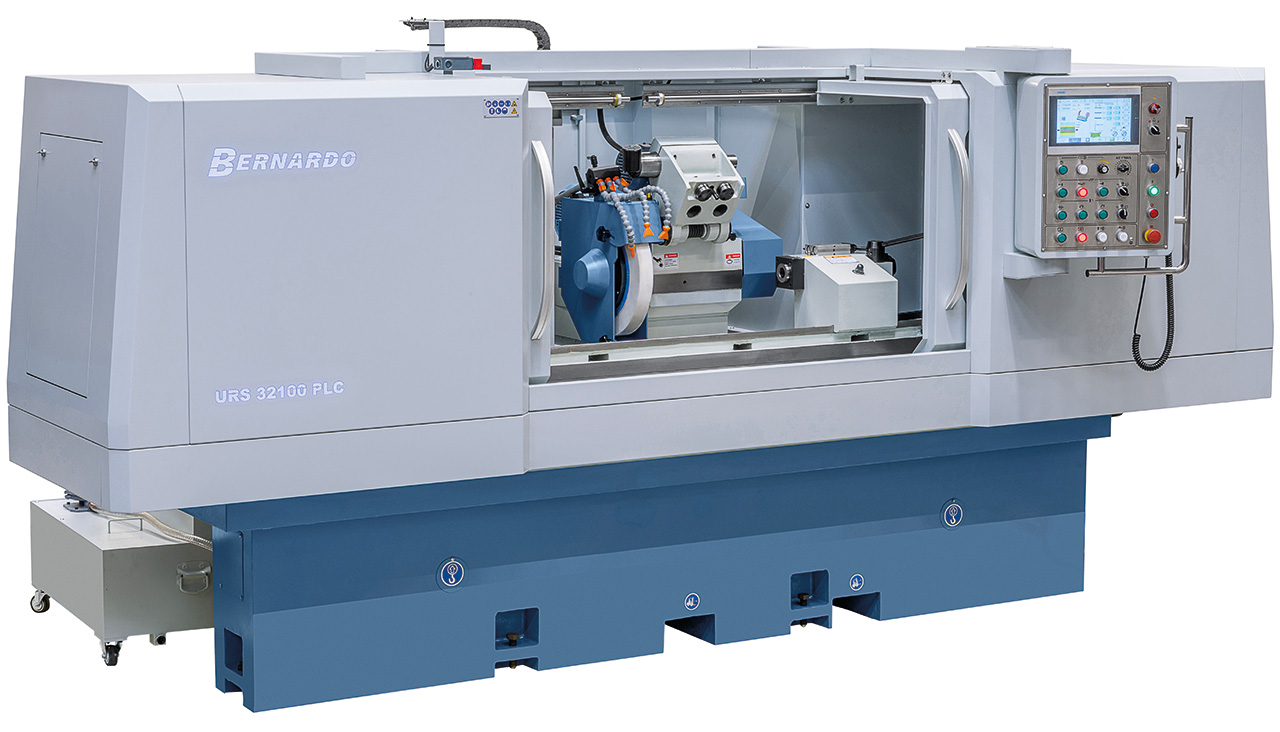

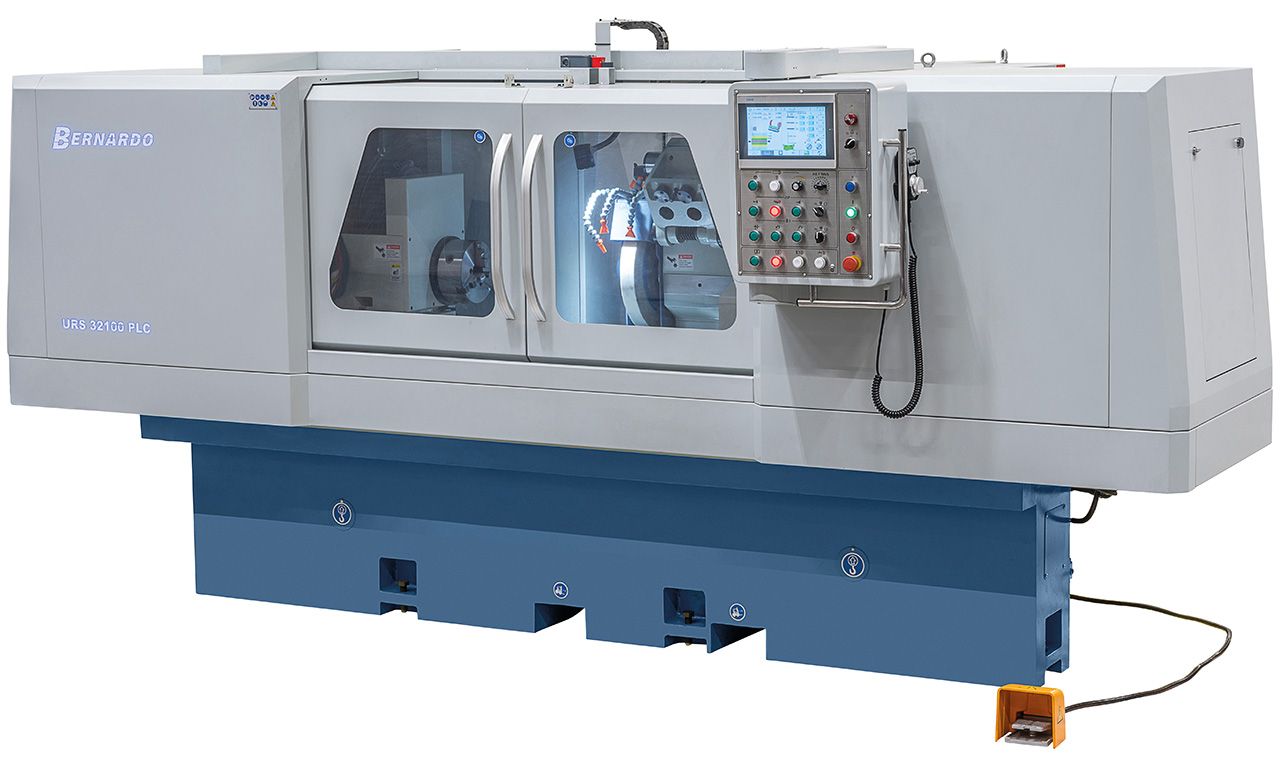

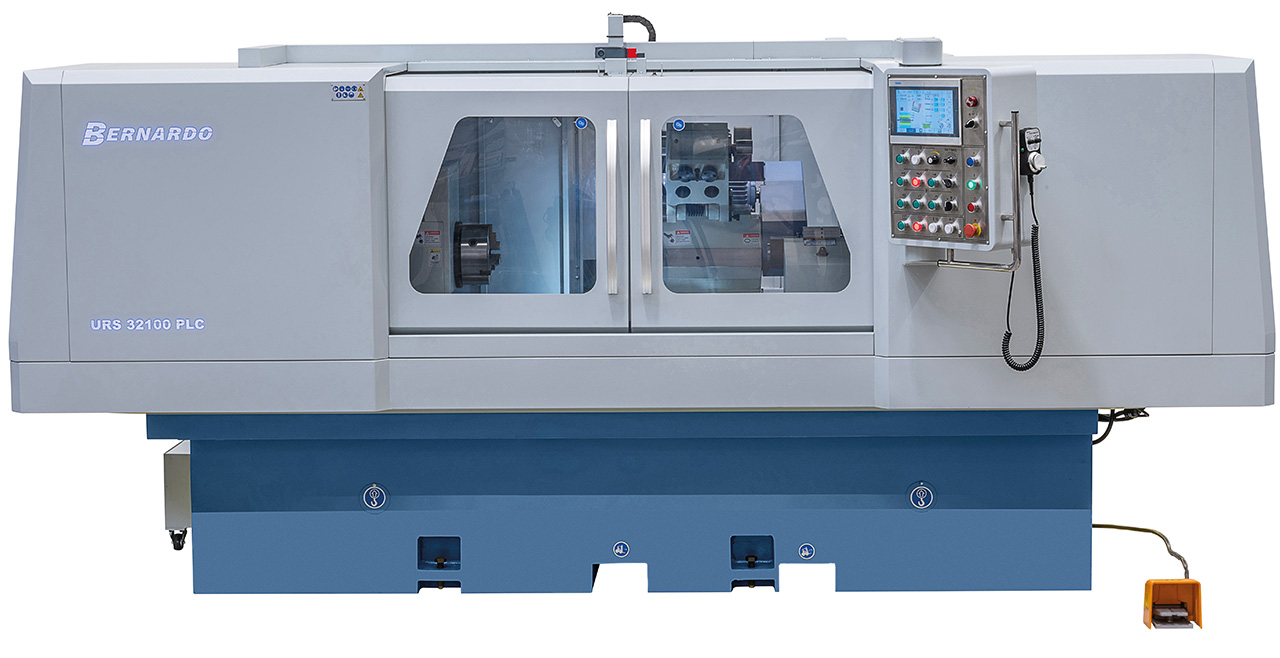

Universal sanding machine Bernardo URS 32100 PLC

Scope of delivery Universal sanding machine Bernardo URS 32100 PLC

• PLC control
• Electronic handwheel
• Grinding disc
• Grinding disc flange
• 3-jaw chuck diam. 200 mm
• Internal grinding device
• LED machine light
• Balancing stand
• Balancing mandrel
• Frequency converter
• 2 centring centres
• Measuring plate
• Coolant device
• Full panelling
• Grinding wheel dresser
• Workpiece driver
• Machine shoes
• Central lubrication
• Operating tool

Features Universal sanding machine Bernardo URS 32100 PLC

• The oil film between bearing and spindle reduces vibrations to a minimum, resulting in high surface quality and precision
• The generously dimensioned table can be swivelled in two directions for conical grinding and can be set to the desired position using a scale
• Precisely aligned spindle head and stable grinding headstock to achieve the best possible machining results for a wide range of grinding processes
• The machine base is relatively insensitive to temperature fluctuations and deformation thanks to the strong ribbing and generously dimensioned walls
• Double-sided grinding spindle with three-segmented, adjustable surface slide bearings
• The main spindle is mounted hydrodynamically, i.e. there is no contact between the bearing and spindle due to the oil film
• Infinitely adjustable feeds with optional pre-selectable holding time at the end of each table movement
• Precision-ground and hand-scraped guideways in the x-axis, linear guide in the y-axis
• Longitudinal table guide and wheelhead cross guide, one V and one flat guide each
• Servo drives in the x- and z-axis, work table moves via precise ball screw

Technical Details Universal sanding machine Bernardo URS 32100 PLC
