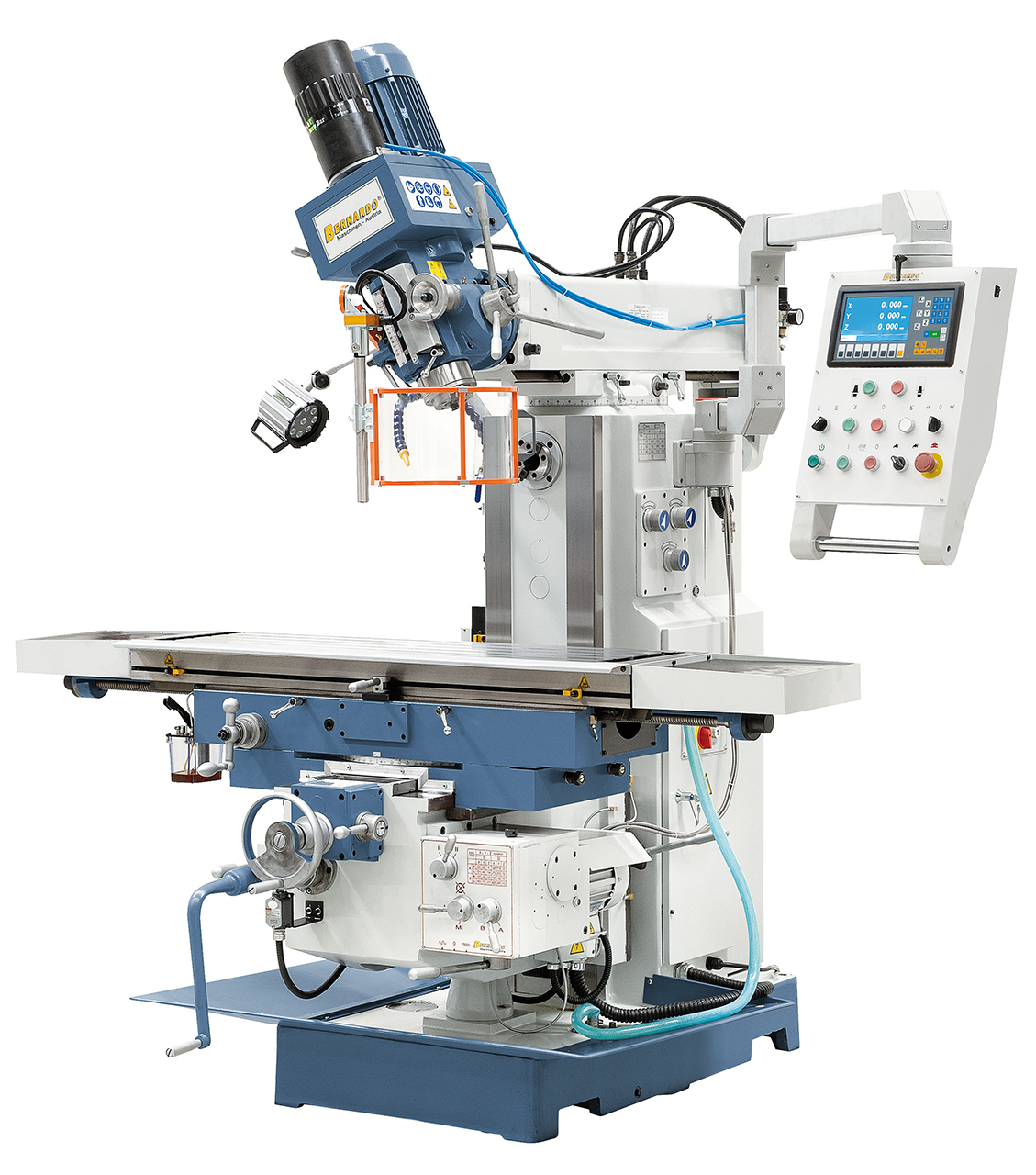

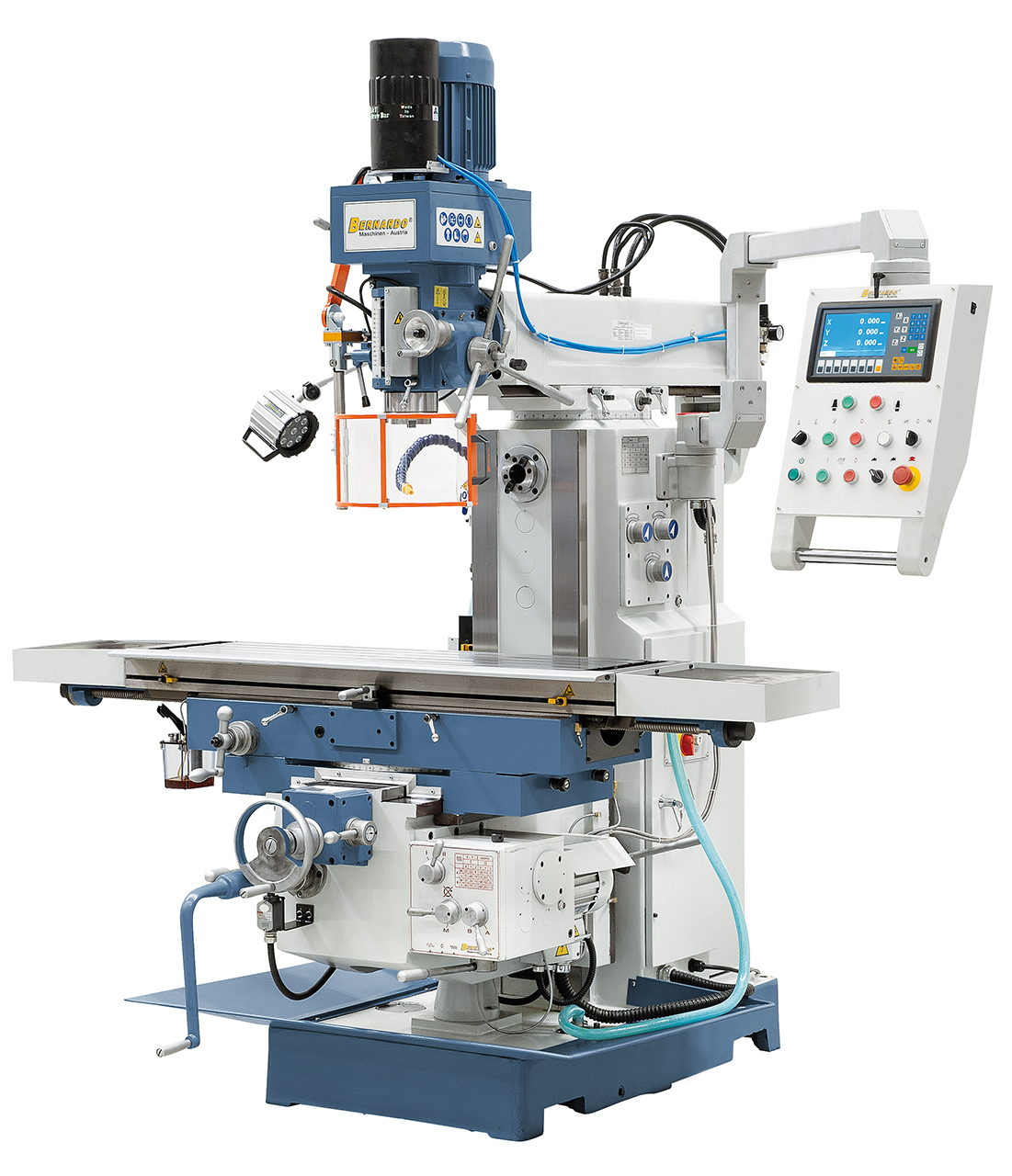

Universal milling machine Bernardo UWF 95 N

The UWF 95 N is an upgrade of the approved classic UWF 90, featuring an enhanced table size to extend applications area. Users enjoy high comfort levels achieved in part by the automatic drill feed. Additionally, this machine features an x-axis travel of 1000 mm as well as a pneumatic tool clamp device.

Scope of delivery Universal milling machine Bernardo UWF 95 N

ISO 40/MT 3

Features Universal milling machine Bernardo UWF 95 N

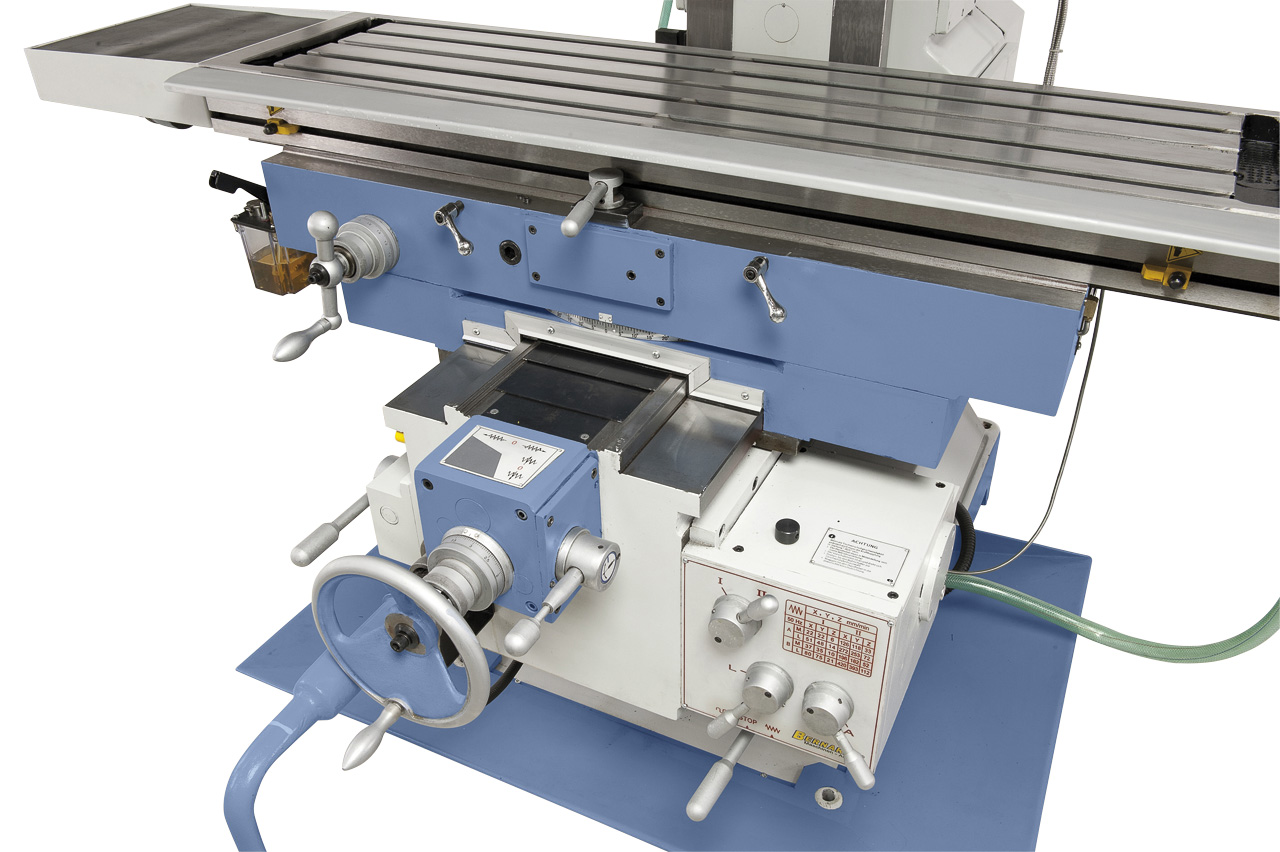

• Automatic table feed (8 steps) in all axis
• Large table (1600 x 360 mm) includes T-slots

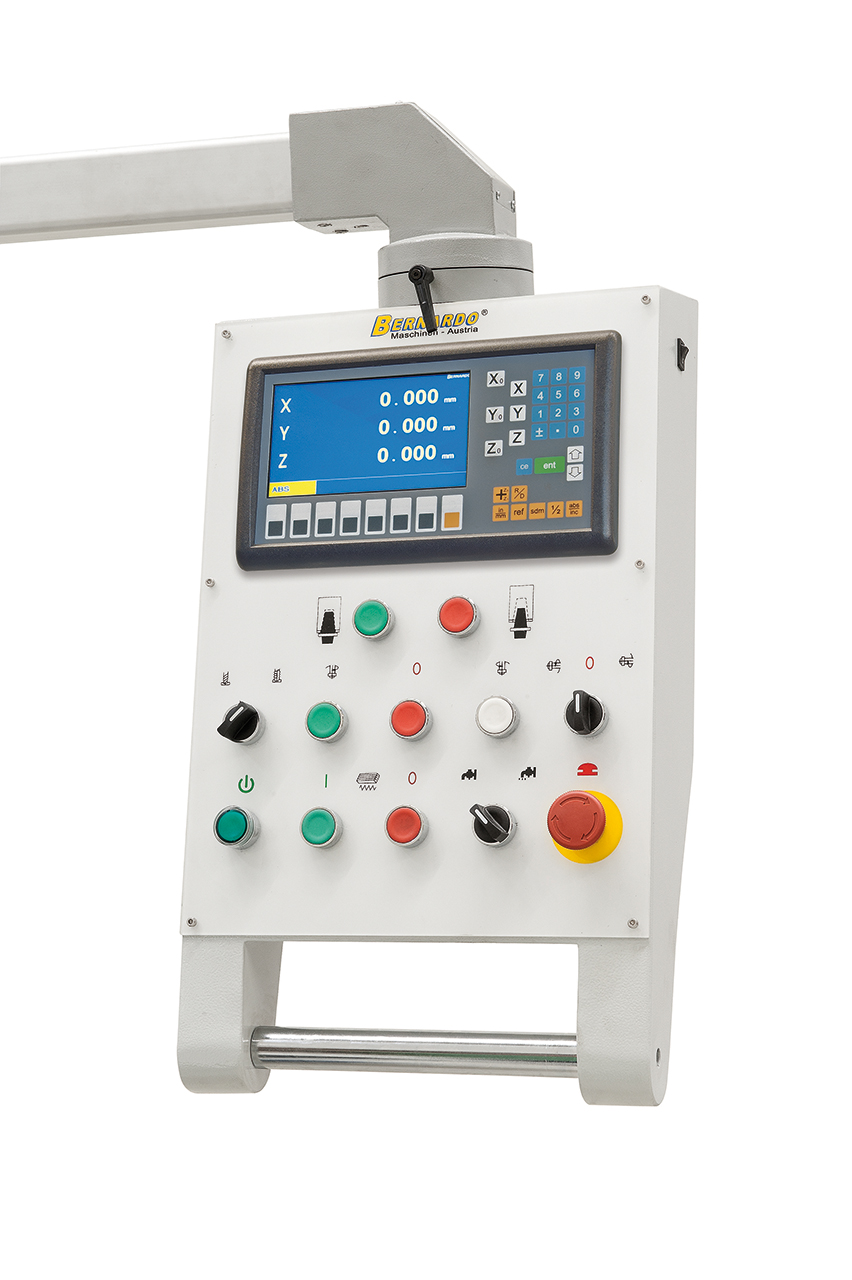

• Complete with 3-axis digital readout for maximum productivity
• Additional horizontal spindle extends application area
• Automatic spindle feed (0,08 - 0,25 mm) comes standard
• Positioning motor at z-axis (670 mm/min) comes standard
• Wide range of accessories standard
• Polished gear wheels, in oil bath, ensure smooth running

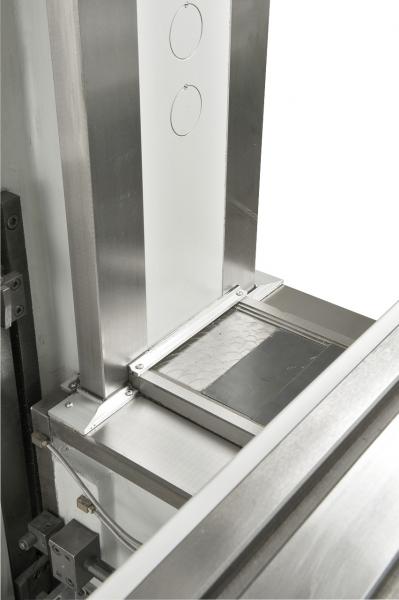

• Large rectangular guide at y- and z-axis
• Solid, grey cast-iron machine stand eliminates vibrations
• Left and right rotation allows thread cutting

Technical details Universal milling machine Bernardo UWF 95 N
