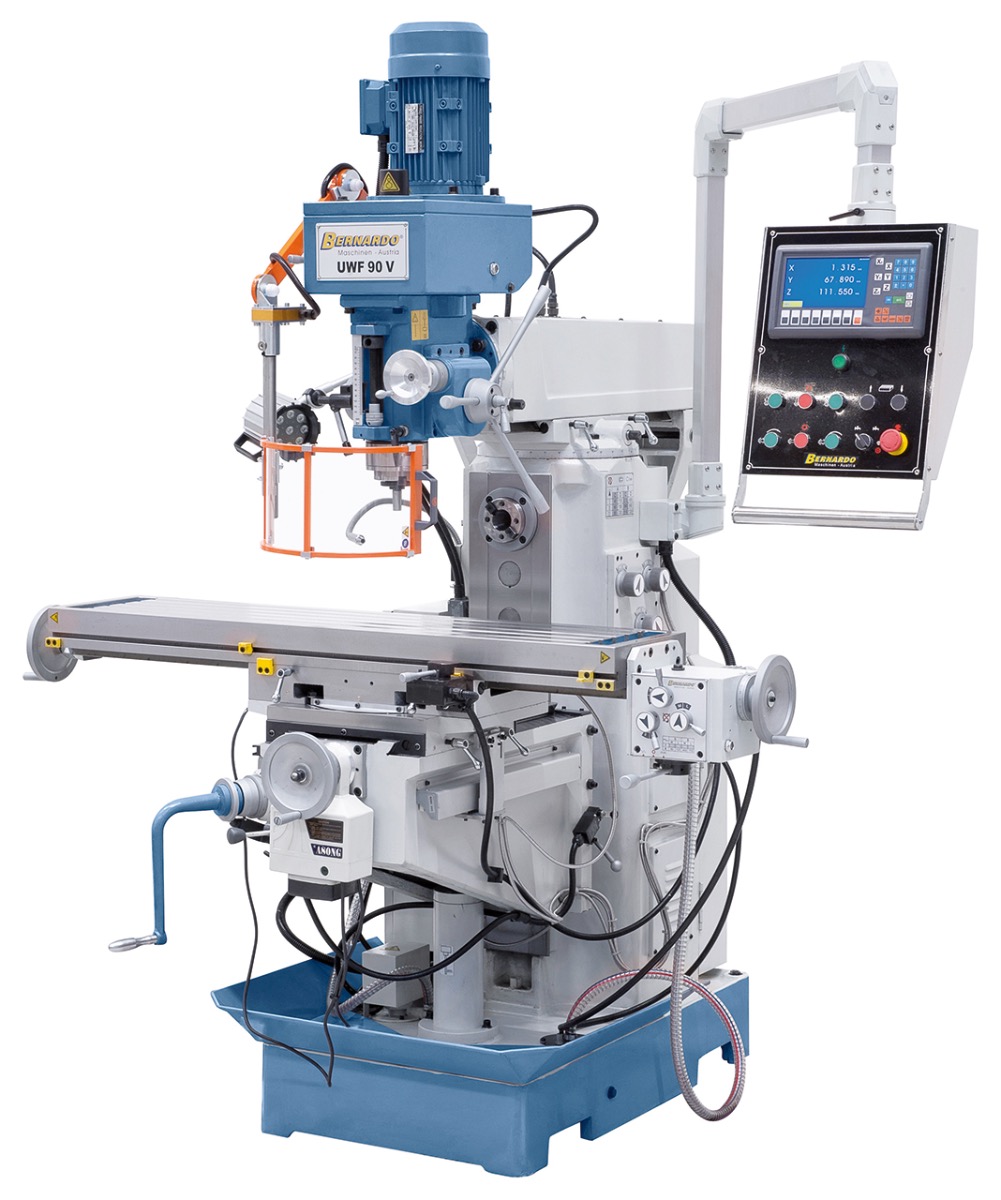

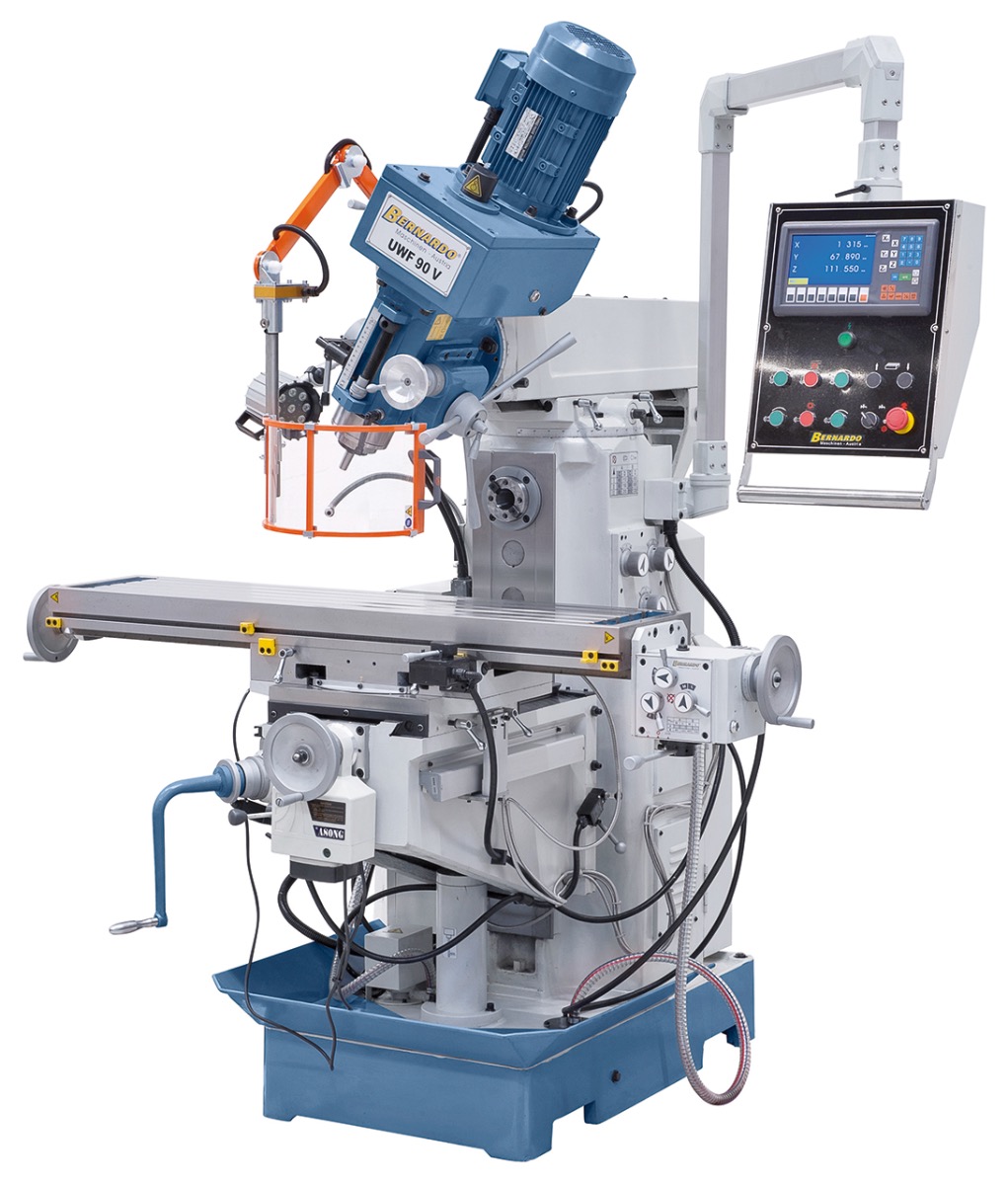

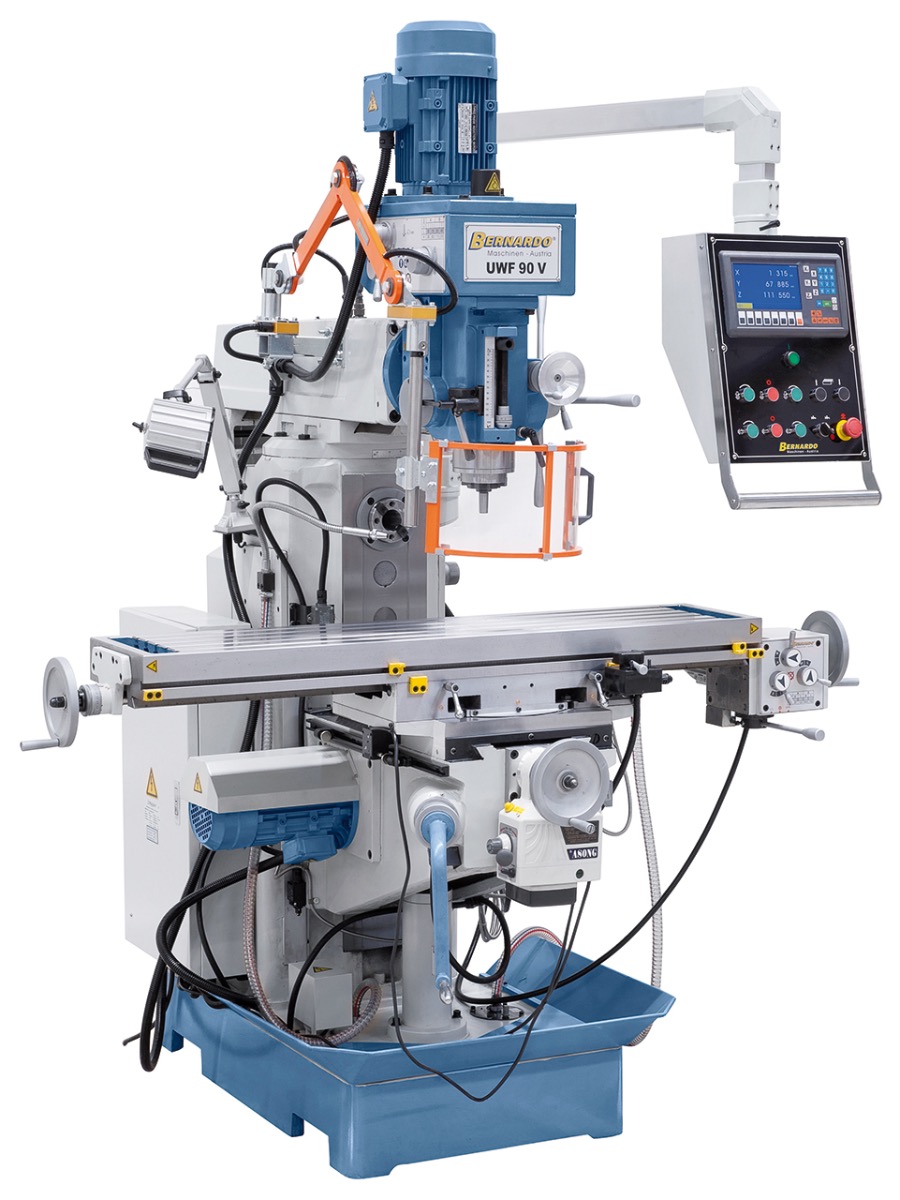

Universal milling machine Bernardo UWF 90 V

Product No.:
02-1230XL
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

14.470,40 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

The UWF 90 V universal milling machine was designed for economical production of individual parts and small series with high accuracy. The outstanding user-friendliness makes this model particularly attractive for machinery and plant engineering, manufacturing and production of single parts. Furthermore, this model comes complete with an automatic spindle feed.

Scope of delivery Universal milling machine Bernardo UWF 90 V

ISO 40/32 mm
  • Coolant device
  • LED machine light
  • Tools

Features Universal milling machine Bernardo UWF 90 V

  • Wide range of applications in general machine engineering, manufacturing, production of single parts
  • Complete with automatic table feed in x- and y-axis including rapid feed
  • Positioning motor for z–axis comes standard
  • Automatic spindle feed (0,08 - 0,25 mm) comes standard
  • Heavy cast-iron machine stand eliminates vibrations
  • Complete with 3-axis digital readout for maximum productivity
  • Polished gear wheels, in oil bath, ensure smooth running
  • Ideal for single and small-series production

Technical details Universal milling machine Bernardo UWF 90 V

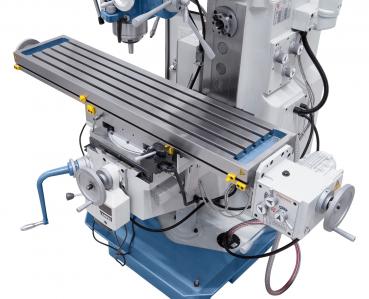

Table size

1270 x 280 mm

Spindle taper

ISO 40

Spindle speed vertical

(8) 90 – 2000 rpm

Spindle speed horizontal

(12) 40 – 1300 rpm

Spindle stroke

120 mm

Pinolenvorschub

0,08 / 0,15 / 0,25 mm/rev.

Travel longitudinal (x)

750 mm*

Travel cross (y)

230 mm

Travel vertical (z)

300 mm

Distance spindle to column

240 – 740 mm

Table tiltable

-45° to +45°

Spindle head tilting range

-90° to +90°

Distance spindle to table

125 – 425 mm

Feed range longitudinal

(8) 32 – 700 mm/min

Rapid feed z-axis

660 mm/min

T-slot size

14 mm

Motor power vertical

2,2 kW

Motor power horizontal

2,2 kW

Machine dimension (W x D x H)

1750 x 1500 x 2200 mm

Weight approx.

1310 kg





* manuell
