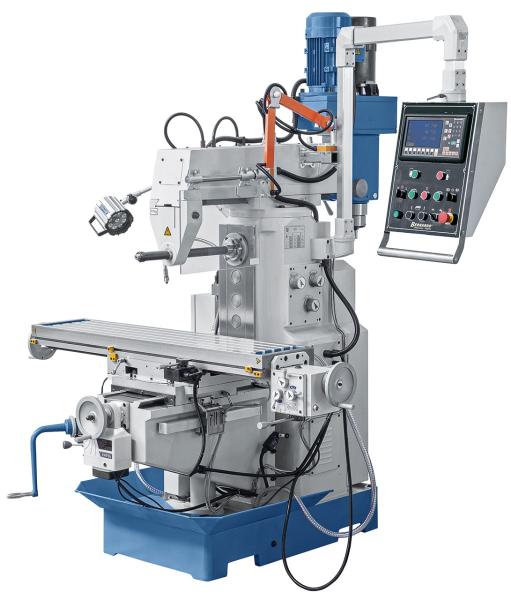

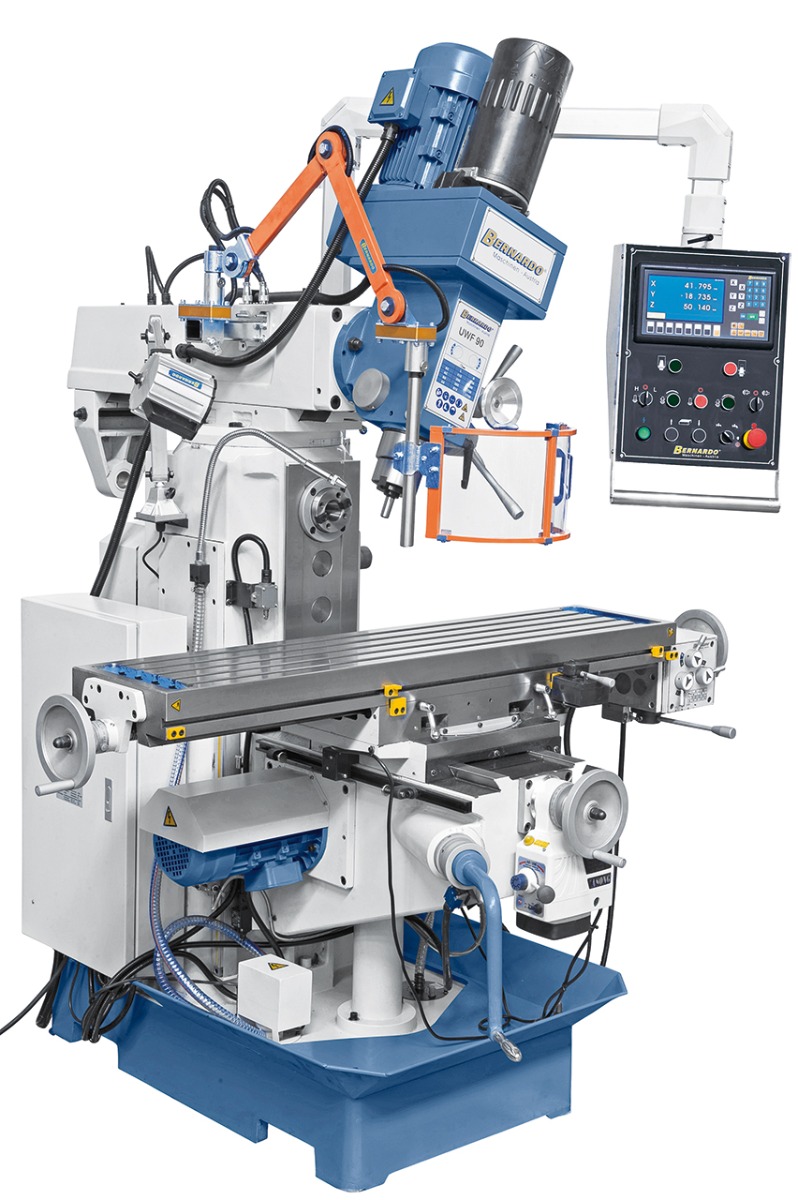

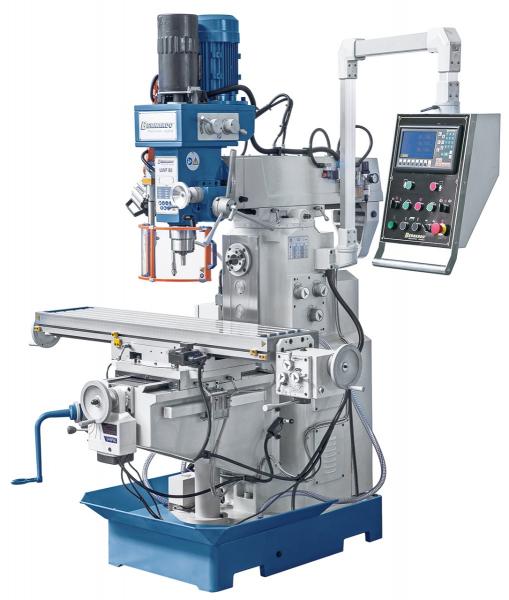

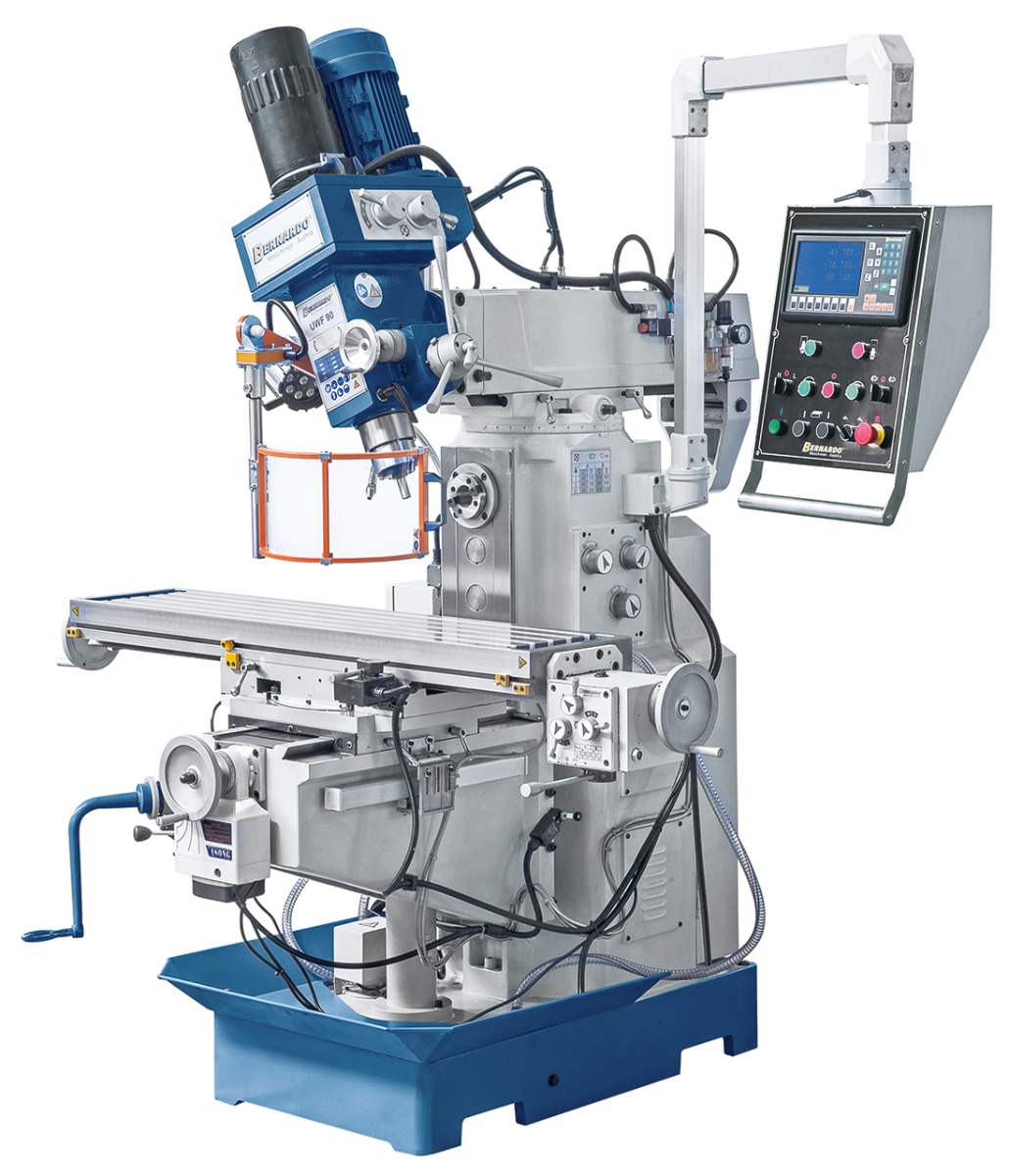

Universal milling machine Bernardo UWF 90 incl. 3-axis digital readout ES-12 H and pneumatic tool clamping

The UWF 90 universal milling machine is serially equipped with an x- and y-axis feed. The table height (z-axis) is easily adjusted by the positioning motor. Due to the various areas of application and the comprehensive standard accessories, the machine is ideal for mechanical workshops, repair shops, engine construction etc.

Scope of delivery Universal milling machine Bernardo UWF 90 incl. 3-axis digital readout ES-12 H and pneumatic tool clamping

• 3-axis digital readout ES-12 H with LCD-display
• Drawbar M 16
• LED machine light

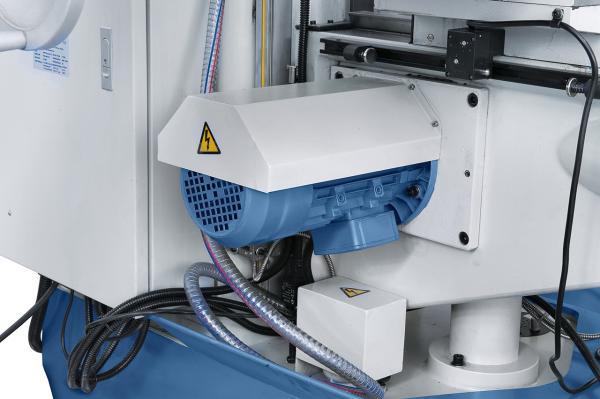

• Coolant device

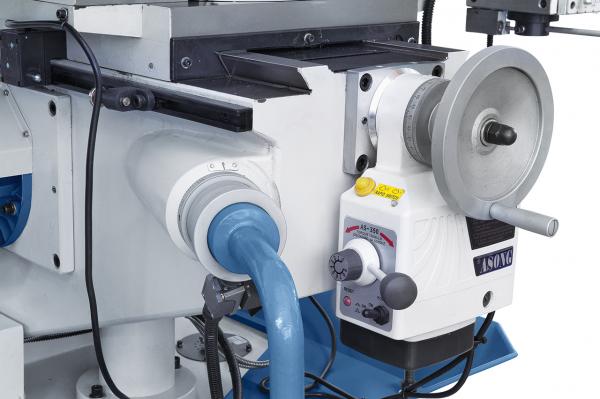

• Automatic table feed in x- and y-axis
• Positioning motor for  z-axis
• Adapter ISO 40 / B 18, ISO 40 / MT 3
• Morse taper drill sleeve
  • MT 3/2
  • Long milling arbor 27 mm

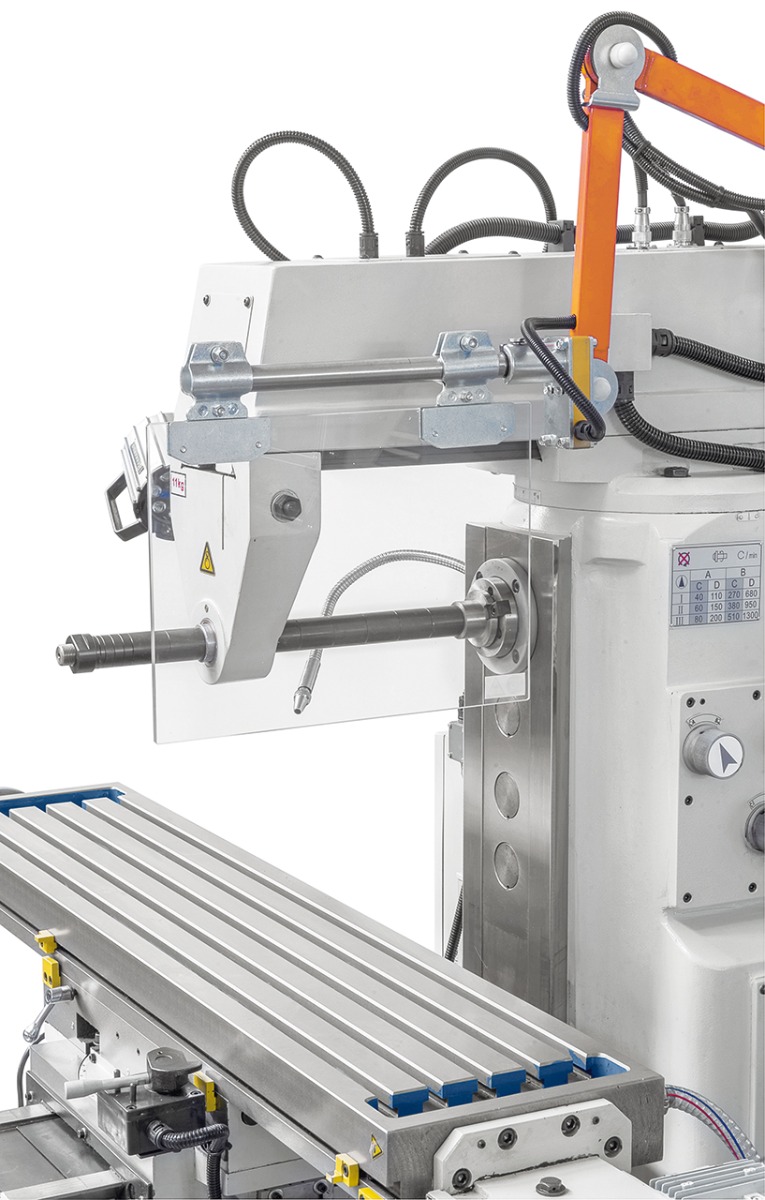

  • Horizontal counter bearing
  • Adjustable protective device
  • Protective cover for horizontal milling
  • Tools

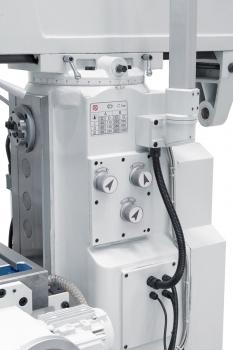

  Features Universal milling machine Bernardo UWF 90 incl. 3-axis digital readout ES-12 H and pneumatic tool clamping

  • Complete with automatic table feed in x- and y-axis including rapid feed
  • Surface treated, large table includes T-slots
  • Heavy cast-iron machine stand eliminates vibrations
  • Dovetail guiding in all three axis – adjustable by gibs
  • Positioning motor for z–axis comes standard
  • Wide speed and feed range
  • Ideal for single and small-series production
  • Tapered roller bearings ensure high concentricity
  • Left and right rotation allows thread cutting

  Technical details Universal milling machine Bernardo UWF 90 incl. 3-axis digital readout ES-12 H and pneumatic tool clamping

  Table size	1270 x 280 mm
  Spindle taper	ISO 40
  Spindle speed vertical	(8) 115 - 1750 rpm
  Spindle speed horizontal	(12) 40 - 1300 rpm
  Spindle stroke	125 mm
  Travel (x / y / z)	750 mm * / 230 mm / 300 mm
  Distance spindle to table	35 - 350 mm
  Distance spindle to column	170 - 750 mm
  Table tiltable	-45° to +45°
  Spindle head tilting range	-90° to +90°
  Feed range longitudinal	(8) 32 - 700 mm/min
  Rapid feed z-axis	660 mm/min
  T-slot size	14 mm
  Motor power vertical	0,85 / 1,5 kW
  Motor power horizontal	2,2 kW
  Machine dimension (W x D x H)	1750 x 1500 x 2200 mm
  Weight approx.	1300 kg

  * manual
