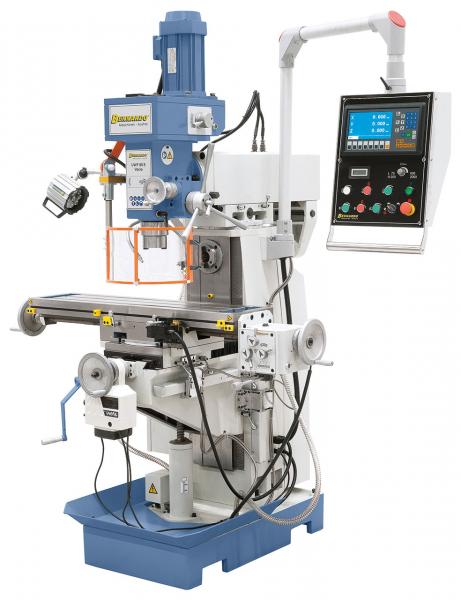

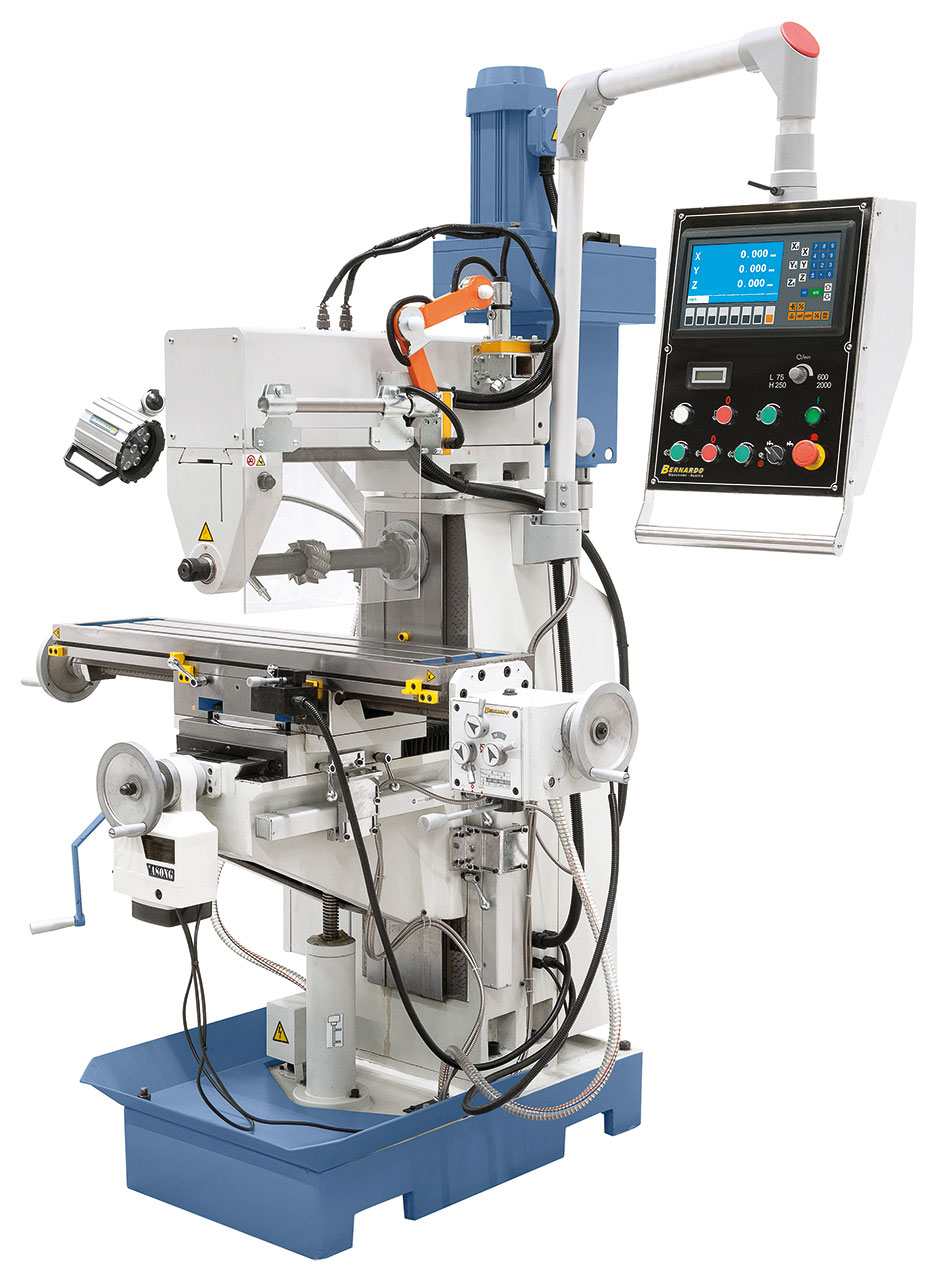

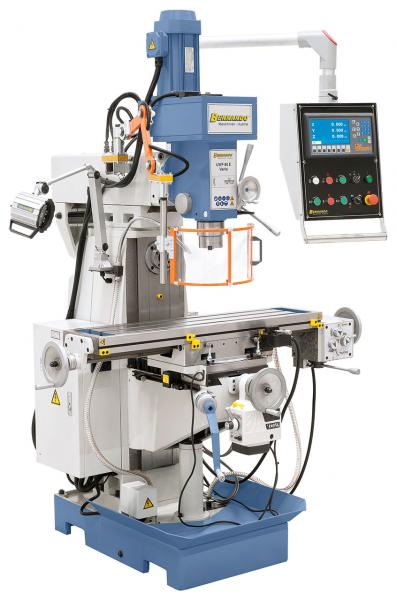

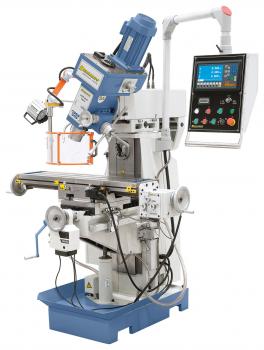

Universal milling machine Bernardo UWF 80 E Vario

The UWF 80 E Vario universal milling machine comes equipped with variable speed setting of the vertical spindle for optimal adjustment of the cutting speed. The high user-friendliness makes this model particularly suitable for professionals, in repair shops and for training purposes.

Scope of delivery Universal milling machine Bernardo UWF 80 E Vario

• 3-axis digital readout ES-12 H with LCD-display
• Drawbar M 16
• LED machine light
• Coolant device
• Frequency inverter

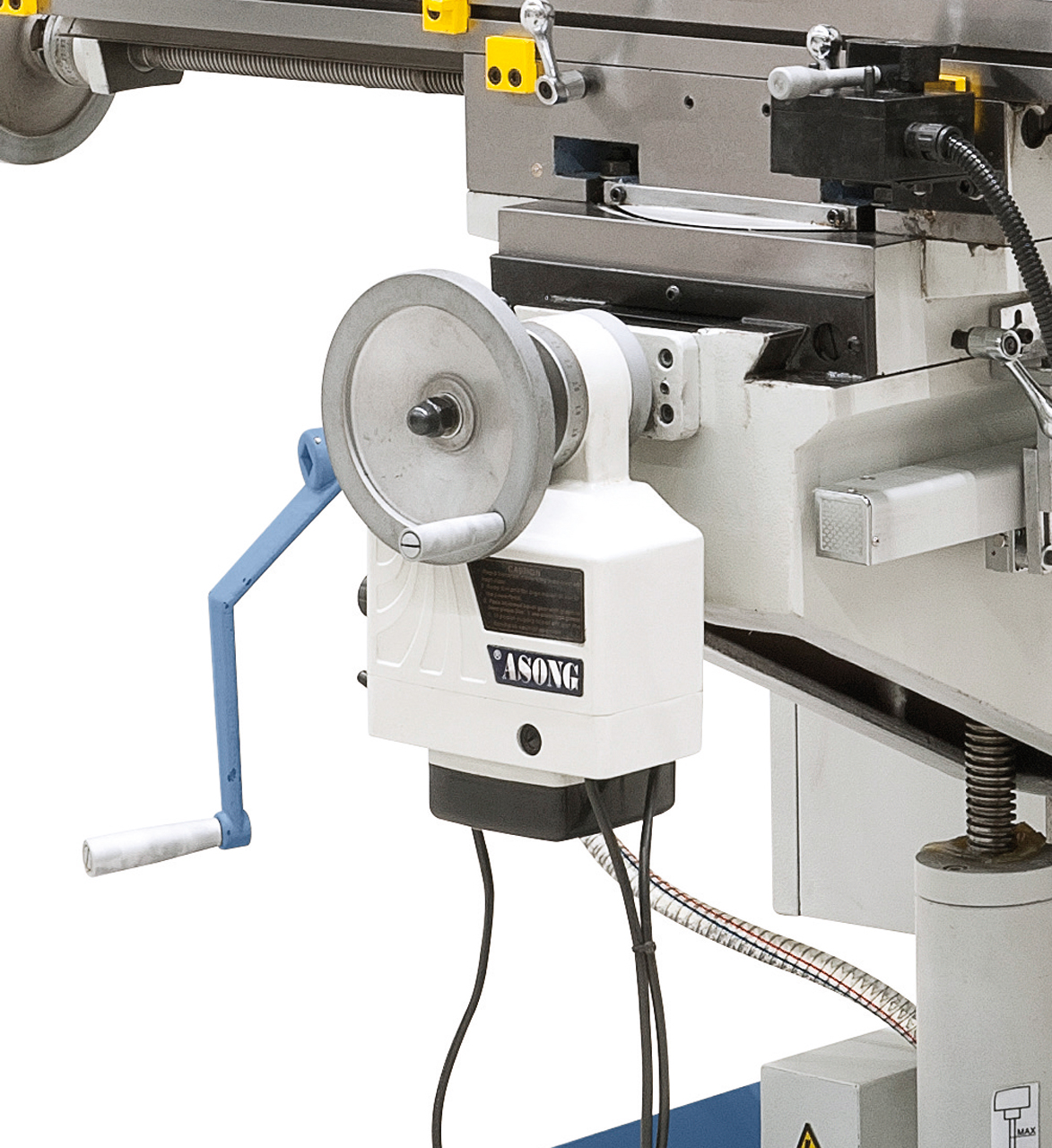

• Power feed for x-axis
• Power feed for y-axis
• Adapter ISO 40 / MT 3
• Adapter ISO 40 / B 18
• Morse taper drill sleeve
  • MT 3/2
  • Long milling arbor ISO 40 / 27 mm
  • Adjustable protective device
  • Protective cover for horizontal milling
  • Counter bearing

  Features Universal milling machine Bernardo UWF 80 E Vario

  • Variable speed setting (vertical spindle) via Delta-Frequency inverter with ideal torque
  • Automatic table feed with rapid feed allows for quick table adjustment in x- and y-axis
  • Wide range of applications, such as slotting, face milling, reboring
  • Tiltable milling table -45° to +45° increases range of applications significantly
  • Complete with position display in all 3 axis raises productivity
  • Precision bearings ensure high concentricity of spindle (0.015 mm)

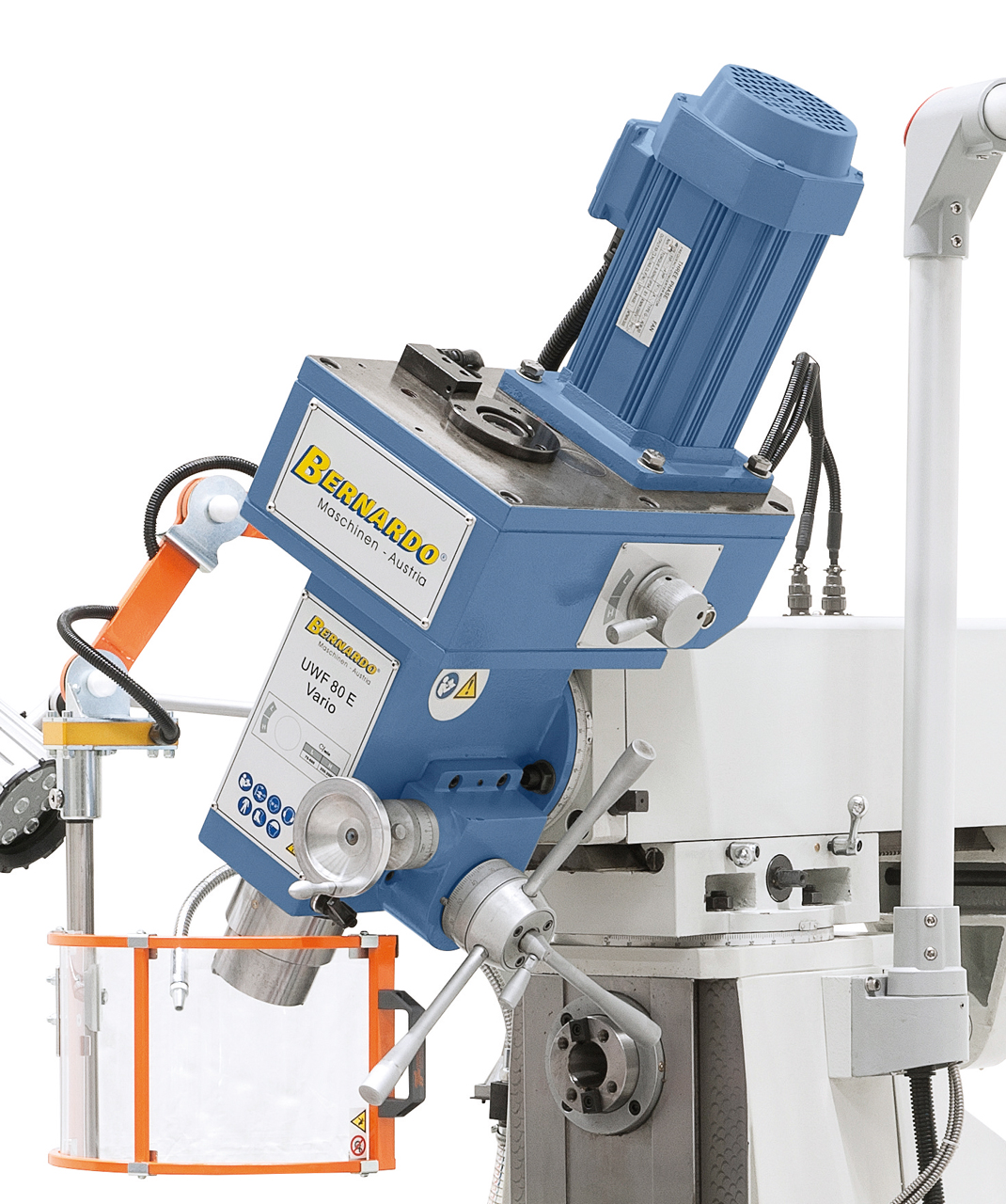

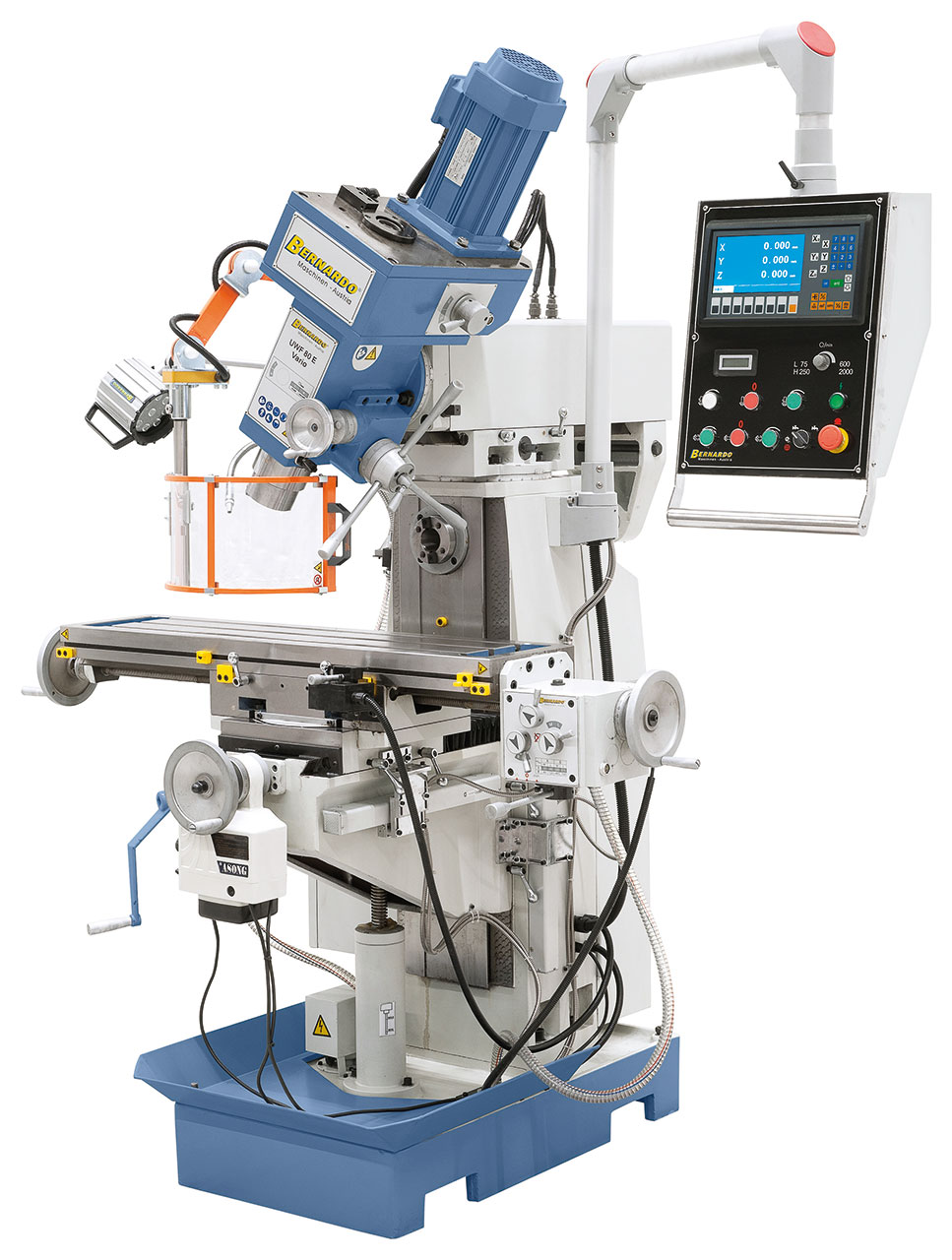

  • Milling head tilts to both sides for angular boring, milling of chamfers etc.

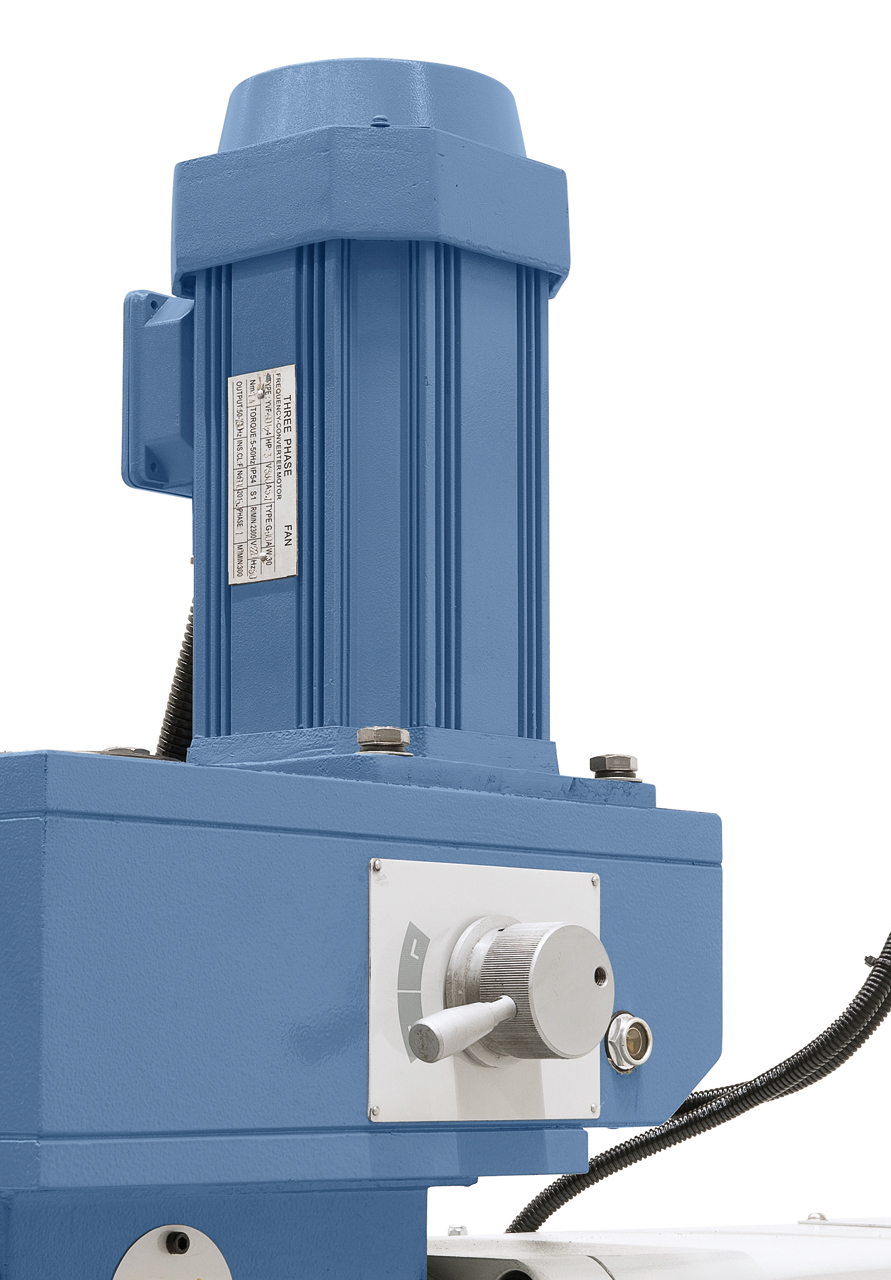

  • Smooth running, powerful drive motor with frequency inverter

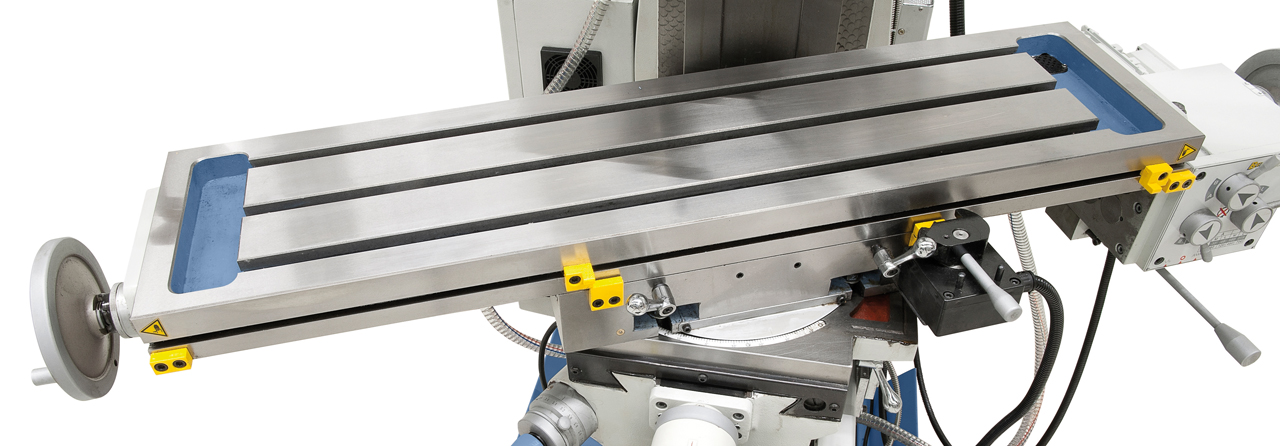

  • Oversize cross table (1000 x 240 mm) features T-slots

  Technical details Universal milling machine Bernardo UWF 80 E Vario

  Table size	1000 x 240 mm
  Spindle taper	ISO 40
  Spindle speed vertical, stepless	75 - 600 / 250 - 2000 rpm
  Spindle speed horizontal	(9) 60 - 1350 rpm
  Spindle stroke	125 mm
  Travel longitudinal (x)	590 mm
  Travel cross (y)	175 mm
  Travel vertical (z)	320 mm
  Distance spindle to table	55 - 375 mm
  Distance spindle to column	225 - 650 mm
  Table tiltable	-45° to +45°
  Spindle head tilting range	-90° to +90°
  Feed range, longitudinal	(8) 32 - 700 mm/min
  T-slot size	14 mm
  Motor power vertical	2,2 kW
  Motor power horizontal	1,5 kW
  Machine dimensions (W x D x H)	1600 x 1500 x 2100 mm
  Weight approx.	1010 kg
