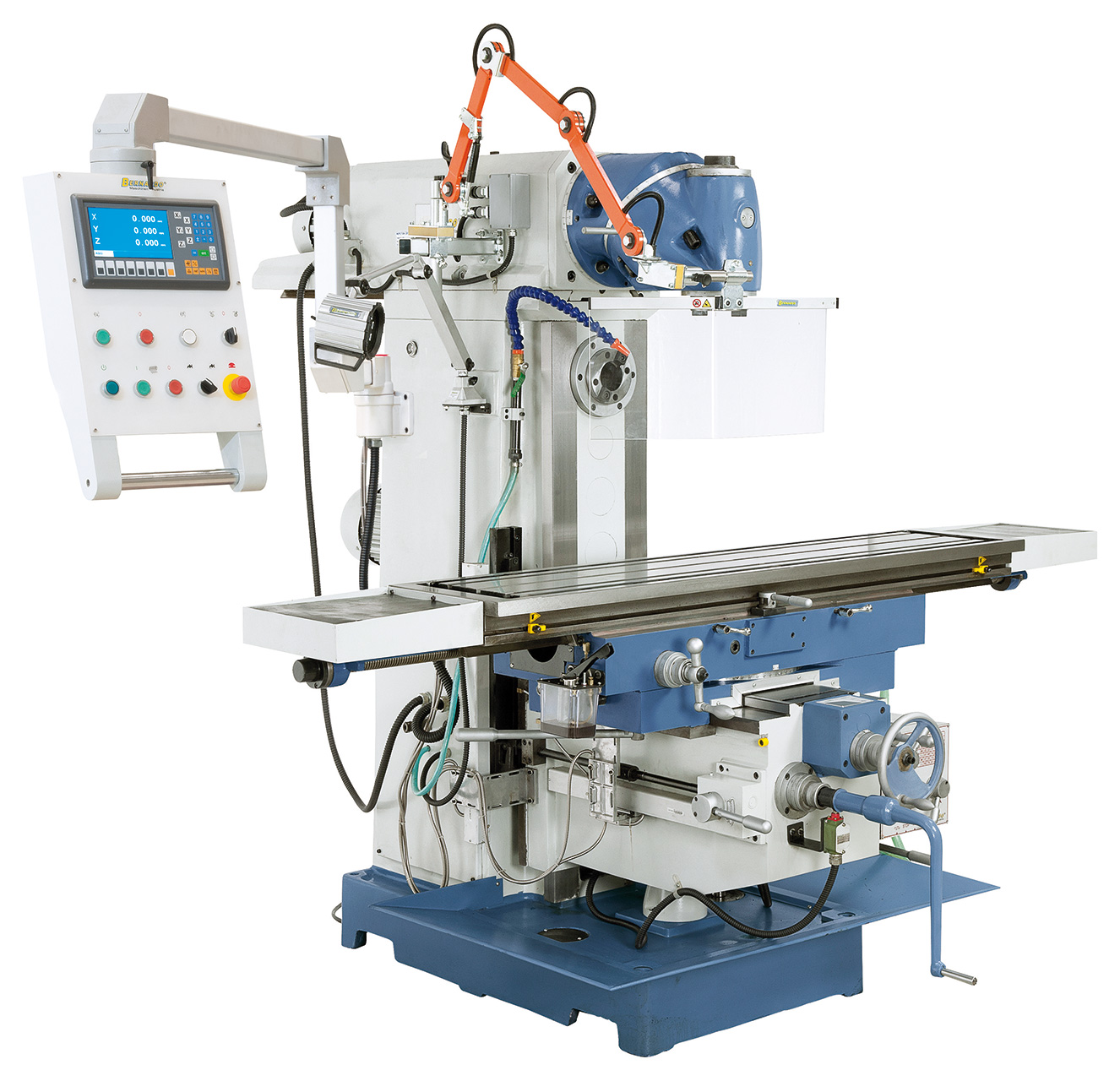

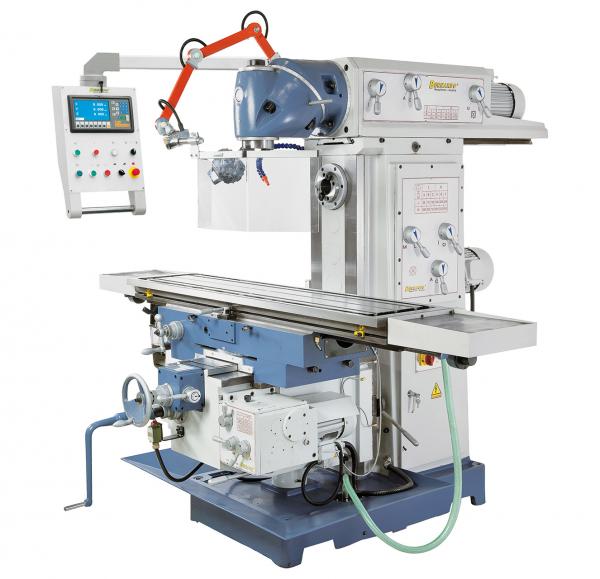

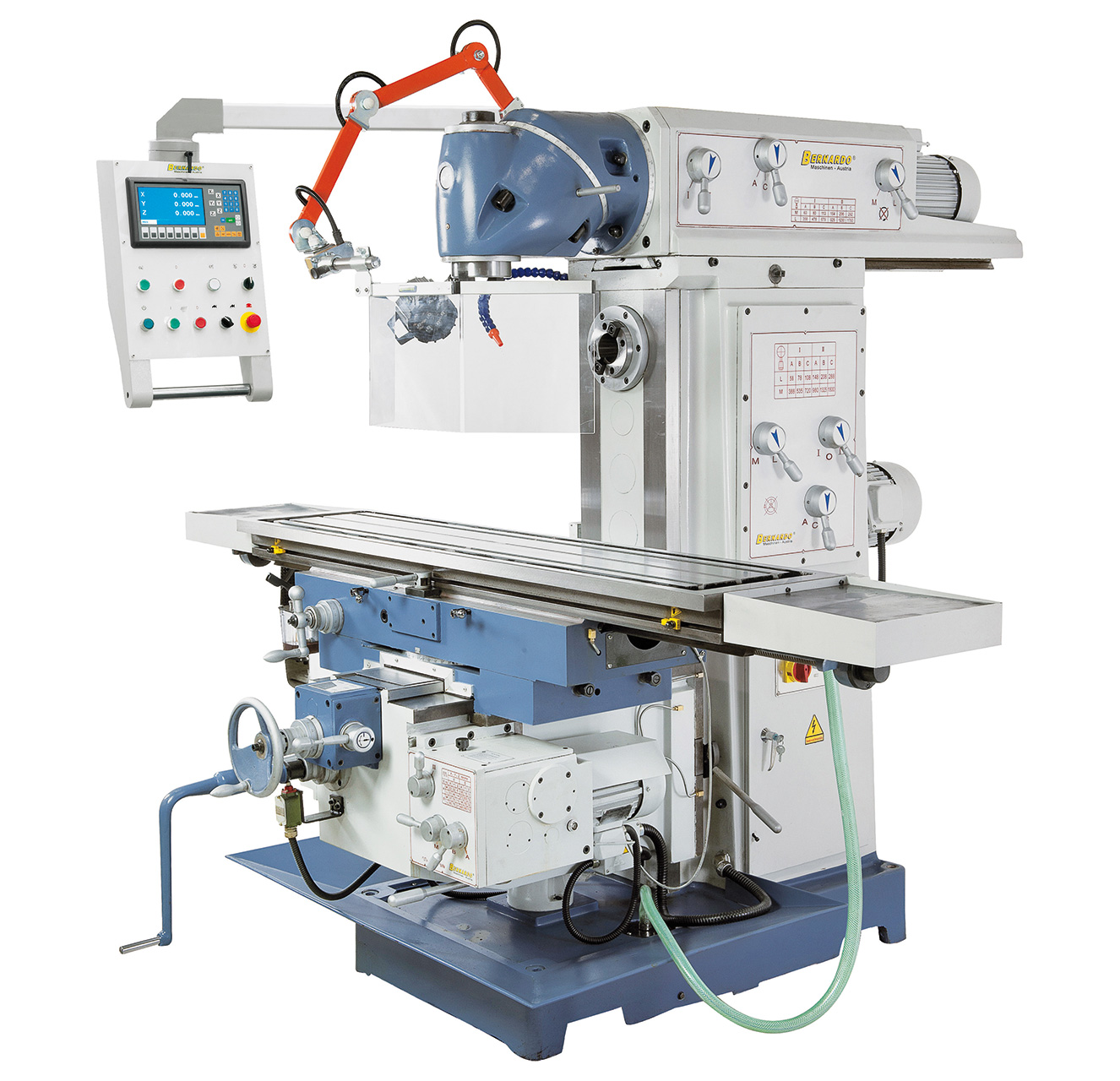

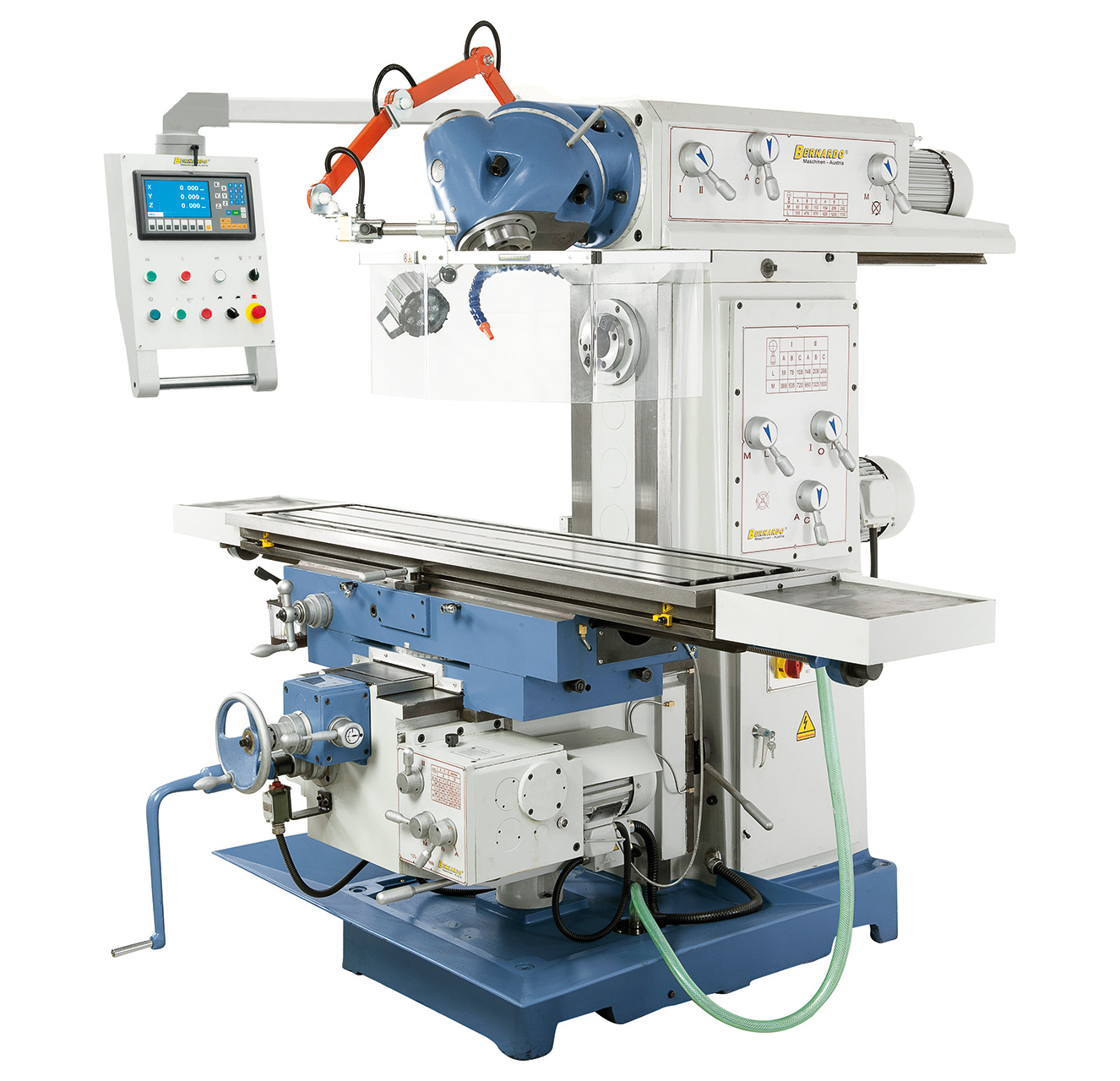

Universal milling machine Bernardo UWF 150

The UWF 150 is a solidly constructed universal milling machine featuring a moveable arm and big clamping area. The big dimensioned guidings in all axis guarantees absolute precision and stability.

Scope of delivery Universal milling machine Bernardo UWF 150

• Taper shell end mill holder ISO 50/32 mm
• Central lubrication for x-

  Features Universal milling machine Bernardo UWF 150

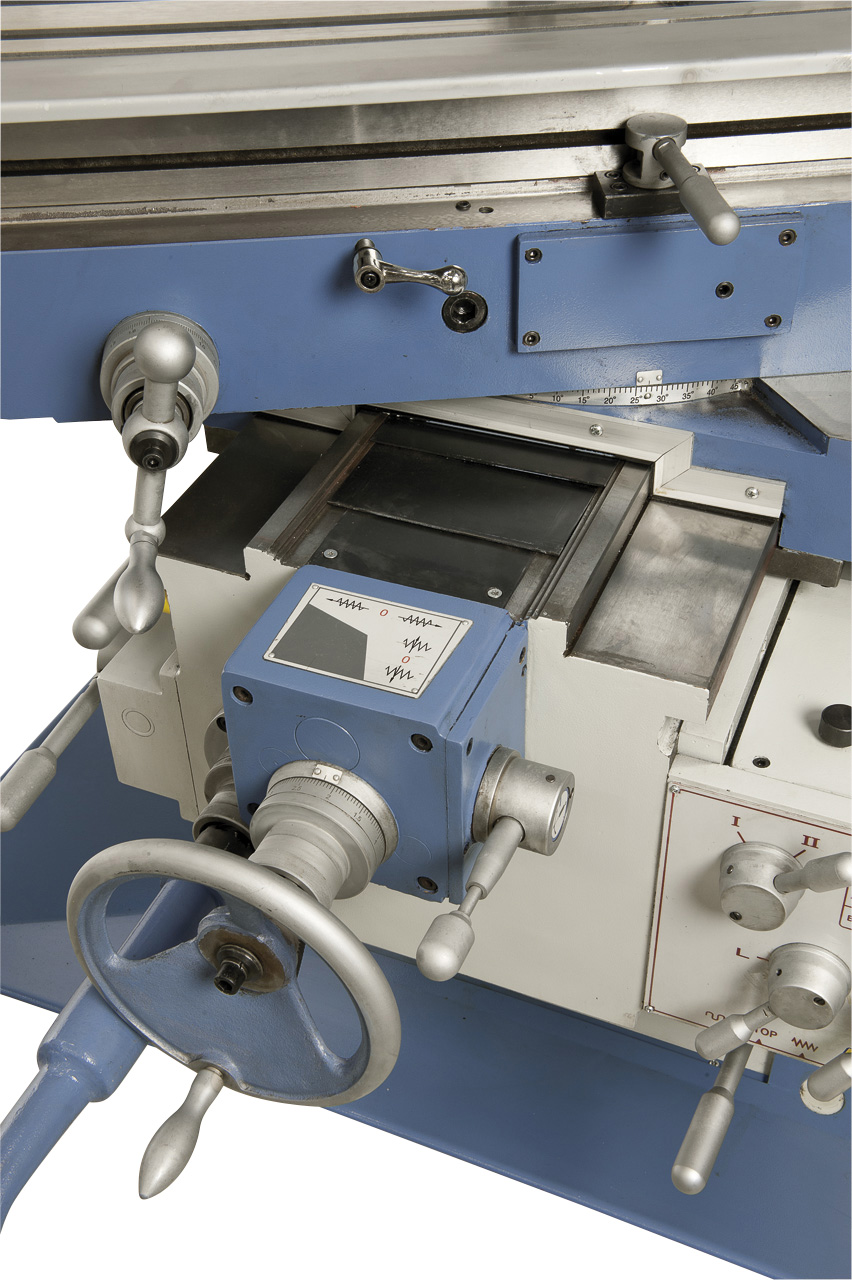

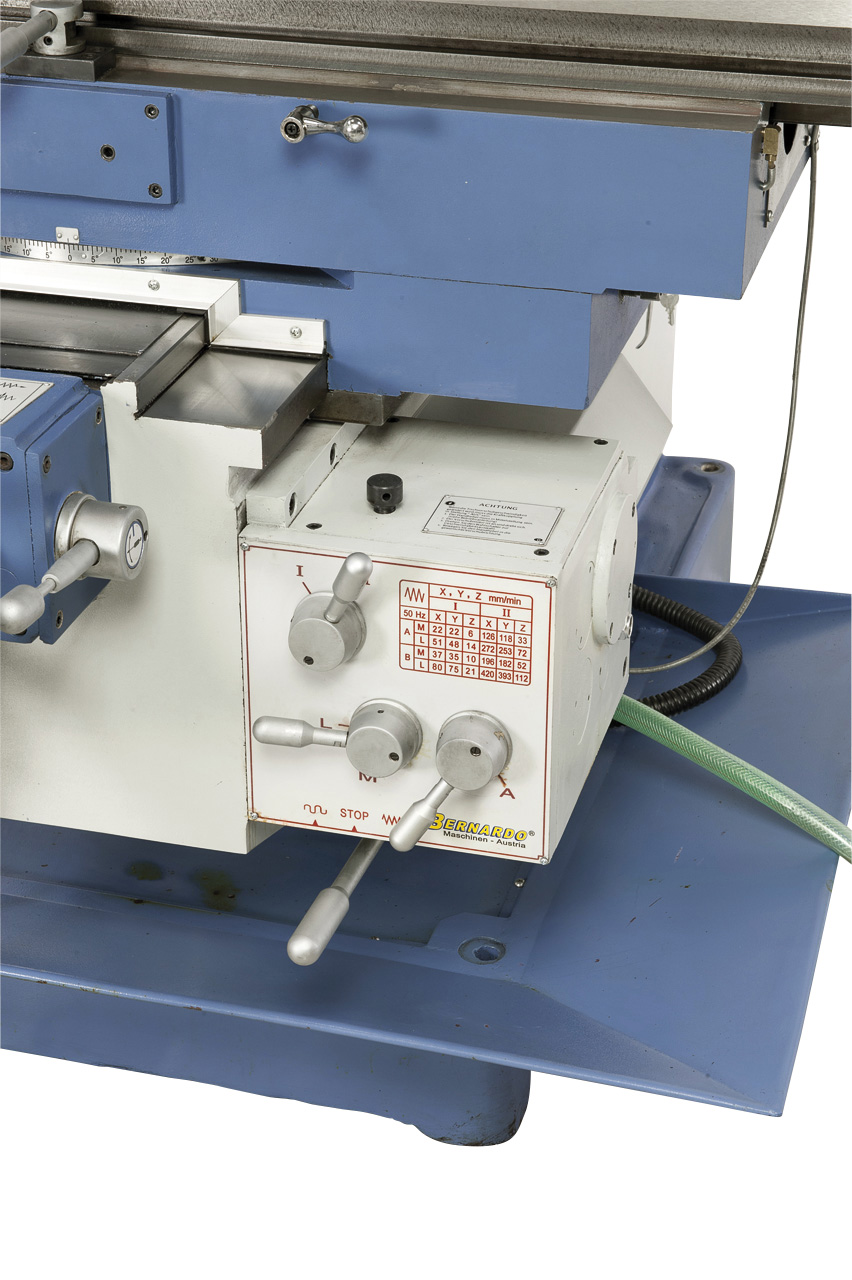

  • Complete with 8 automatic feeds in all three axes

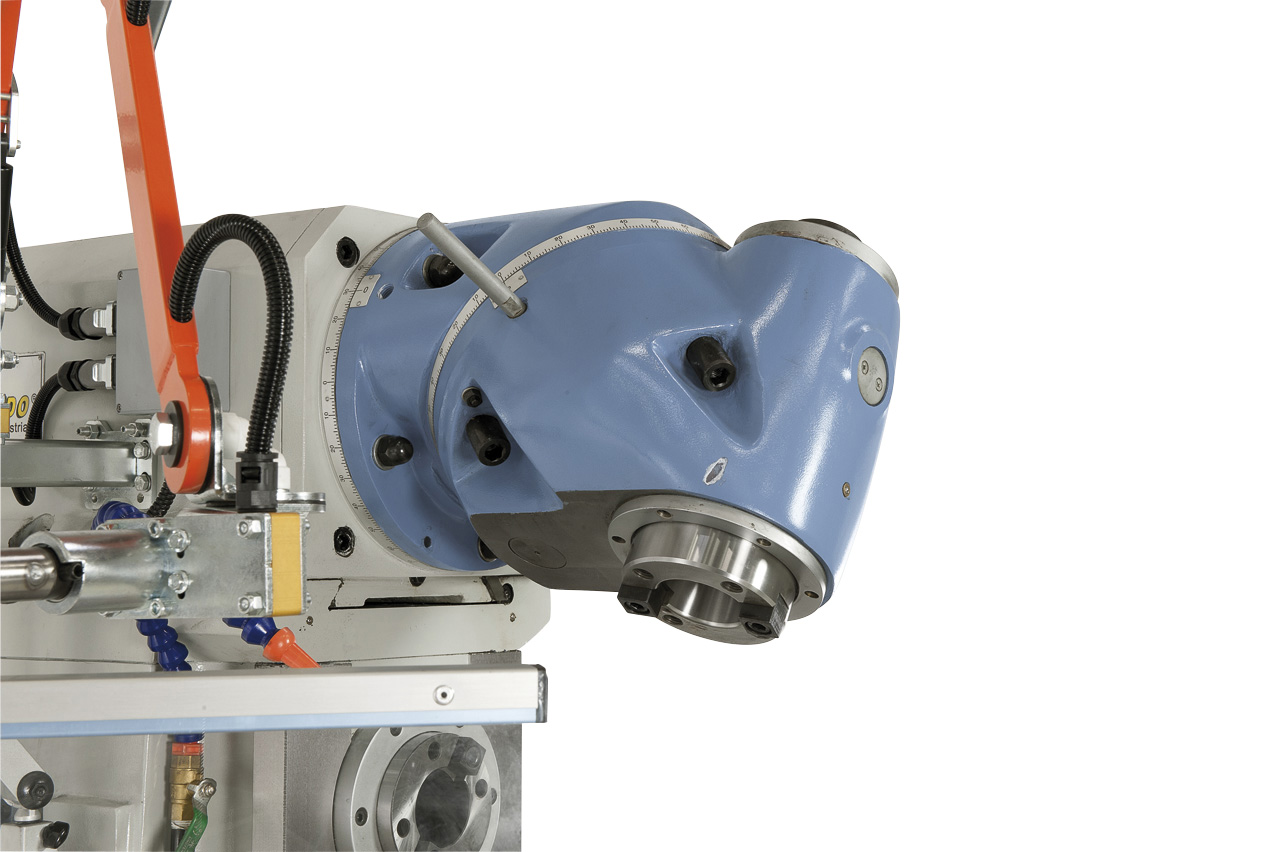

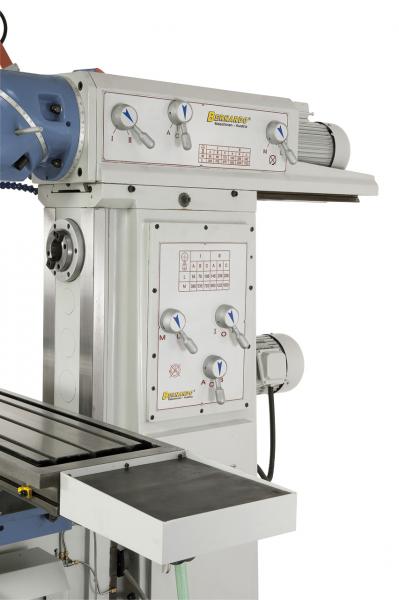

  • Horizontal spindle extends range of applications

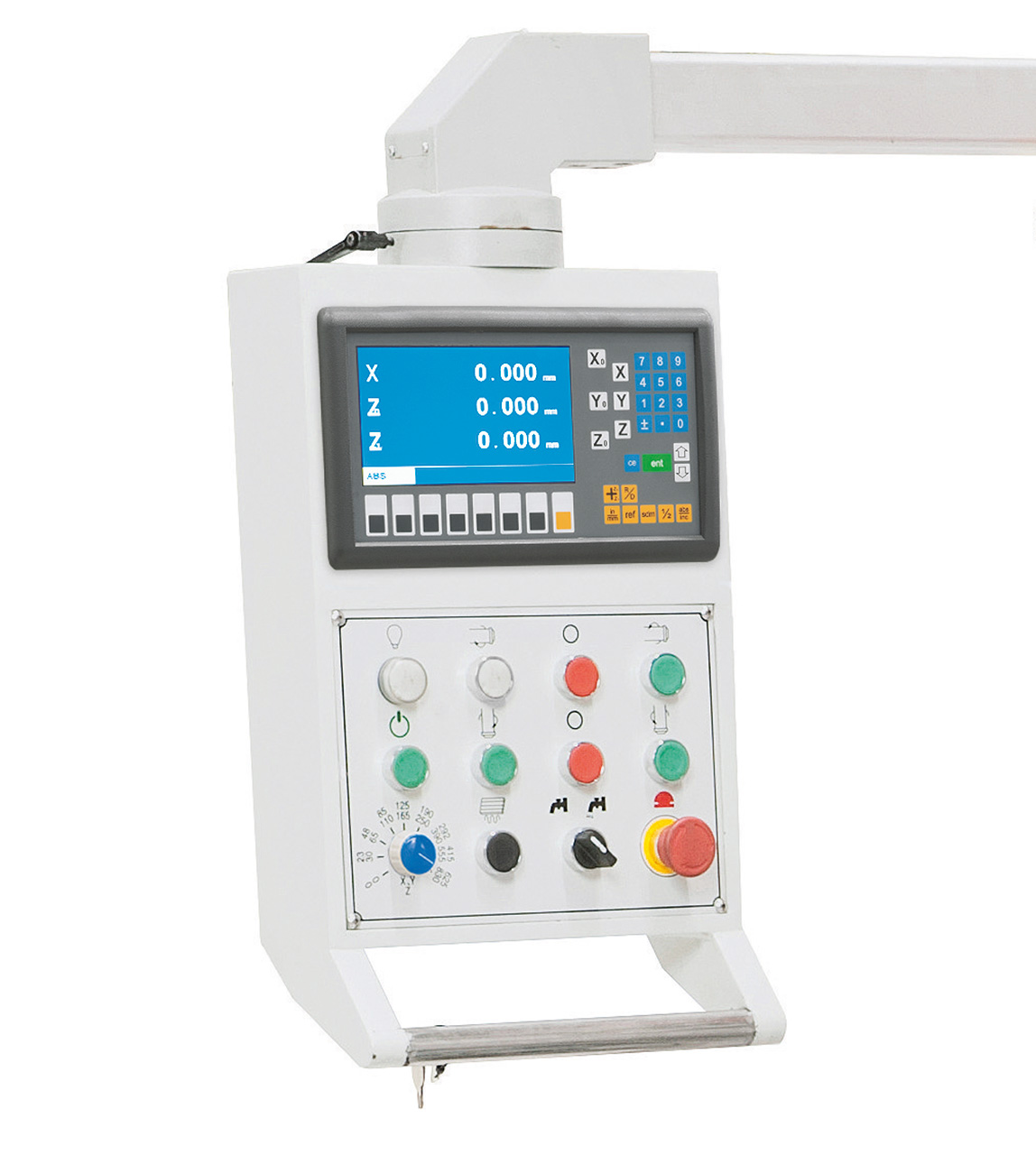

  • Clearly arranged switches on swivelling control panel
  • x-axis table adjustment is made from front of machine
  • Polished gears, in oil bath, guaranteed smooth running
  • Surface treated, large table featuring T-slots
  • 3-axis digital readout comes standard
  • Solid cast iron construction of machine stand eliminates vibrations
  • Rectangular guiding in y- and z-axis increases stability

  Technical details Universal milling machine Bernardo UWF 150

  Table size	1650 x 360 mm
  Spindle taper horizontal	ISO 50
  Spindle taper vertical	ISO 50
  Spindle speed horizontal	(12) 58 - 1800 U/min
  Spindle speed vertical	(12) 60 - 1750 U/min
  Travel longitudinal (x)	1350 mm
  Travel cross (y)	290 mm
  Travel vertical (z)	390 mm
  Distance spindle to table	160 - 550 mm
  Distance spindle to column	230 - 900 mm
  Table tiltable	-45° to +45°
  Feed range longitudinal / cross	(8) 22 - 420 / (8) 22 - 393 mm/min
  Feed range vertical	(8) 10 - 168 mm/min
  Rapid feed x-, y- and z-axis	1290  / 1208  / 513 mm/min
  T-slot size	14 mm
  Motor power horizontal	4,0 kW
  Motor power vertical	4,0 kW
  Machine dimensions (W x D x H)	2250 x 2000 x 1995 mm
  Weight approx.	2250 kg
