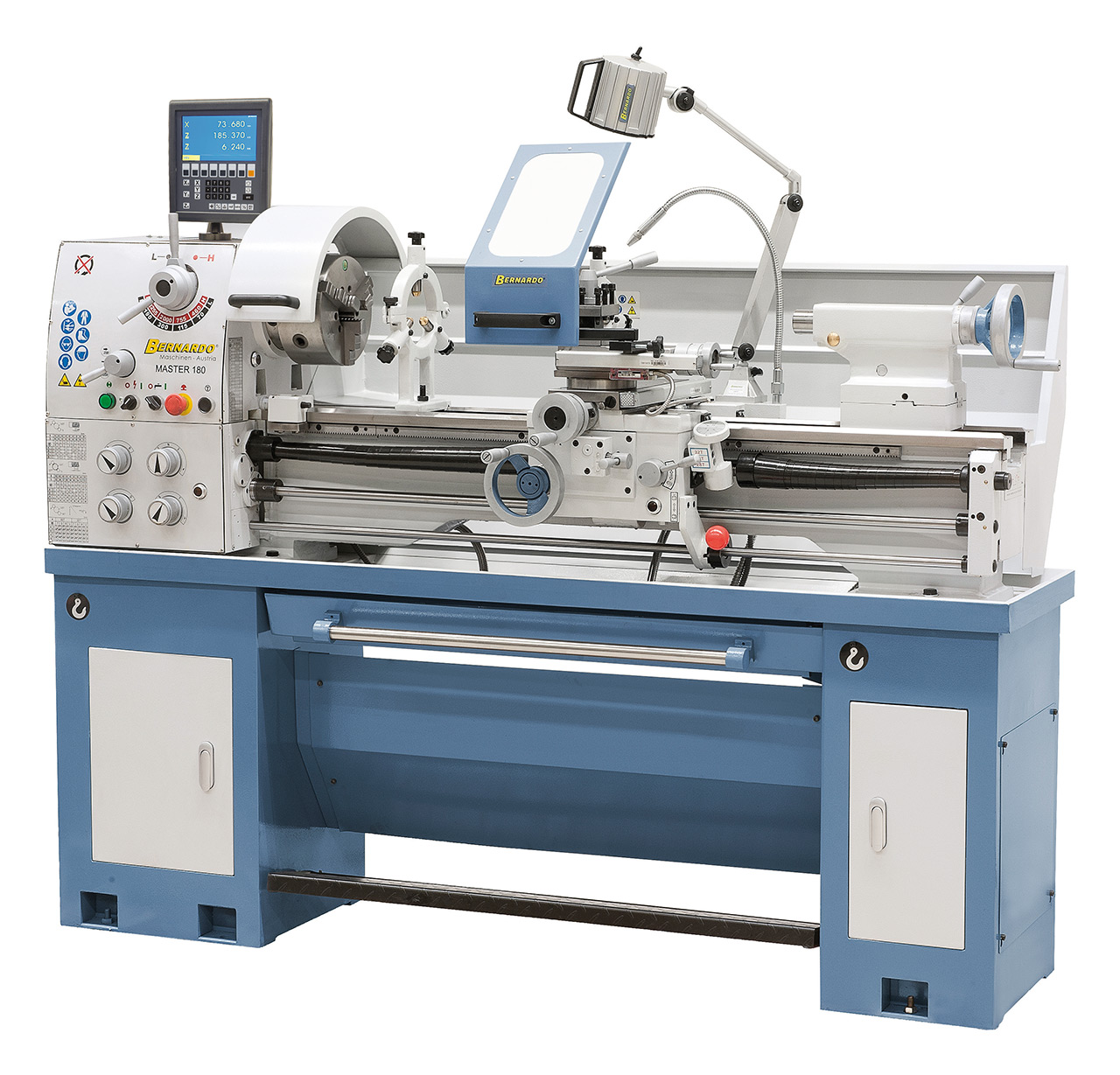

Universal lathe Bernardo Master 180 mechanic lathe incl. 3-axis digital readout ES-12 V

The Master 180 centre lathe and sliding headstock lathe impresses with its sturdy design and ease of use. Even the basic equipment includes all the important accessories (3-axis digital readout, steady rests, LED machine light, safety equipment according to CE standard, ...), making this machine ideal for technical schools, repair shops and training workshops.


Scope of delivery Universal lathe Bernardo Master 180 mechanic lathe incl. 3-axis digital readout ES-12 V

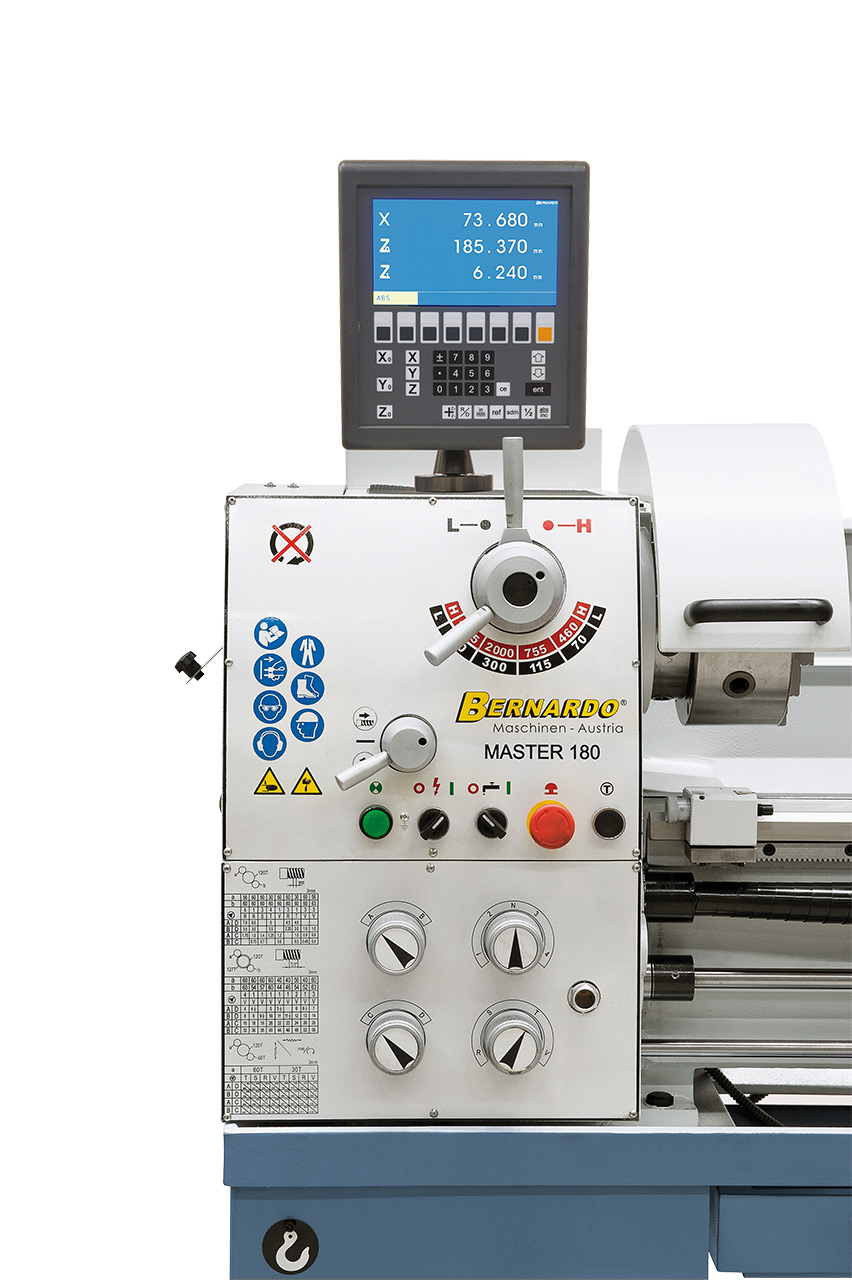

• 3-axis digital readout ES-12 V with LCD display

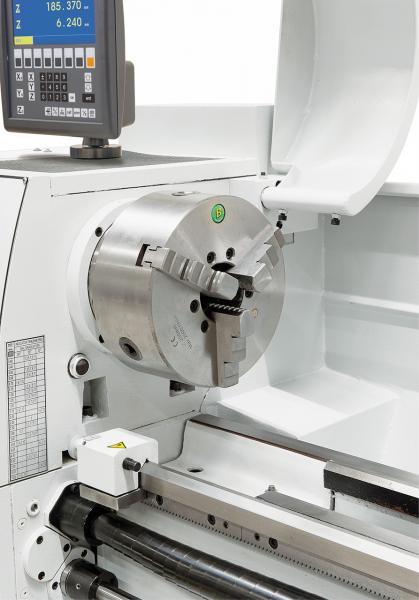

• 3-jaw chuck DK11-200 mm / D5
• Face plate 200 mm / D5, according to DIN 55029
• Fixed steady rest - diam. max. 70 mm
• Rotating steady rest - max. diam. 50 mm
• Coolant system
• Initial filling with Shell Tellus 46
• Pull-out chip tray
• Clamping disc 320 mm
• Quadruple steel holder
• Protective device for quadruple steel holder
• Slipping clutch
• Micrometer longitudinal stop
• Thread gauge
• LED machine light
• Reducing sleeve
• Changing wheels
• 2 centring centres
• Foot pedal with brake function according to CE
• Motor with magnetic brake according to CE standard
• Base frame
• Operating tool

Special features Universal lathe Bernardo Master 180 mechanic lathe incl. 3-axis digital readout ES-12 V

• With 51 mm spindle bore as standard for machining large shaft diameters
• Ideal for technical schools, repair shops and training workshops
• Ideally suited for machining steel, non-ferrous materials and plastics
• Removable bridge for machining workpieces with large diameters
• Space-saving installation option thanks to chip tray that can be pulled out to the front
• The speed and feed adjustment is easy to set up, smooth-running and precisely switchable
• Electromechanical foot brake to reduce idle times
• Modern main spindle bearing with angular contact ball bearings in precision design
• Grey cast iron prism bed, induction-hardened and precision-ground
• Single-lever clamping for tailstock, adjustable for taper turning
• Guaranteed concentricity of the spindle nose (≤ 0.015 mm)
• Main spindle hardened and ground, running in an oil bath
• Tailstock, headstock and all guides adjustable
