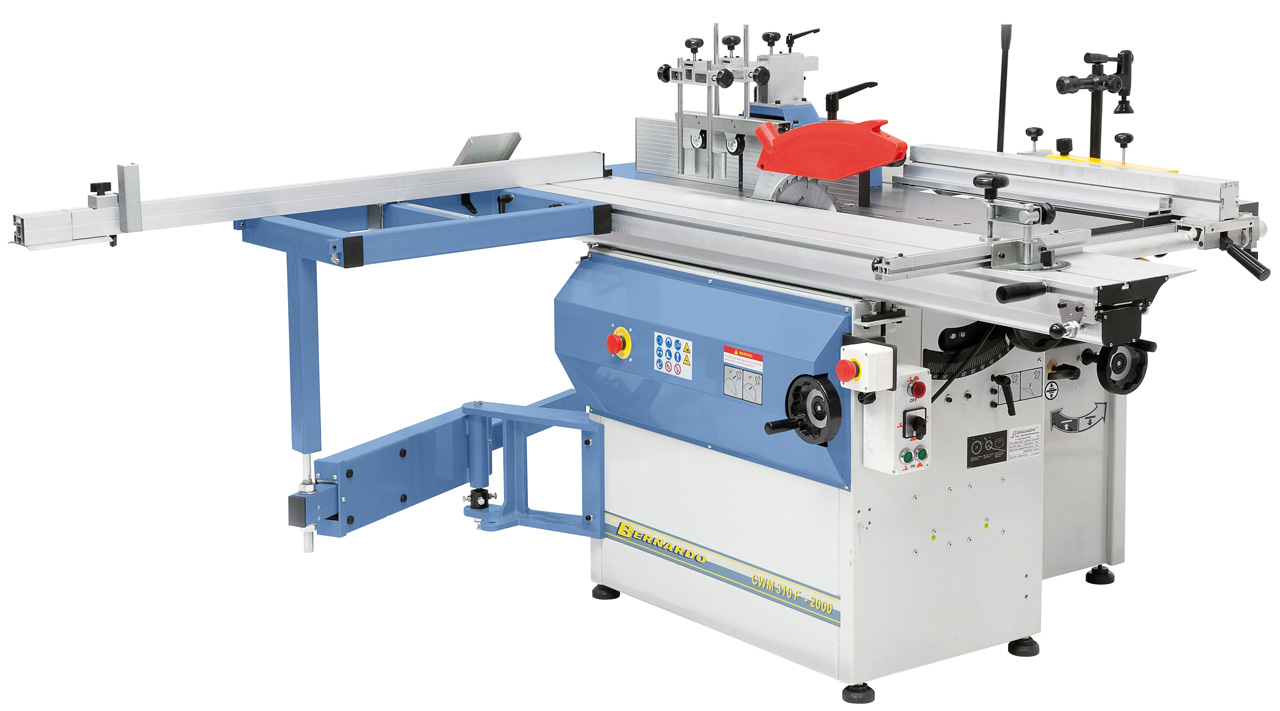

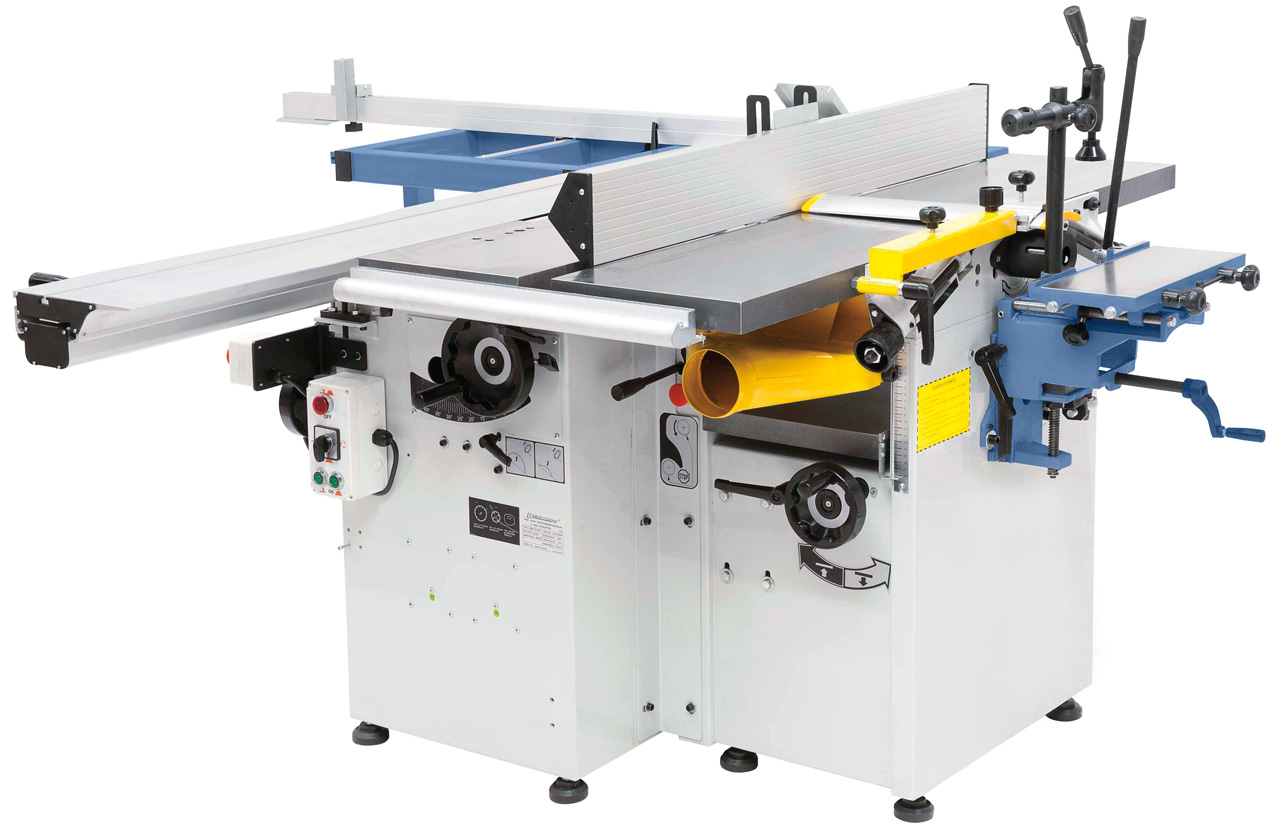

Universal combined machine Bernardo CWM 310 F - 2000
The CWM 310 F universal combi-machine offers a large variety of applications hence ensures an attractive price-to-benefit ratio. The sliding table, featuring 2000 mm in length, the scoring unit which comes standard and the 3 spindle speeds are advantages that speak for themselves.
Scope of delivery Universal combined machine Bernardo CWM 310 F - 2000
2 x 20 mm / 8TFeatures Universal combined machine Bernardo CWM 310 F - 2000

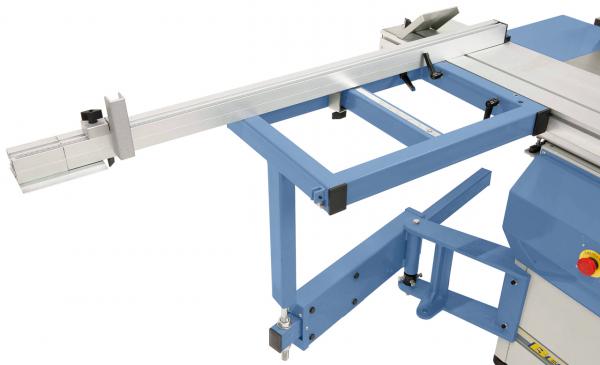

- Extractable telescopic fence can be mounted at front or rear of square table
- Solid square table allows for sufficient support when processing large panels
- Large, robust grey cast-iron table eliminates vibrations

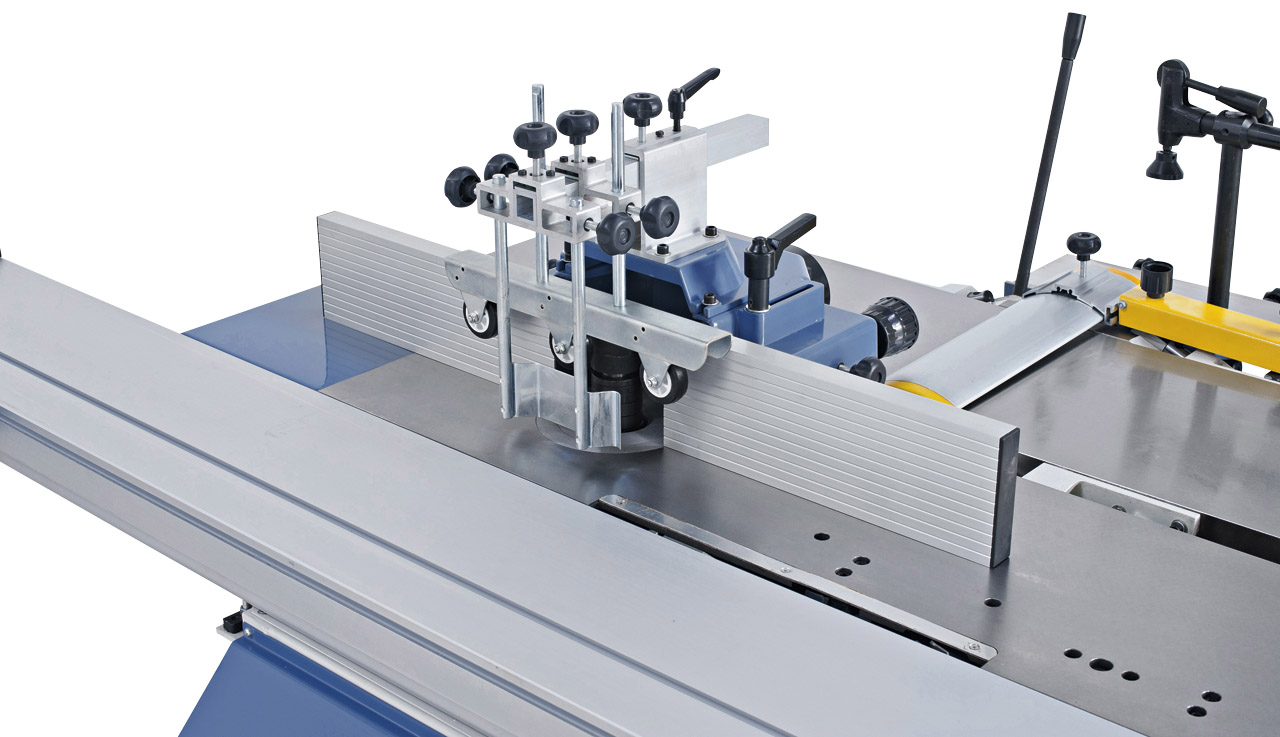

- Moulder unit comes complete with 3 speed settings (3500 / 5500 / 7000 rpm)
- Smooth, precise sliding table with hardened, prism-shaped guide
- Ergonomically arranged handwheels guarantee convenient adjustment of saw unit

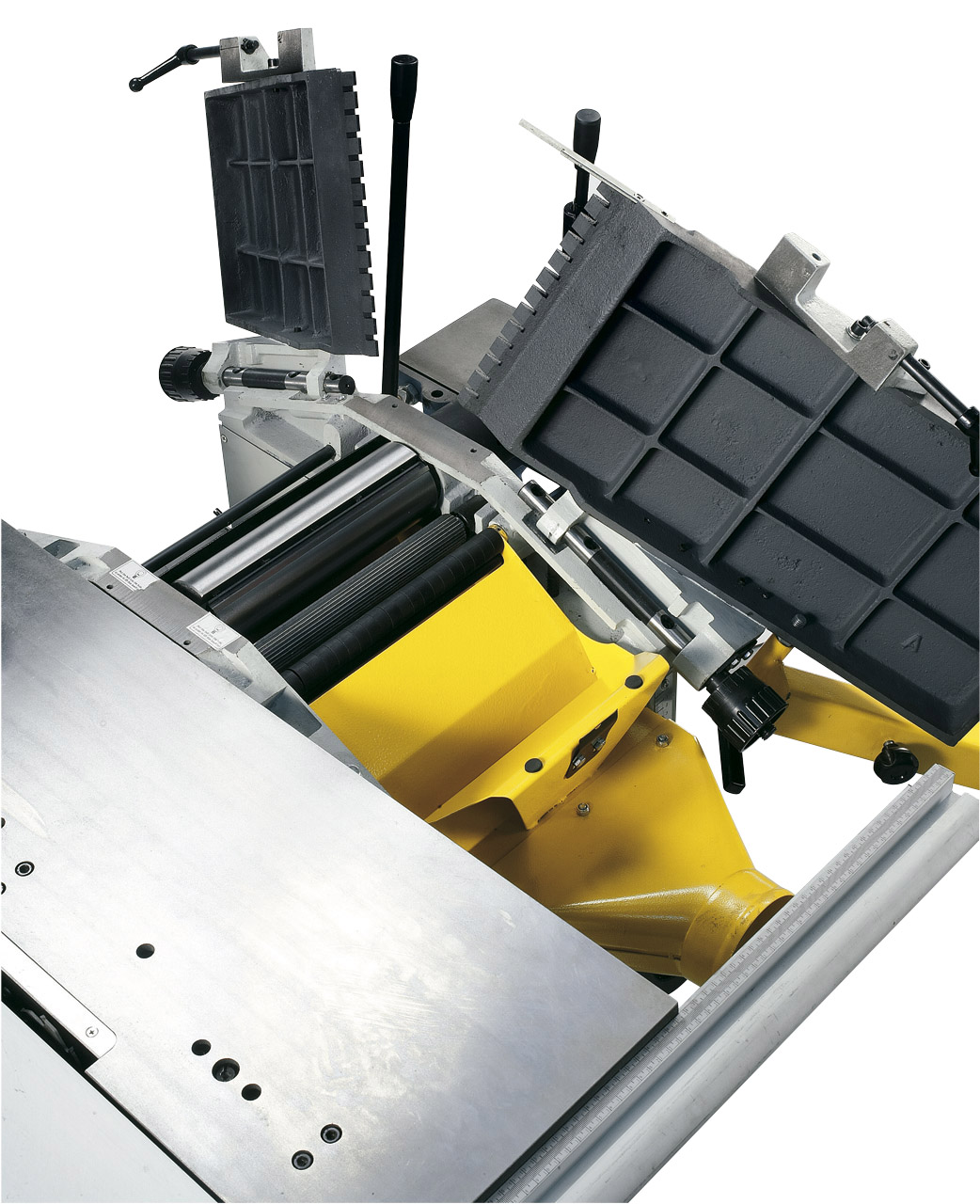

- Planer tables tilt into upright position to allow for quick conversion to thicknessing
- Solid aluminium planer fence, tiltable from 90º to 45º
- Maintenance-free, precisely bedded 3-knife cutterblock features HSS-knives
Technical details Universal combined machine Bernardo CWM 310 F - 2000
| Planer |
|
| Planing width | 310 mm |
| Table length | 1300 mm |
| Table height | 835 mm |
| Shaft rotation speed | 4000 rpm |
| Cutter knives | 3 pcs. |
| Planer shaft diameter | 75 mm |
| Planer fence | 1110 x 130 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 5 mm |
| Motor power output S1 100% | 2,2 kW (3,0 HP) |
| Motor power input S6 40% | 3,0 kW (4,0 HP) |
| Thicknesser |
|
| Table length | 600 mm |
| Working width | 305 mm |
| Working thickness, min/max. | 5 - 180 mm |
| Max. cutting depth | 2,5 mm |
| Feed speed | 8 m/min |
| Dust extraction outlet | 100 mm |

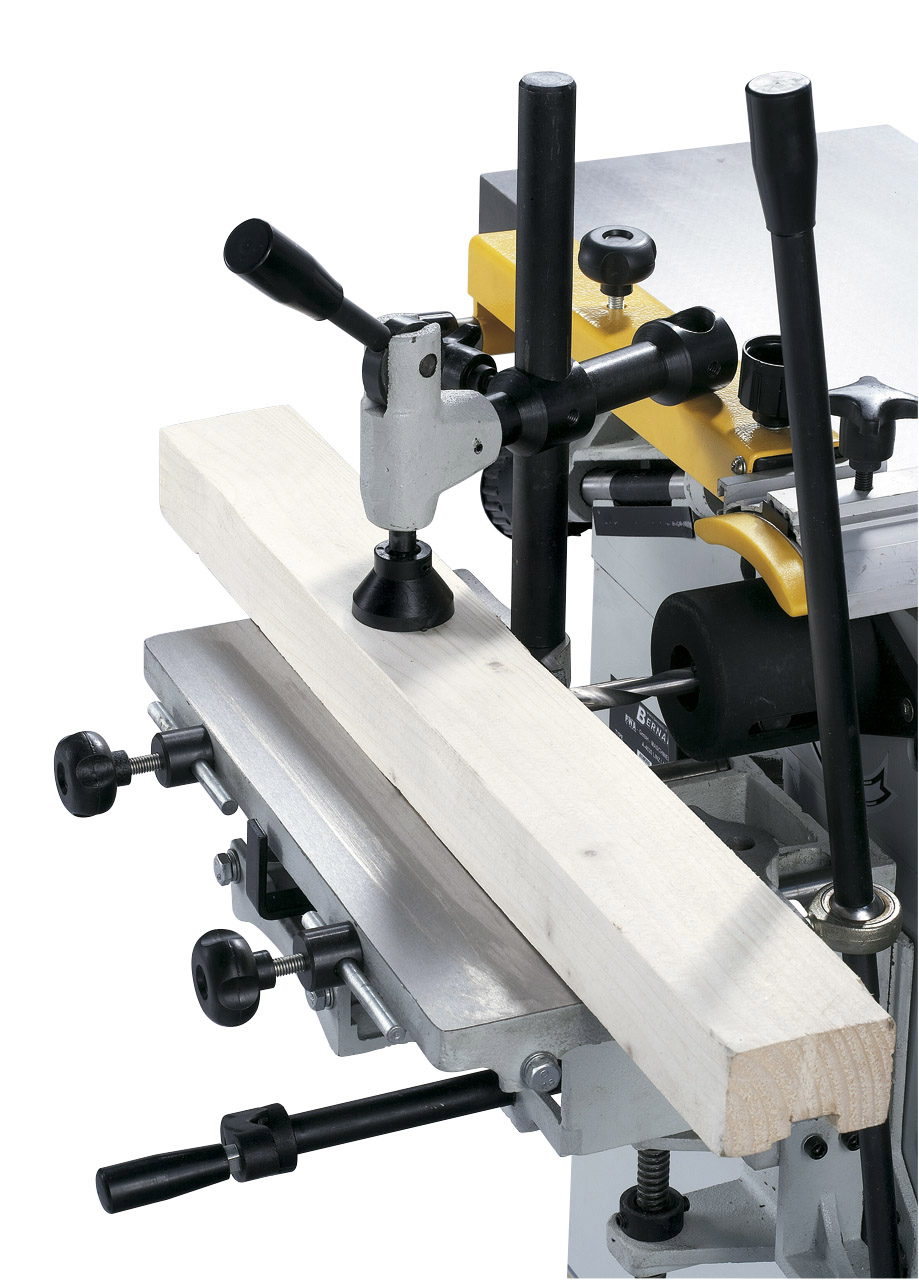

| Mortising unit | |
| Table size | 370 x 155 mm |
| Westcott drill chuck | 0 - 16 mm |
| Max. drill depth | 90 mm |
| Drill width | 140 mm |
| Height adjustment | 80 mm |

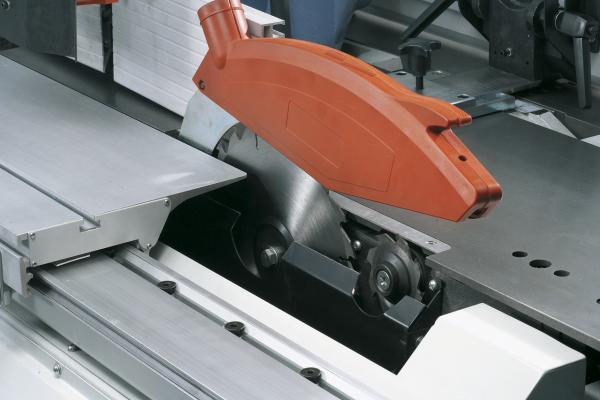

| Circular saw |
|
| Table size | 1145 x 300 mm |
| Table height | 835 mm |
| Table extension | 240 x 300 mm |
| Square table | 600 x 415 mm |
| Sliding table | 2000 x 240 mm |
| Cutting length | 2240 mm |
| Max. sawblade diameter | 250 x 30 mm |
| Max. cutting height 90° / 45° | 60 / 50 mm |
| Cutting width on rip fence | 520 mm |
| Speed main sawblade | 4050 rpm |
| Speed scoring sawblade | 6300 rpm |
| Scoring sawblade | 80 x 20 mm |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 3,0 kW (4,0 HP) |
| Motor power input S6 40% | 4,2 kW (5,7 HP) |
| Spindle moulder |
|
| Spindle diameter | 30 mm |
| Height adjustment | 145 mm |
| Table opening | 150 mm |
| Working length of spindle | 100 mm |
| Max. tool diameter |
|
| -at profiling | 140 mm |
| -at tenoning | 200 mm |
| Spindle speed | 3500 / 5500 / 7000 rpm |
| Motor power output S1 100% | 3,0 kW (4,0 HP) |
| Motor power input S6 40% | 4,2 kW (5,7 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 2000 x 2500 x 1200 mm |
| Weight approx. | 445 kg |
