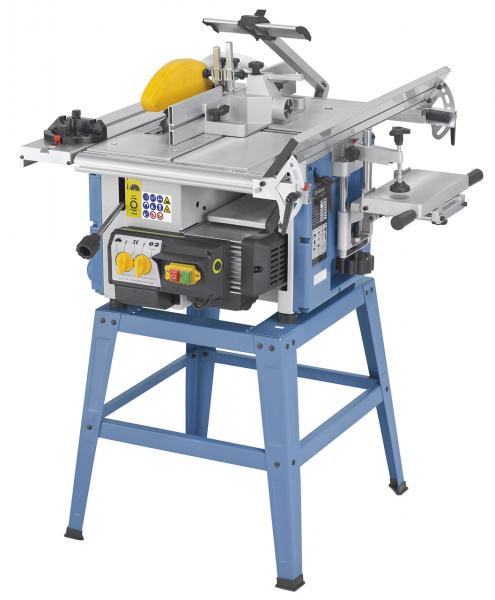

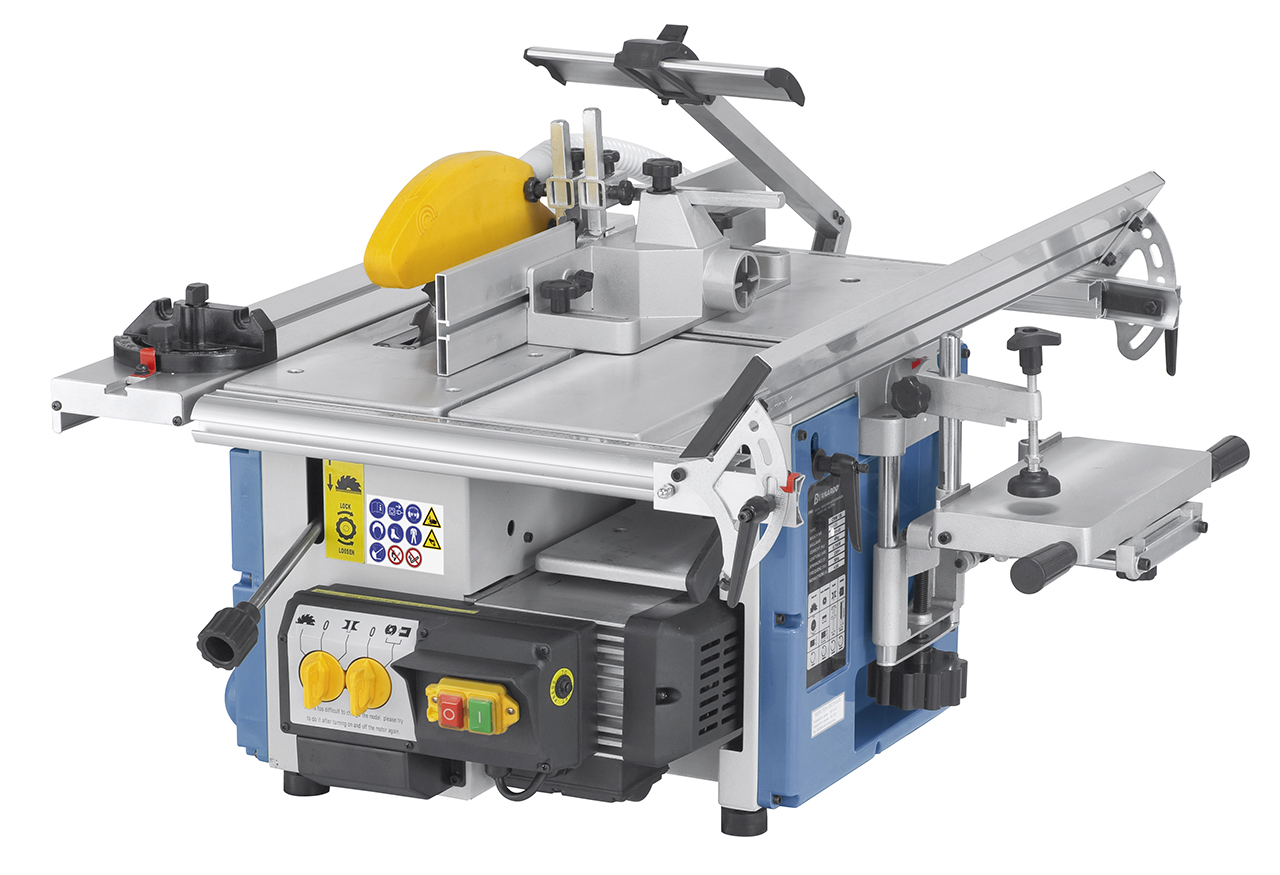

Universal combined machine Bernardo CWM 150
The CWM 150 is a handy, universal combi-machine offering a a large range of applications: planing, thicknessing, sawing, milling, drilling.The small and compact construction makes this model ideal for amateurs.
Scope of delivery Universal combined machine Bernardo CWM 150
Universal combined machine Bernardo CWM 150Features Universal combined machine Bernardo CWM 150
- Precisely-bedded 2-knife cutterblock with HSS knives
- Aluminium sliding table complete with mitre fence

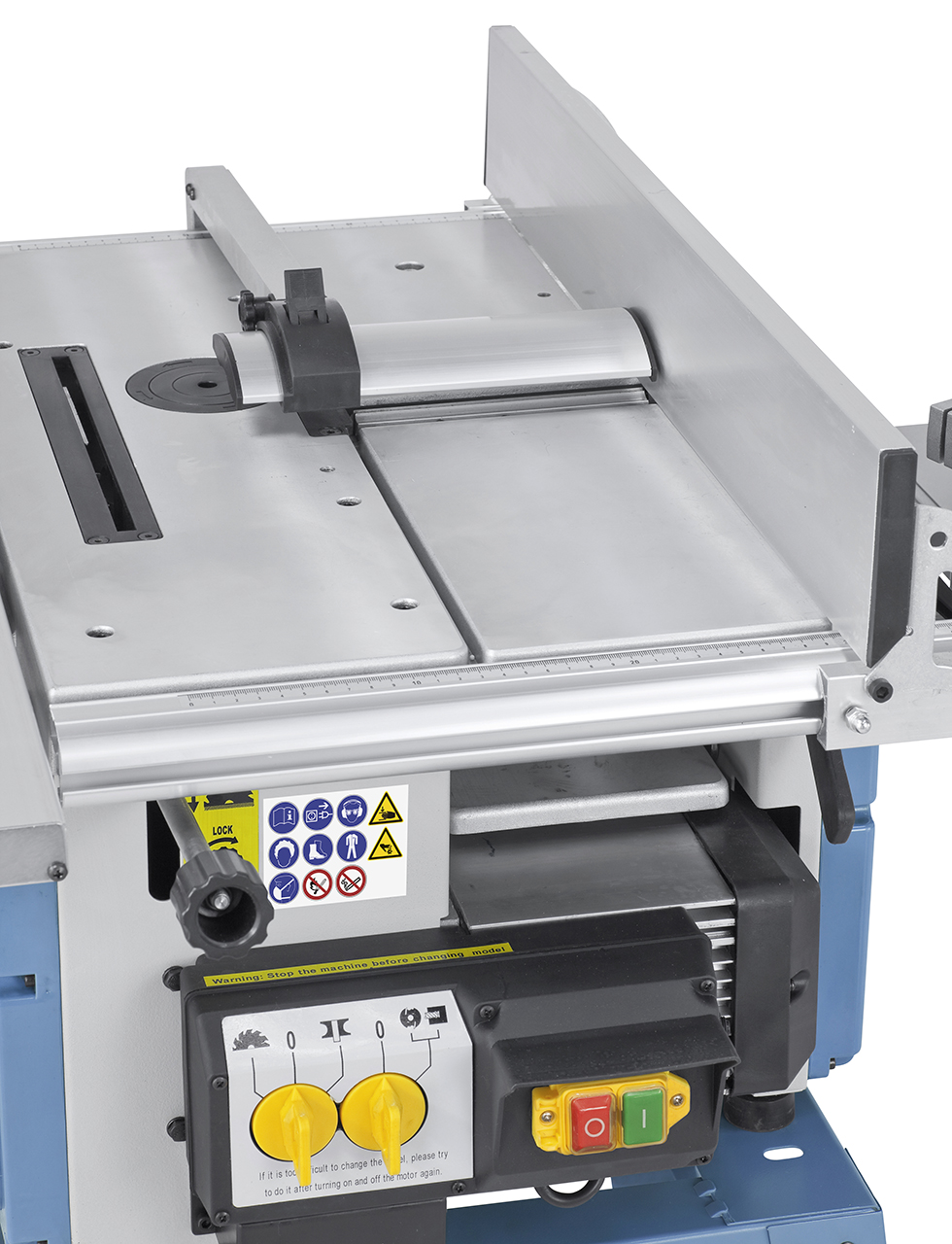

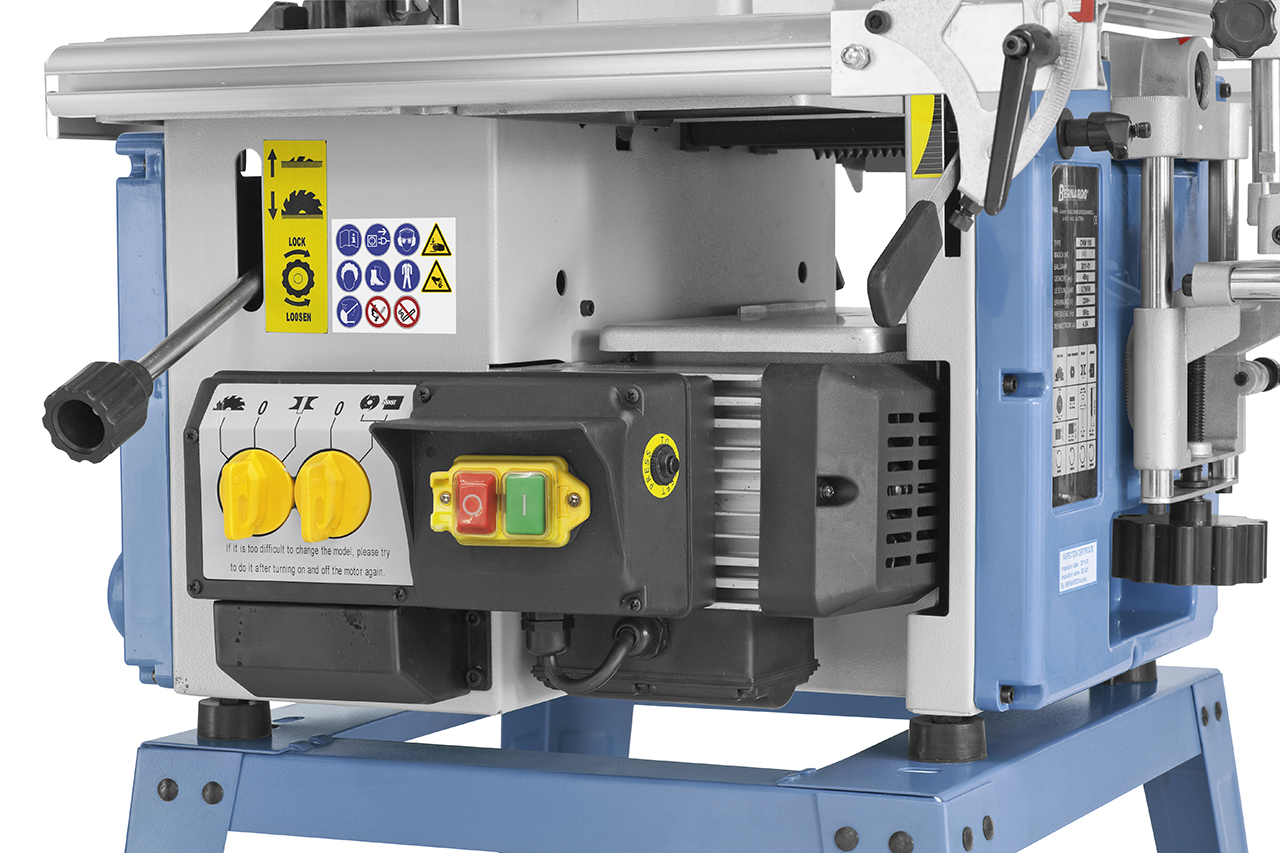

- All switches are clearly arranged on control panel
- Numerous applications on little space
- All aluminium parts (sliding table, fences etc.) are anodized
- Ideal price-to-performance ratio for amateurs and craftsmen
- Ideal for accurate planing of boards, panels, planks etc.
Technical details Universal combined machine Bernardo CWM 150
| Planer | |
| Planing width | 155 mm |
| Table length | 615 mm |
| Table height | 845 mm |
| Shaft rotation speed | 6000 rpm |
| Cutter knives | 2 pcs. |
| Planer shaft diameter | 45 mm |
| Planer fence | 735 x 100 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 1,5 mm |

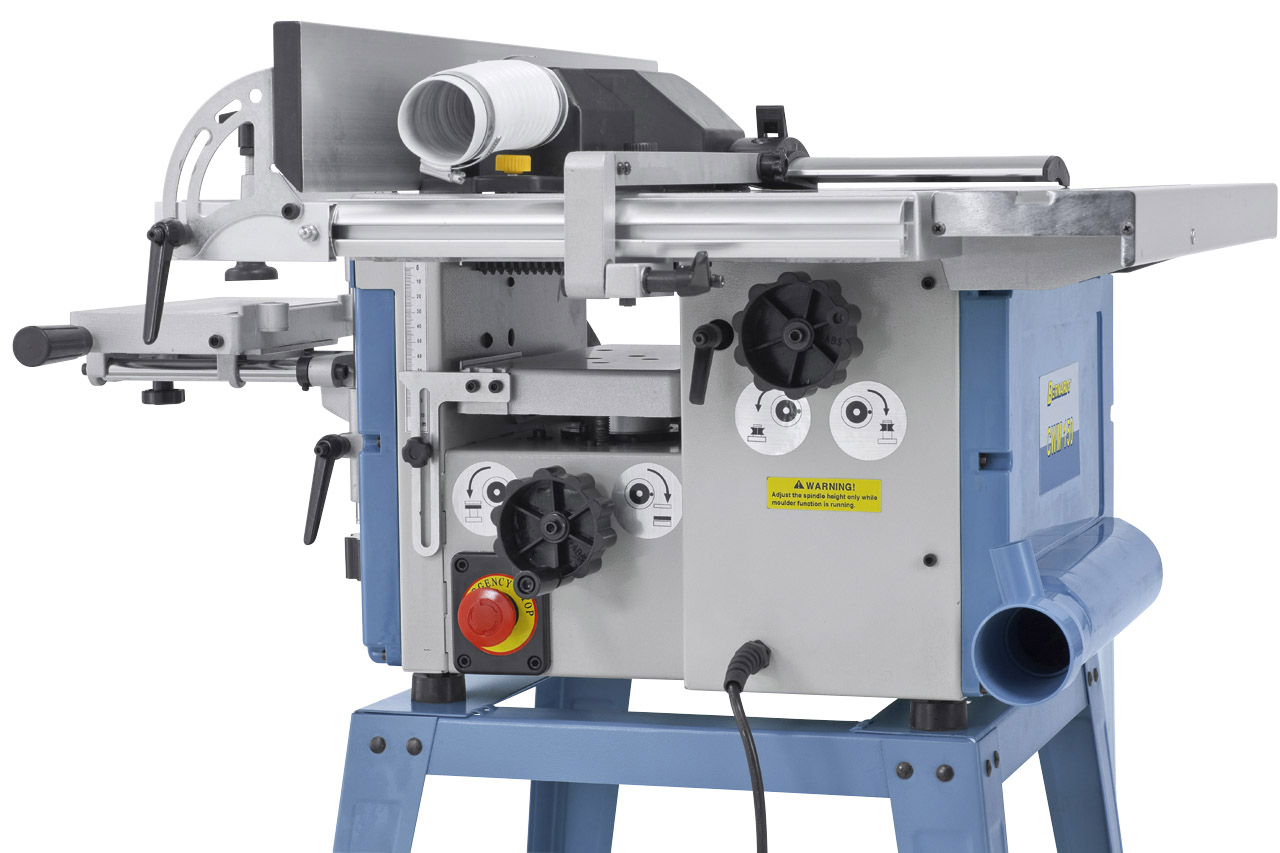

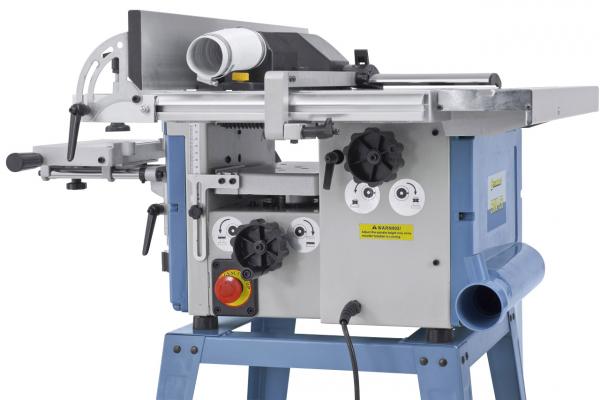

| Thicknesser | |
| Table length | 310 m |
| Working width | 150 mm |
| Working thickness, min/max. | 10 - 92 mm |
| Max. cutting depth | 1,0 mm |
| Feed speed | 7,0 m/min |
| Dust extraction outlet | 50 mm |

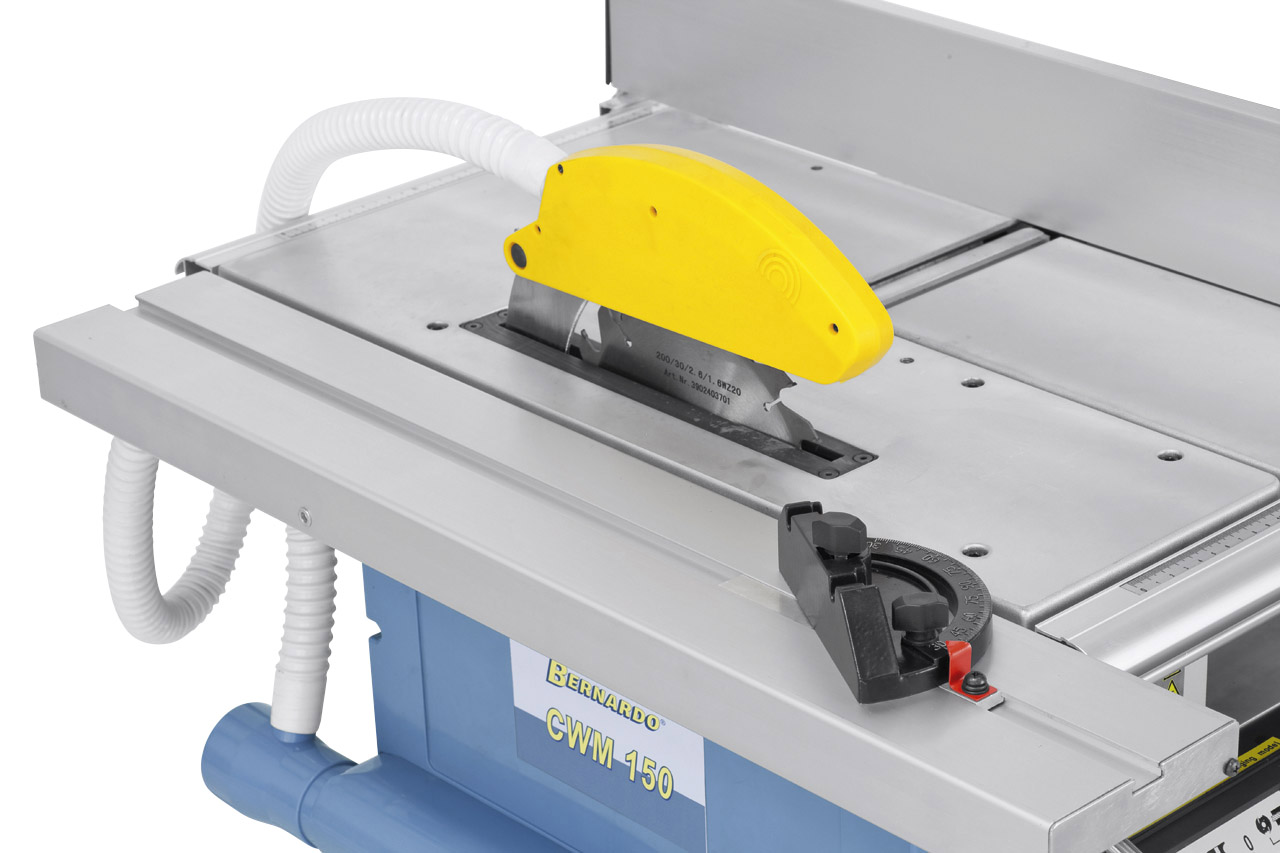

| Circular saw | |
| Table size | 420 x 615 mm |
| Table height | 845 mm |
| Sliding table | 745 x 120 mm |
| Cutting length | 510 mm |
| Max. sawblade diameter | 200 x 30 mm |
| Max. cutting height 90° | 65 mm |
| Cutting width on rip fence | 370 mm |
| Speed main sawblade | 4200 rpm |
| Dust extraction outlet | 60 mm |

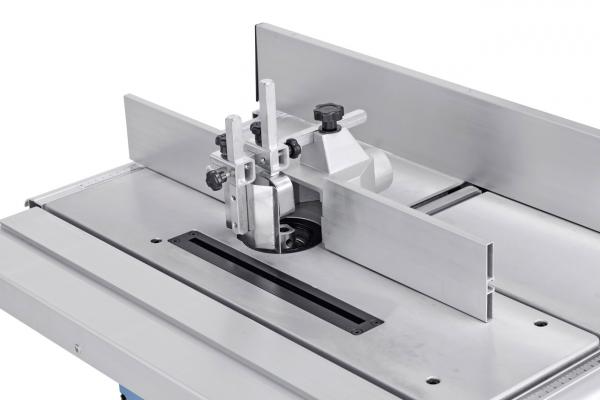

| Spindle moulder | |
| Height adjustment | 45 mm |
| End mill collet | 6, 8, 12 mm |
| Spindle speed | 9000 rpm |

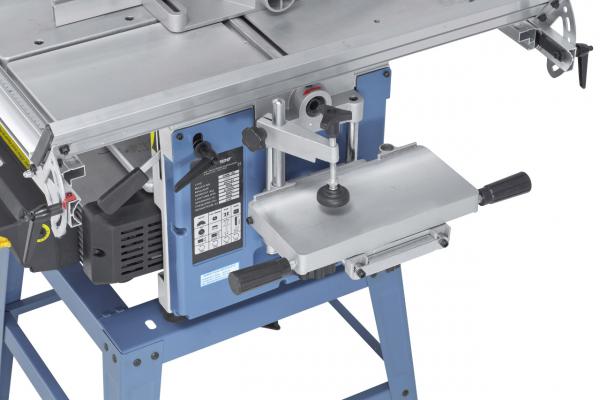

| Mortising unit | |
| Table size | 260 x 125 mm |
| Drill collet | 6, 8, 10 mm |
| Max. drill depth | 45 mm |
| Drill width | 95 mm |
| Height adjustment | 60 mm |
| Motor power | 1,0 kW (1,36 HP) |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 900 x 8000 x 1000 mm |
| Weight approx. | 49 kg |
