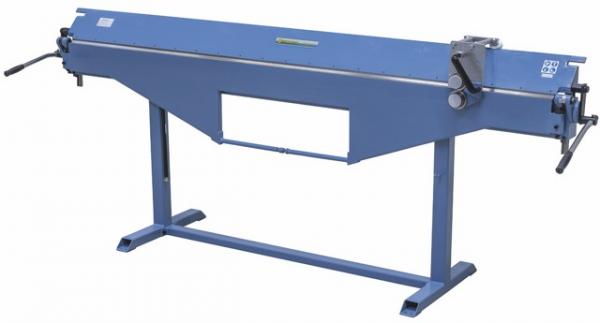

Scope of delivery Swivel bending machine with roller shear Bernardo BB 2540 RS
Features Swivel bending machine with roller shear Bernardo BB 2540 RS
- Manual bending machine for standard bending tasks
- User-friendly upper beam infeed via eccentric
- Robust welded steel construction, designed for heavy use
- Secure clamping of the sheet metal by means of a special clamping device

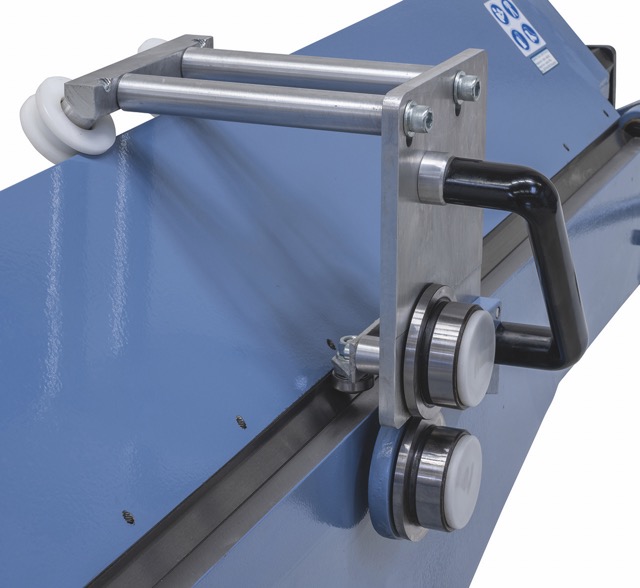

- Comes complete with sheet metal shear
Technical data Swivel bending machine with roller shear Bernardo BB 2540 RS
|
Working length
|
2540 mm
|
|
Max. sheet thickness (400 N/mm²)
|
0.8 mm
|
|
Max. opening width
|
56 mm
|
|
Bending angle
|
0 - 135°
|
|
Working height
|
950 mm
|
|
Width
|
2880 mm
|
|
Depth
|
655 mm
|
|
Height*
|
1110 mm
|
|
Weight approx.
|
242 kg
|
* Height without support / accessories
