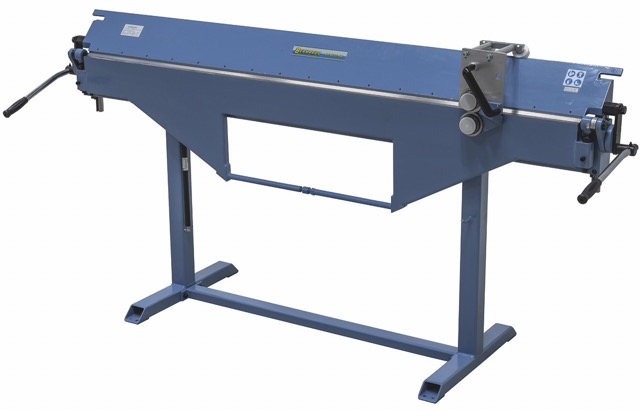

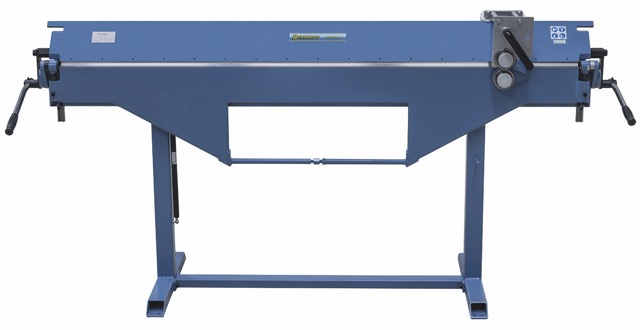

Scope of delivery Swivel bending machine with roller shear Bernardo BB 2000 RS
- Roller sheet metal shear
- Base
Features Swivel bending machine with roller shear Bernardo BB 2000 RS
- Manual bending machine for standard bending tasks

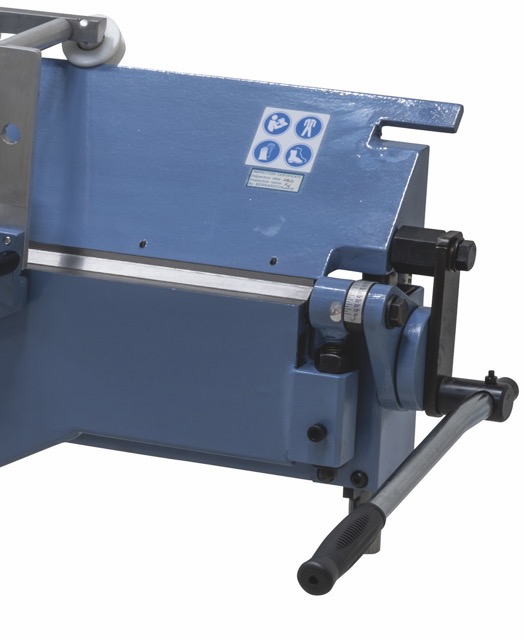

- User-friendly upper jaw adjustment via eccentric mechanism
- Robust welded steel construction, designed for heavy-duty use
- Secure clamping of the sheet metal using a special clamping device
- Roller sheet metal shears included in delivery
Technical data Swivel bending machine with roller shear Bernardo BB 2000 RS
|
Working length
|
2000 mm
|
|
Max. sheet thickness (400 N/mm²)
|
0.8 mm
|
|
Max. opening width
|
59 mm
|
|

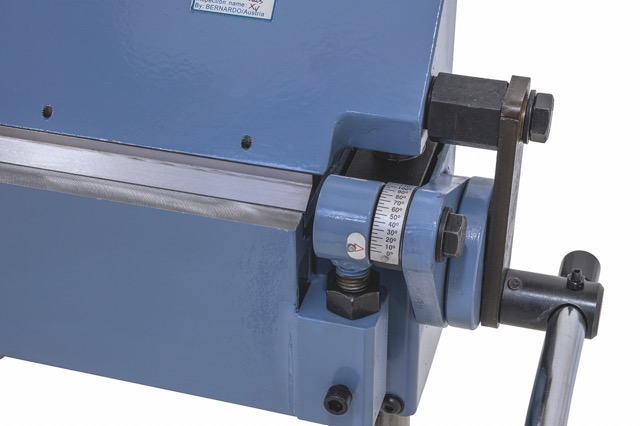

Bending angle
|
0 - 135°
|
|
Working height
|
945 mm
|
|
Width
|
2340 mm
|
|
Depth
|
660 mm
|
|
Height*
|
1150 mm
|
|
Weight approx.
|
202 kg
|
* Height without support / accessories
