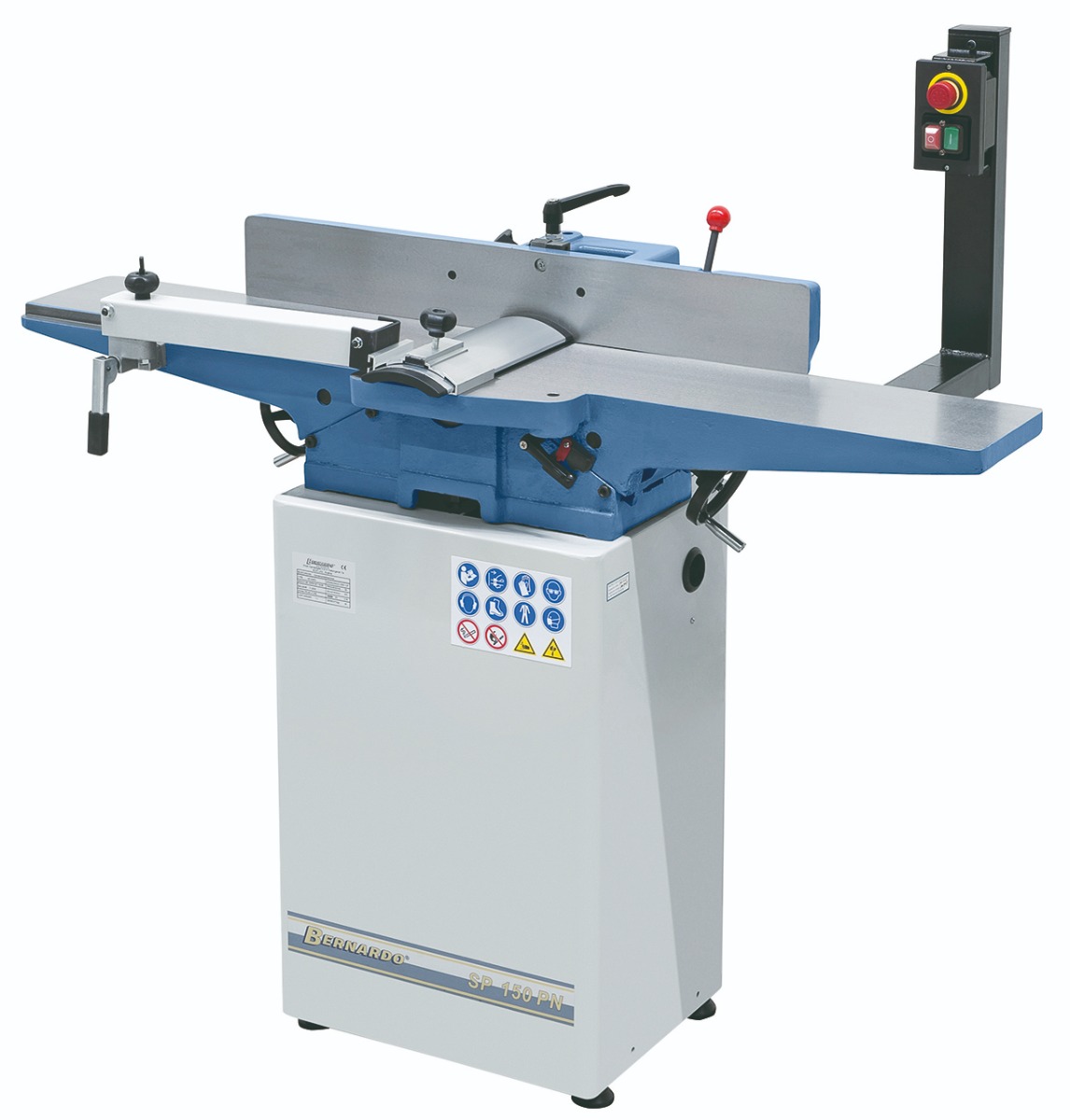

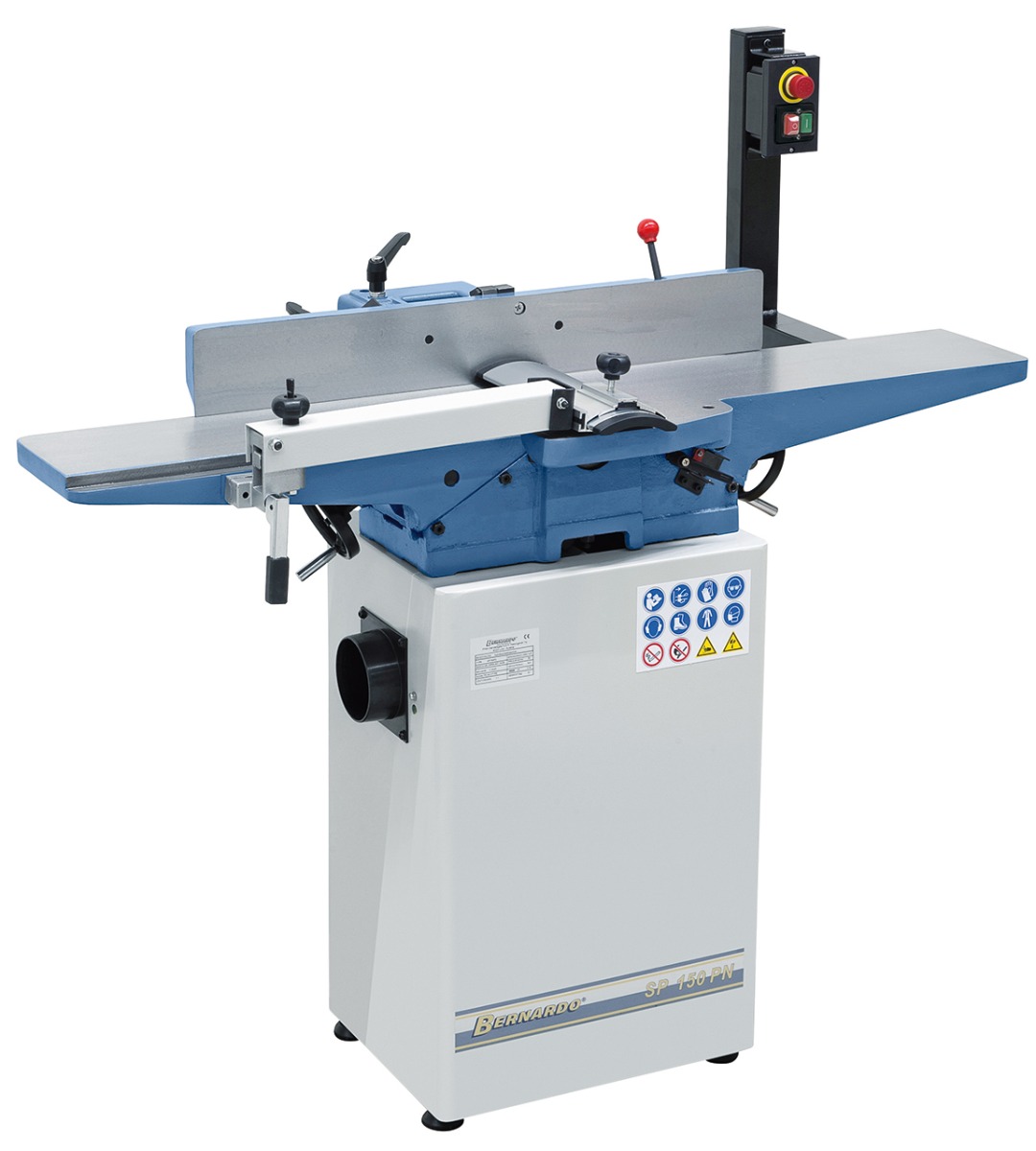

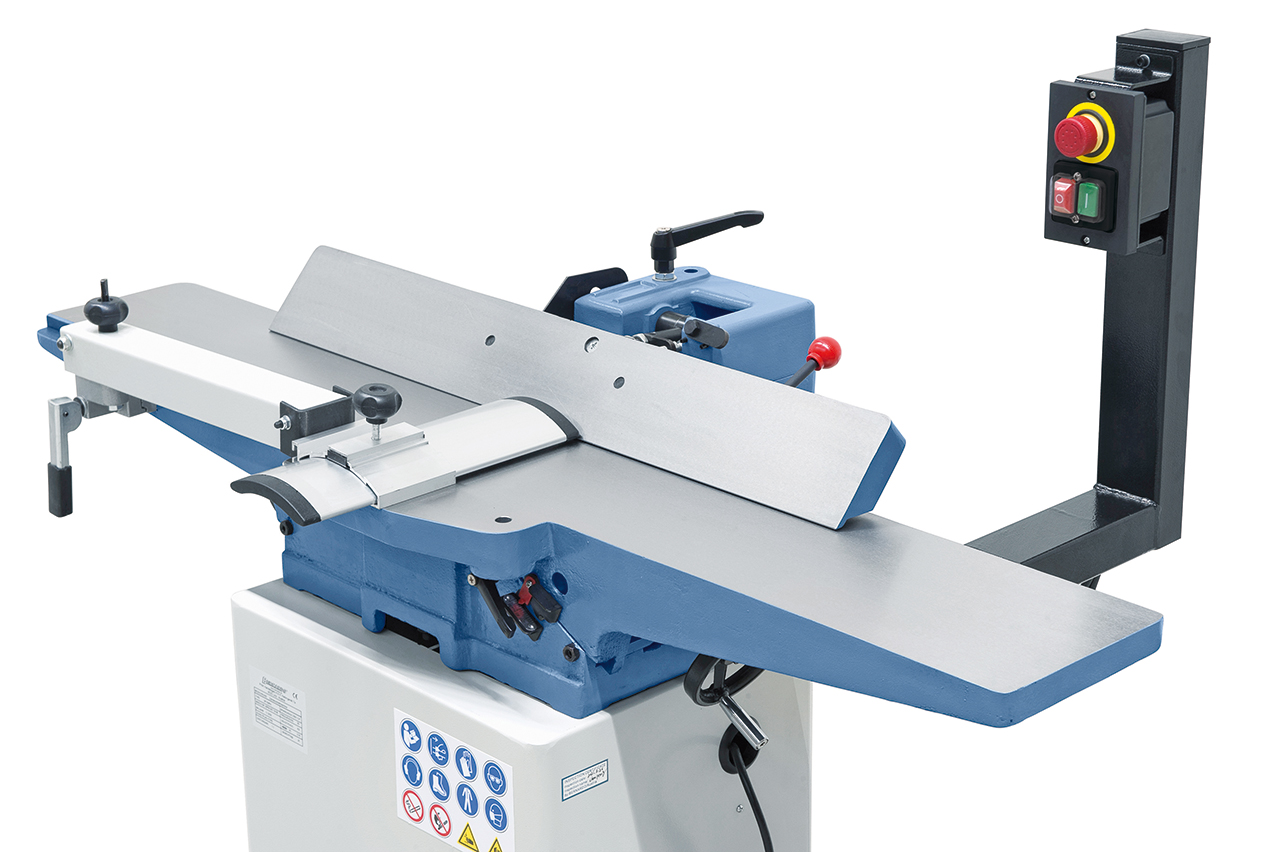

The planing machine SP 150 PN is designed for accurate planing, jointing and chamfering of boards, planks etc. at entry level. The heavy cast iron frame and precise construction meet the requirements of ambitious amateurs and craftsmen.
Scope of delivery Surface planing machine Bernardo SP 150 PN / 230 V
- Cutter knives in HSS-Quality
- Knife gauge
- 2 x push handle
Features Surface planing machine Bernardo SP 150 PN / 230 V

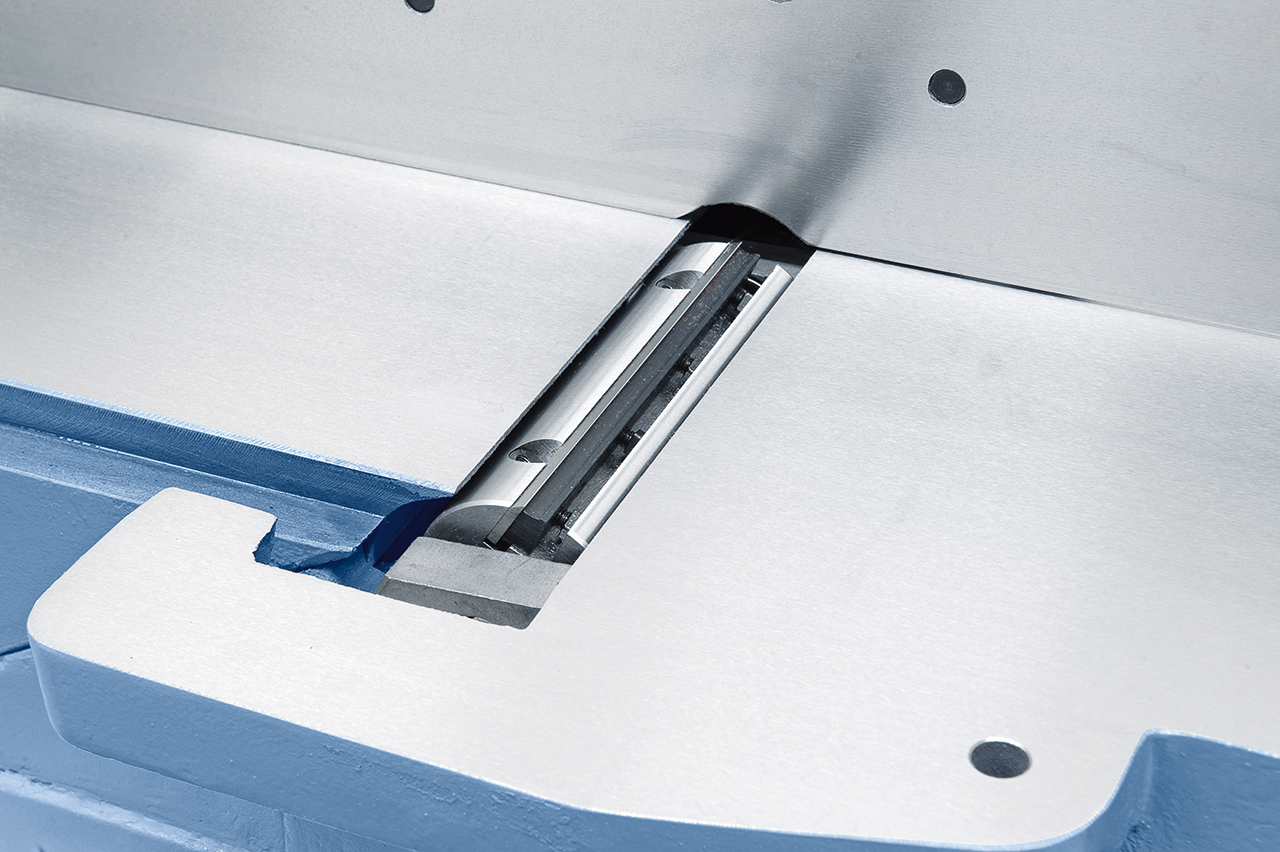

- Cutterblock features HSS-planing knives
- Ideal for planing of boards, planks etc.
- Most accurate grey cast iron planing tables guarantees excellent results
- Extremely long planing tables with ground surface assure perfectly smooth results

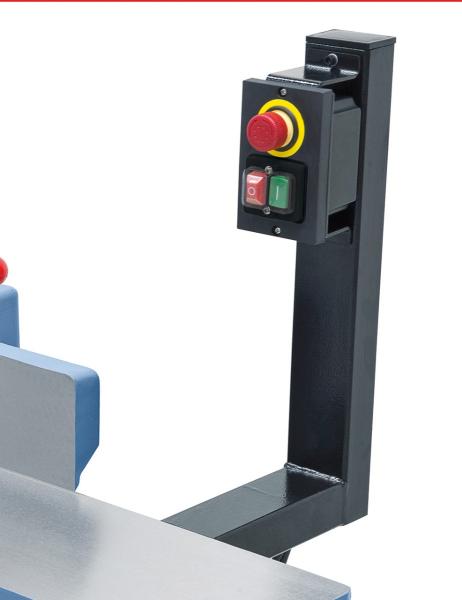

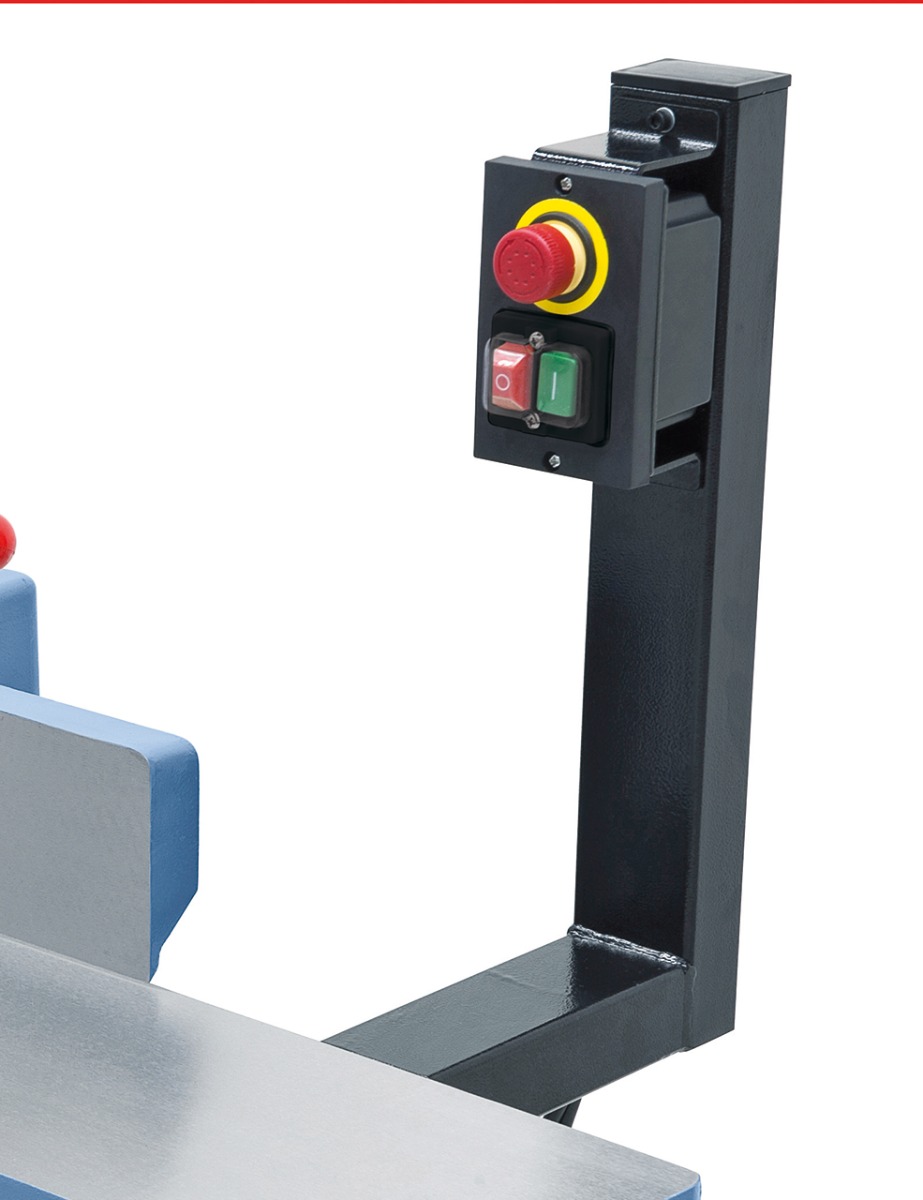

- On/Off button with undervoltage release

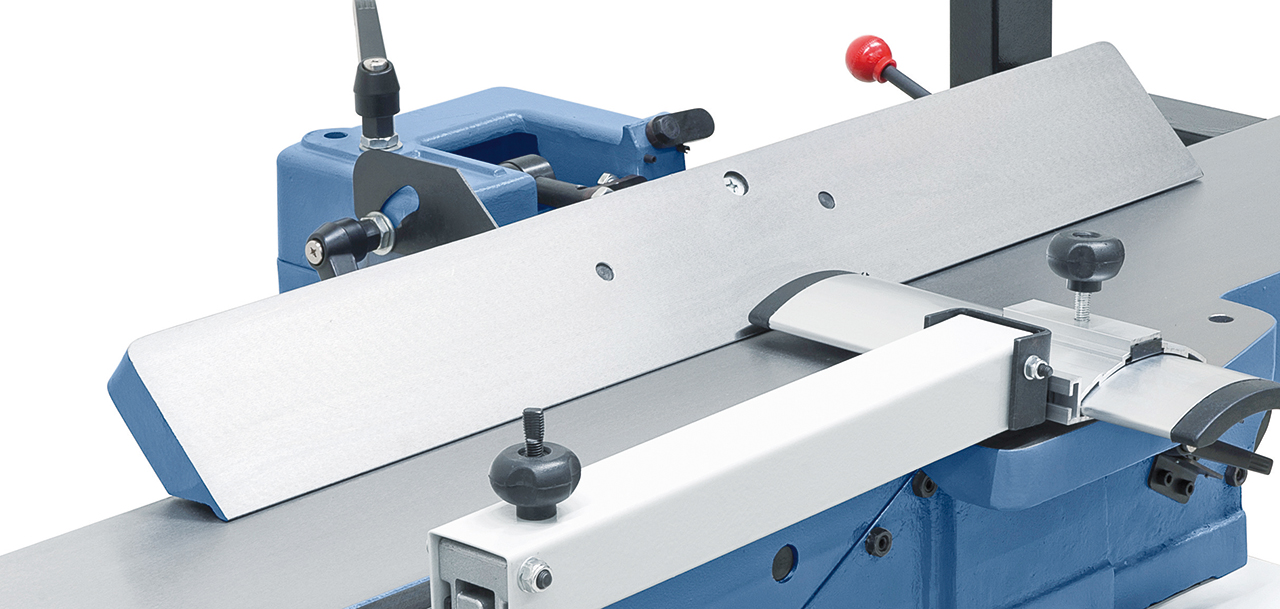

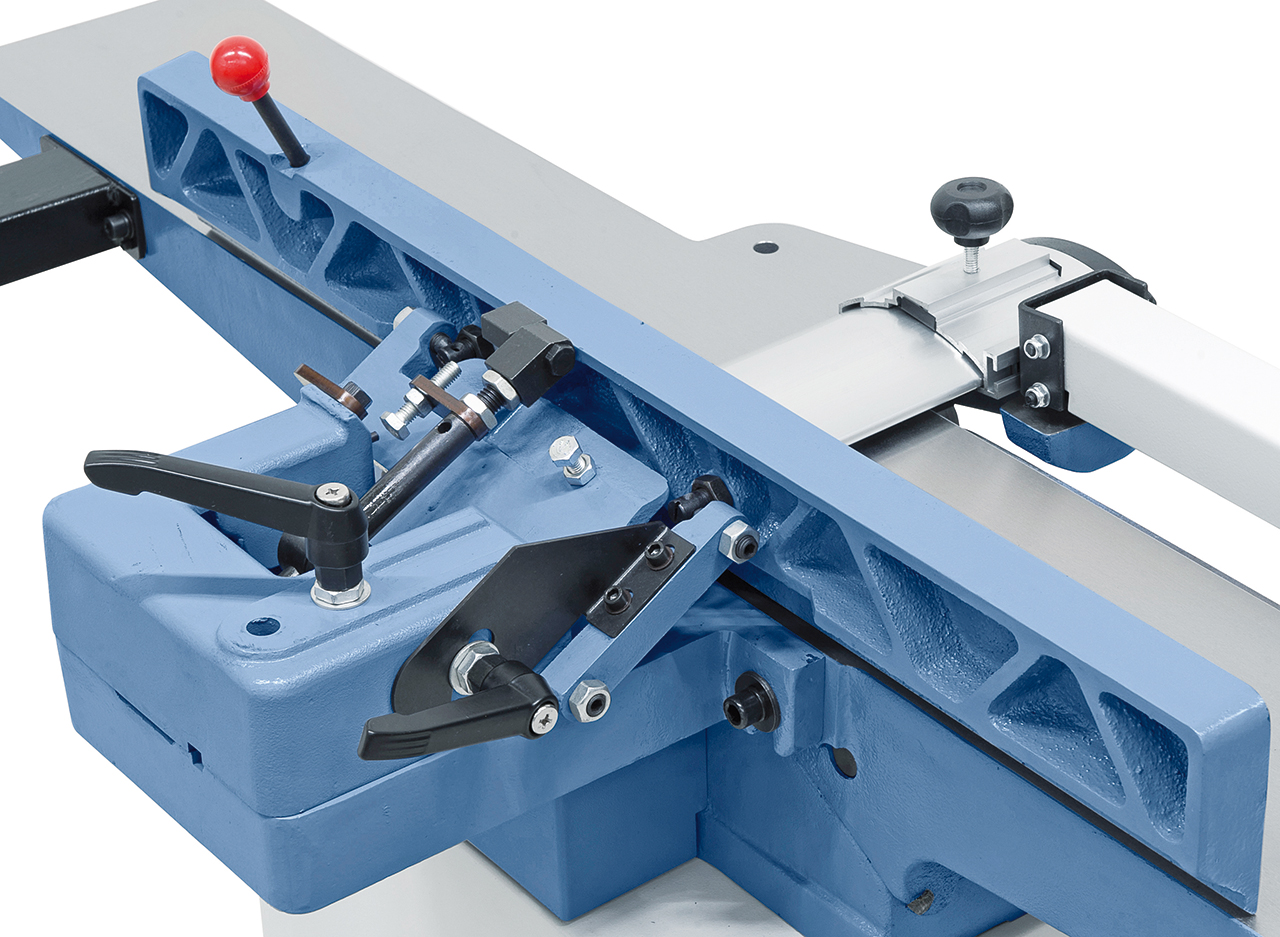

- Solid cast iron planing fence, tiltable from 90° to 45°

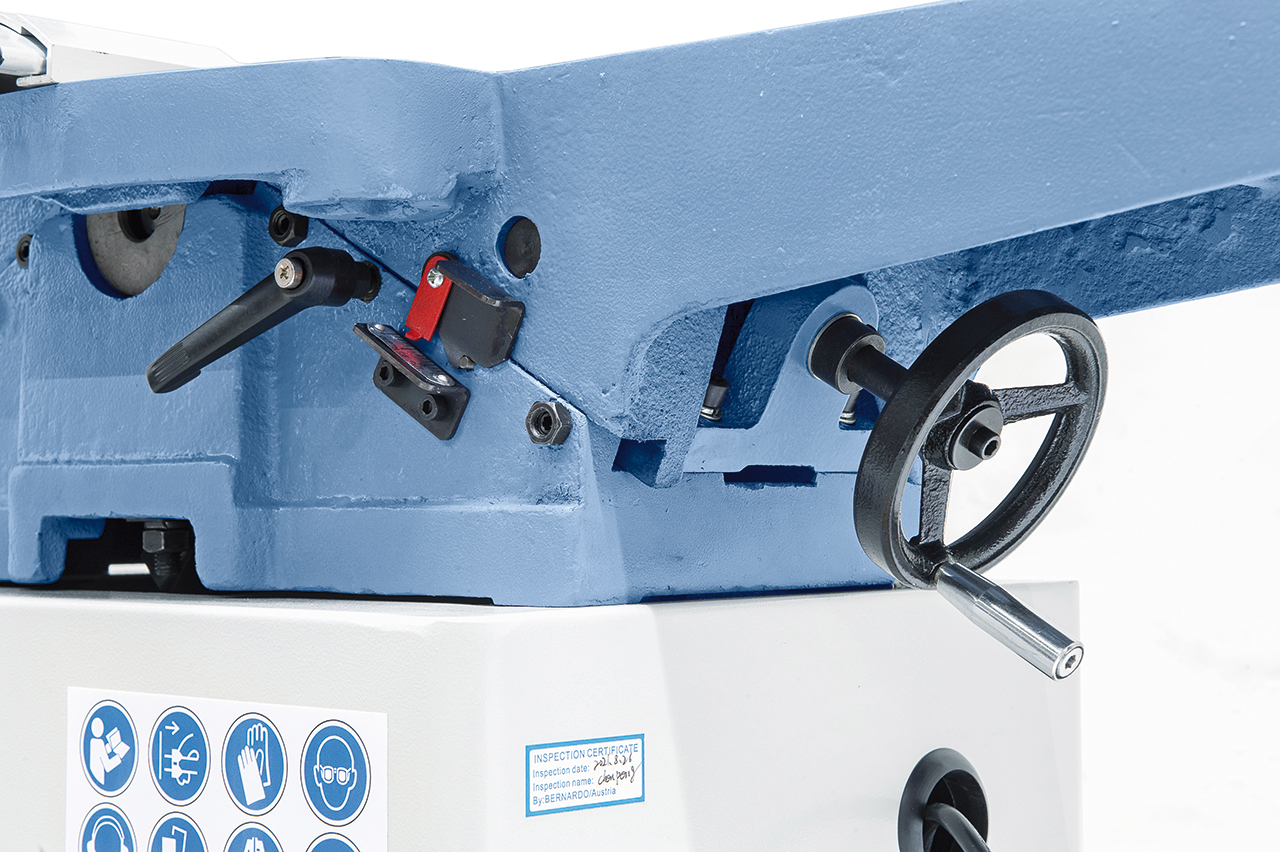

- Handwheel allows easy adjustment of chip removal
- Solid construction eliminates vibrations
Technical details Surface planing machine Bernardo SP 150 PN / 230 V
|
Planing width |
150 mm
|
|
Table length
|
1230 mm
|
|
Table height
|
820 mm
|
|
Infeed table length
|
590 mm
|
|
Outfeed table length
|
585 mm
|
|
Planer fence
|
740 x 100 mm
|
|
Cutter knives
|
3 pcs.
|
|
Planer shaft diameter
|
60 mm
|
|
Shaft rotation speed
|
4500 rpm
|
|
Max. cutting depth
|
8 mm
|
|
Dust extraction outlet
|
100 mm
|
| Motor power output S1 100% |
1,1 kW (1,5 HP)
|
| Motor power input S6 40% |
1,5 kW (2,0 HP)
|
|
Voltage
|
230 V
|
|
Machine dimension (L x W x H) |
1230 x 530 x 1180 mm
|
|
Weight approx.
|
115 kg
|
