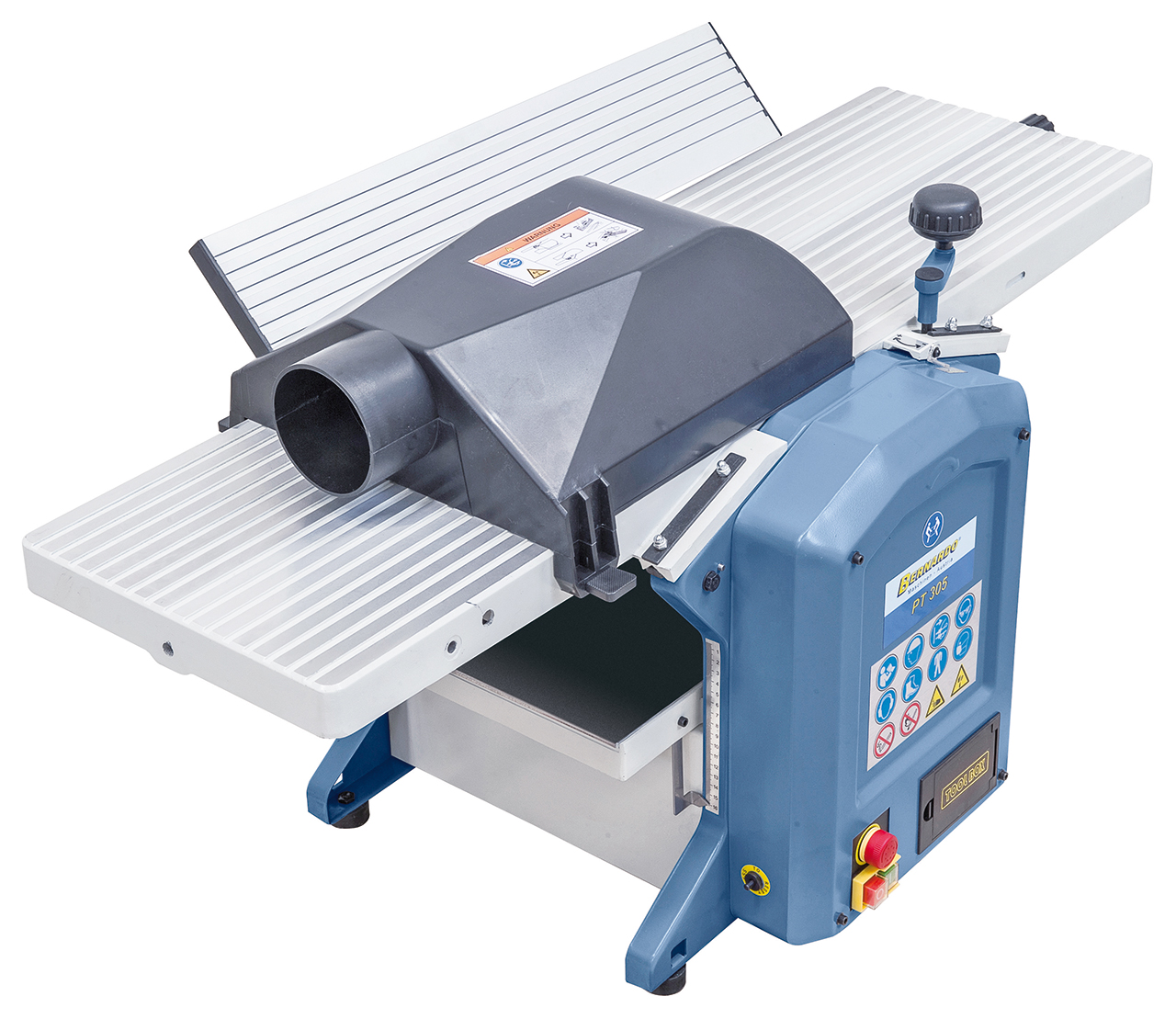

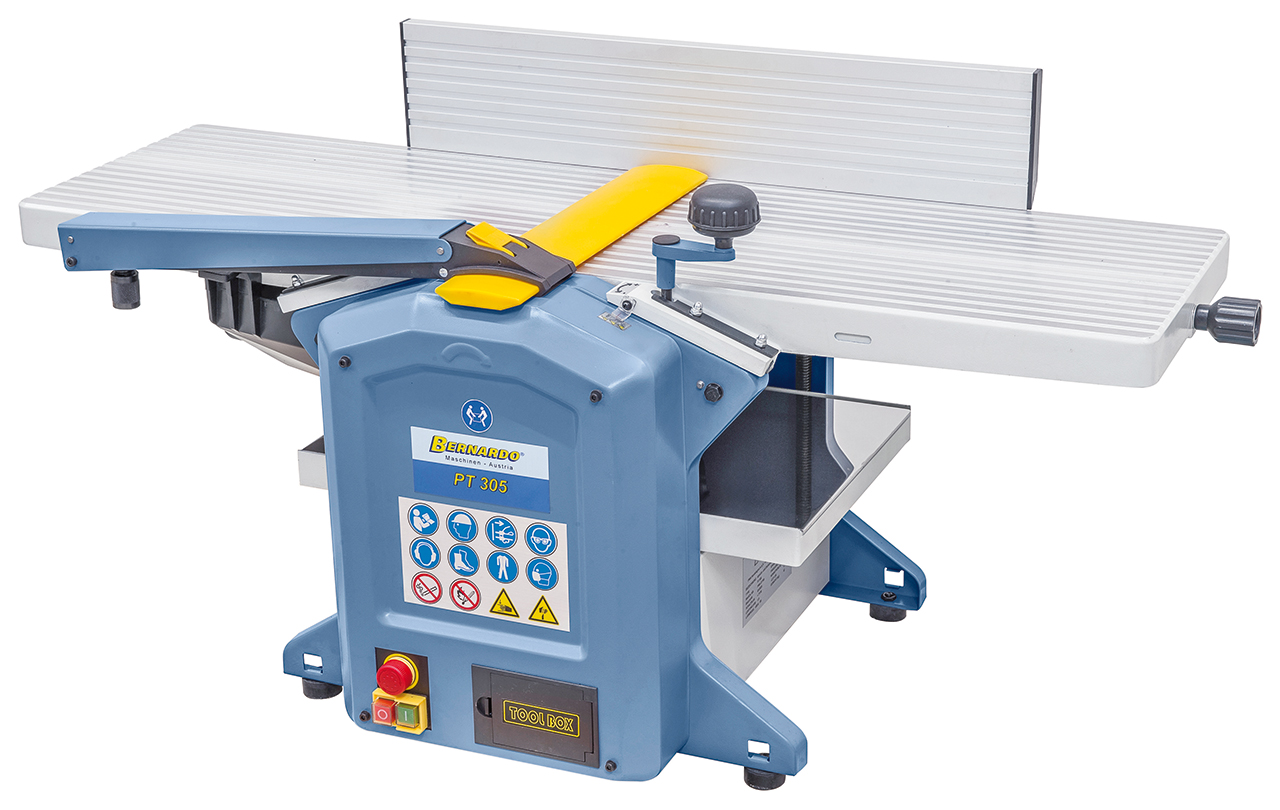

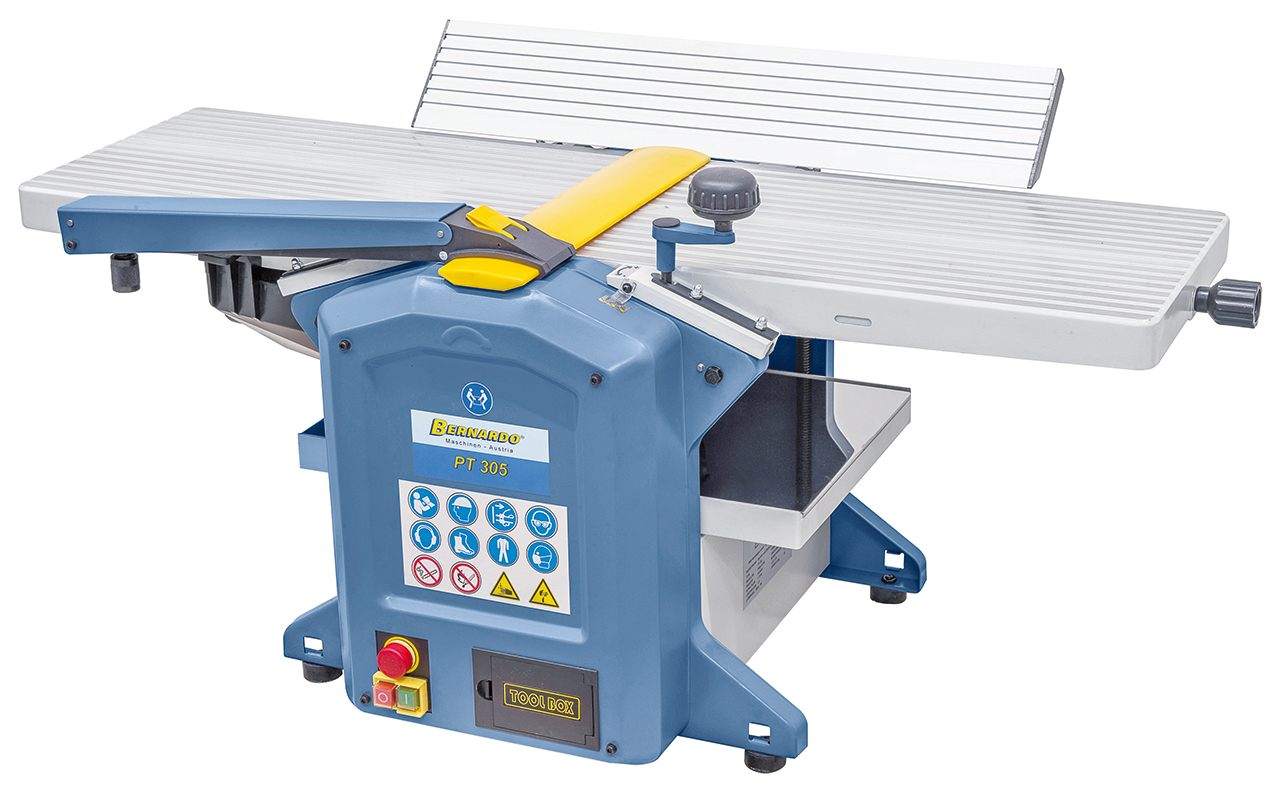

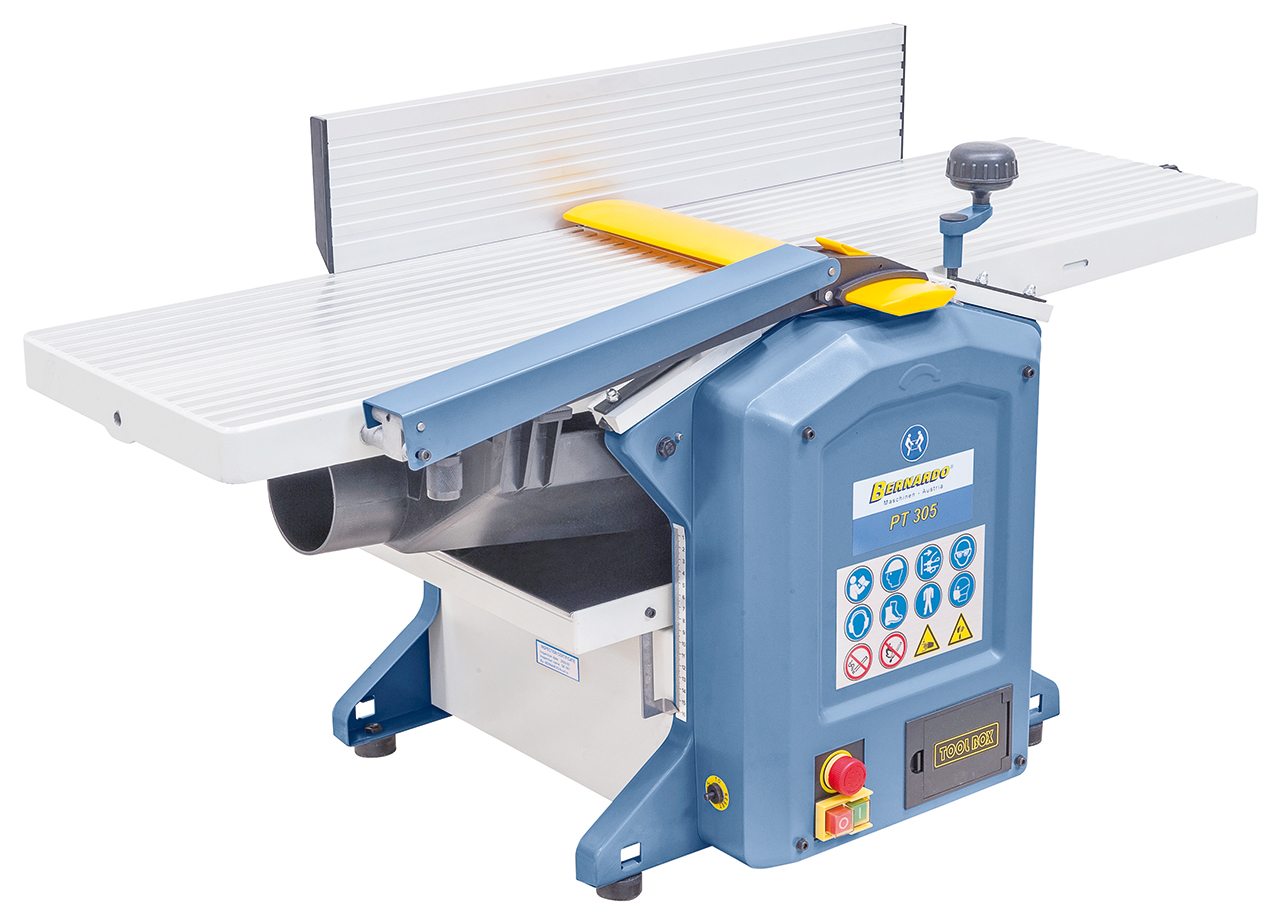

Surface planer and thicknesser Bernardo PT 305
The PT 305 compact surface planer and thicknesser features a working thickness of up to 150 mm, making it the ideal model for planing of boards, planks and beams. This compact model is solidly constructed, making this machine ideal for amateurs.
Scope of delivery Surface planer and thicknesser Bernardo PT 305
- Cutter knives in HSS-quality
- Knife gauge
- Dust hood
- Push handle
Features Surface planer and thicknesser Bernardo PT 305
- The table is designed with slots on both sides to minimize the noise level

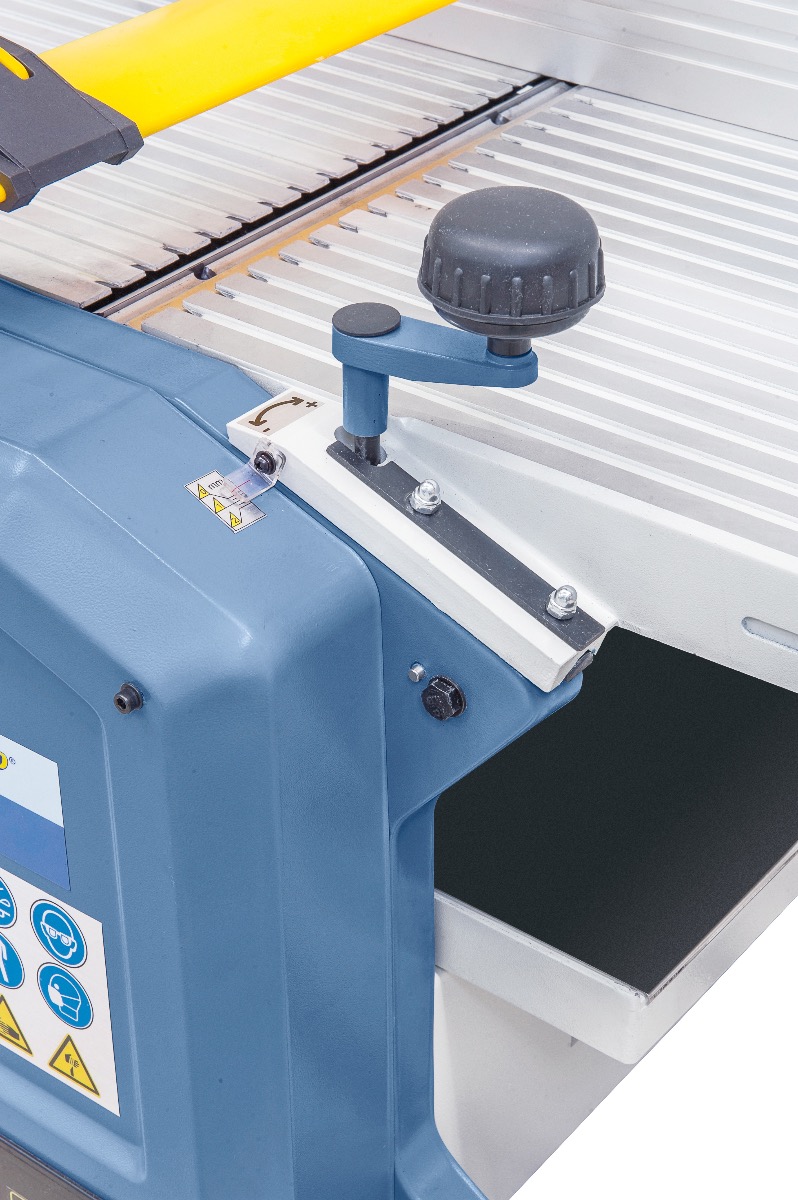

- Quick and easy adjustment of chip removal
- Stable planer fence, tiltable from 90° to 45°
- Precisely manufactured, aluminium planing tables for accurate results
- Precisely mounted 2-knife cutterblock incl. cutter knives in HSS-quality
- Cutterblock cover according to CE-standards ensure safety
- Powerful motor guarantees best result

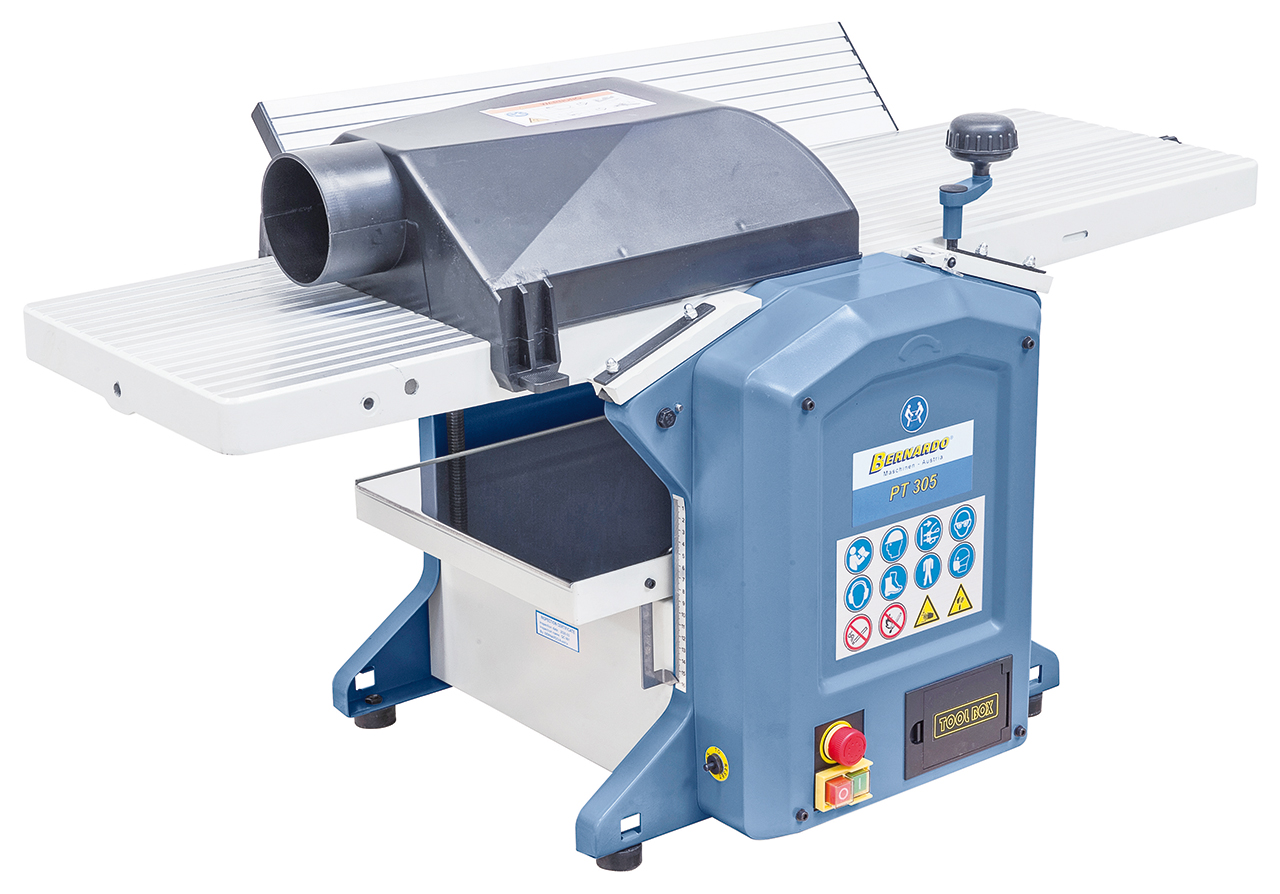

- Combined dust hood can be used for planing or thicknessing
- Ideal for craftsmen and amateurs

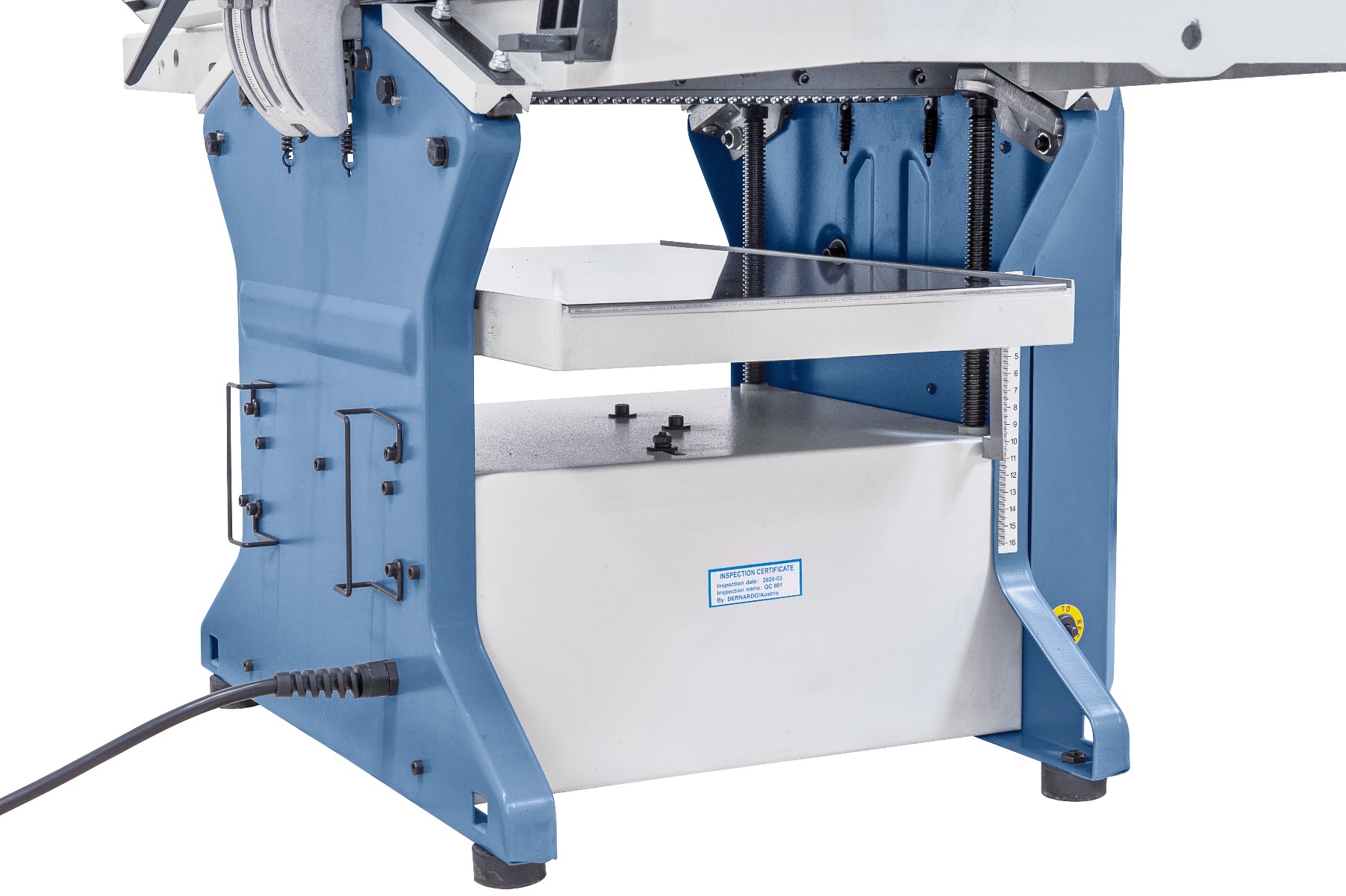

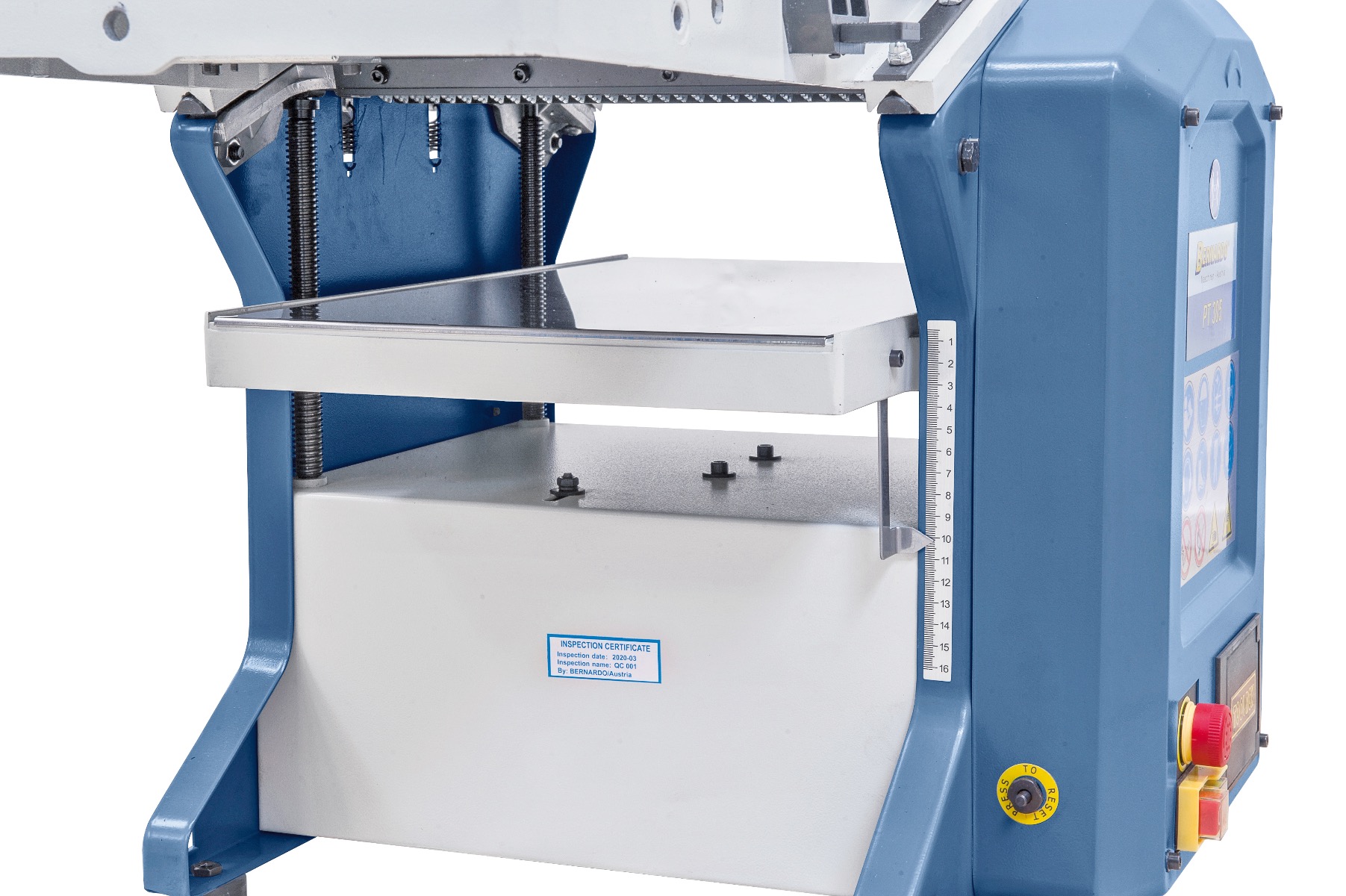

- Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
Technical details Surface planer and thicknesser Bernardo PT 305
Planer | |
Planing width | 305 mm |
Table length | 1075 mm |
Shaft rotation speed | 9500 rpm |
Cutter knives | 2 pcs. |
Planer shaft diameter | 51 mm |
Planer fence | 640 x 125 mm |
Fence tiltable | 90° to 45° |
Max. cutting depth | 2 mm |
Thicknesser | |
Table length | 500 mm |
Working width | 300 mm |
Working thickness, min./max. | 5 - 150 mm |
Max. cutting depth | 1 mm |
Feed speed | 7 m/min |
Dust extraction outlet | 100 mm |
Motor power output S1 100% | 1,8 kW (2,4 HP) |
Motor power input S6 40% | 2,5 kW (3,4 HP) |
Voltage | 230 V |
Machine dimension (L x W x H) | 1125 x 560 x 575 mm |
Weight approx. | 46 kg |
