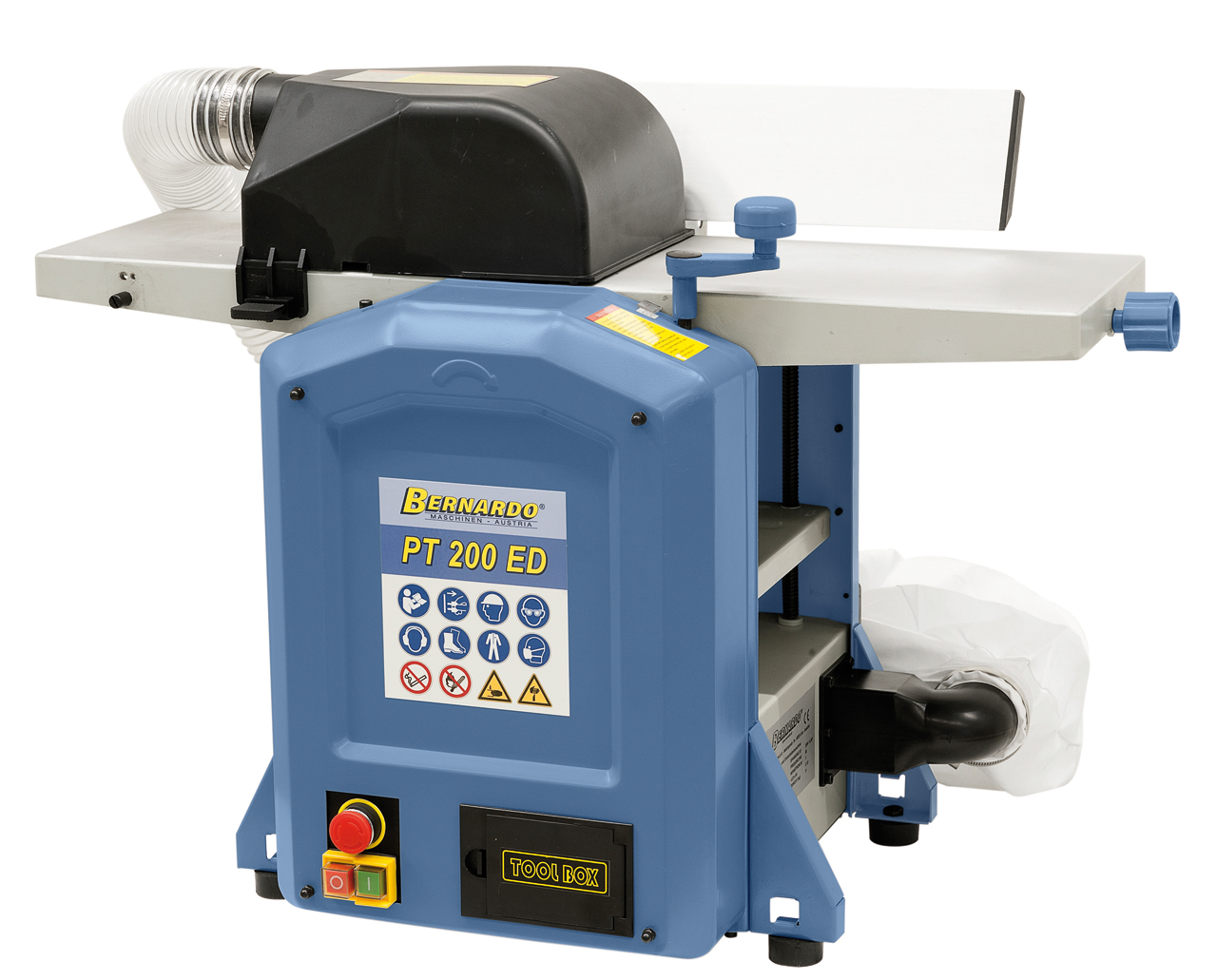

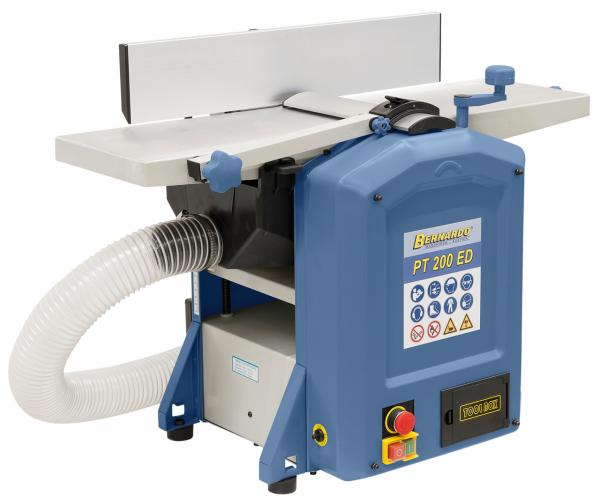

Surface planer and thicknesser Bernardo PT 200 ED
The PT 200 ED planer and thicknesser stands out because of its integrated dust extractor and its large thicknessing height (210 mm). This compact model is solidly constructed, making this machine ideal for amateurs.
Scope of delivery Surface planer and thicknesser Bernardo PT 200 ED
- Cutter knives in HSS-quality

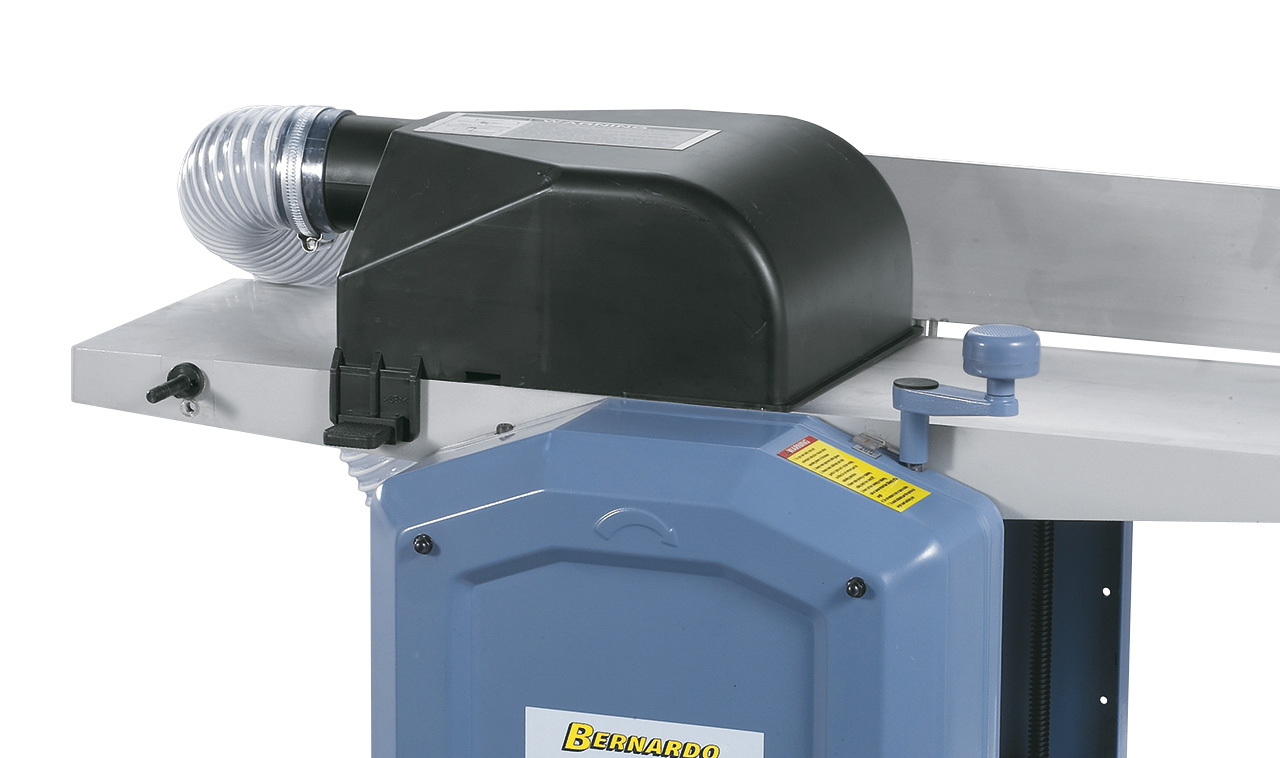

- Dust extractor
- Knife gauge
- Dust hood
- Waste bag
- Push handle
Features Surface planer and thicknesser Bernardo PT 200 ED
- Solid machine structure enables easy transportation, ideal for use on construction sites
- Quick and easy adjustment of chip removal
- Dust extractor and waste bag as standard equipment

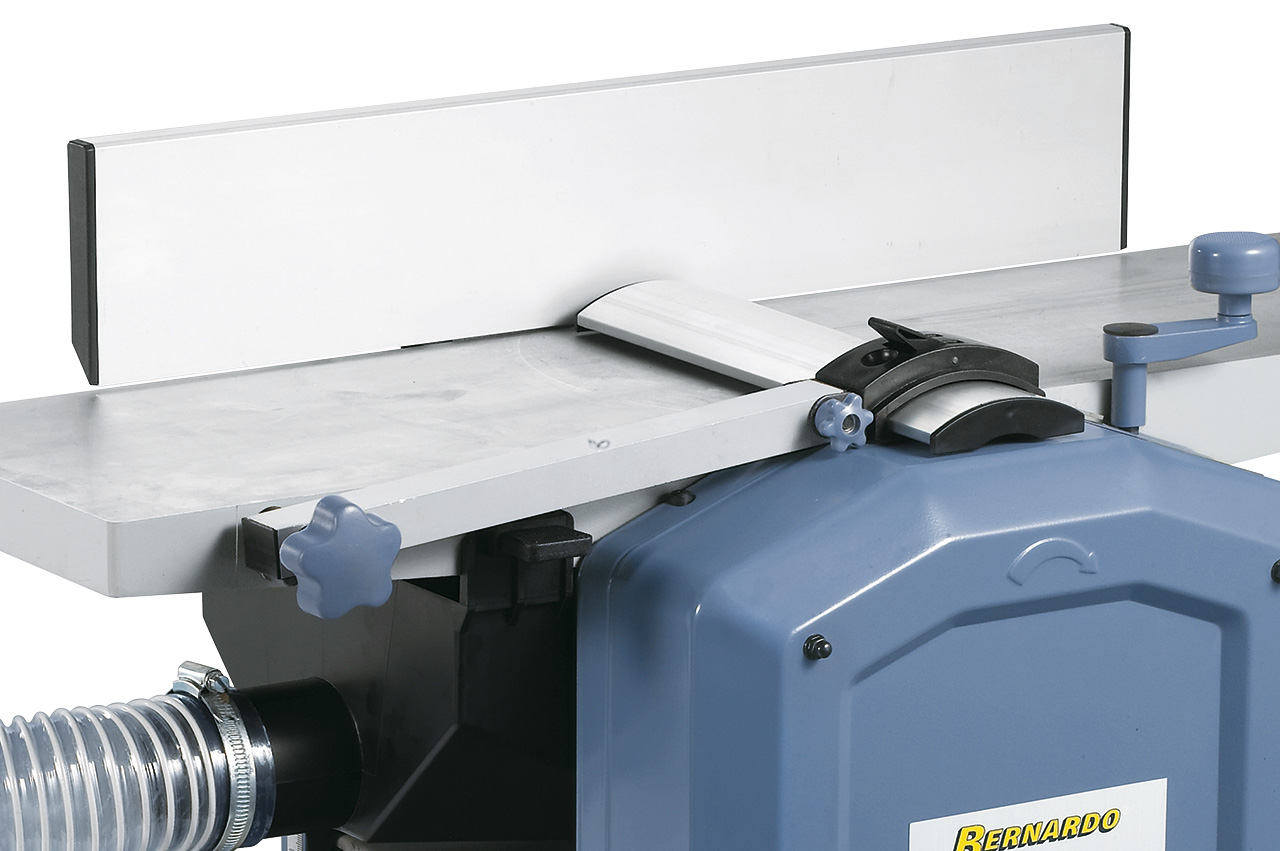

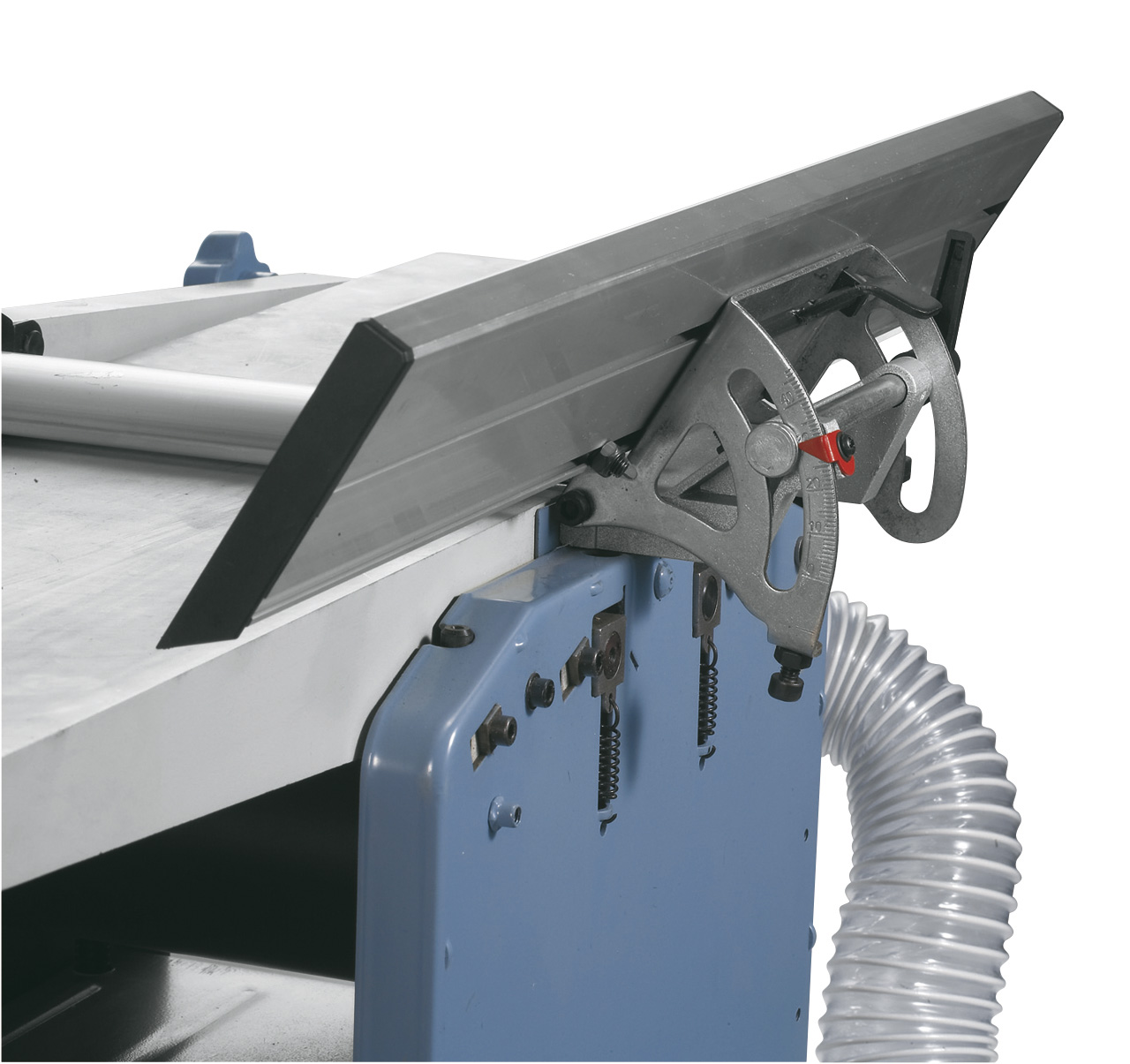

- Stable planer fence, tiltable from 90° to 45°
- Precisely manufactured, aluminium planing tables for accurate results
- Power switch according to IP 54 with undervoltage release
- Precisely mounted 2-knife cutterblock incl. cutter knives in HSS-quality
- Cutterblock cover according to CE-standards ensure safety
- Powerful motor guarantees best result
- Ideal for craftsmen and amateurs
- Serially equipped with dust hood when thicknessing
Technical details Surface planer and thicknesser Bernardo PT 200 ED
Planer |
|
Planing width | 205 mm |
Table length | 740 mm |
Shaft rotation speed | 8500 rpm |
Cutter knives | 2 pcs. |
Planer shaft diameter | 50 mm |
Planer fence | 540 x 105 mm |
Fence tiltable | 90° to 45° |
Max. cutting depth | 2 mm |

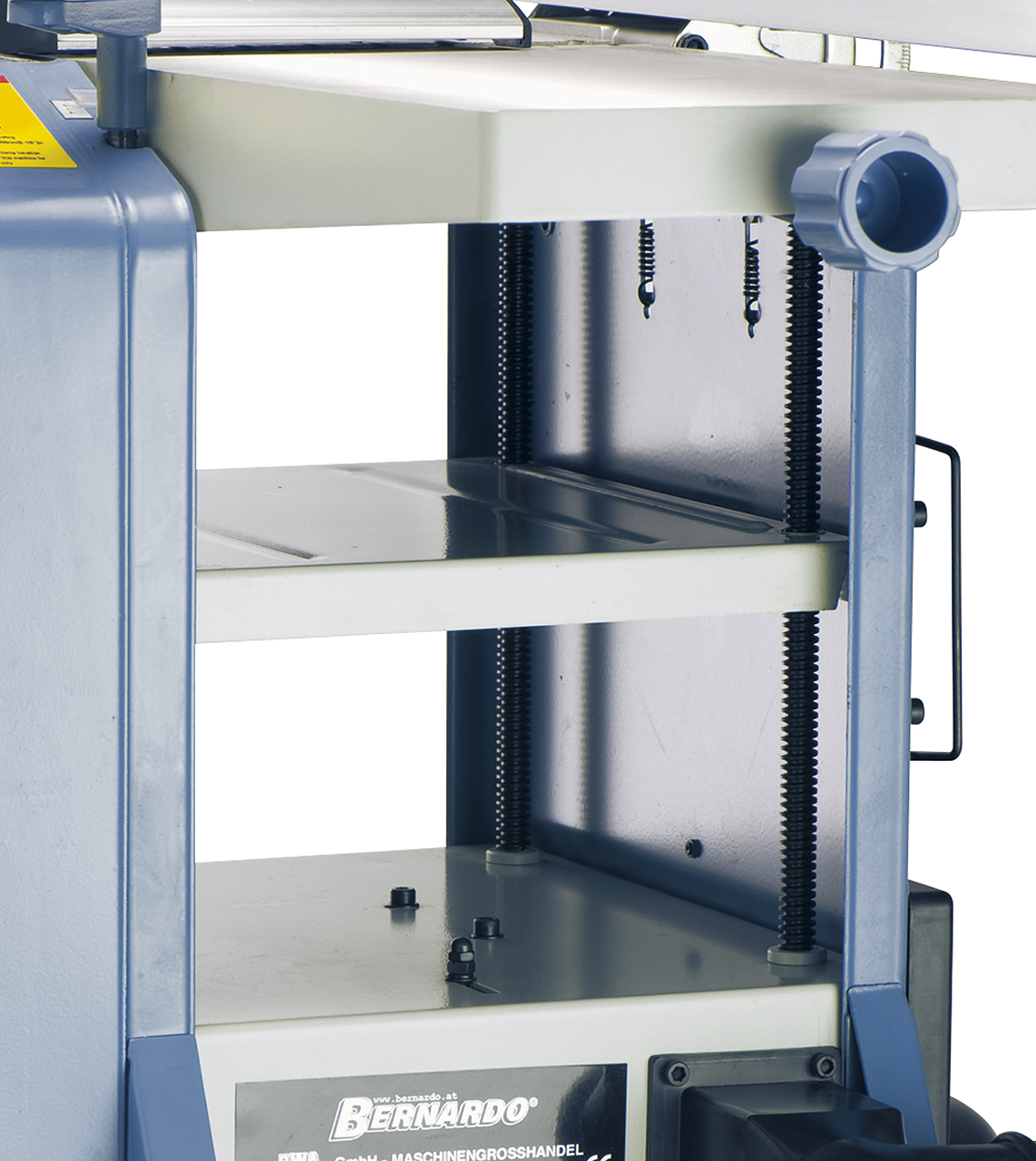

Thicknesser |
|
Table length | 285 mm |
Working width | 200 mm |
Working thickness, min./max. | 5 - 210 mm |
Max. cutting depth | 2 mm |
Feed speed | 7 m/min |
Dust extraction outlet | 60 mm |
Motor power output S1 100% | 1,5 kW (2,0 HP) |
Motor power input S6 40% | 2,1 kW (2,8 HP) |
Voltage | 230 V |
Machine dimension (L x W x H) | 790 x 480 x 550 mm |
Weight approx. | 31 kg |
