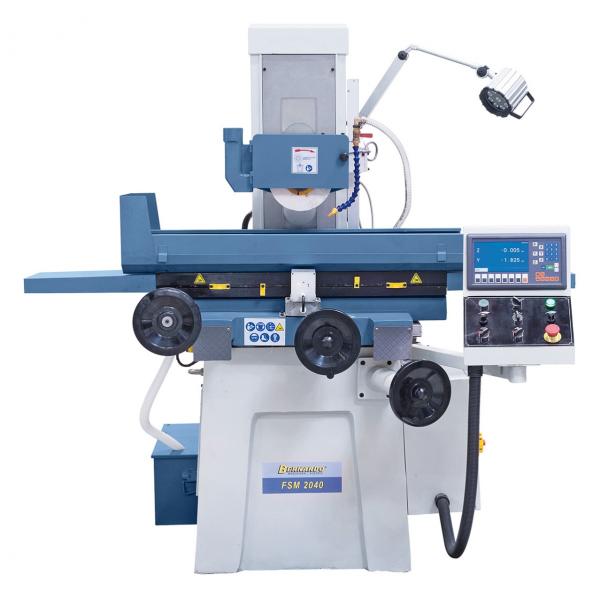

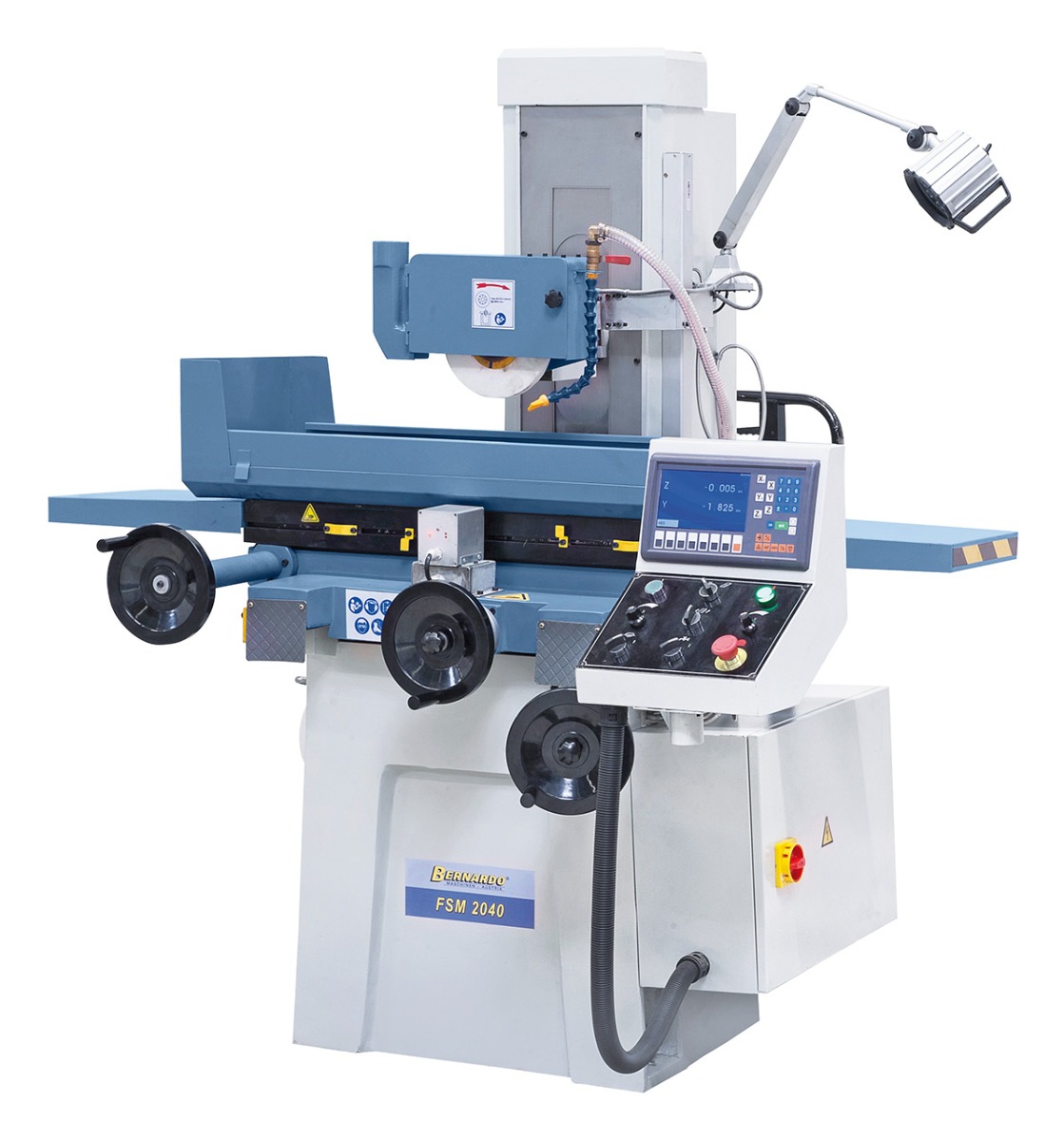

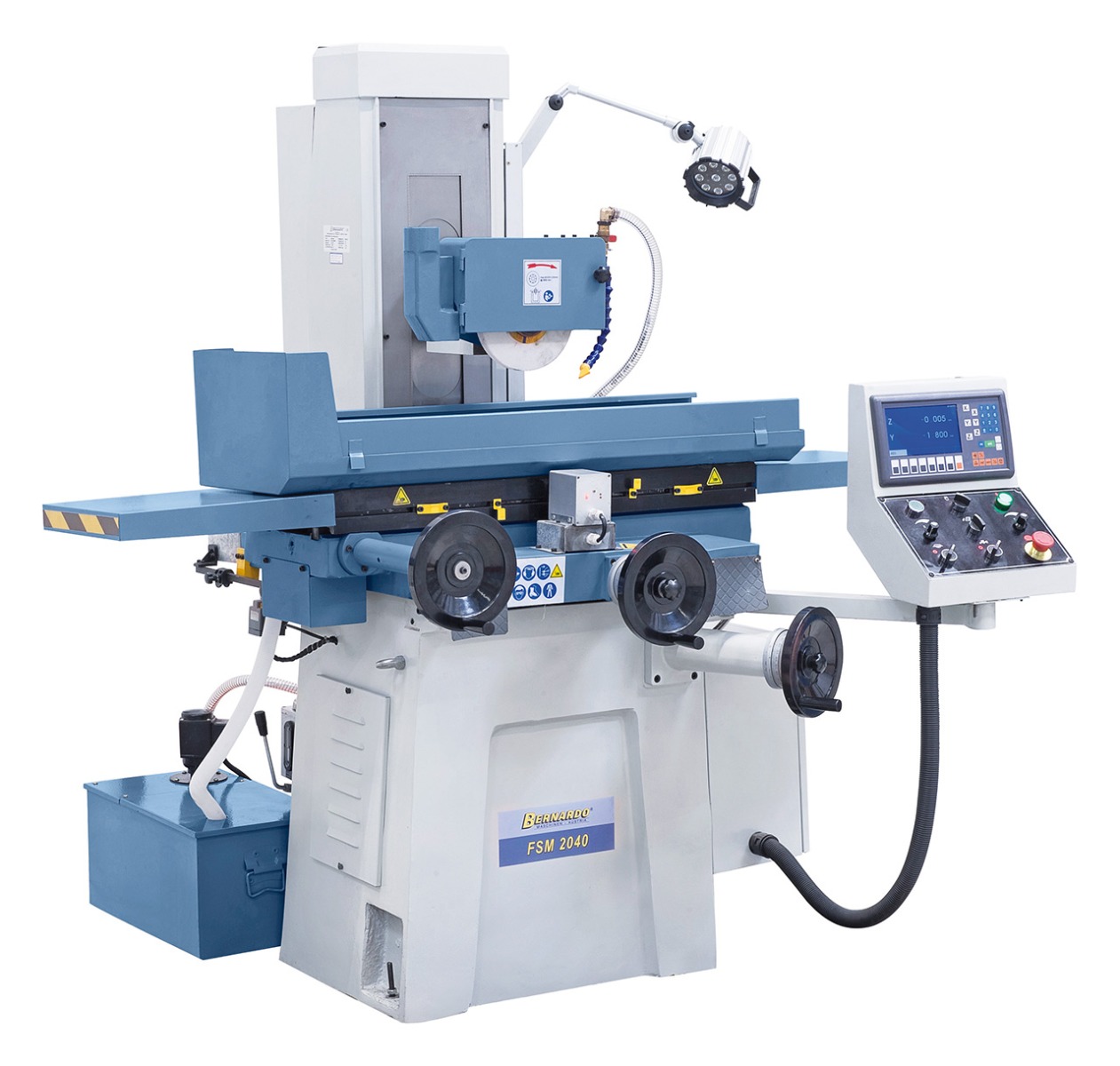

Surface grinding machine Bernardo FSM 2040

The FSM 2040 is a solidly constructed surface grinding machine with compact dimensions. The high user-friendliness makes this model ideal for training workshops, education as well as tool and die making.

Scope of delivery Surface grinding machine Bernardo FSM 2040

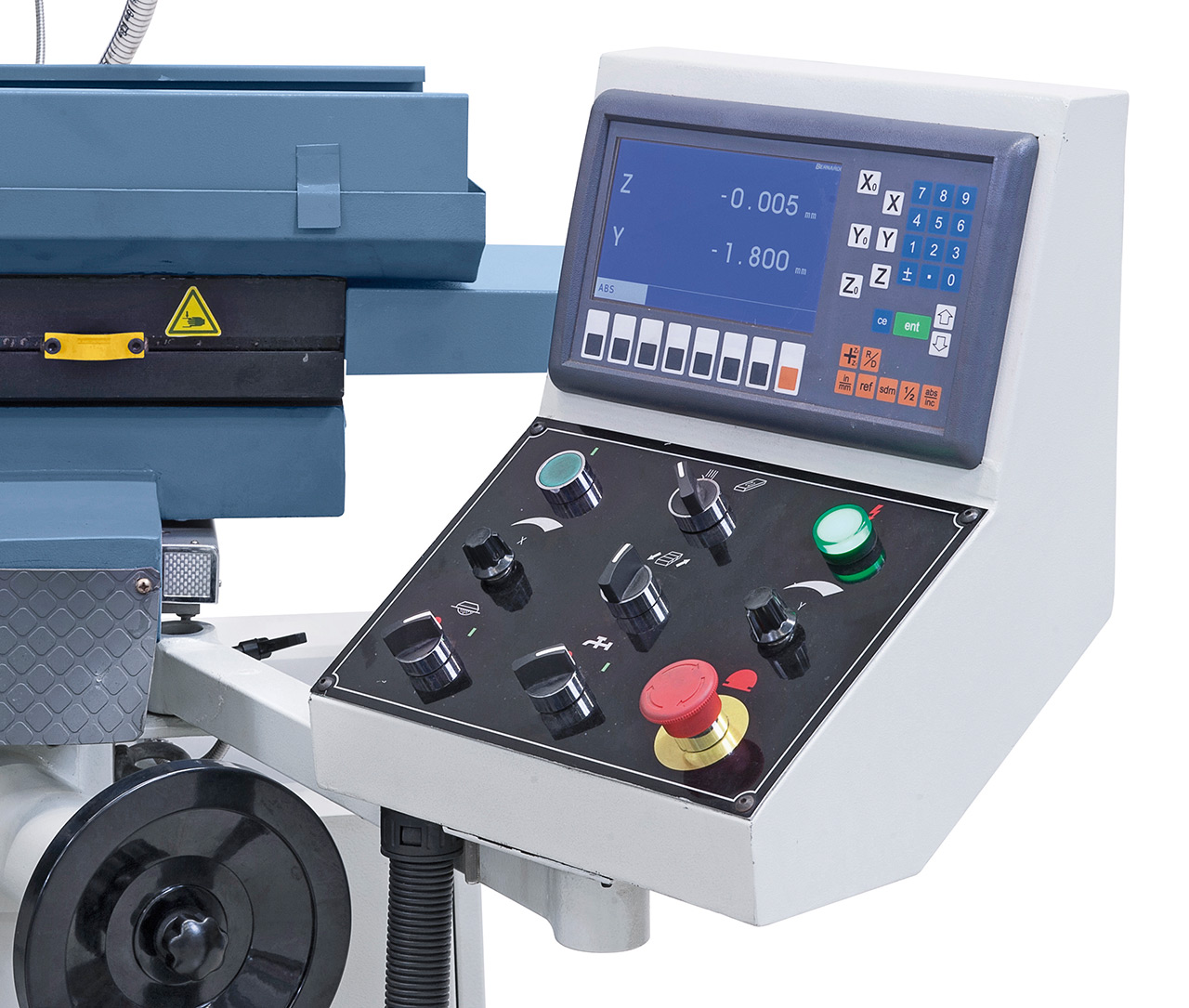

• 2-axis digital readout ES-12 H with LCD-display

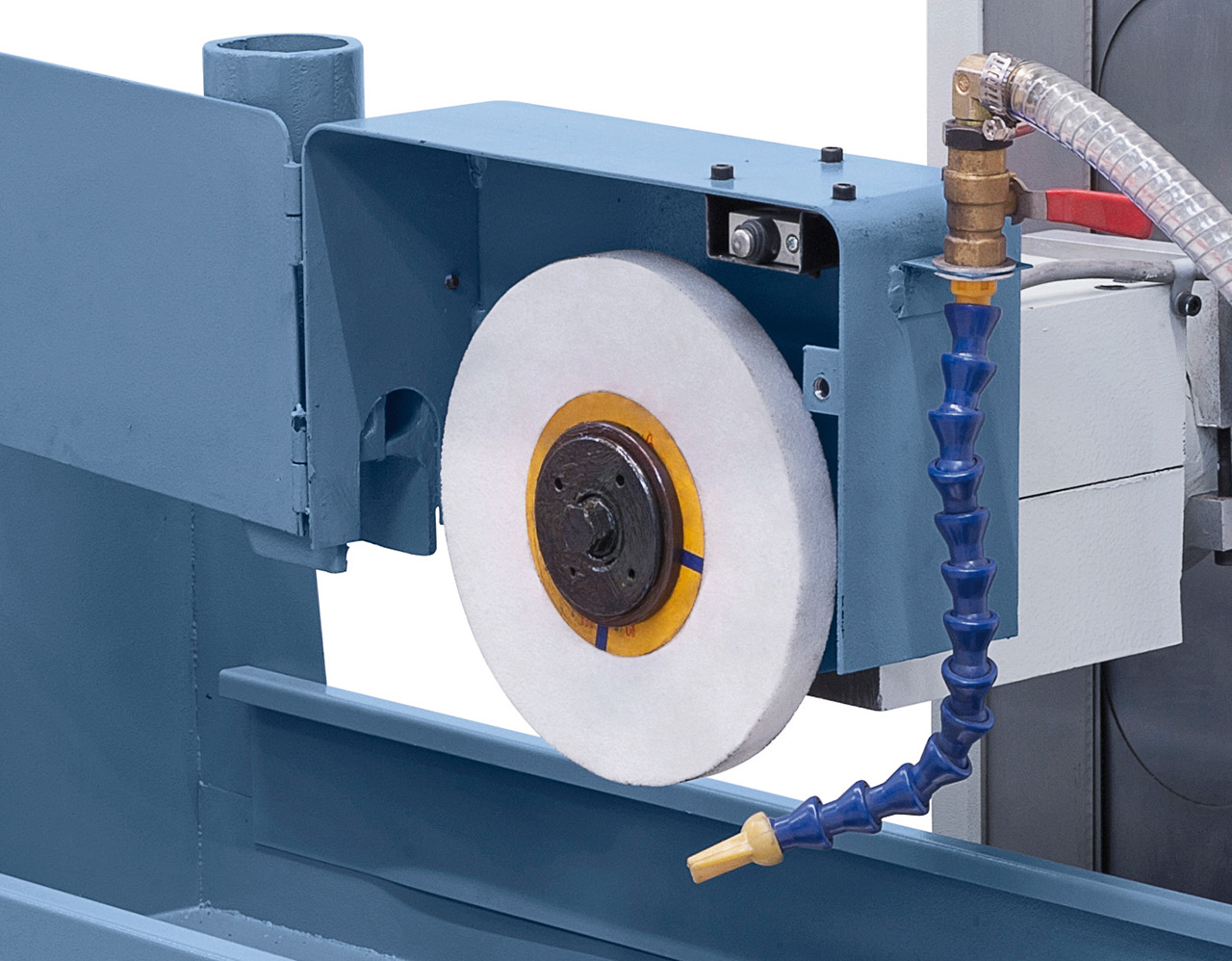

• Grinding wheel
• Flange
• LED working light
• Permanent magnet clamping plate
• Balancing stand
• Balancing arbor
• Protective cover
• Demagnetization device
• Coolant device
• Dressing diamond
• Machine feet

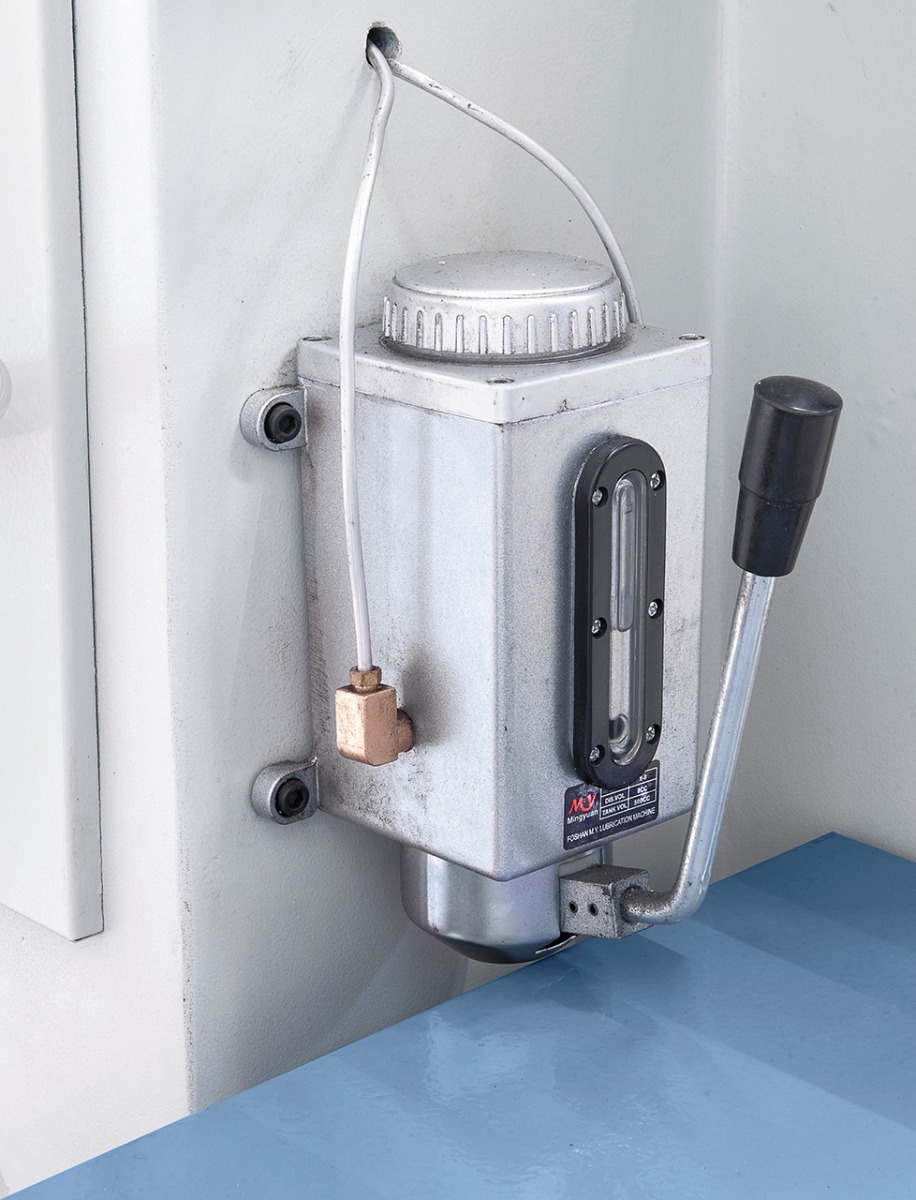

• Central lubrication
• Tools

Features Surface grinding machine Bernardo FSM 2040

• High quality bearings of spindle ensure vibration-free run
• Hardened, polished linear guiding for table longitudinal movement
• Double V-guide of cross table movement
• Main parts, such as stand, base and apron made of high quality grey cast iron
• Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
• Central lubrication of all guide rails
• Essential for grinding of small parts and fast grinding

Technical details Surface grinding machine Bernardo FSM 2040
