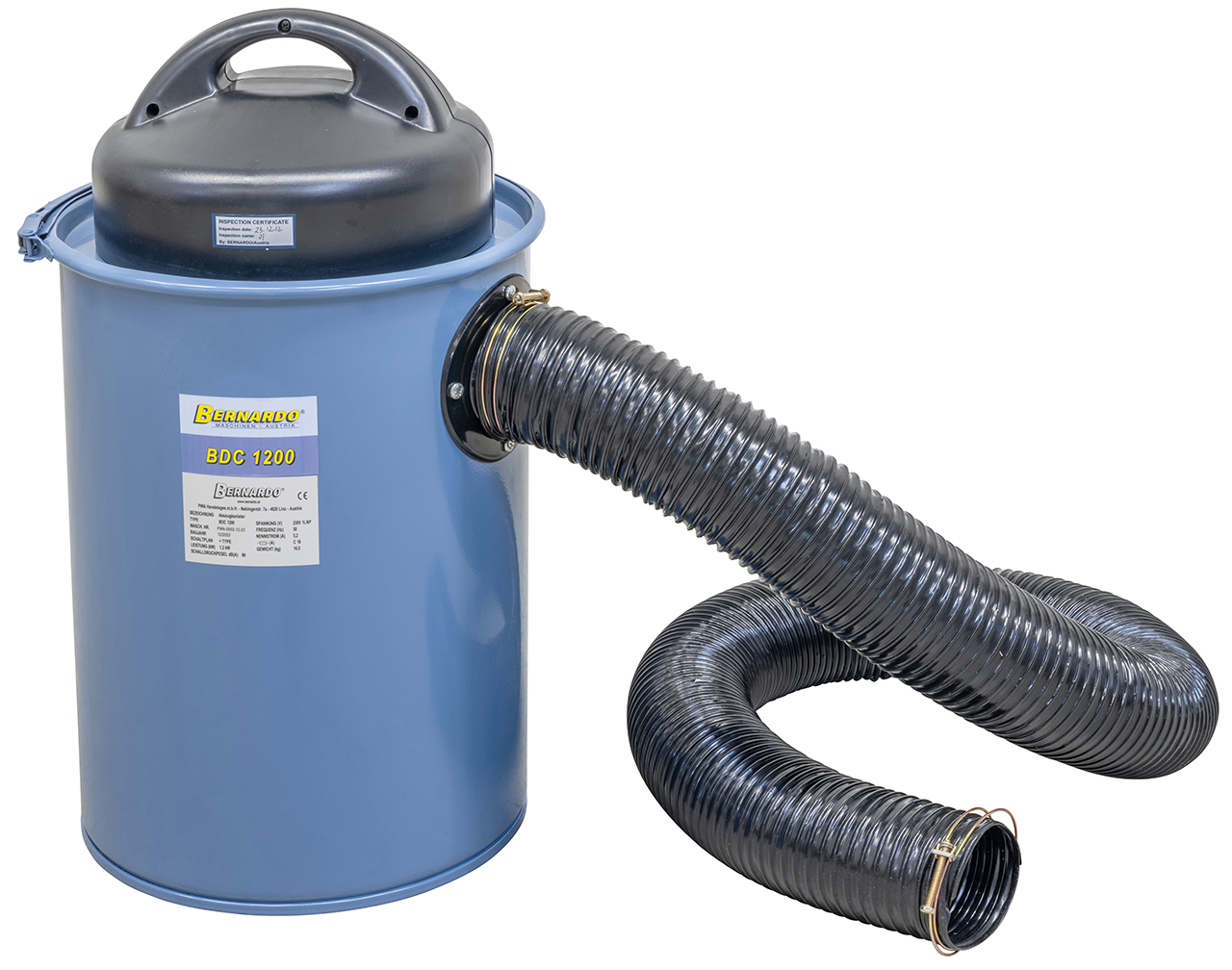

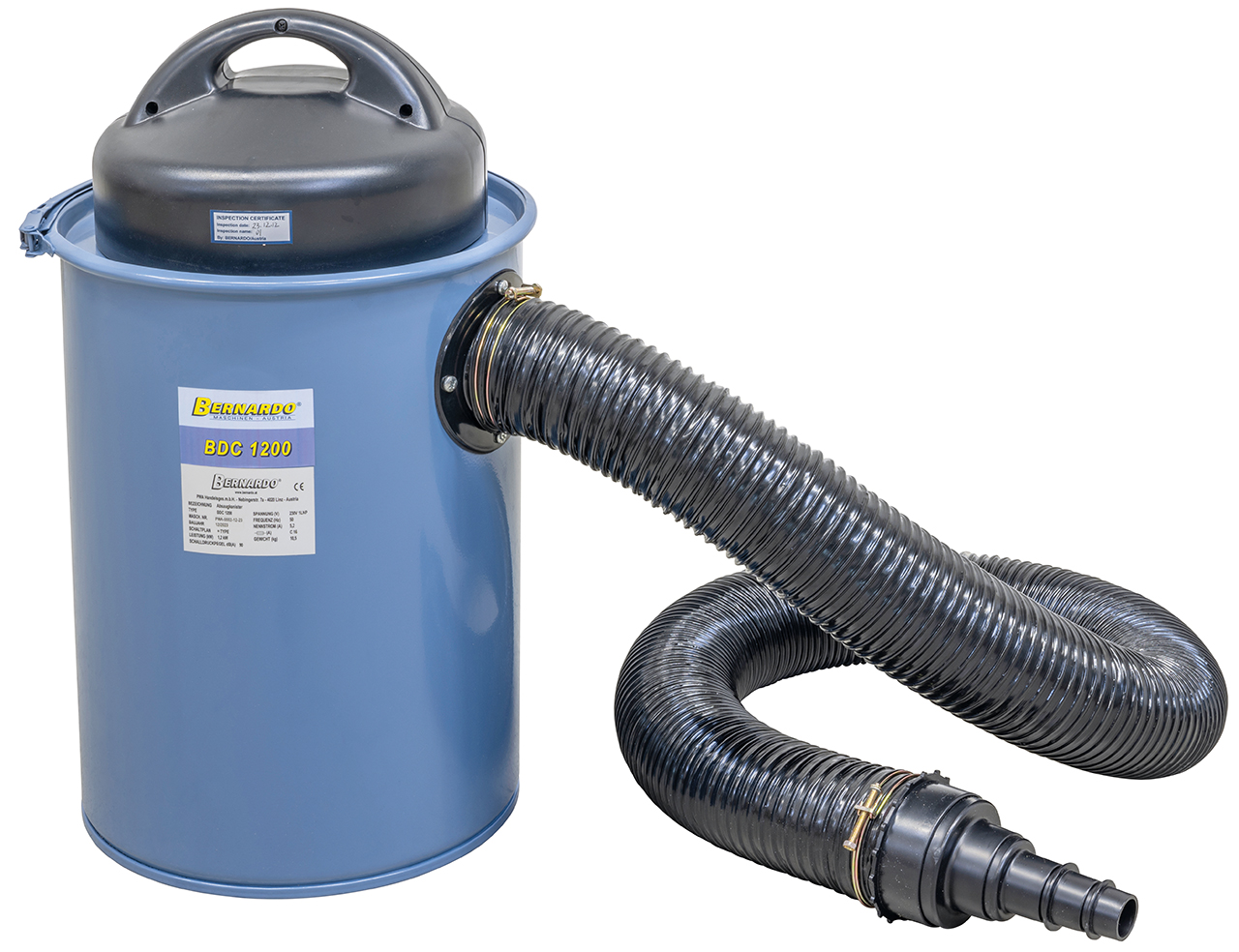

The mobile and compact BDC 1200 extraction unit ensures a clean and chip-free workplace. For this reason, no hobby workshop should be without this device.
Scope of delivery Suction canister Bernardo BDC 1200 with suction hose 2.0 m
- Suction hose 2.0 m

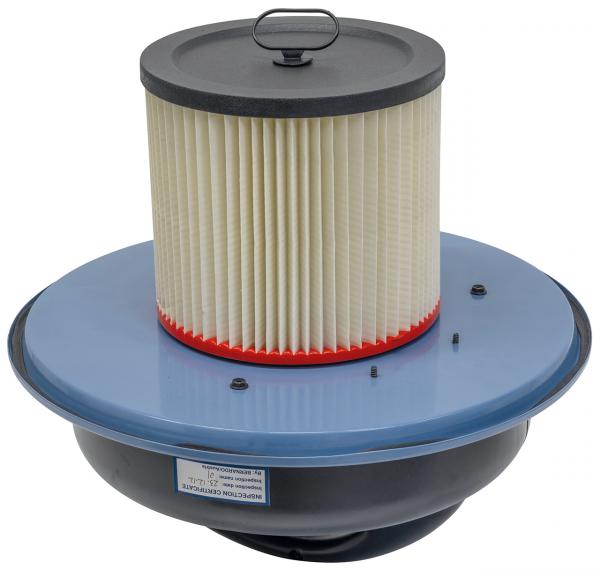

- Fine filter cartridge

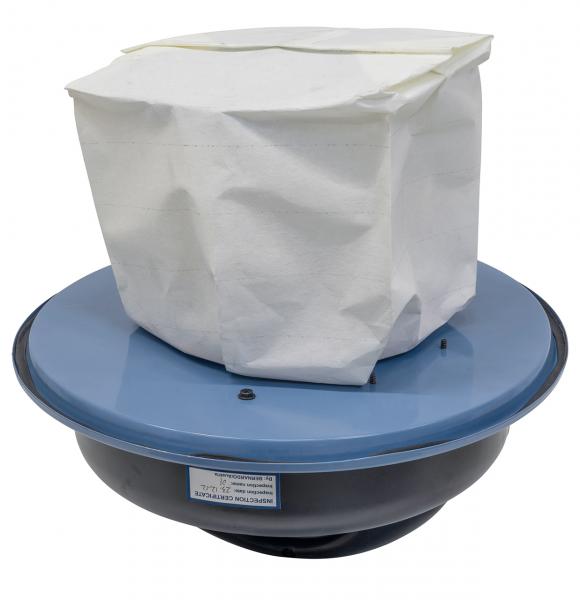

- Filter bag (3 pcs.)

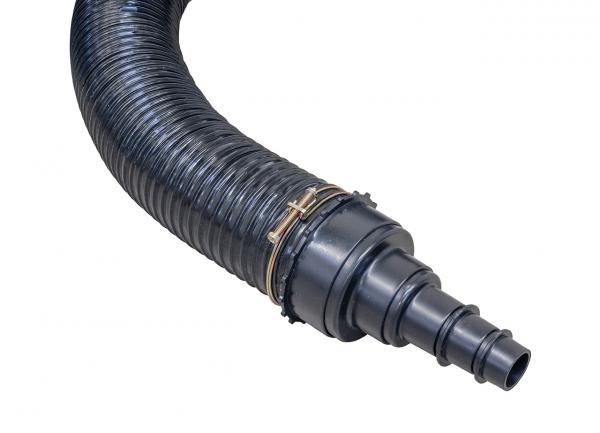

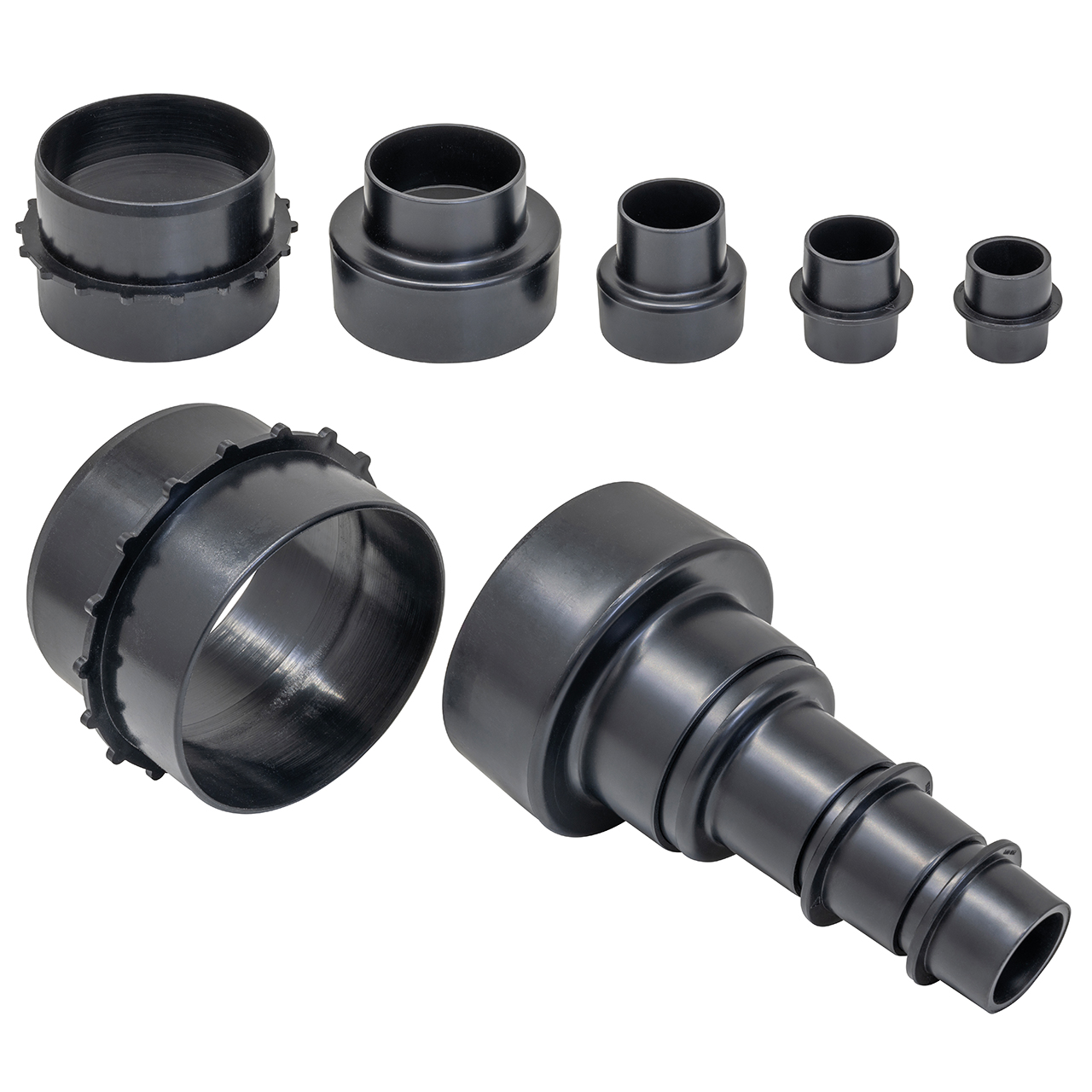

- Adapter A100/70 - A65/45 - A40/40 - A35/35
Special features Suction canister Bernardo BDC 1200 with suction hose 2.0 m
- For use with small circular saws, moulding and thicknessing machines, band saws, sanding machines,...
- Ideal for extracting dust, shavings, smoke, grains, particles of wood, plastic, etc.
- The fine filter cartridge retains particles down to 0.5 microns
- Low dead weight, therefore ideal for mobile use
- Can also be used to vacuum chimney ash
Technical data Suction canister Bernardo BDC 1200 with suction hose 2.0 m
| Volume flow | 183 m³/h |
| Max. negative pressure | 2500 Pa |
| Container volume | 50 l |
| Suction connection Ø | 100 mm |
| Engine power | 1,2 kW (1,6 hp) |
| Tension | 230 V |
| Machine dimensions (Ø x H) | 370 x 670 mm |
| Weight approx. | 9 kg |
