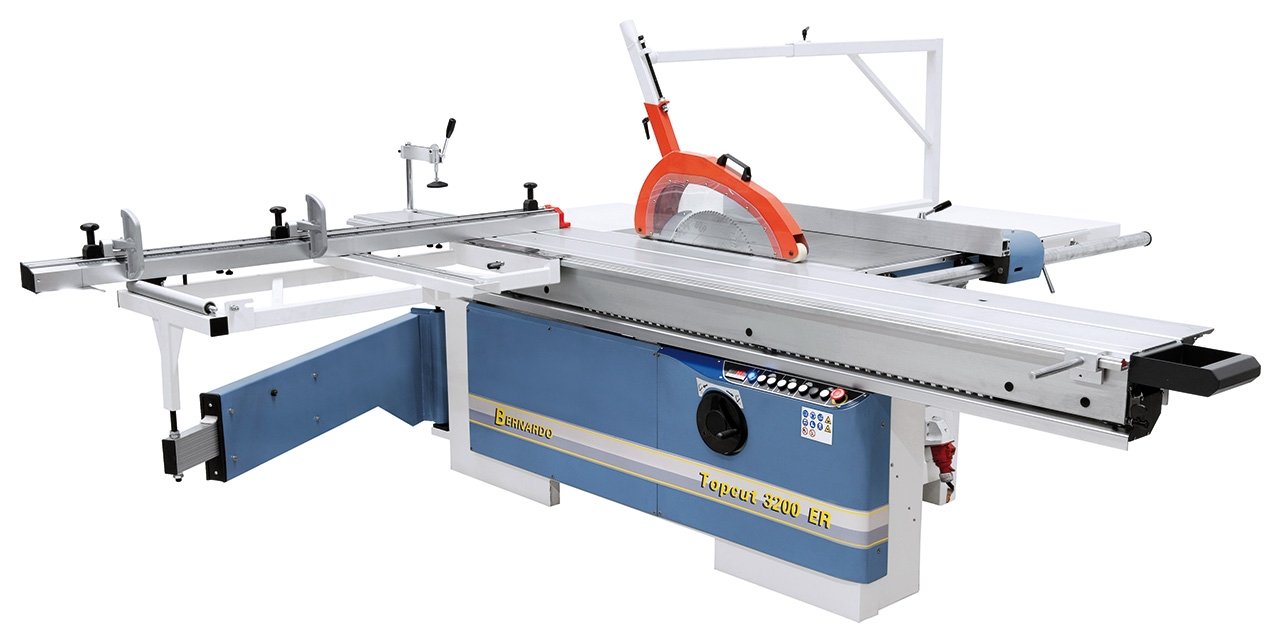

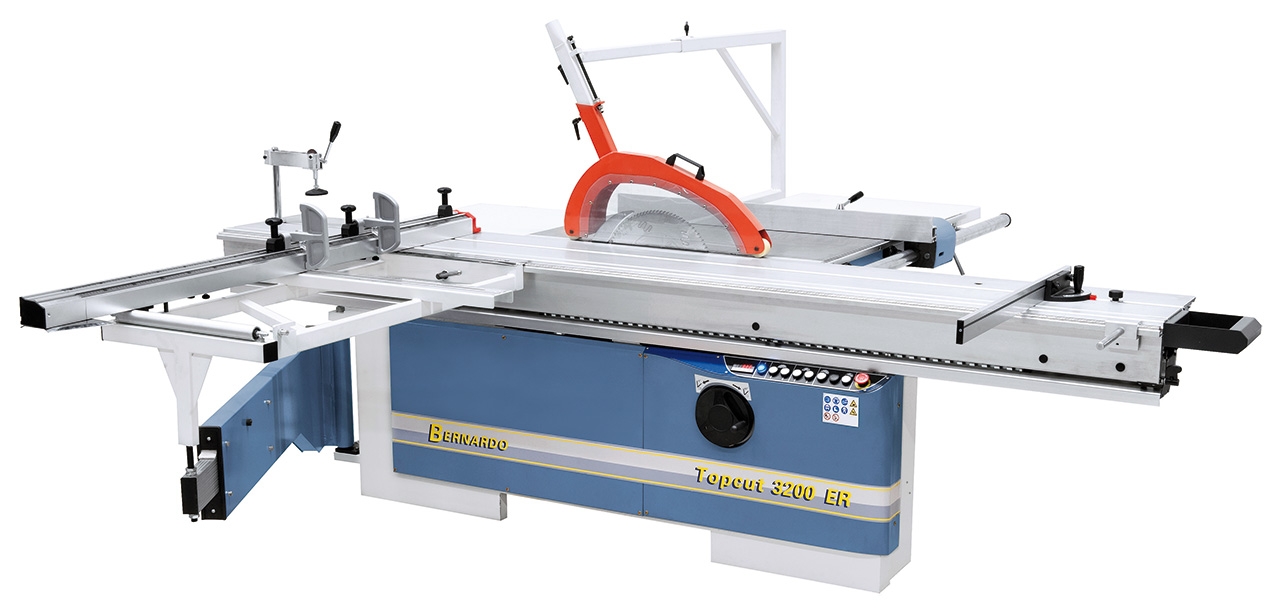

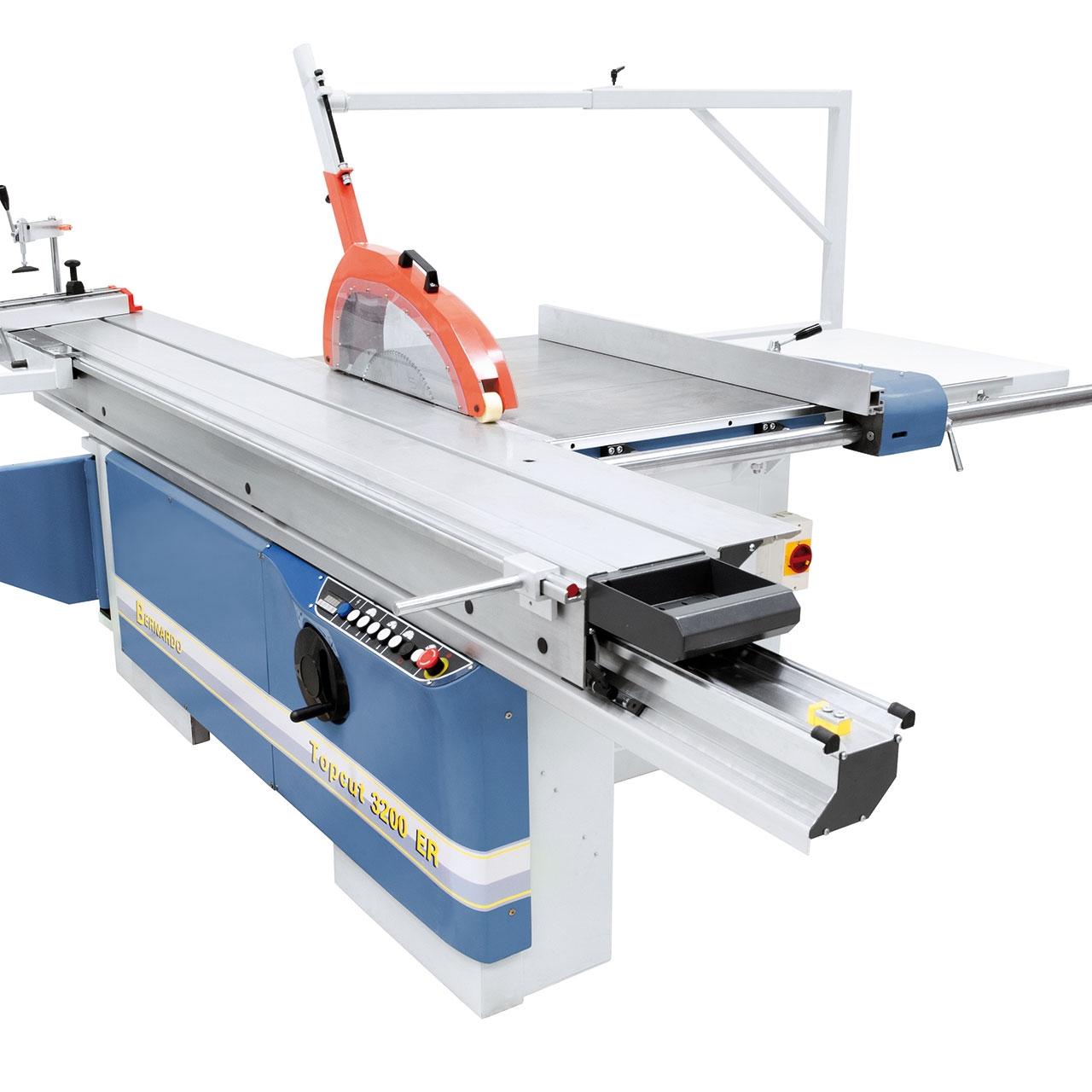

Sliding table saws Bernardo Topcut 3200 ER

The Topcut 3200 ER is a precise sliding table saw for professional users. The torsion-free machine body made of a steel and grey-cast iron combination and the solid saw unit with a powerful drive motor guarantee a smooth run and a constant cutting speed. Additional this machine is equipped with an electric sawblade height adjustment and a digital cutting height indication.

Scope of delivery Sliding table saws Bernardo Topcut 3200 ER

• Electric sawblade height adjustment
• Digital cutting angle indication
• Sawblade cover with infeed roller
• End stop
• Eccentric holder
• Table extension
• Extractable telescopic fence
• Longitudinal stop
• Square table with roll
• Push stick

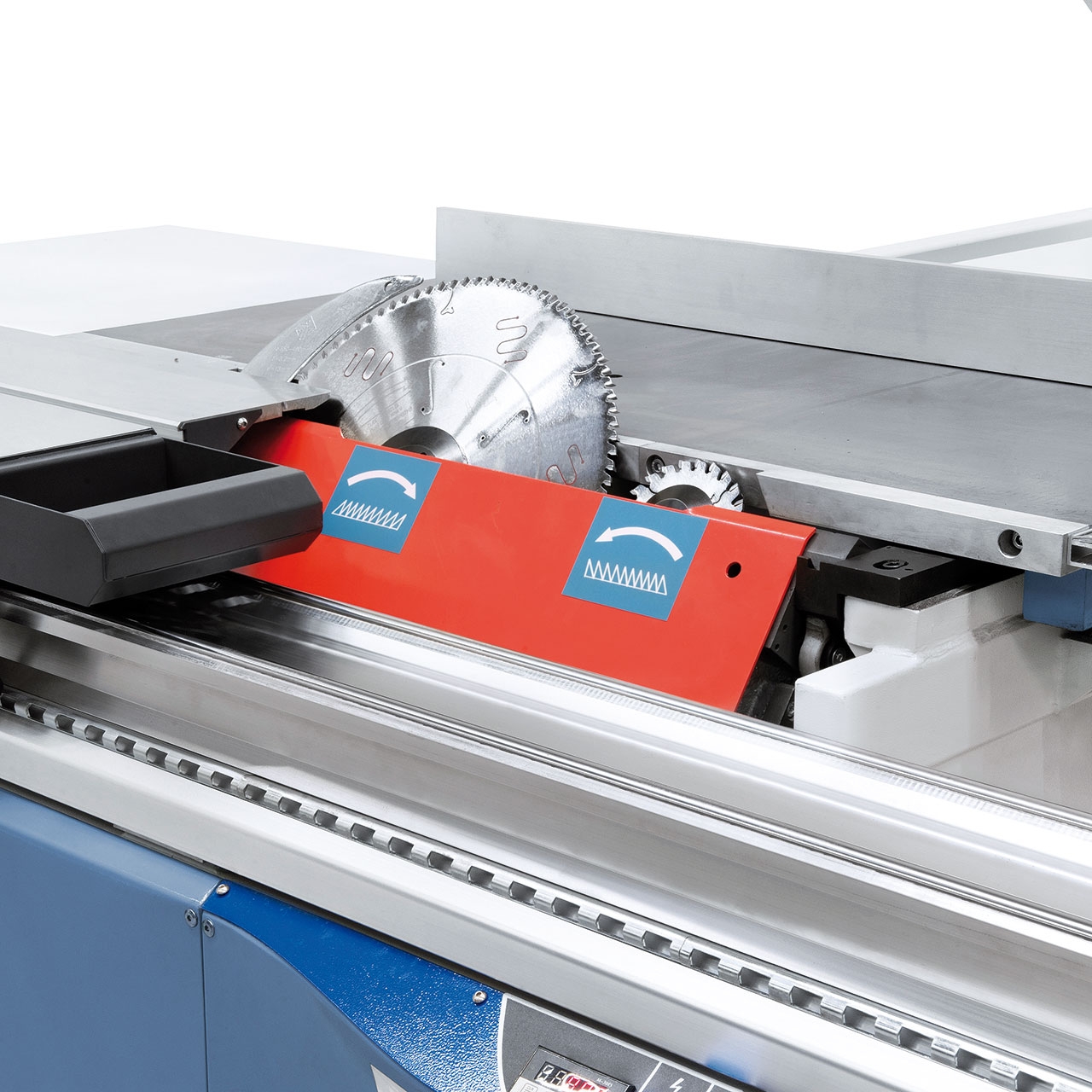

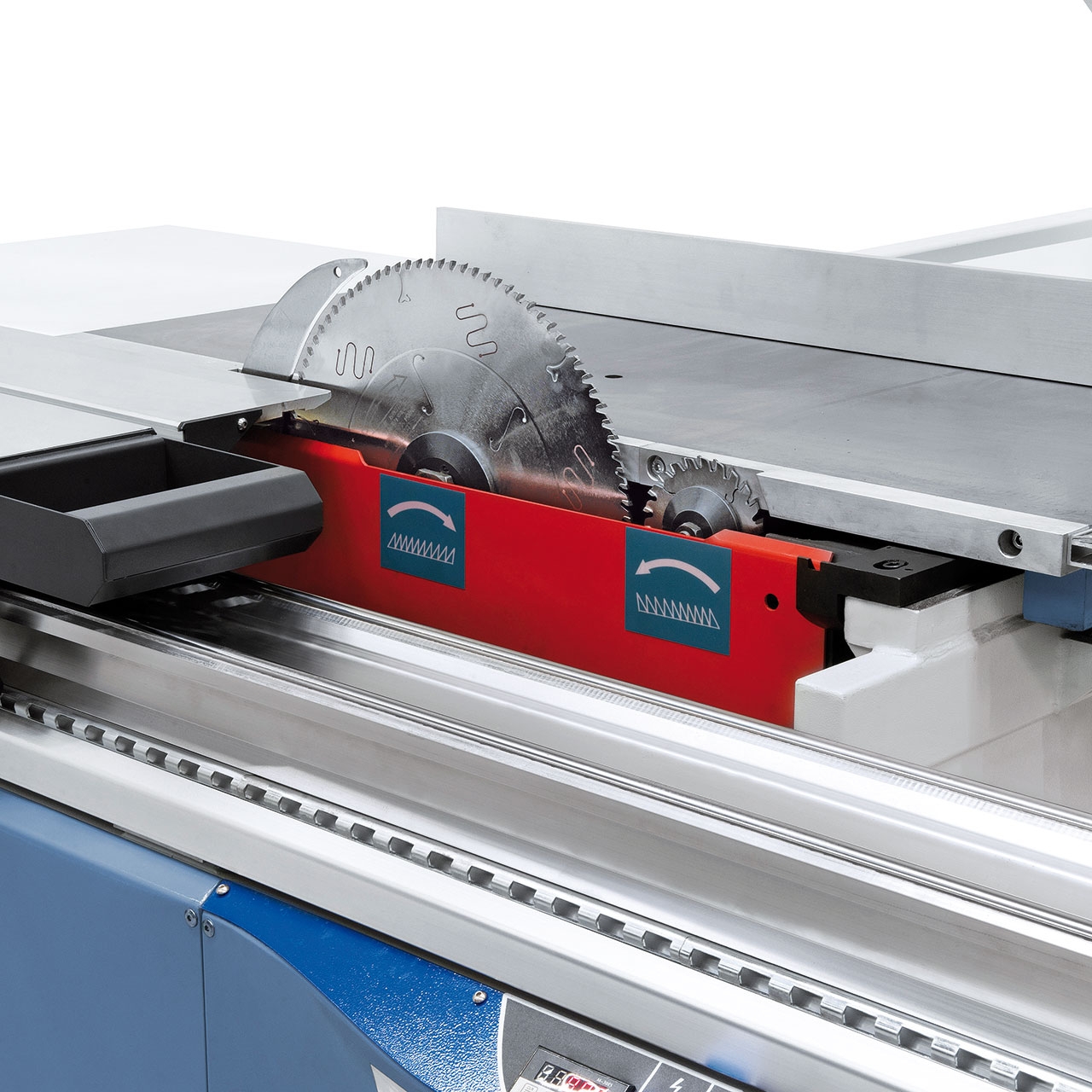

• Scoring unit with independent motor
• Tools

Features Sliding table saws Bernardo Topcut 3200 ER

• Powerful drive motor (5.5 kW) features a high torque, designed for optimal cutting capacity
• Smooth running sliding table on double rollers locks at middle or end position for precise cuts
• Maximum sawblade diameter 400 mm for cutting height up to 125 mm

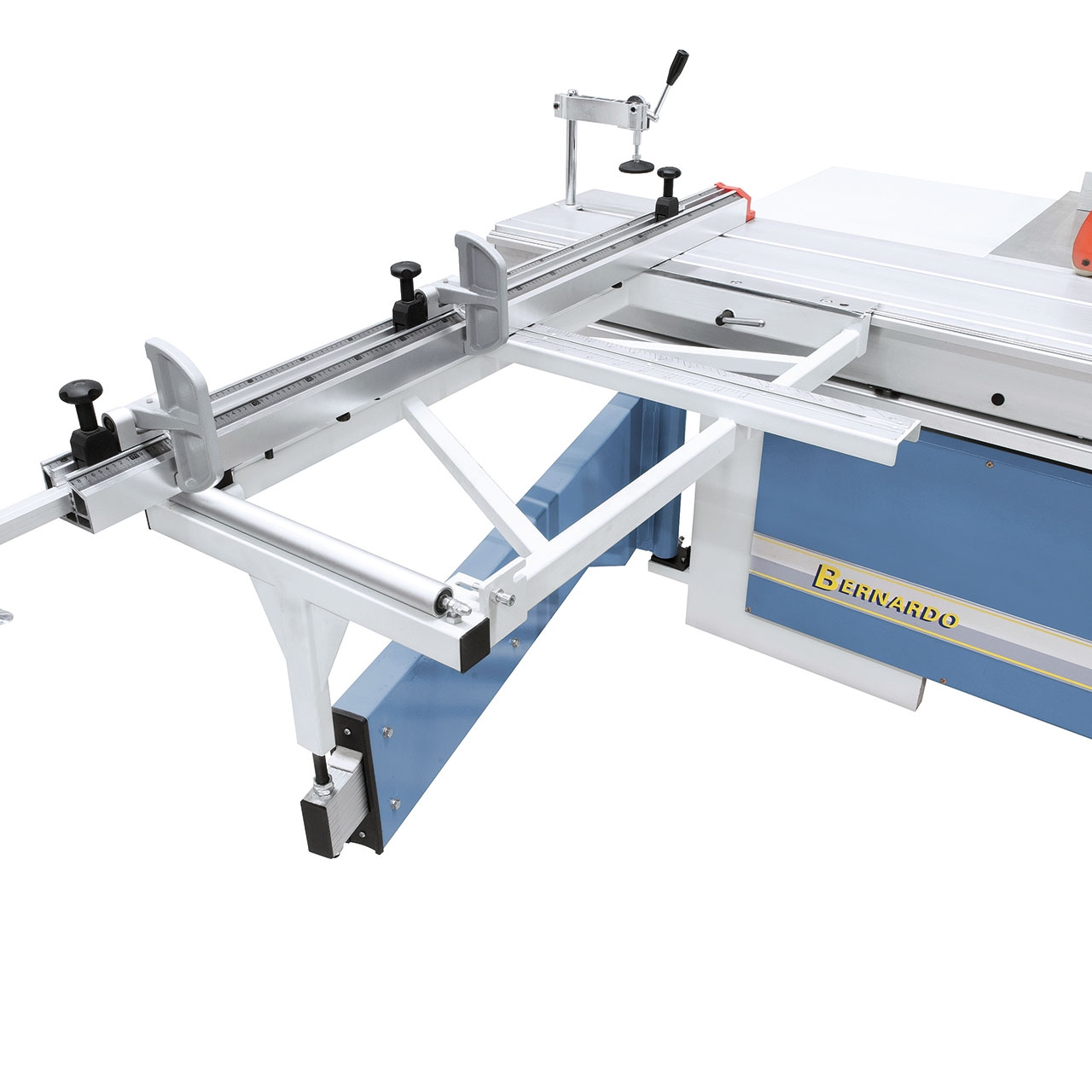

• Square table with roll for more convenience with large workpieces

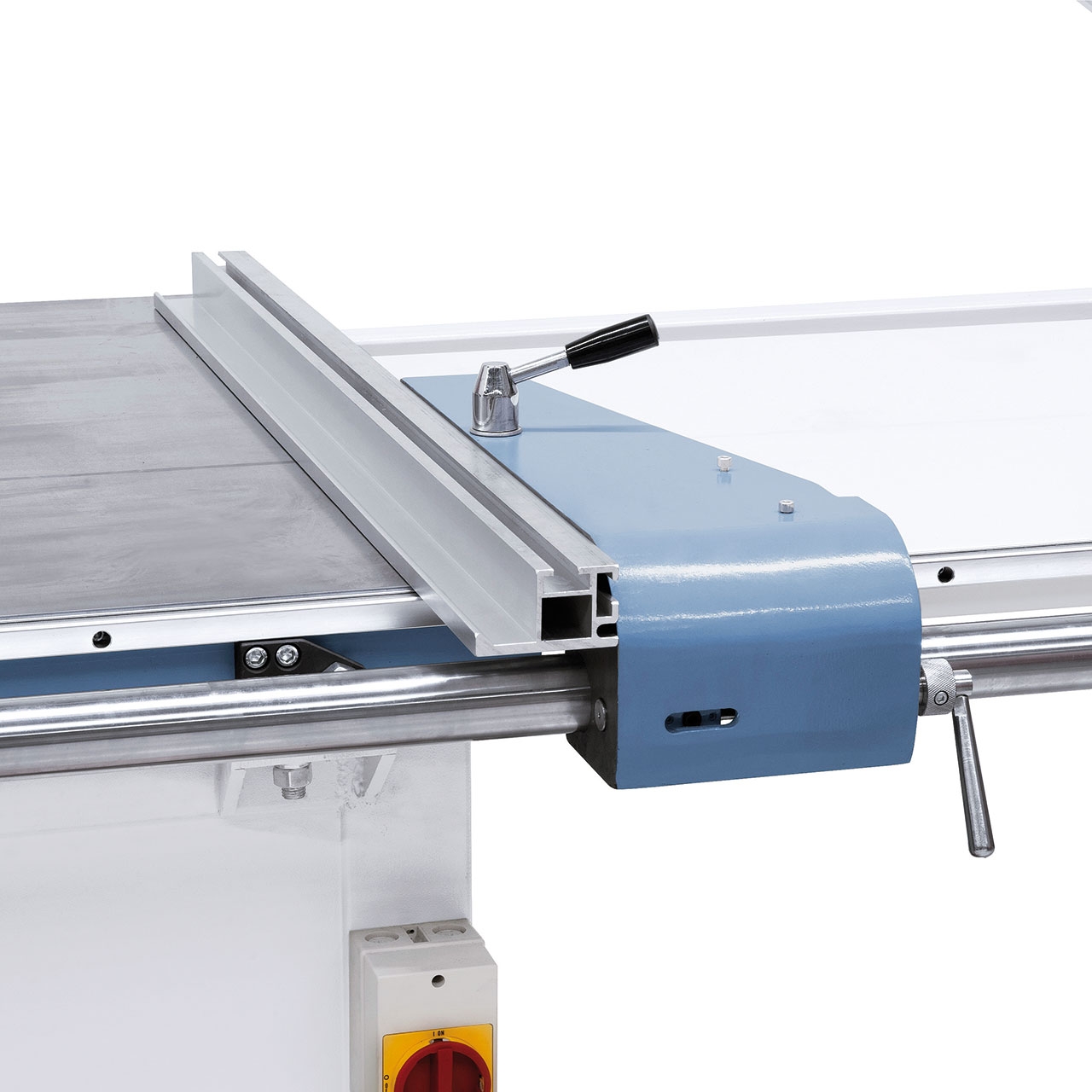

• Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels)
• Equipped with separately driven scoring unit (motor power 0.75 kW)
• Solid saw unit with grey cast iron tilting elements supported on both sides
• Table extension for cutting width up to 1300 mm
• All aluminium parts (square table, fences etc.) are anodized

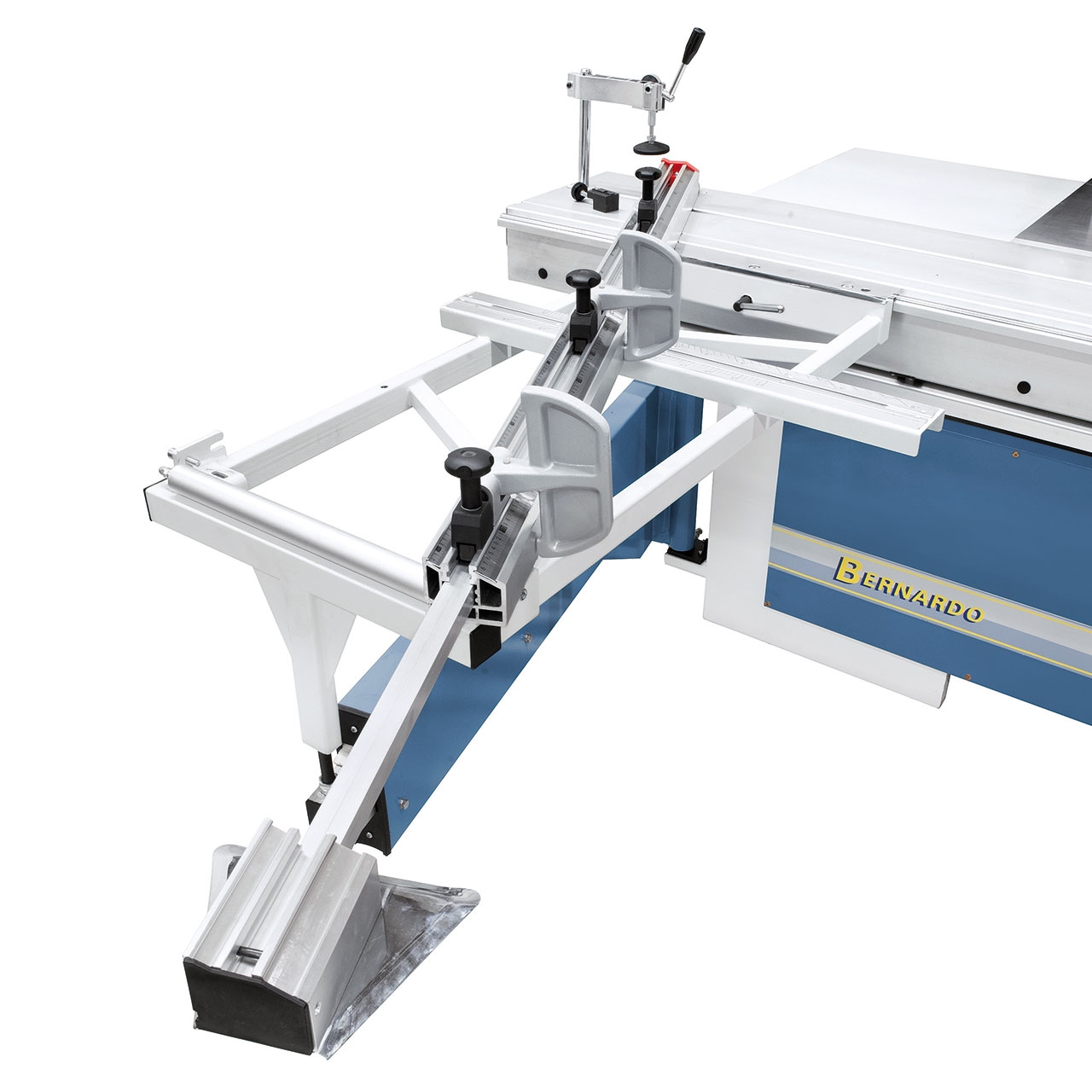

• Extractable telescopic fence (up to 3200 mm) can be mounted at front or back of square table, stepless tiltable between 90º and 45º.

Technical details Sliding table saws Bernardo Topcut 3200 ER
