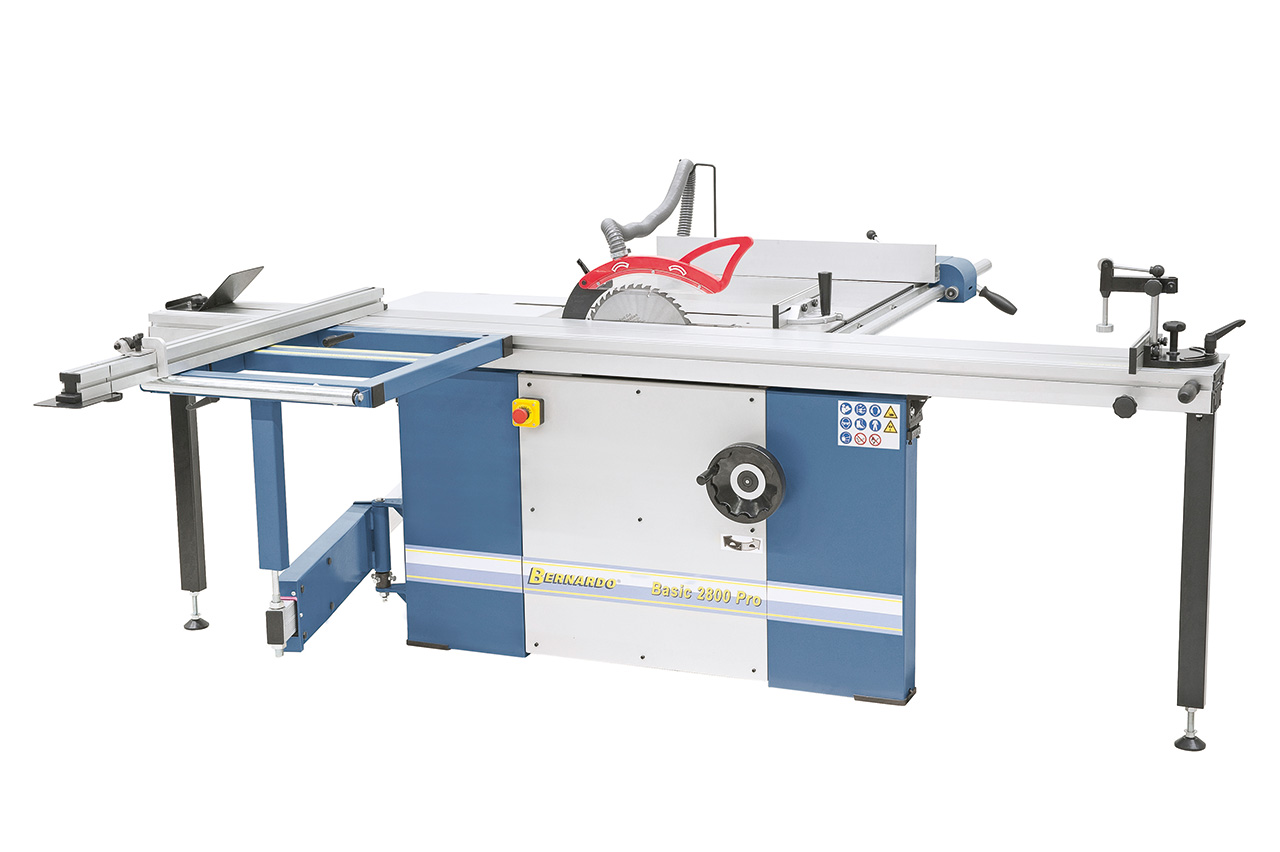

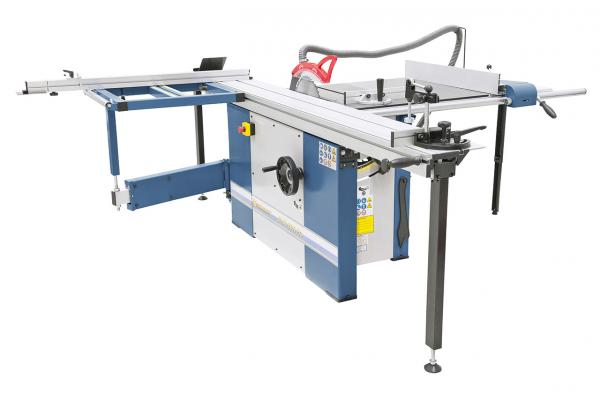

Sliding table saws Bernardo Basic 2800 Pro
The sliding table saw Basics 2800 Pro feature a tiltable sawblade and come complete with a scoring unit to meet the high demands of professional users. Sophisticated technical aspects such as the high user comfort, powerful drive and the smoothly running sliding table make this model stand out.
Scope of delivery Sliding table saws Bernardo Basic 2800 Pro
Sliding table saws Bernardo Basic 2800 ProFeatures Sliding table saws Bernardo Basic 2800 Pro
- Solid square table helps support large and heavy panels
- Extractable telescopic fence (up to 2260 mm), mountable at front or rear of square table
- Powerful drive motor guarantees optimal cutting capacity even at continuous operation

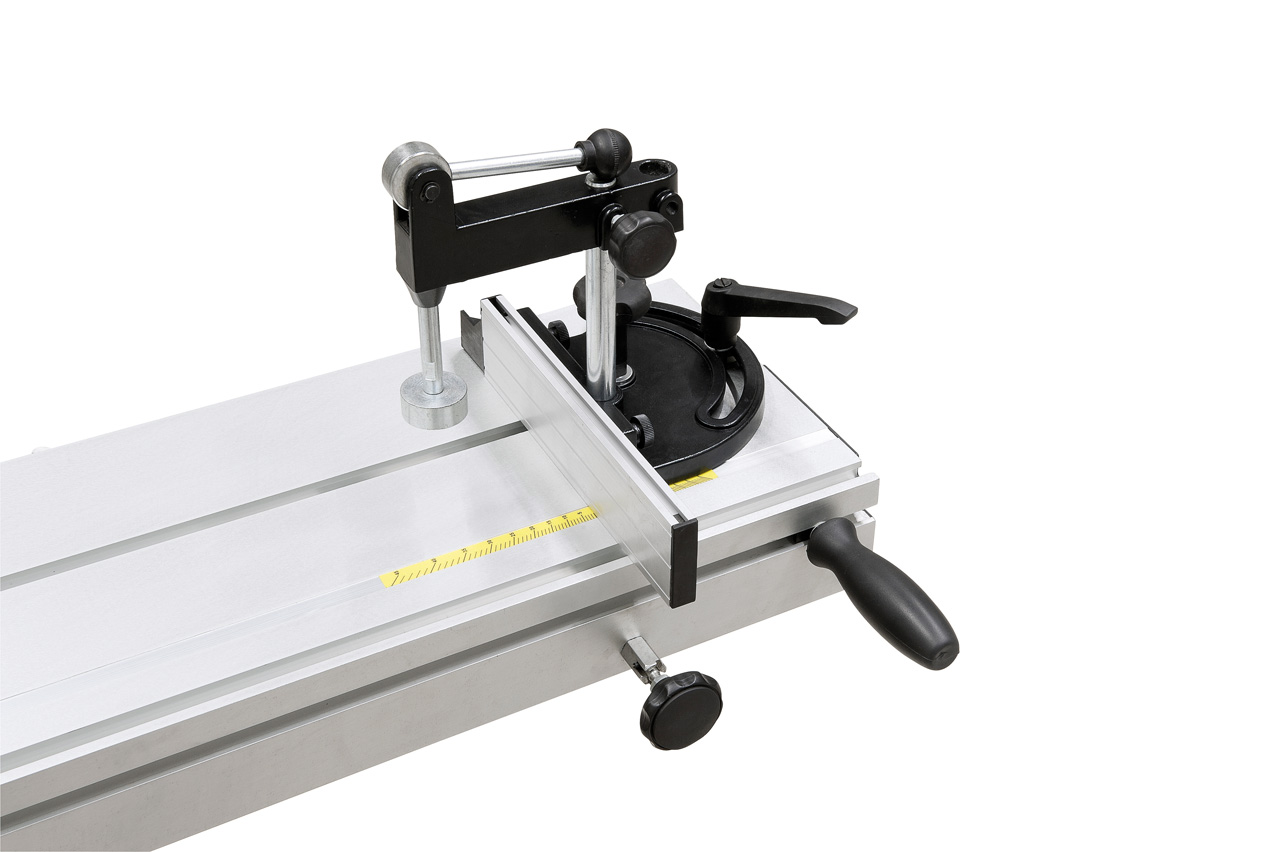

- Mitre fence and downholder can be moved along the entire sliding table length

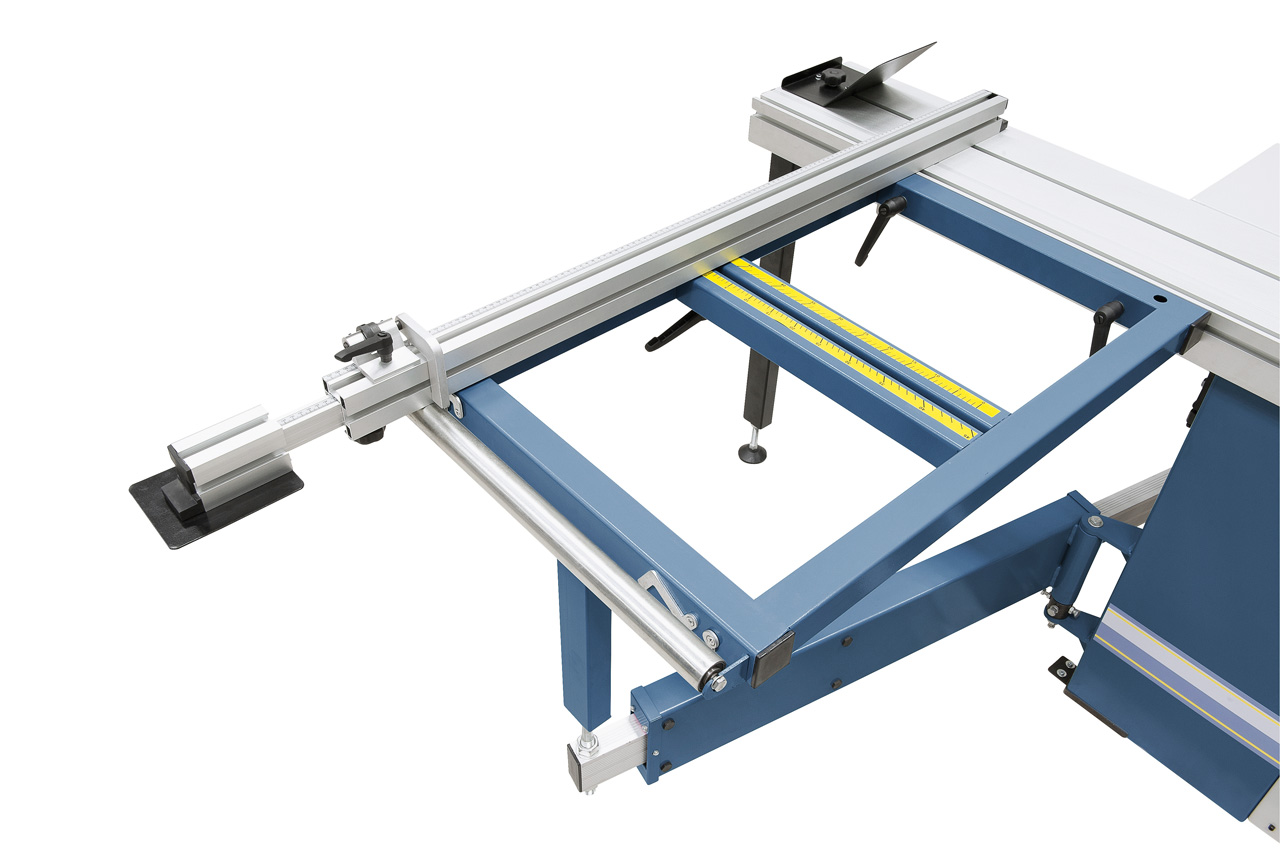

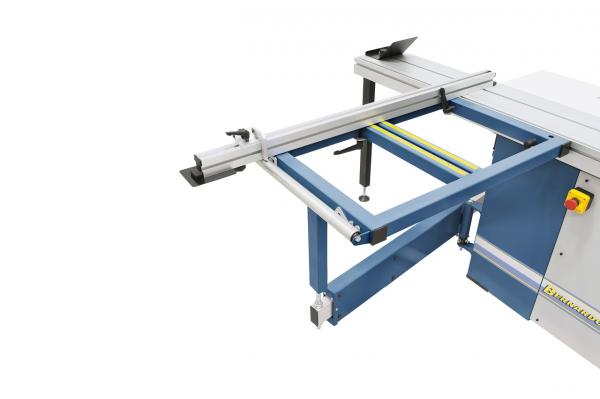

- Complete with table extensions and enlargement for better support of large panels
- Solid saw unit guarantees accurate work free from vibrations
- Aluminium sliding table features hardened guide rails
- Machine body consists of torsion-free combination of steel and grey cast-iron
- Large grey cast-iron table, designed with top precision and polished finish

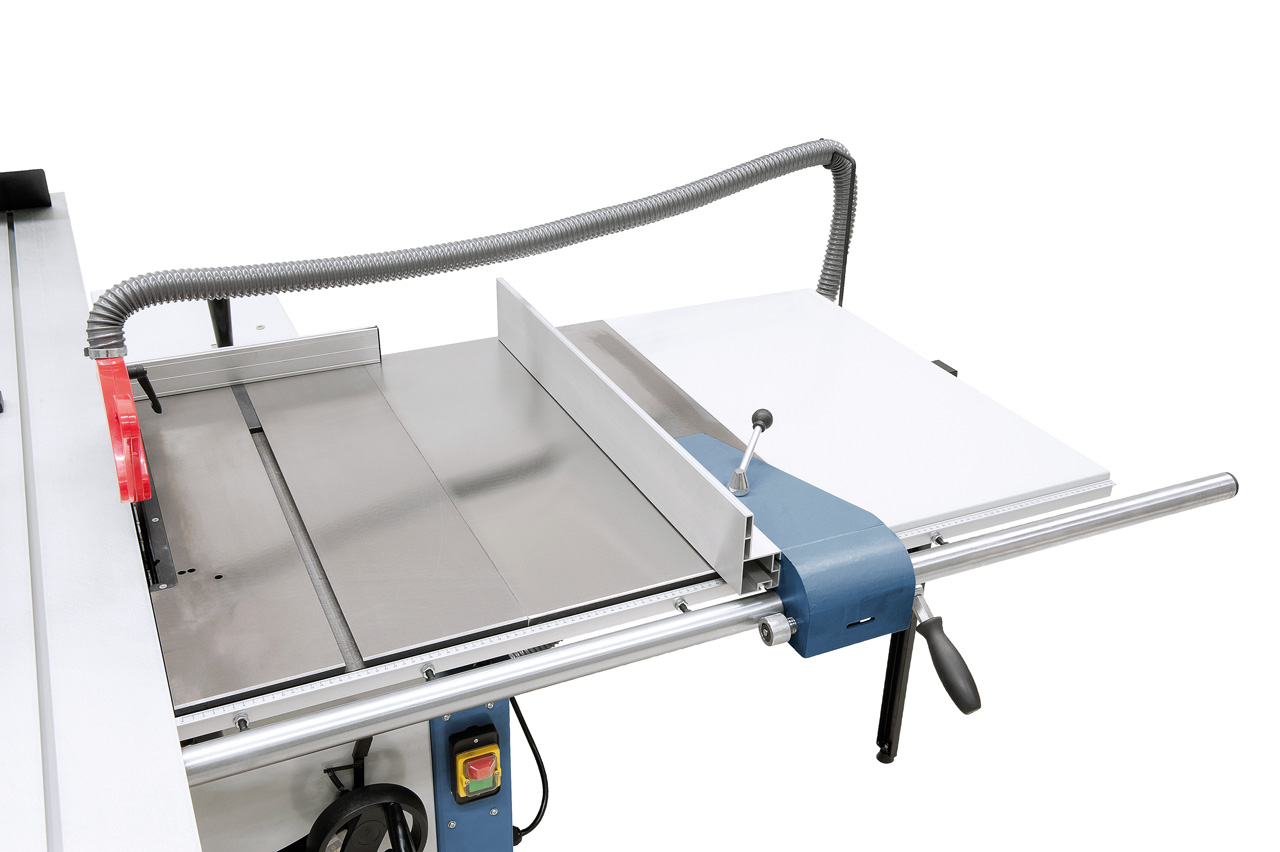

- Parallel fence can be folded down and includes micrometric fine adjustment (advantage for large panels)
- Handwheel and scale allows for sawblade tilt of up to 45º
Technical details Sliding table saws Bernardo Basic 2800 Pro
Table size | 800 x 385 mm |
Sliding table | 2800 x 270 mm |
Cutting length | 2800 mm |
Max. sawblade diameter | 315 x 30 mm |
Max. cutting height 90° / 45° | 100 / 80 mm |
Cutting width on rip fence | 1200 mm |
Table height | 860 mm |
Table extension | 500 x 310 mm |
Table enlargement | 800 x 880 mm |
Square table with roll | 755 x 580 mm |
Speed main sawblade | 4000 rpm |
Speed scoring sawblade | 5800 rpm |
Scoring sawblade | 90 x 20 mm |
Dust extraction outlet | 100 mm |
Motor power output S1 100% | 3,8 kW (5,1 HP) |
Motor power input S6 40% | 5,3 kW (7,2 HP) |
Voltage | 400 V |
Machine dimension (W x D x H) | 2800 x 2820 x 1140 mm |
Weight approx. | 306 kg |
