Scope of delivery

Keyed chuck 3 - 16 mm / B 18
Drill chuck mandrel MK 5 / B 18
Reducing sleeve MK 5 / 4, MK 4 / 3, MK 3 / 2
Motorised table lift
Coolant device
Touchscreen
Automatic tool ejector
Servo feed motor
Thread cutting device
Initial filling with Shell Tellus 46
LED machine light
Digital speed display
Digital drilling depth display
Height-adjustable protective cover

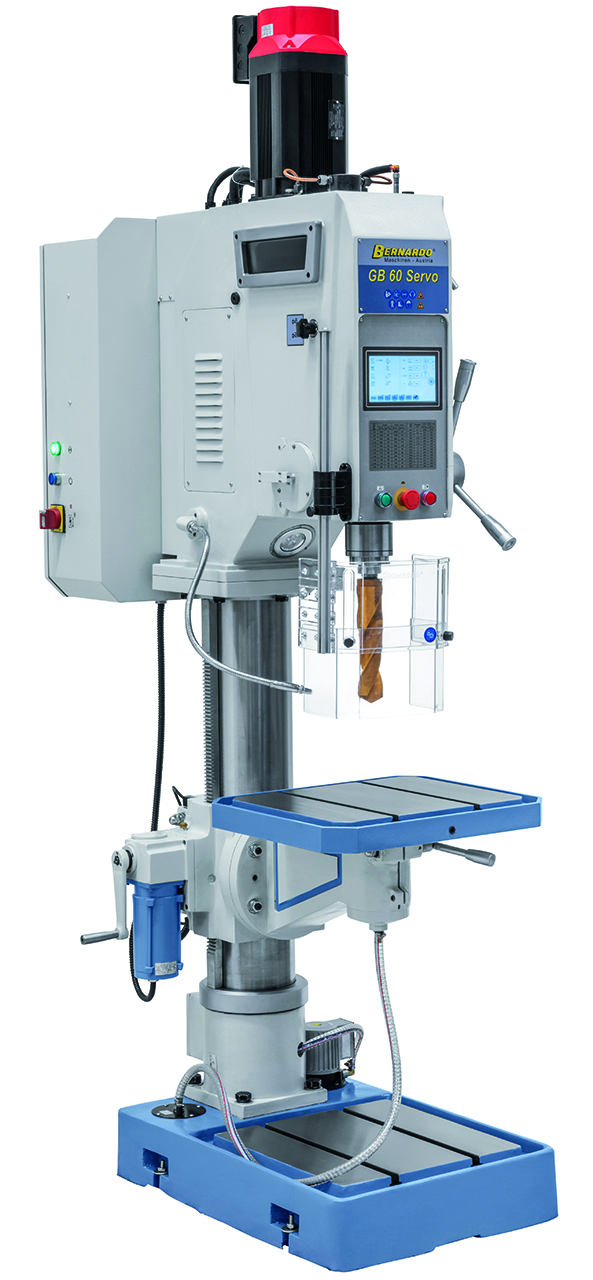

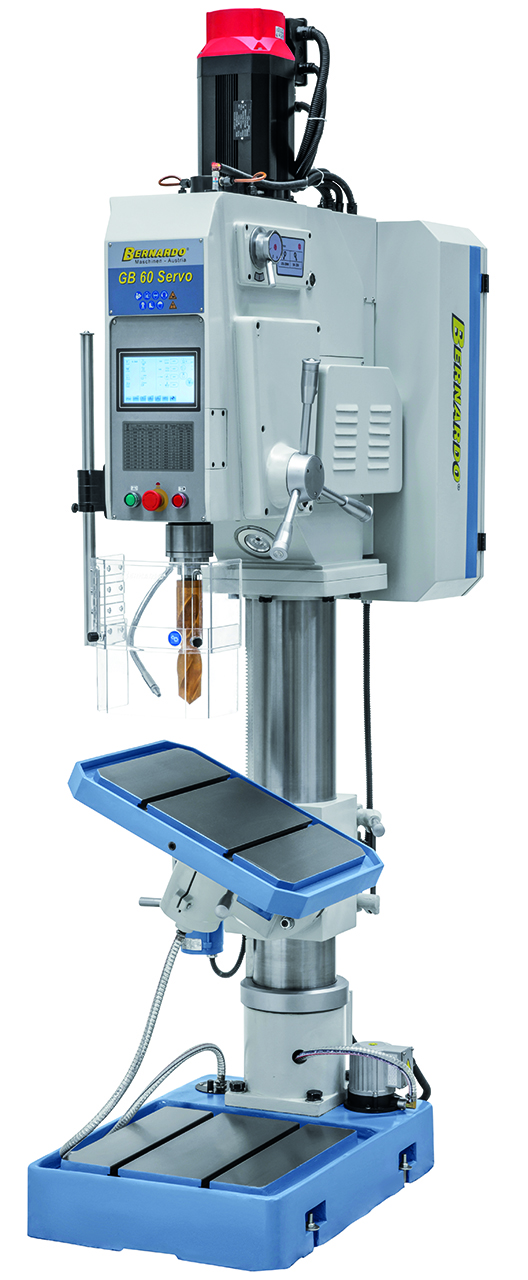

Features Servo gear column drilling machine Bernardo GB 60

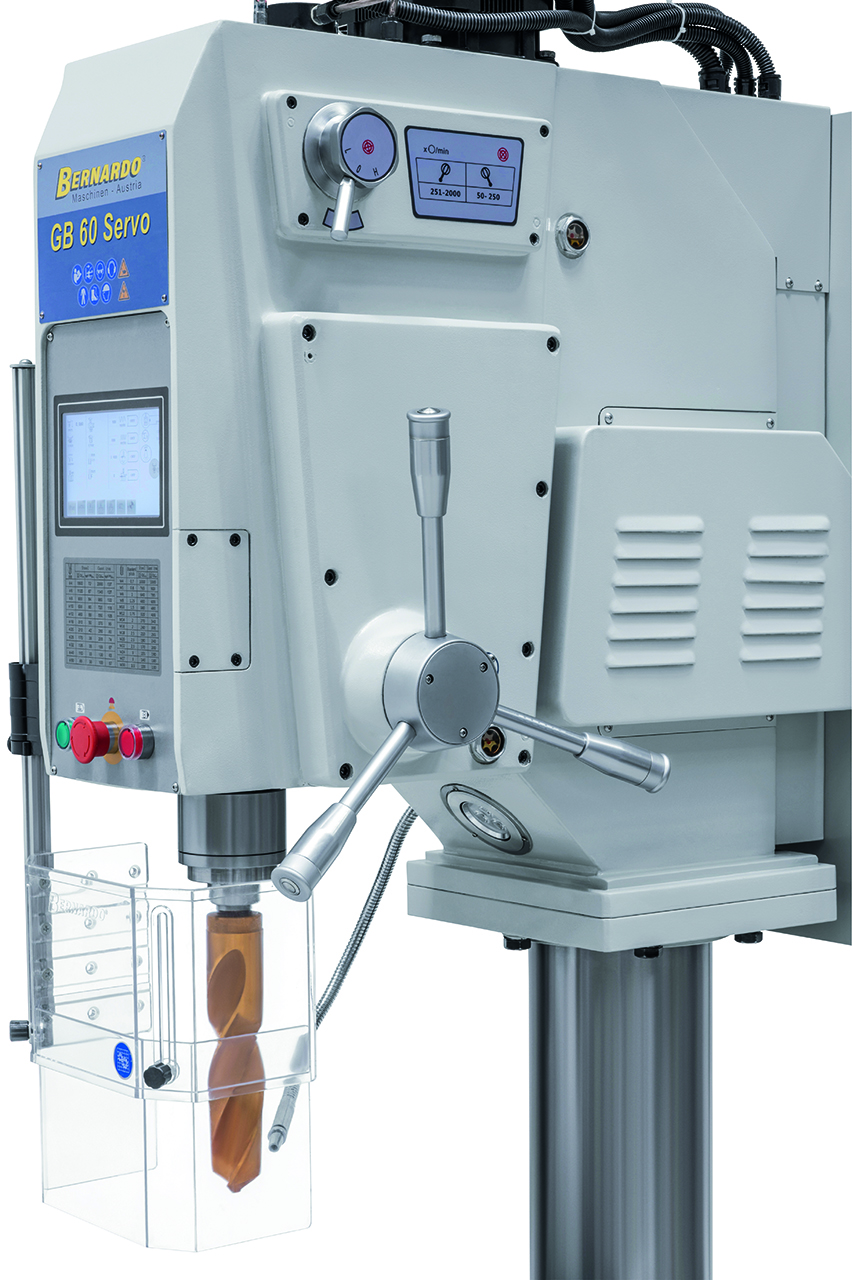

The GB 60 Servo gear column drilling machine is equipped with stepless speed control as standard, allowing the cutting speed to be optimally adjusted to the workpiece. The special features of this model are its operation via a large touchscreen and servo motors for the drive and quill feed.

After entering the tool diameter and material (cast iron/steel), the standard control system calculates the ideal speed or feed rate for drilling and thread cutting.

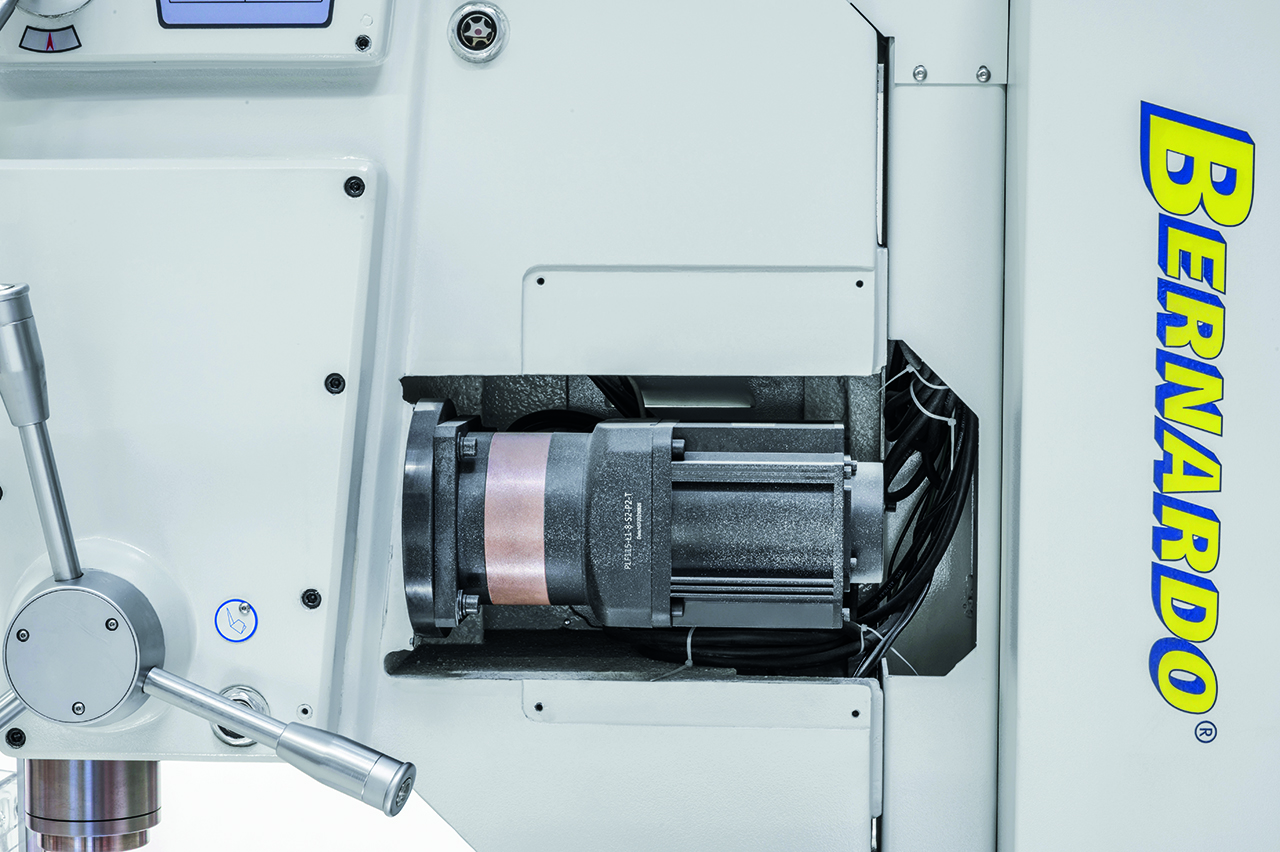

The spindle drive and quill feed are powered by high-quality servo motors.

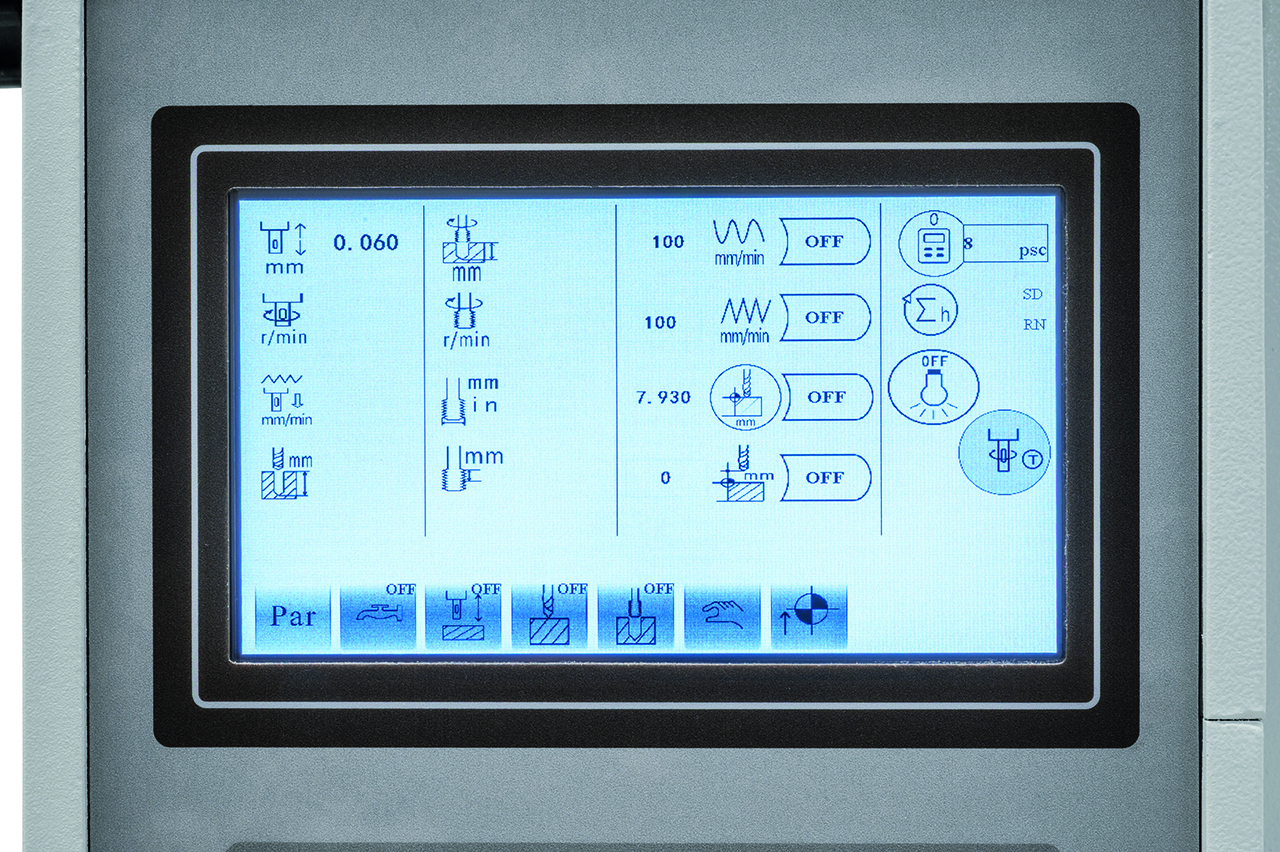

Large touchscreen for all setting work and functions (e.g. drilling, deep hole drilling, thread cutting, etc.). .....)
Equipped with motorised table height adjustment as standard
Solid grey cast iron table with rotatable and swivelling support surface
Increased cost-effectiveness thanks to extensive basic equipment
Precisely machined base plate with T-slots and integrated coolant pump

Technical details Servo gear column drilling machine Bernardo GB 60

Drilling capacity in steel	50 mm
Drilling capacity in cast iron	60 mm
Thread cutting max.	M30
Drill chuck	3 - 16 mm / B 18
Morse taper	MK 5
Spindle speed, 2 steps	50 - 250 / 250 - 2000 rpm
Feed range	0 - 765 mm/min
Throat depth	360 mm
Max. distance spindle / table	570 mm
Distance spindle / base plate	1170 mm
Quill stroke	245 mm
Column diameter	180 mm
Table size / T-slot size	545 x 470 / 14 mm
Motor power	3.7 kW
Machine dimensions (W x D x H)	700 x 1050 x 2430 mm
Weight approx.	755 kg
