Safety guards for mills Bernardo PFR 10/430
Safety guards for mills Bernardo PFR 10/430
Safety guards for mills Bernardo PFR 10/430

Safety guards for mills Bernardo PFR 10/430

Product No.:
56-1148
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

742,74 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Features Safety guards for mills Bernardo PFR 10/430

  • Item composed of two mirrored elements, to be installed on the sides of the horizontal slide. Equipped with easy adjustments for a frequent change of operation
  • Protecting the operator against direct contact with the horizontal shaft-spindle and its parts placed in rotation and accessible from the two sides of the machine (the frontal “segregation” of the dangerous parts is excluded), in addition to the protection against shavings splashes of lubricants and coolants
  • Horizontally attachable at the two sides of the slide. Equipped with axially and radially adjustable shields, shapeable if needed for possible interference with the equipment in use
  • Equipped with a double safety microswitch

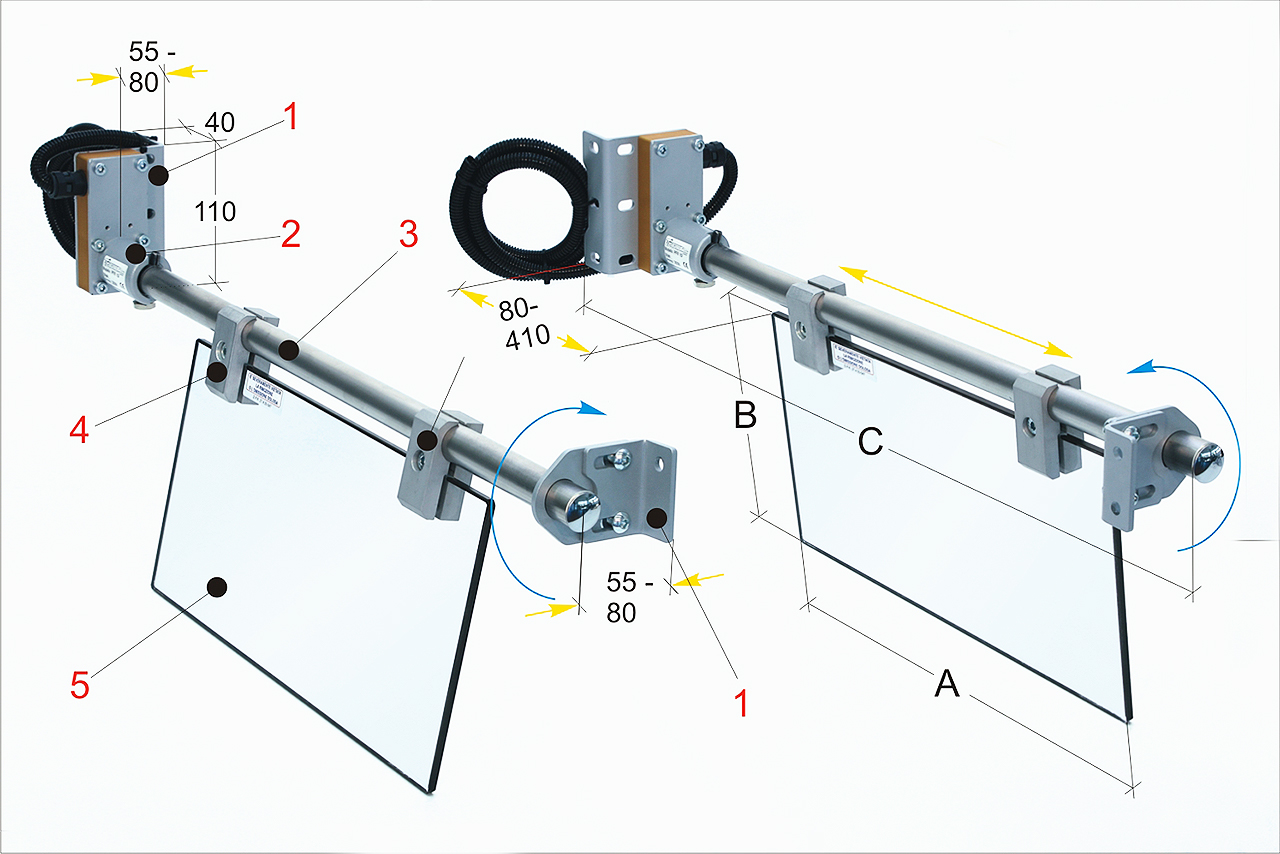

Technical details Safety guards for mills Bernardo PFR 10/430

A

B

C

Weight

400

300

830

8,8 kg

1  Adjustable angular stirrups, for microswitch box anchorage and support of the horizontal arm made of pressed steel
2  Safety microswitch main box with rotating 180°, n. 2 NC contacts
3  Horizontal shield supporting arm made of tubular stainless steel
4  Fixing clamps for the axial and radial adjustment of the shield made of aluminium
5  Shield made of shockproof and oil-resistant plastic material
