Safety devices for milling machine Bernardo PFR 20/320
Safety devices for milling machine Bernardo PFR 20/320
Safety devices for milling machine Bernardo PFR 20/320

Safety devices for milling machine Bernardo PFR 20/320

Product No.:
57-1154
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

650,04 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Safety devices for milling machine Bernardo PFR 20/320

  • This safety guard is equipped with a vertically opening protective screen, with the microswitch built into the hinge
  • Protects the operator from direct contact with the vertical spindle and flying chips or coolant splashes
  • The safety guard is equipped with an innovative system for spring-operated opening in the 60°-120°-180° positions. The mounting rods made of hexagonal material allow a wide range of customised adjustment options
  • The safety microswitch is built into the special hinge that supports the protective screen

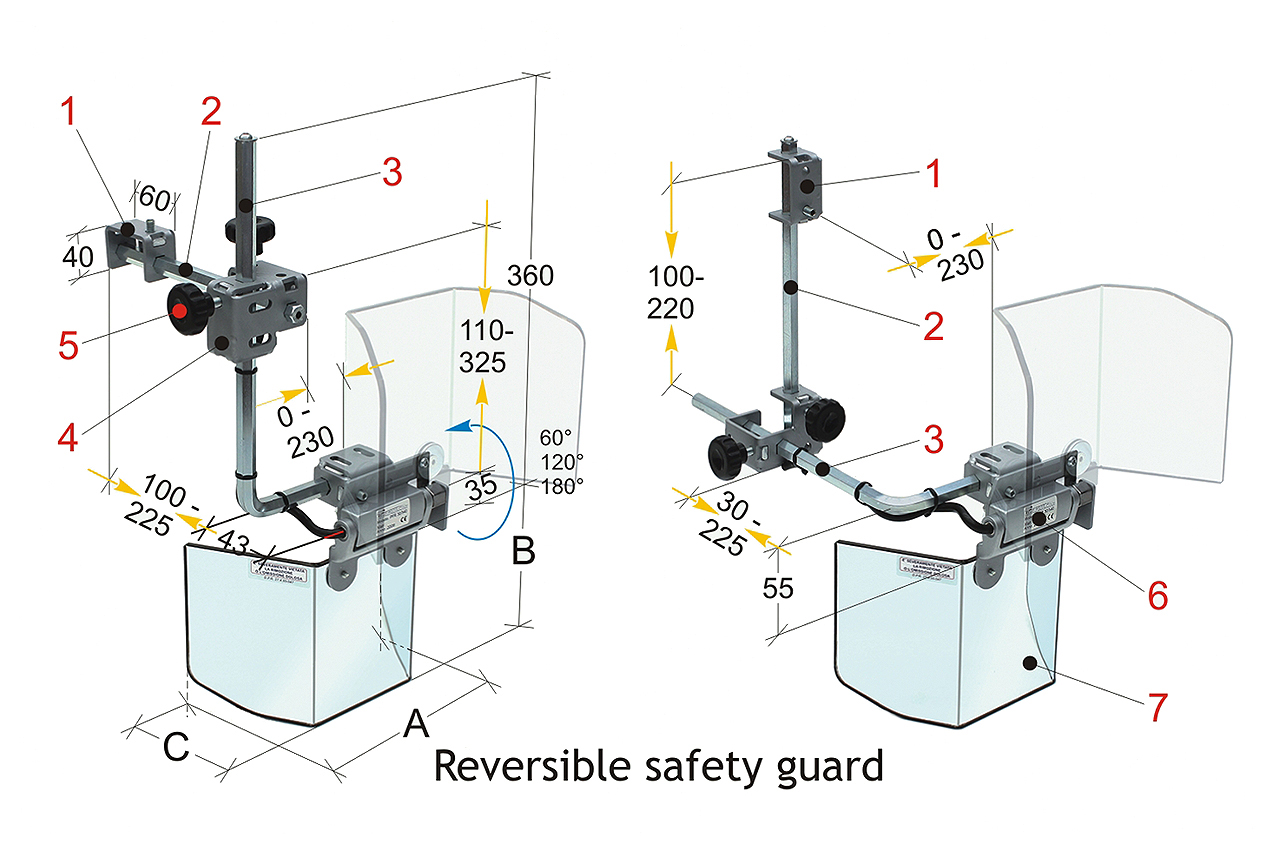

Technical details Safety guards for milling machine Bernardo PFR 20/320

A

B

C

Weight

300

200

125

3,2 kg


1  Bracket / mounting plate made of sheet steel
2  Straight support arm made of hexagonal steel
3  Long support arm made of hexagonal steel
4  Cross clamp for position adjustment
5  Clamping screw for the protective screen
6  Safety microswitch housing, 180° rotatable, 2 NC contacts
7  Protective screen made of impact-resistant and oil-resistant plastic material
