Safety devices for milling machine Bernardo PFR 10/530
Safety devices for milling machine Bernardo PFR 10/530
Safety devices for milling machine Bernardo PFR 10/530

Safety devices for milling machine Bernardo PFR 10/530

Product No.:
56-1150
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

757,44 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Safety devices for milling machine Bernardo PFR 10/530

  • This safety guard consists of two opposing elements that are installed on both sides of the horizontal slide
  • Equipped with easy adjustment options for frequently changing work, this model protects the operator from direct contact with the horizontal spindle and also from flying chips and coolant splashes
  • Can be mounted horizontally on both sides of the carriage and equipped with axially or radially adjustable safety glasses
  • Complete with double safety microswitch

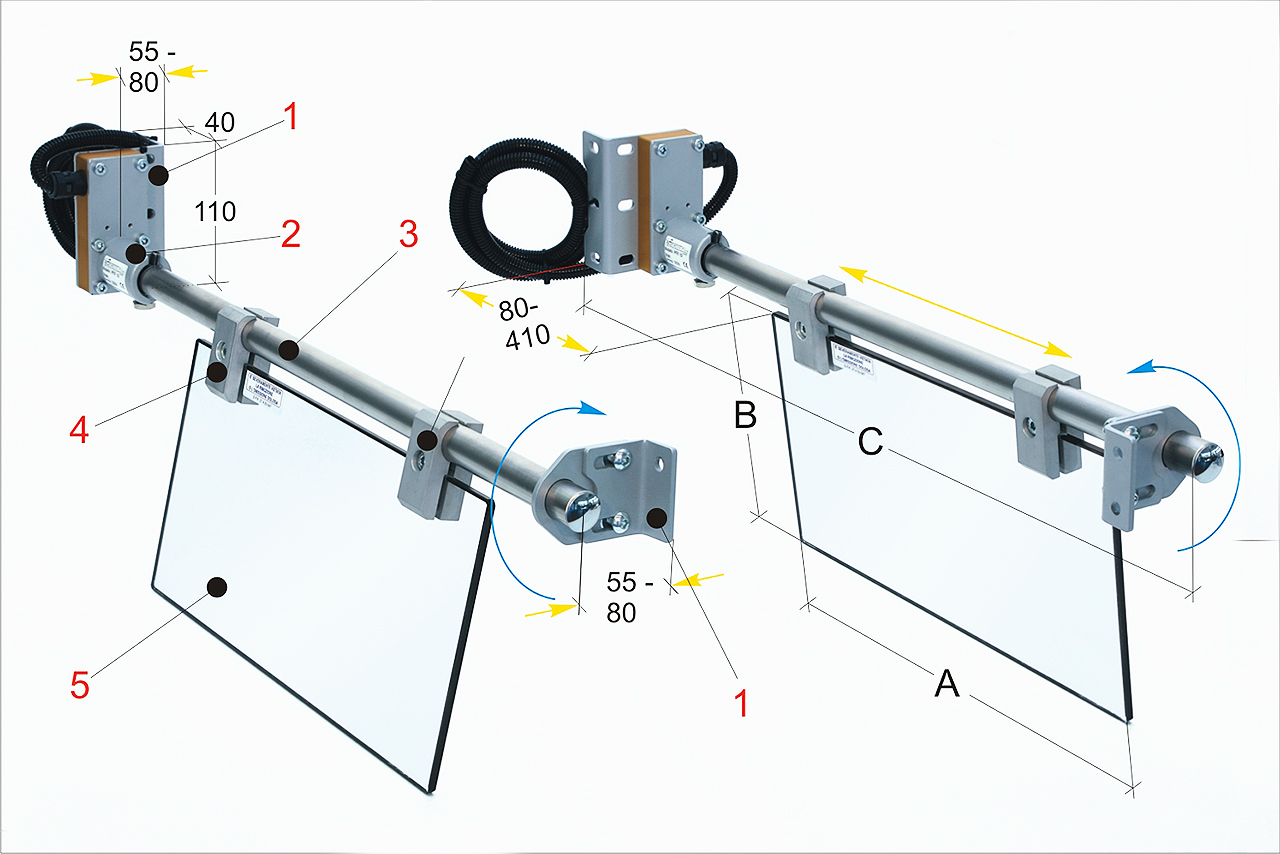

Technical details Safety guards for milling machine Bernardo PFR 10/530

A

B

C

Weight

500

300

930

9,1 kg

1  Adjustable angle brackets for attaching the microswitch housing and mounting the horizontal arm
2  Housing for the safety microswitches, 180° rotatable, 2 NC contacts
3  Horizontal protective screen holder made of stainless steel tube
4  Aluminium fixing clamps for axial and radial adjustment of the protective screen
5  Protective screen made of impact-resistant and oil-resistant plastic material
