Product No.:
27-1045
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

555,08 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Features Rotary table / Tiltable table / Cross table Bernardo Semi-universal dividing head BS-0

  • Spindle in precision taper bearing
  • Worm  made of chromium-nickel steel, hardened and grounded
  • Phosphor bronze worm gear
  • Ratio unlatchable for direct dividing (40:1)
  • Tiltable from horizontal to vertical (-10° to +90°)
  • Direct dividing with 24 rests
  • Each divide from 2 to 50 and many divides from 52 to 380 possible

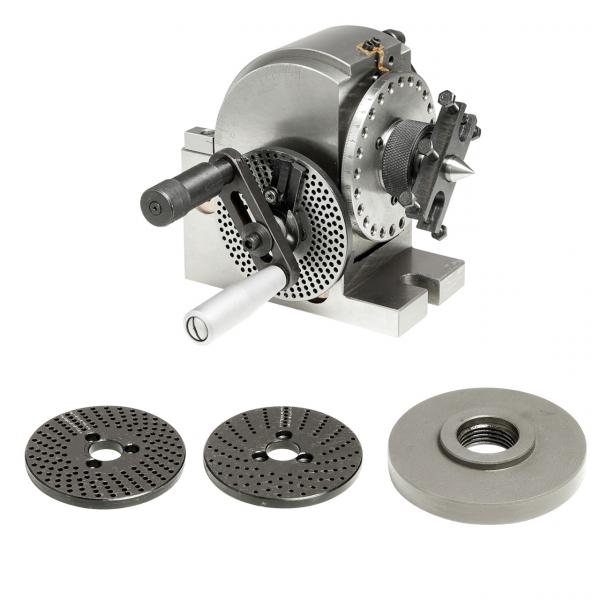

Standard accessories:

  • Tailstock
  • 2 dividing plates
  • Dead center
  • Driving dog
  • Flange

Technical details Rotary table / Tiltable table / Cross table Bernardo Semi-universal dividing head BS-0

Ratio

40:1

Height

170 mm

Width with centering tip

195 mm

Length

230 mm

Centering tip

MT 2

Flange

125 mm

Tiltable

0° bis 90°

Spindle bore

18 mm

T-slot size

16 mm

Direct dividing disc (division)

24 (15°)

Weight approx.

16,8 kg

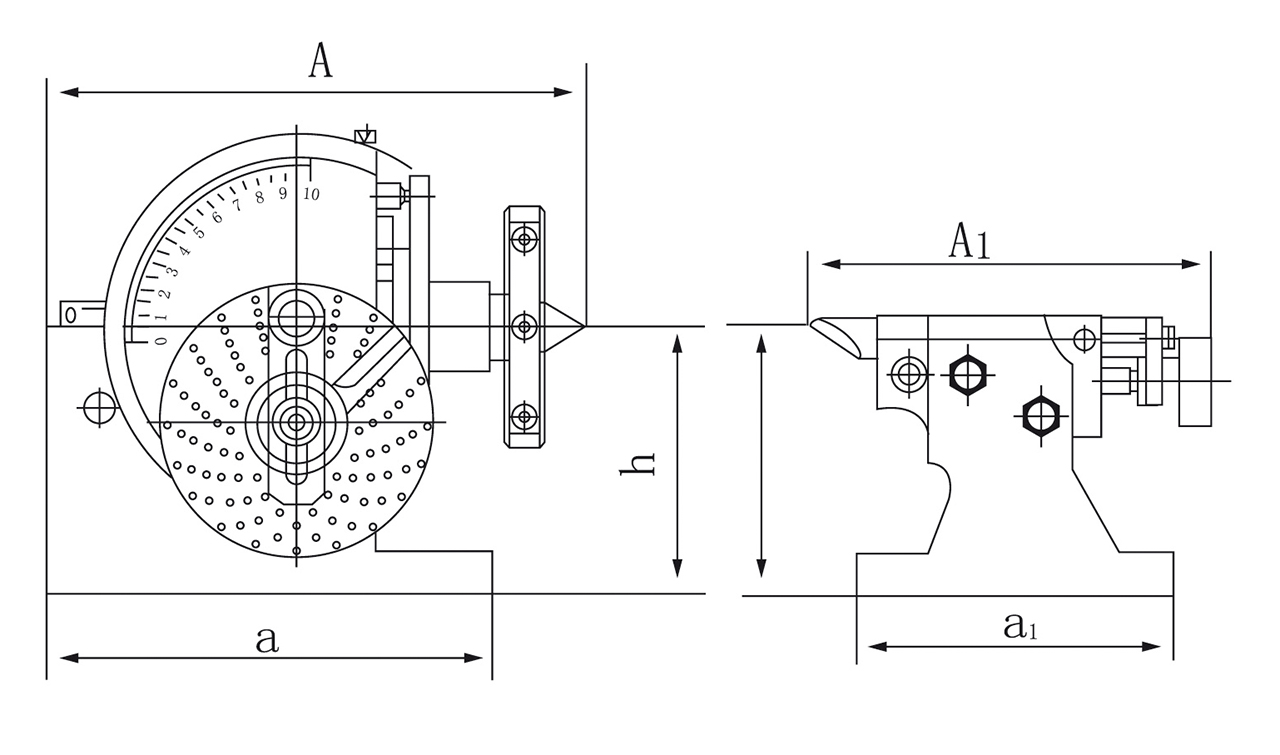

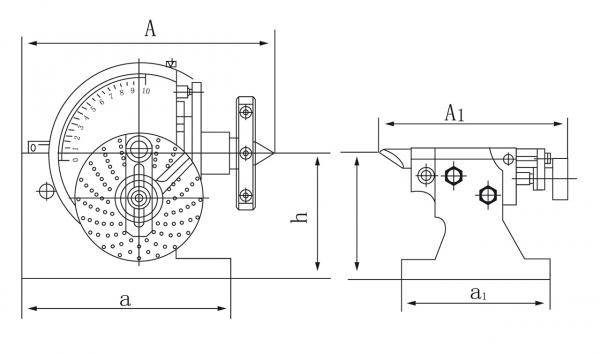

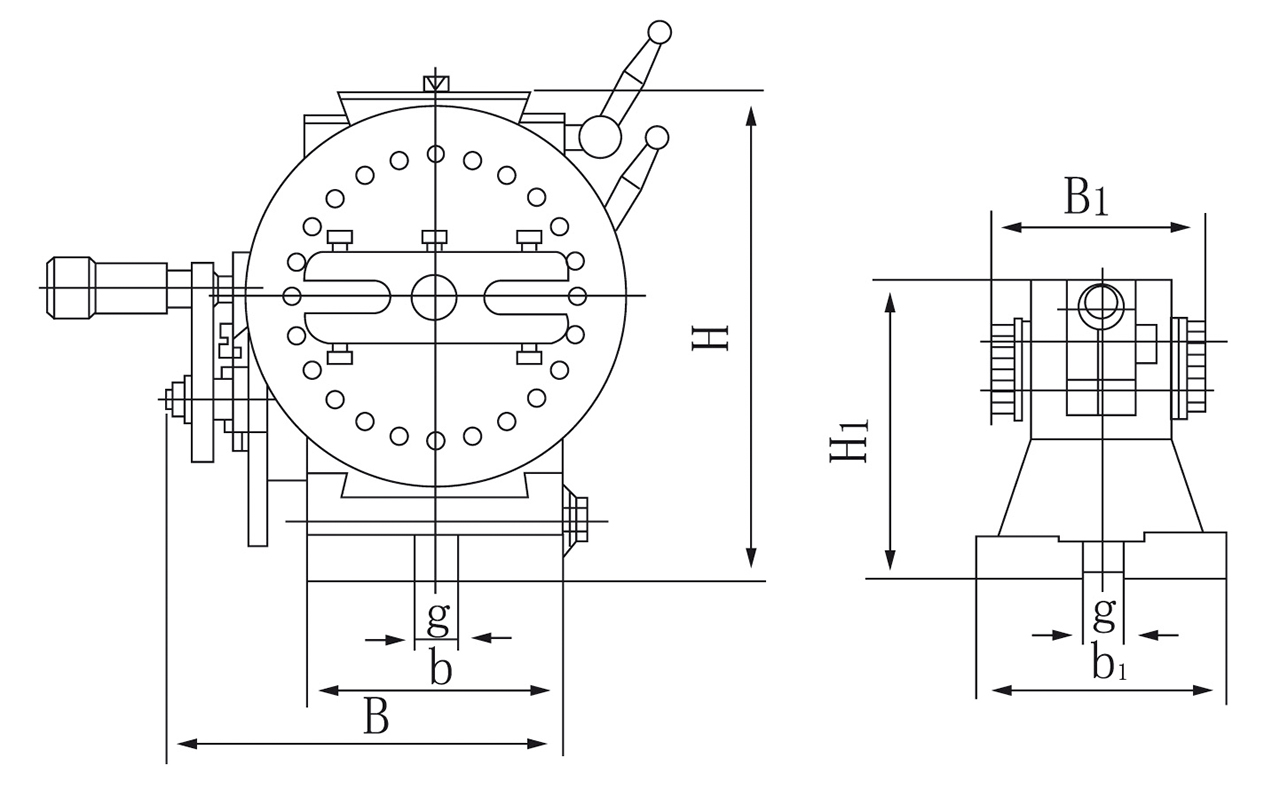

Dimension  dividing head

Dimension tailstock

A

195 mm

A1

175 mm

B

140 mm

B1

87 mm

H

170 mm

H1

107 mm

h

100 mm

h1

100 mm

a

166 mm

a1

130 mm

b

90 mm

b1

92 mm

g

16 mm

g1

16 mm
