Rotary table / Tiltable table / Cross table Bernardo Horizontal & vertical rotary table HV 10

Features Rotary table / Tiltable table / Cross table Bernardo Horizontal & vertical rotary table HV 10

• Suitable for milling and drilling works on horizontal or vertical milling machines, drilling machines, etc.
• Table is made of high-quality Meehanite casting
• Worm shaft hardened and grounded, worm gear made of special cast
• 2 clamping lever for clamping of the table
• Transmission ratio of worm gearbox 90:1
• Grade indexing via scale drum with adjustable nonius
• Direct indexing via 360° scale mounted on the table

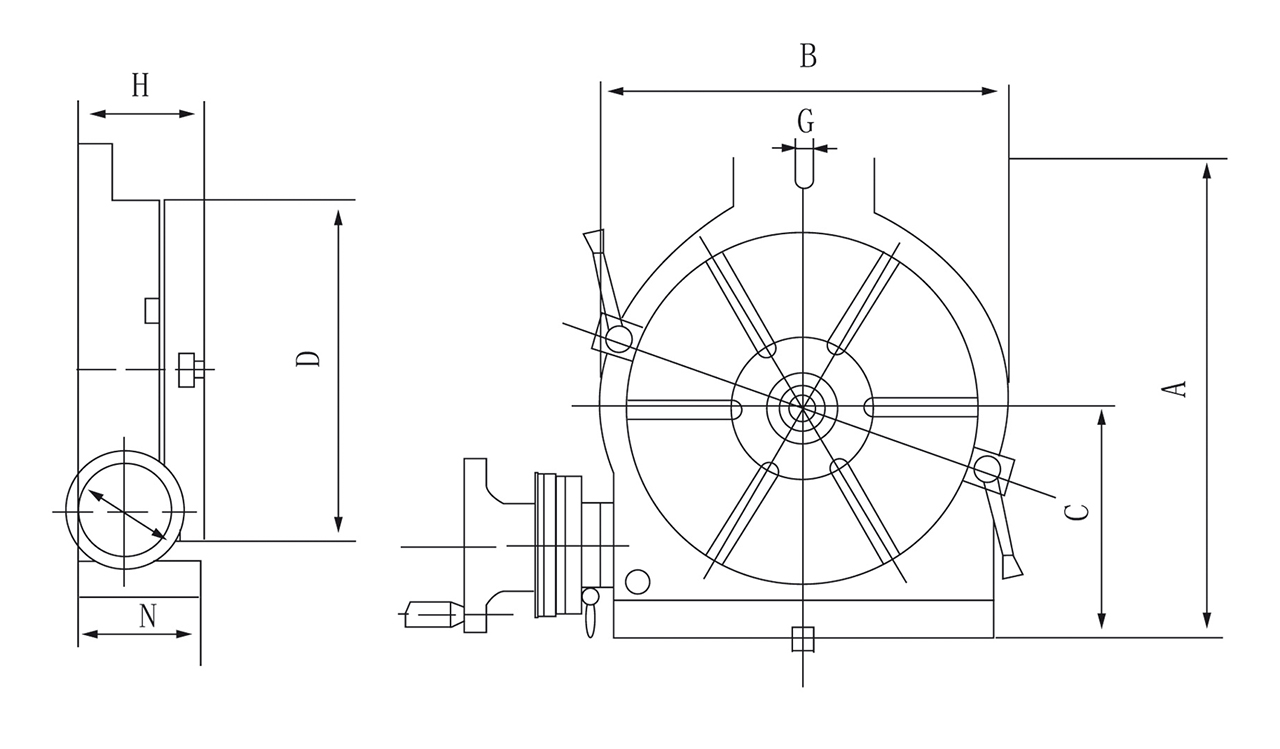

Technical details Rotary table / Tiltable table / Cross table Bernardo Horizontal & vertical rotary table HV 10
