The radial collectors of the RV-series feature a powerful drive motor and optimally positioned fan wheels, making these models extremely quiet and highly efficient. They are commonly used for removal of fine waste and highly suitable for aeration and ventilation purposes.

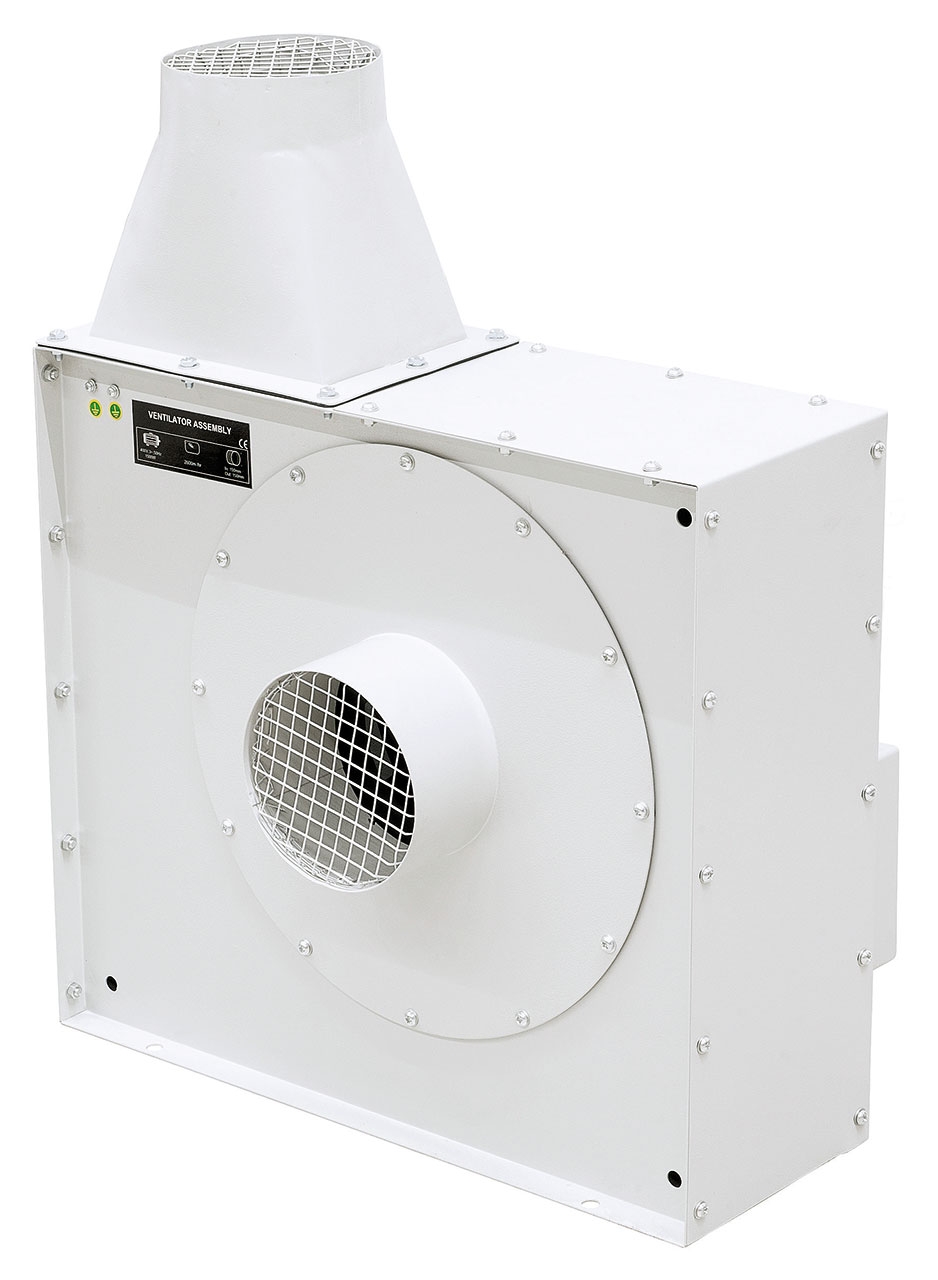

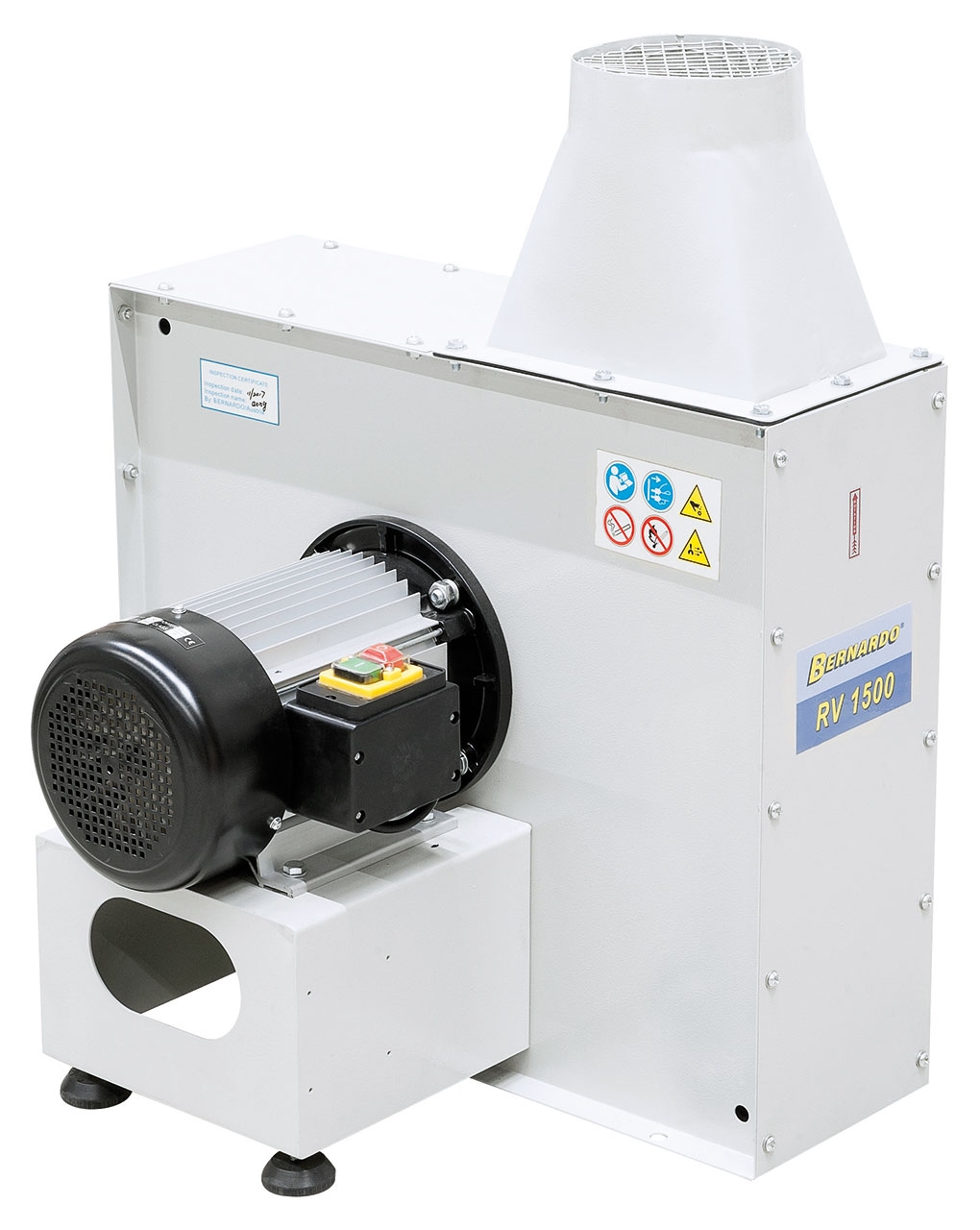

Features Radial collectors Bernardo RV 1500
- Using radial collectors ensures ideal production conditions and clean air at the work place
- Ideal for extracting dust, chippings, smoke, grains, wood and plastic particles etc.
- Solid steel plate construction which keep static charge to a minimum - compared to plastic housing
- High-quality powder coating creates scratch-resistant surface
- Constant extraction force even during long operations
- Statically and dynamically balanced steel fan wheel
Technical details Radial collectors Bernardo RV 1500
|
Capacity max. |
2300 m3/h
|
|
Low pressure max.
|
1700 Pa
|
|
Inlet diameter
|
150 mm
|
|
Outlet diameter
|
145 mm
|
|

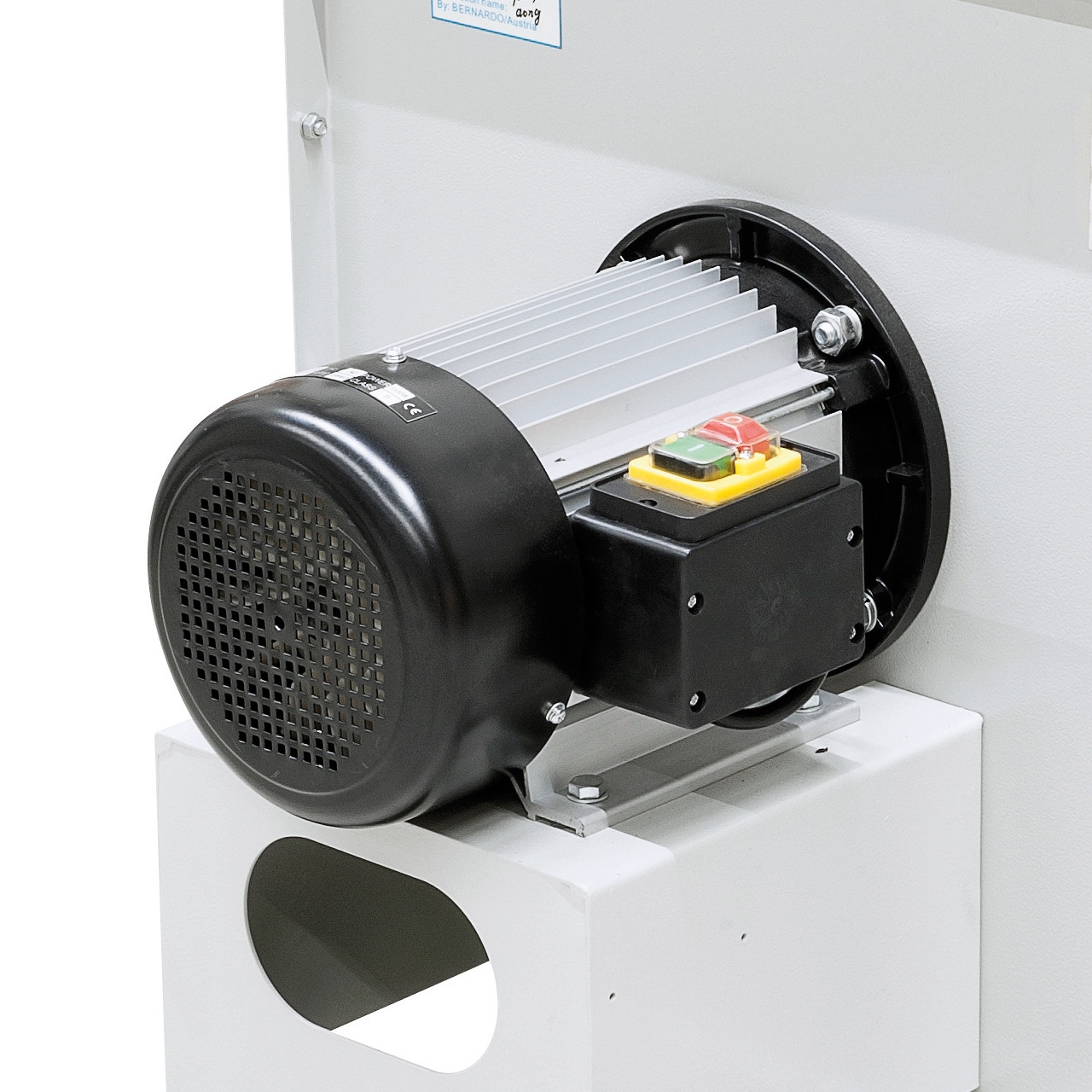

Motor power
|
1,5 kW (2,0 HP)
|
|
Voltage
|
400 V
|
|
Dimension (W x D x H) |
575 x 540 x 700 mm
|
|
Weight approx.
|
35 kg
|
