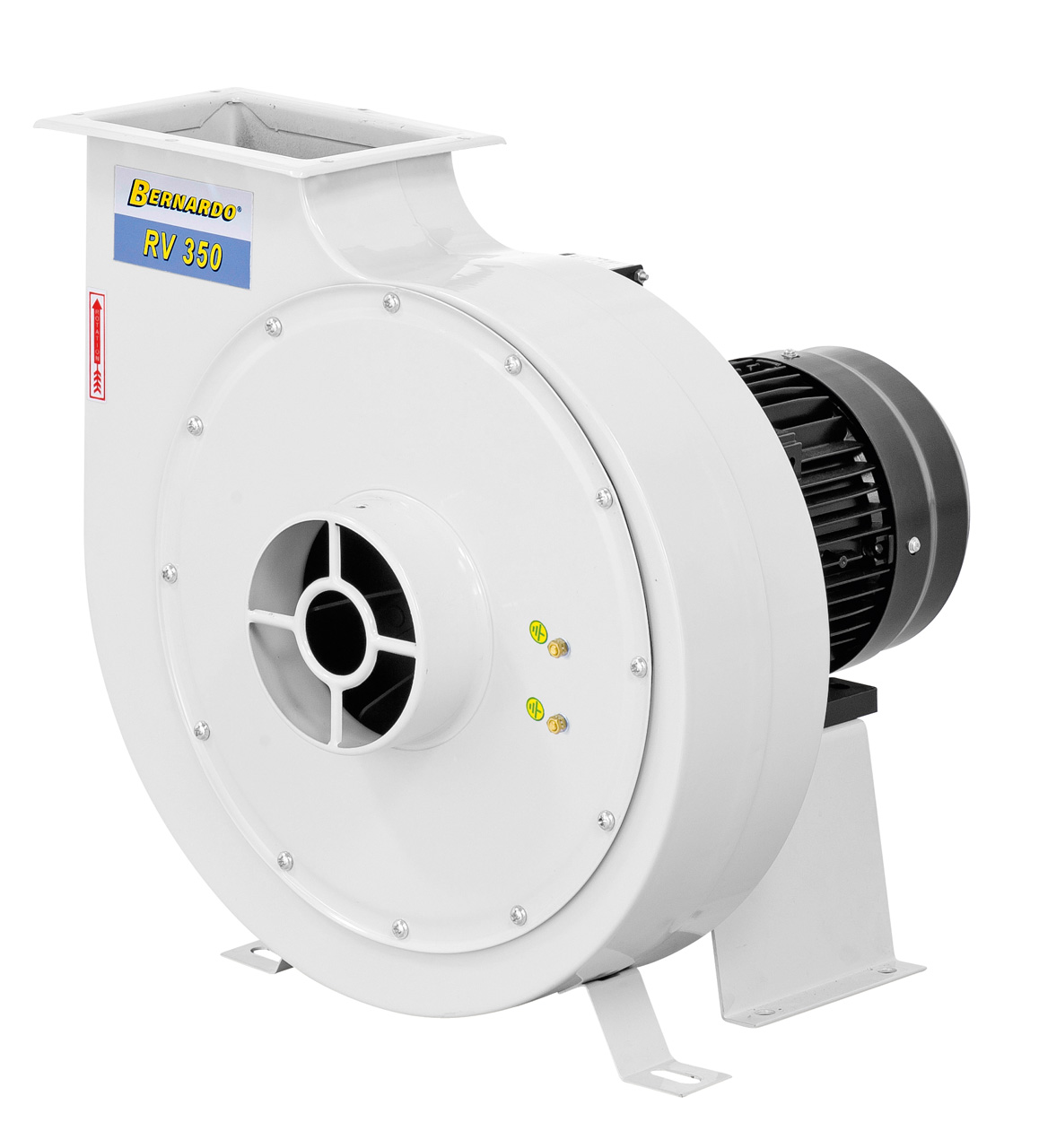

The RV 350 radial collectors features an adapter as part of the standard accessories to ensure easy attachment to stationary or mobile wood working machines. This model is equipped with a bracket to allow for mounting on the wall or ceiling.
Scope of delivery Radial collectors Bernardo RV 350

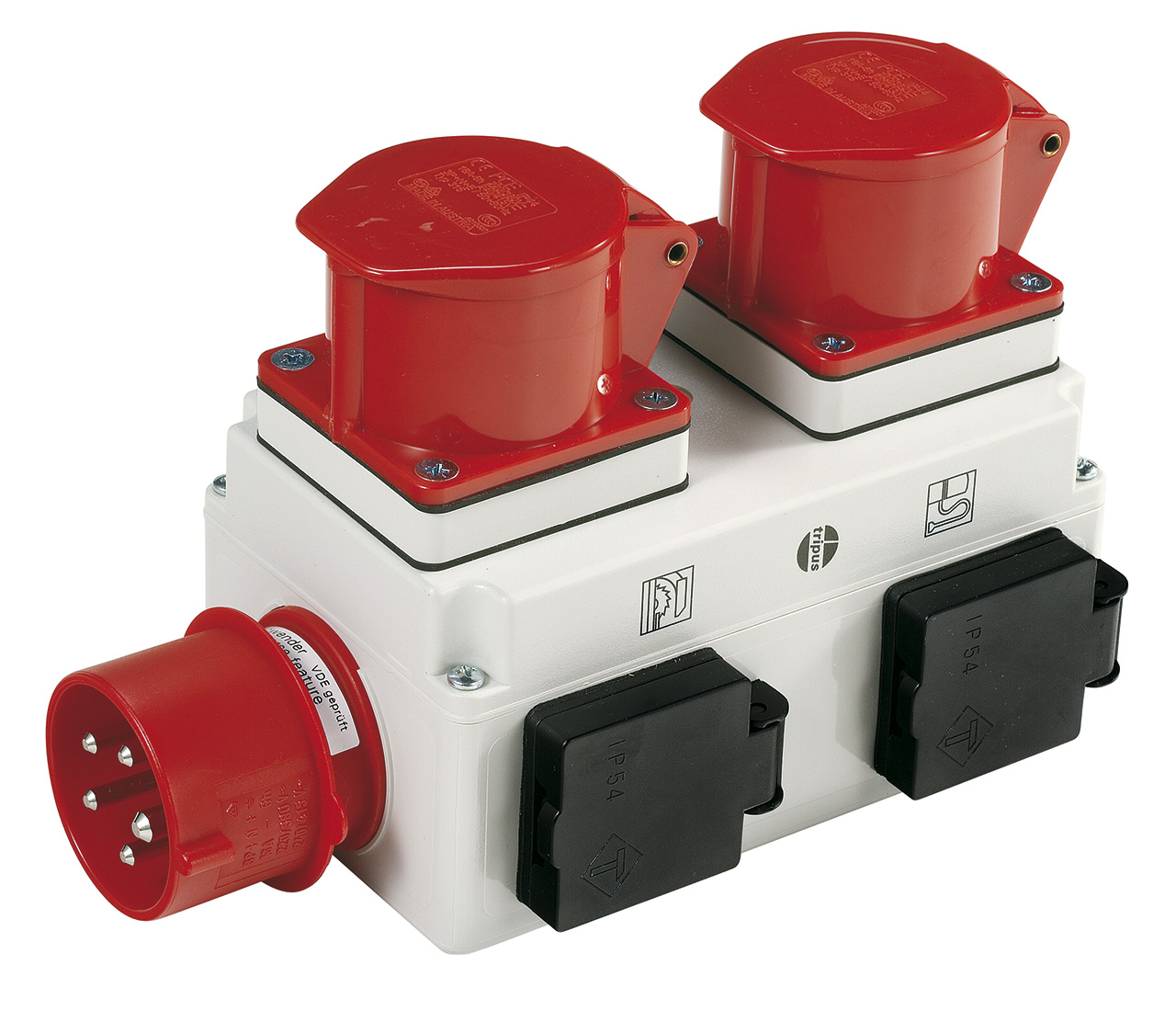

- Switch-plug-combination

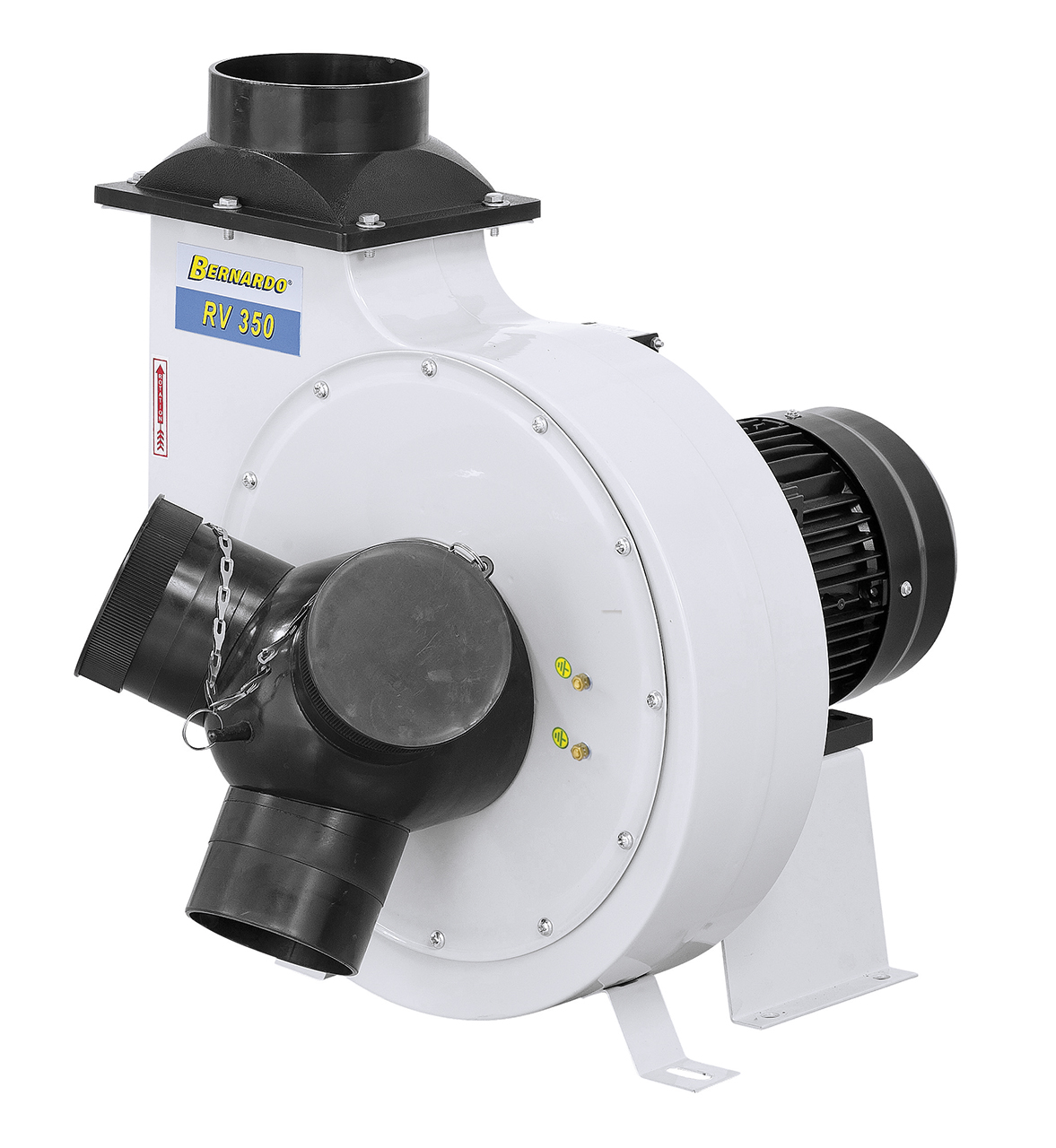

- Adapter 1 x 150 mm / 3 x 100 mm
- Adapter square / round
- Bracket for wall and ceiling mounting
Features Radial collectors Bernardo RV 350
- Solid steel plate construction which keep static charge to a minimum - compared to plastic housing
- Ideal for extracting dust, chippings, smoke, grains, wood and plastic particles etc.
- Statically and dynamically balanced steel fan wheels
- High-quality powder coating creates scratch-resistant surface
- Curved fan wheels ensure high energy-efficiency and low noise levels
- Optimized construction guarantees top performance
Technical details Radial collectors Bernardo RV 350
|
Capacity max.
|
3900 m³/h
|
|
Low pressure max.
|
1950 Pa
|
|
Inlet diameter
|
1 x 150/ 3 x 100 mm
|
|
Outlet diameter
|
120 x 160 mm
|
|
Motor power
|
2,2 kW (3,0 HP)
|
|
Voltage
|
400 V
|
|
Dimension (W x D x H)
|
450 x 600 x 520 mm
|
|
Weight approx.
|
26 kg
|
