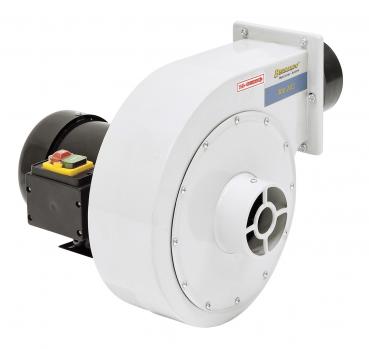

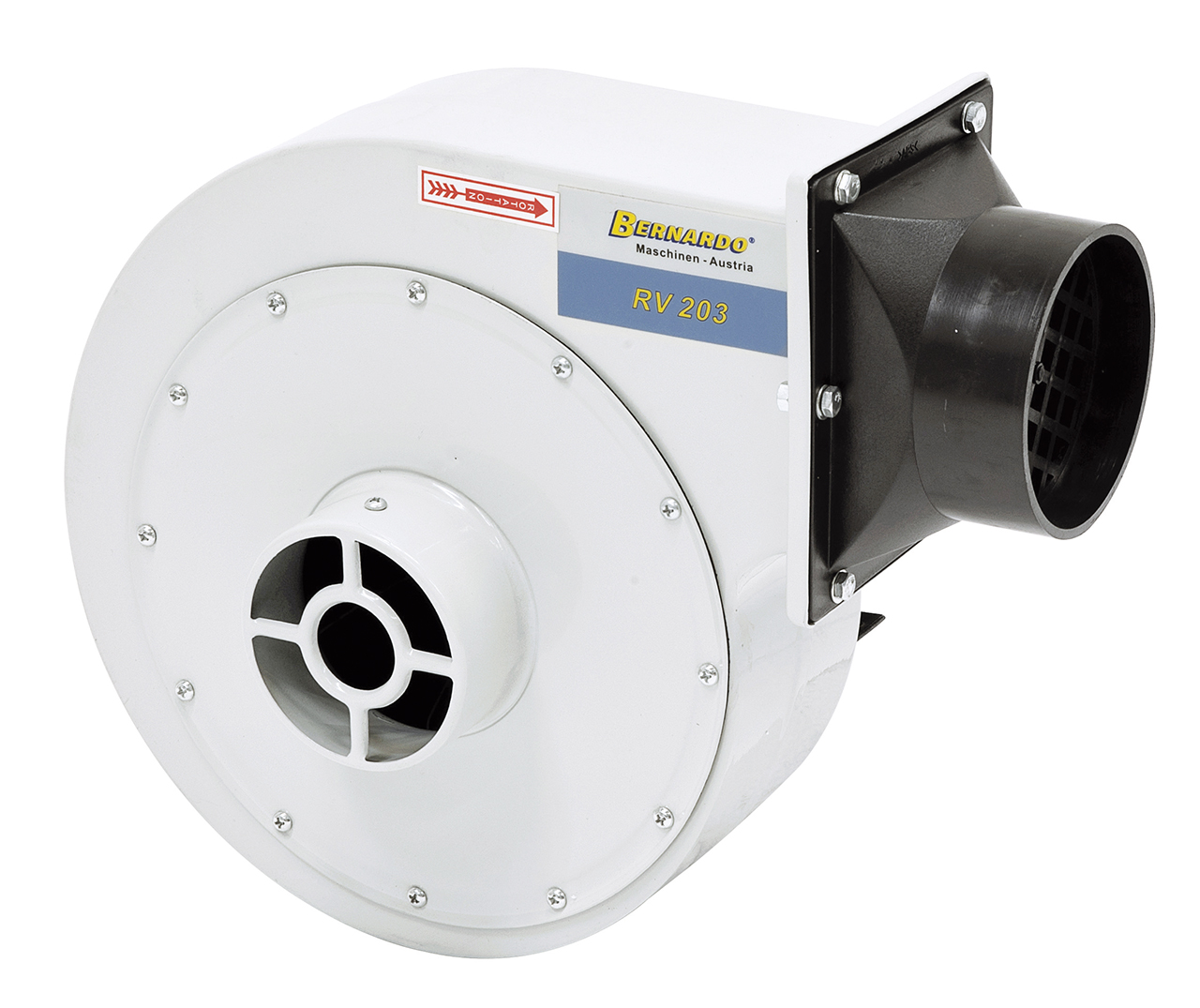

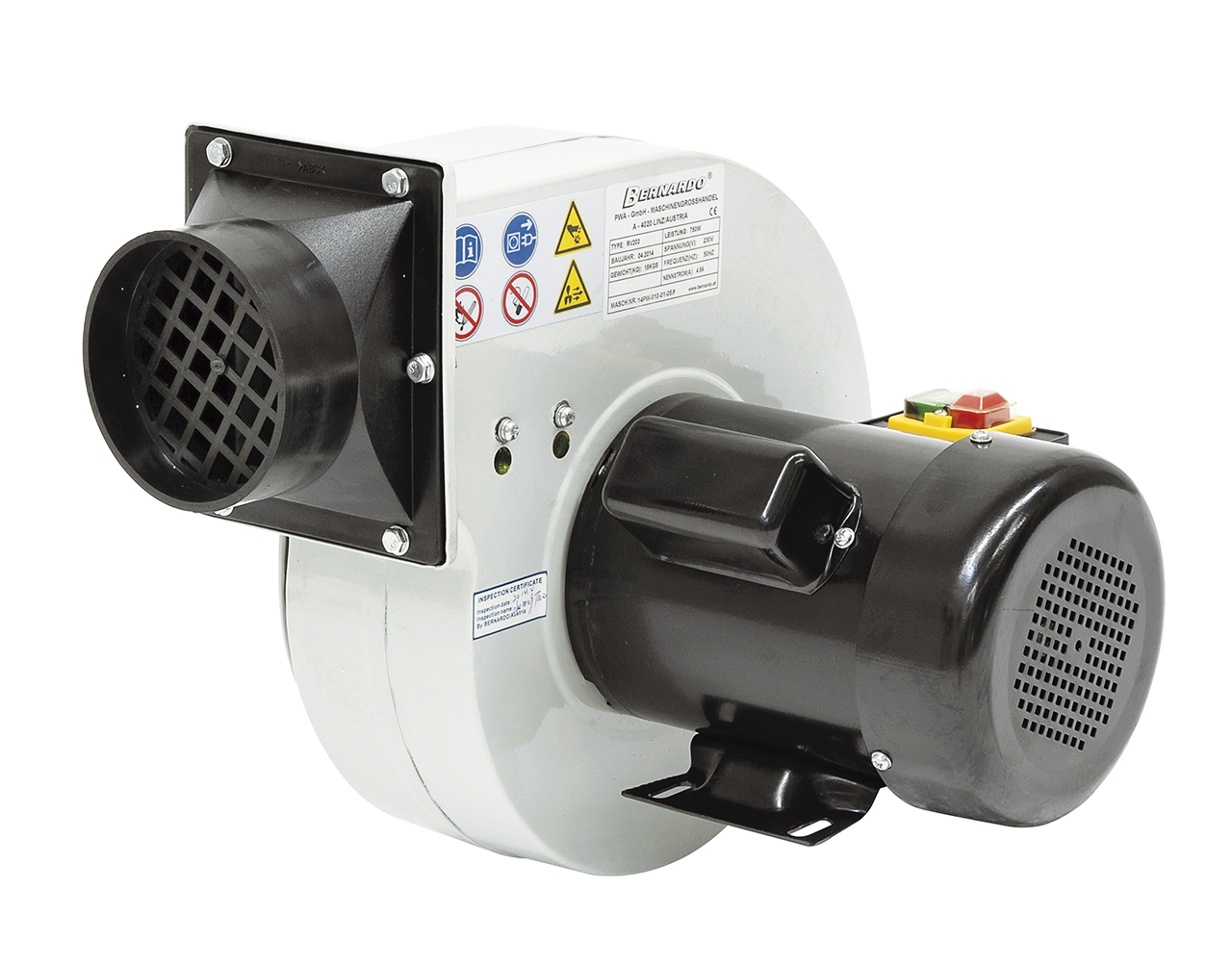

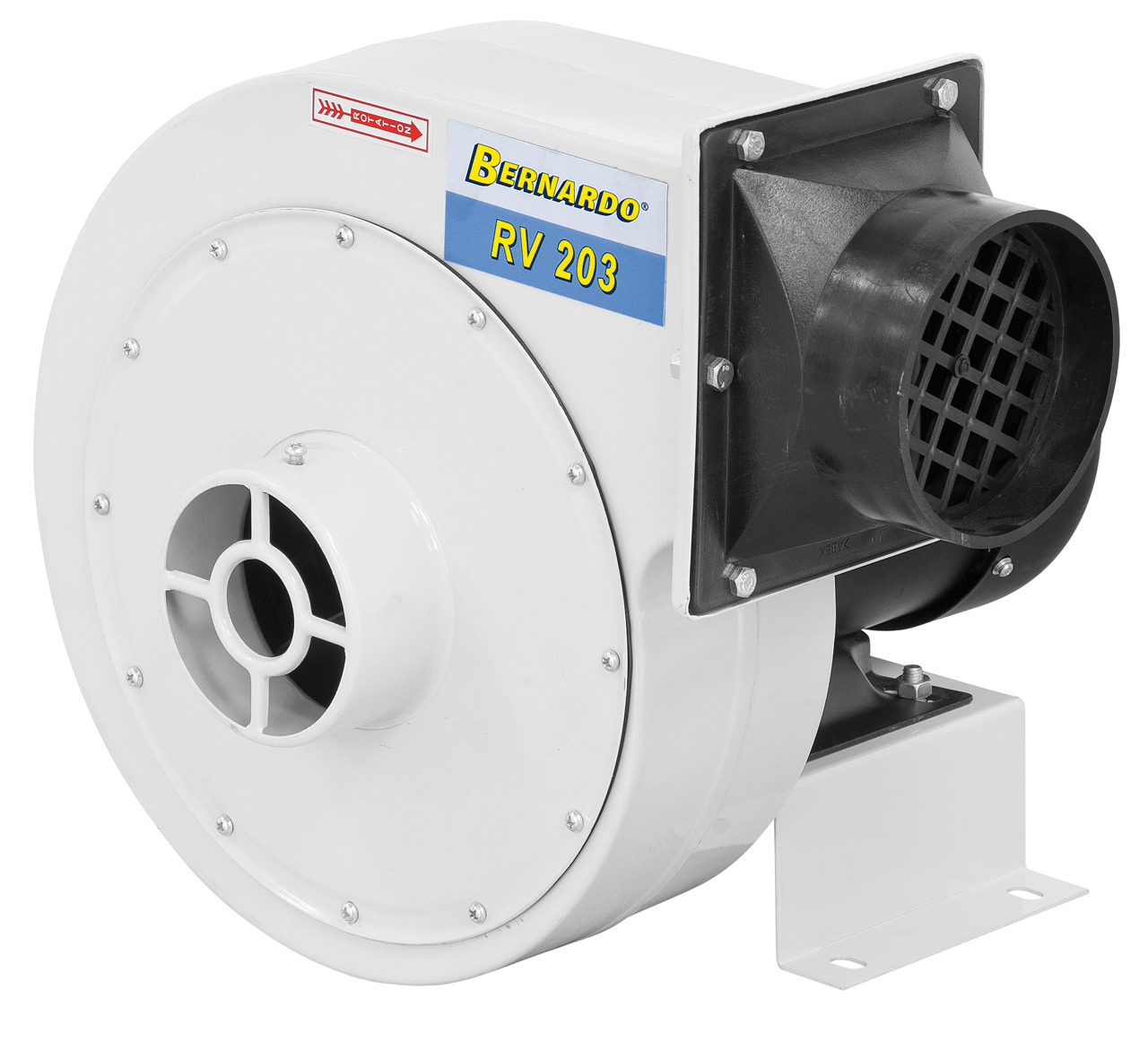

The RV 203 radial collector is suitable for wall and ceiling installation with the optional console.
Scope of delivery Radial collectors Bernardo RV 203

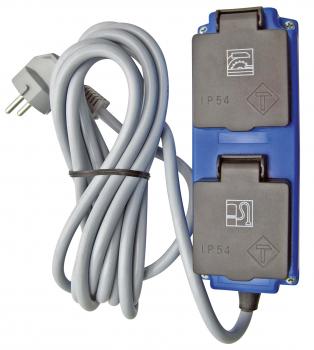

- On-Off-switch
- Adapter round / square

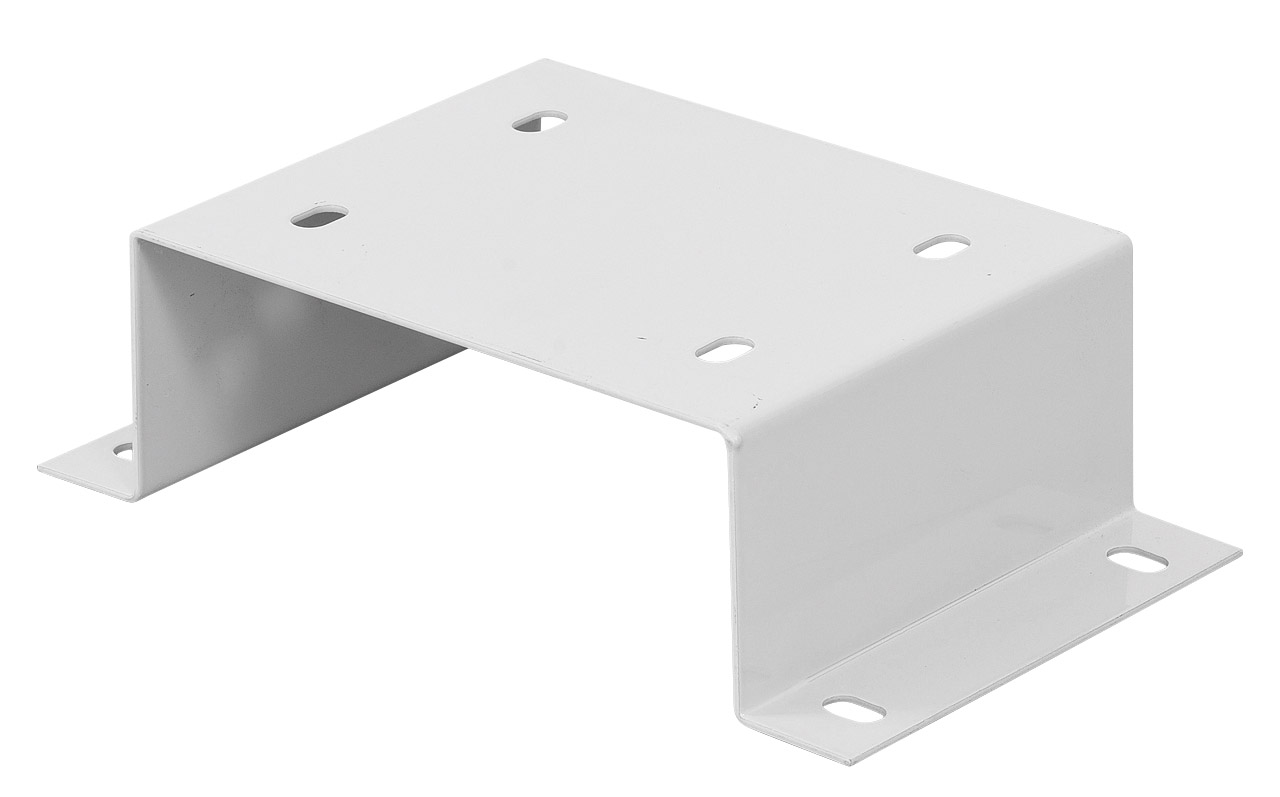

- Bracket for wall and ceiling mounting
Features Radial collectors Bernardo RV 203
- Using radial collectors ensures ideal production conditions and clean air at the workplace
- Optimal fan design guarantees top effi ciency and smooth run
- Statically and dynamically balanced steel fan wheels
- High extraction performance with minimum space requirements
- Unbelievable price-to-performance ratio
Technical details Radial collectors Bernardo RV 203
|
Capacity max.
|
870 m³/h
|
|
Low pressure max.
|
1020 Pa
|
|
Inlet diameter
|
100 mm
|
|
Outlet diameter
|
115 mm
|
|
Motor power
|
0,75 kW (1,0 HP)
|
|
Voltage
|
230 V / 50 Hz
|
|
Dimension (W x D x H)
|
430 x 400 x 370 mm
|
|
Weight approx.
|
15 kg
|
