Special features Safety guards for milling machine Bernardo PFR 02/625/..

The wide range of swivelling options makes this guard our most versatile model
This model protects the operator from direct contact with the vertical spindle and flying chips or coolant splashes.

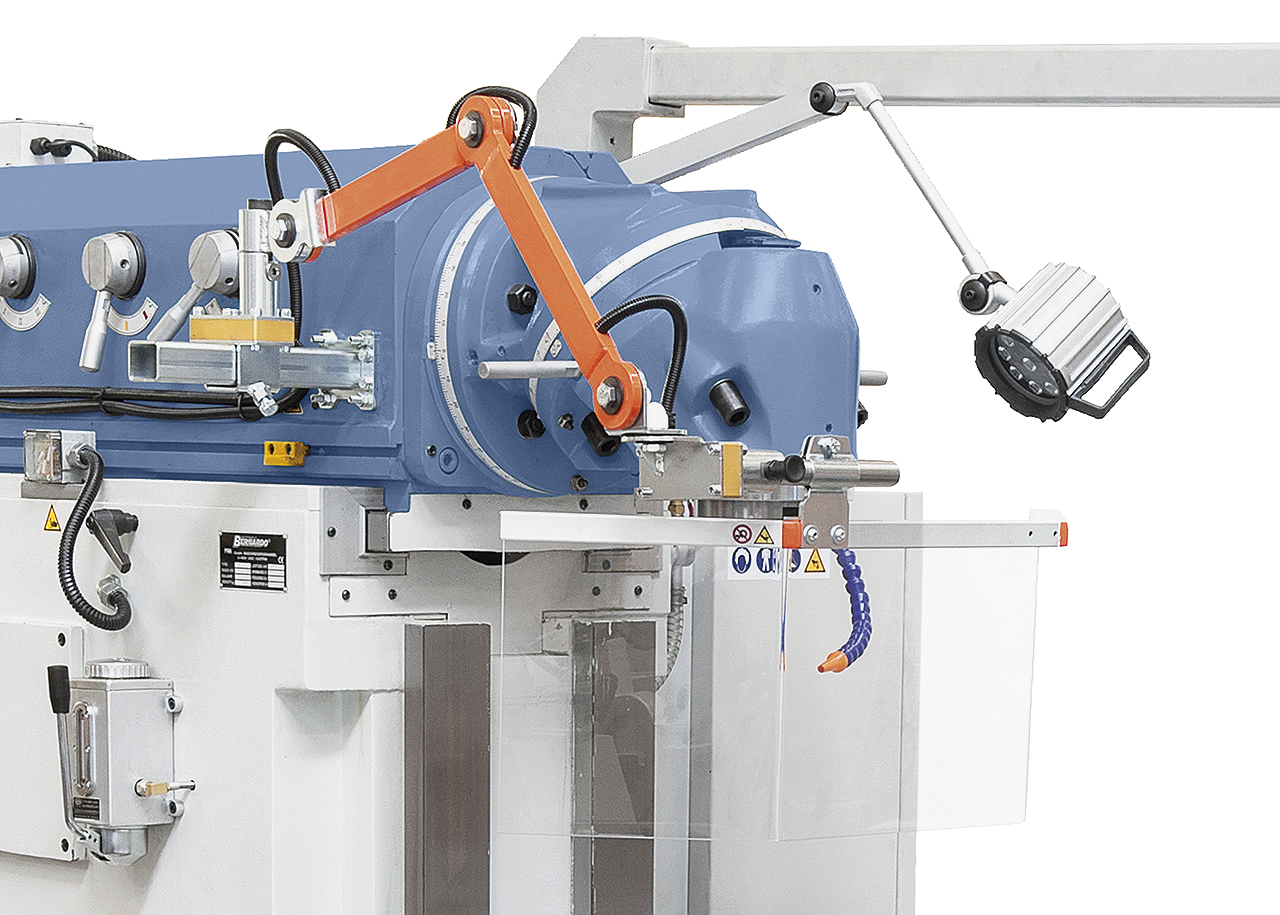

The safety guard with double opening system is mounted on the machine guard:
- 1 = the guard can be opened vertically around its axis
- 2 = complete swivelling out of the working area.
Equipped with double safety microswitch.

Available accessories:

Note: Describe the mounting side by adding: /SX = Left or /DX = Right

Technical details Safety guards for milling machine Bernardo PFR 02/625/..

A	B	C	D	Weight
625	250	170	405	10,4 kg

1 Bracket/mounting plate made of tubular steel

2 Depth-adjustable support for the safety guard

3 Housing for the safety microswitches, 180° rotatable, 2 NC contacts

4 Horizontal adjustment clamp

5 Tubular steel articulated arm

6 Joint adjustable by means of friction disc

7 Angled connection for vertical and horizontal swivelling of the protective screen

8 Locking bolt for the protective screen

9 Protective frame made of aluminium profile

10 Protective screen made of impact-resistant and oil-resistant plastic material
