Protective devices for lathe Bernardo PTO 20/400
Protective devices for lathe Bernardo PTO 20/400
Protective devices for lathe Bernardo PTO 20/400

Protective devices for lathe Bernardo PTO 20/400

Product No.:
57-1086
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
26.6 kg per piece
1.808,80 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PTO 20/400

  • A particularly sturdy and functional protective cover designed to protect the operator from the moving parts of the lathe.
  • It is mounted on the spindle head and protects the operator from direct contact with rotating parts of the chuck and from flying chips and coolant splashes.
  • This model is mounted on the top of the spindle head and is equipped with a sliding, transparent protective screen.
  • The model is available in three sizes for chuck diameters up to 800 mm

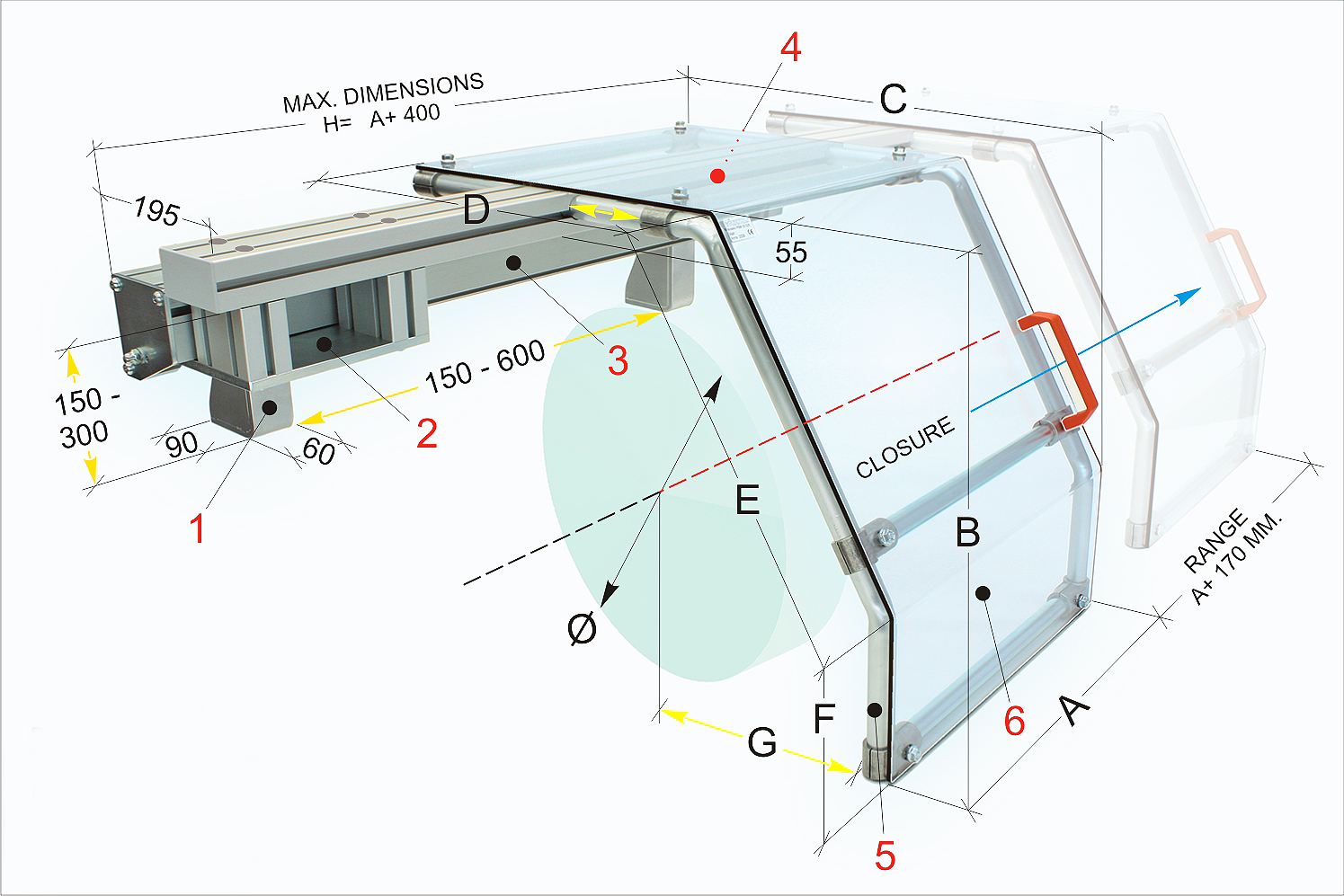

Technical details Safety guards for lathe Bernardo PTO 20/400

Ø

A

B

C

D

E

F

G

Weight

400-500

450

430

655

480

350

125

280-540

26,6 kg


1 Mounting bracket with large vertical adjustment range
2 Support carriage for the sliding protective hood
3 slide guides made of extruded aluminium profiles with a sliding system of hardened steel guides. The roller bearings are mounted in protected positions on the inside
4 Safety microswitch with separate trigger and 2 opening contacts
5 Protective screen frame construction made of sheet steel and aluminium
6 The protective screen is made of impact-resistant and oil-resistant plastic material
