Protective devices for lathe Bernardo PTO 04/100
Protective devices for lathe Bernardo PTO 04/100
Protective devices for lathe Bernardo PTO 04/100

Protective devices for lathe Bernardo PTO 04/100

Product No.:
57-1073
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
19.7 kg per piece
1.367,91 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PTO 04/100

  • Extremely robust protective cover for lathes with chuck diameters up to 1000 mm. This protective bonnet has a screen that can be opened either completely or partially. The protective bonnet protects the operator from direct contact with the rotating chuck, hot chips and coolant splashes
  • The stable design of the support structure (1), which is fully adjustable in the "X-Y" direction, allows easy attachment to the rear of the lathe and, if necessary, to the front as well
  • The semi-circular protective screen is divided into two sections and can be opened either only at the front (6) or completely by swivelling it fully backwards
  • The protective cover is equipped with a double safety microswitch

Technical details Safety guards for lathe Bernardo PTO 04/100

A

B

C

D

E

Weights

1000

350

500

265-475

5-70

19,7 kg

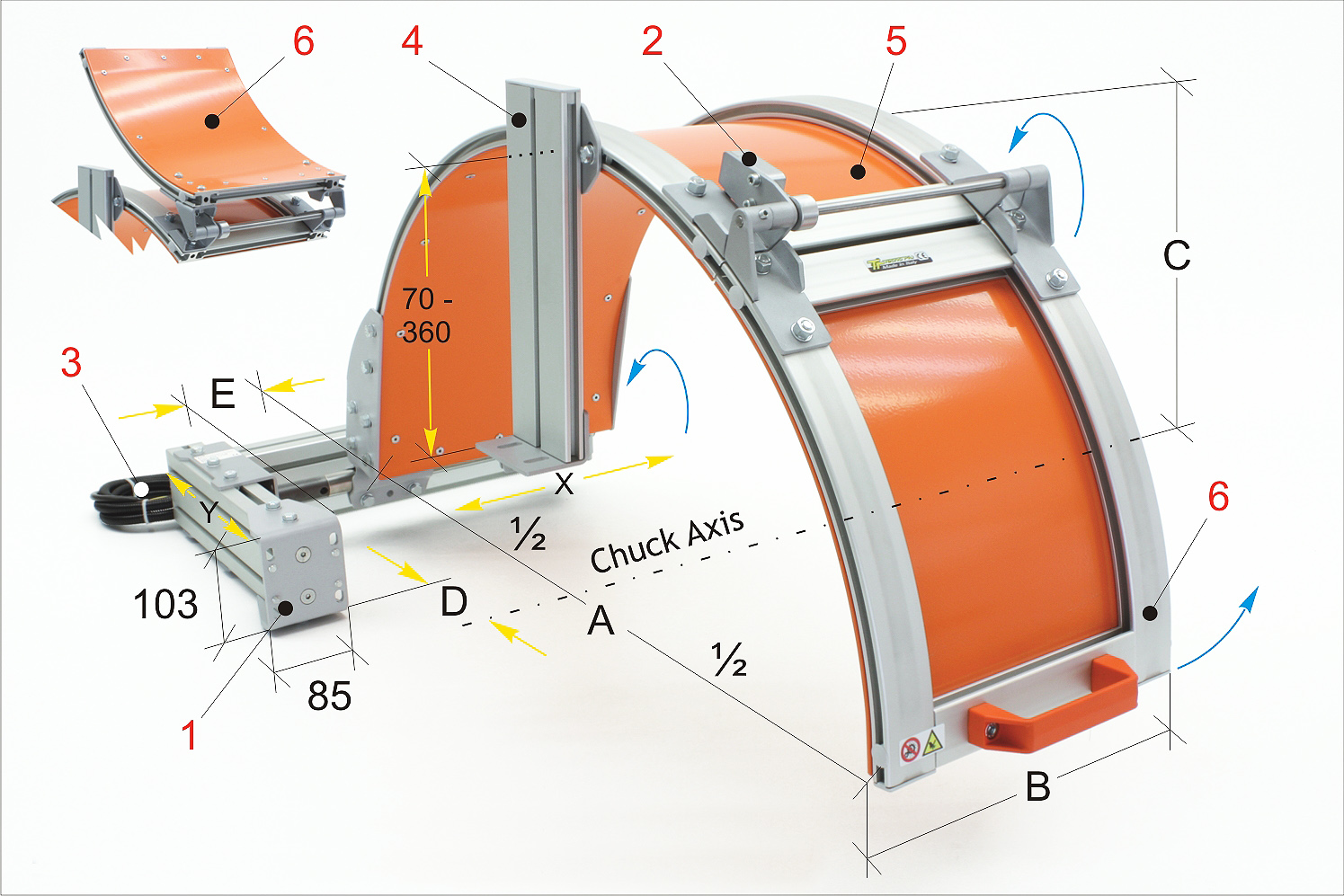

1 fixing bracket at the front and side, adjustable in the x- and y-axis
2-3 Safety microswitches for both opening systems, with two opening contacts
4 Adjustable structure to support the protective screen on the machine head
5 The protective screen consists of an aluminium construction and can be swivelled away completely at the rear
6 The front part of the guard is designed for frequent opening during operation
