Protective devices for lathe Bernardo PTO 02/400
Protective devices for lathe Bernardo PTO 02/400
Protective devices for lathe Bernardo PTO 02/400

Protective devices for lathe Bernardo PTO 02/400

Product No.:
57-1064
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
4.9 kg per piece
477,07 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PTO 02/400

  • The PTO 02 model is mounted directly on the spindle head. The shield is made of impact-resistant and oil-resistant plastic material.
  • This model is available in various sizes and protects the operator from direct contact with the lathe chuck and from hot chips, oil or coolant splashes.
  • Equipped with a semi-circular protective screen, the protective bonnet can be fitted to the side or rear of the spindle head.
  • The model is equipped with a safety microswitch.

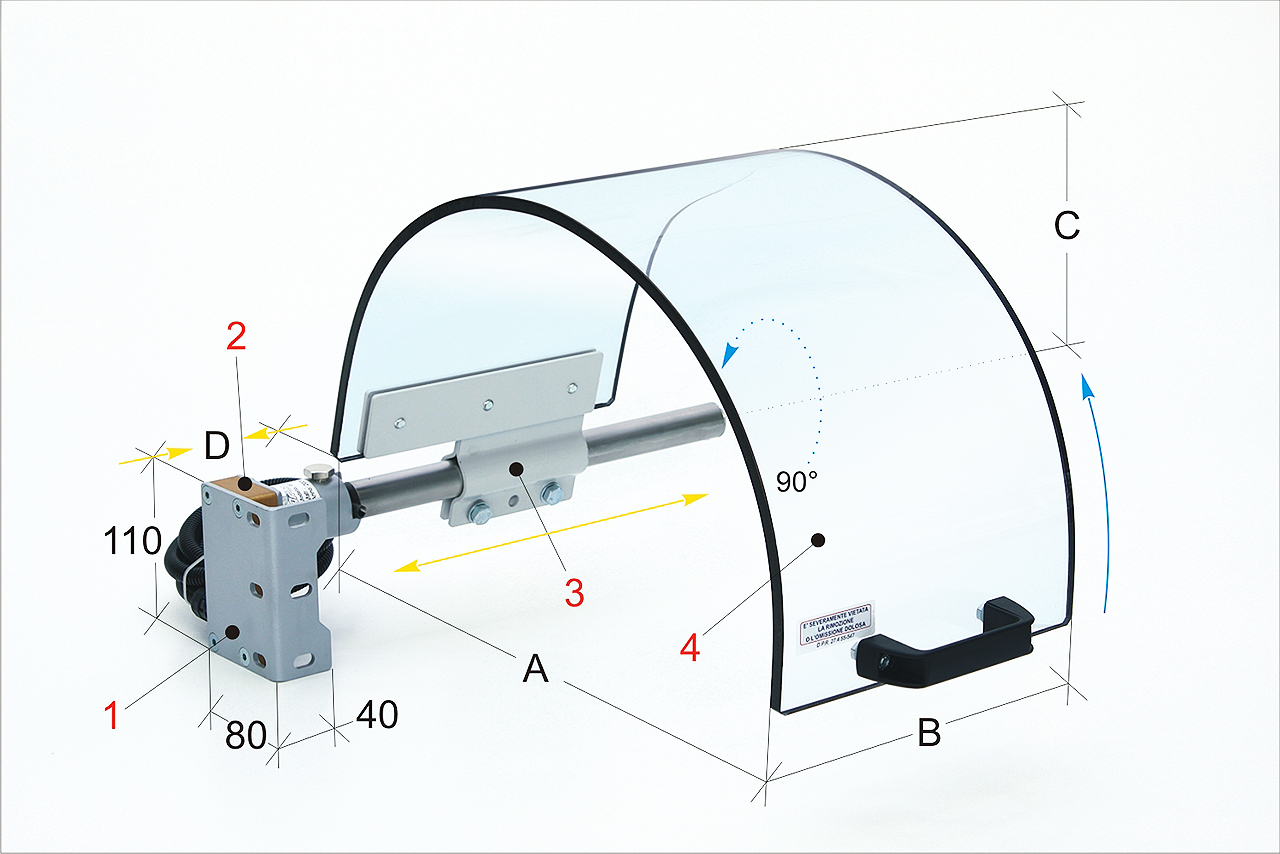

Technical details Safety guards for lathe Bernardo PTO 02/400

A

B

C

D

Weight

400

220

250

0-190

4,9 kg



1 fixing bracket at the front and side
2 Safety microswitch, rotatable through 90° and with 2 opening contacts
3 Adjustable clamp bracket with sheet steel support arm
4 One-piece shade made of thick, impact-resistant and oil-resistant plastic material
