Special features Protective devices for lathe Bernardo PTO 01/400

Classic guard with a steel frame made of high-quality, transparent plastic, which is mounted directly on the spindle head.
This model is available in various sizes and protects the operator from direct contact with the lathe chuck and from hot chips, oil or cooling splashes.
Equipped with a semi-circular protective screen, the protective bonnet can be fitted to the side or rear of the spindle head.
The model is equipped with a safety microswitch.

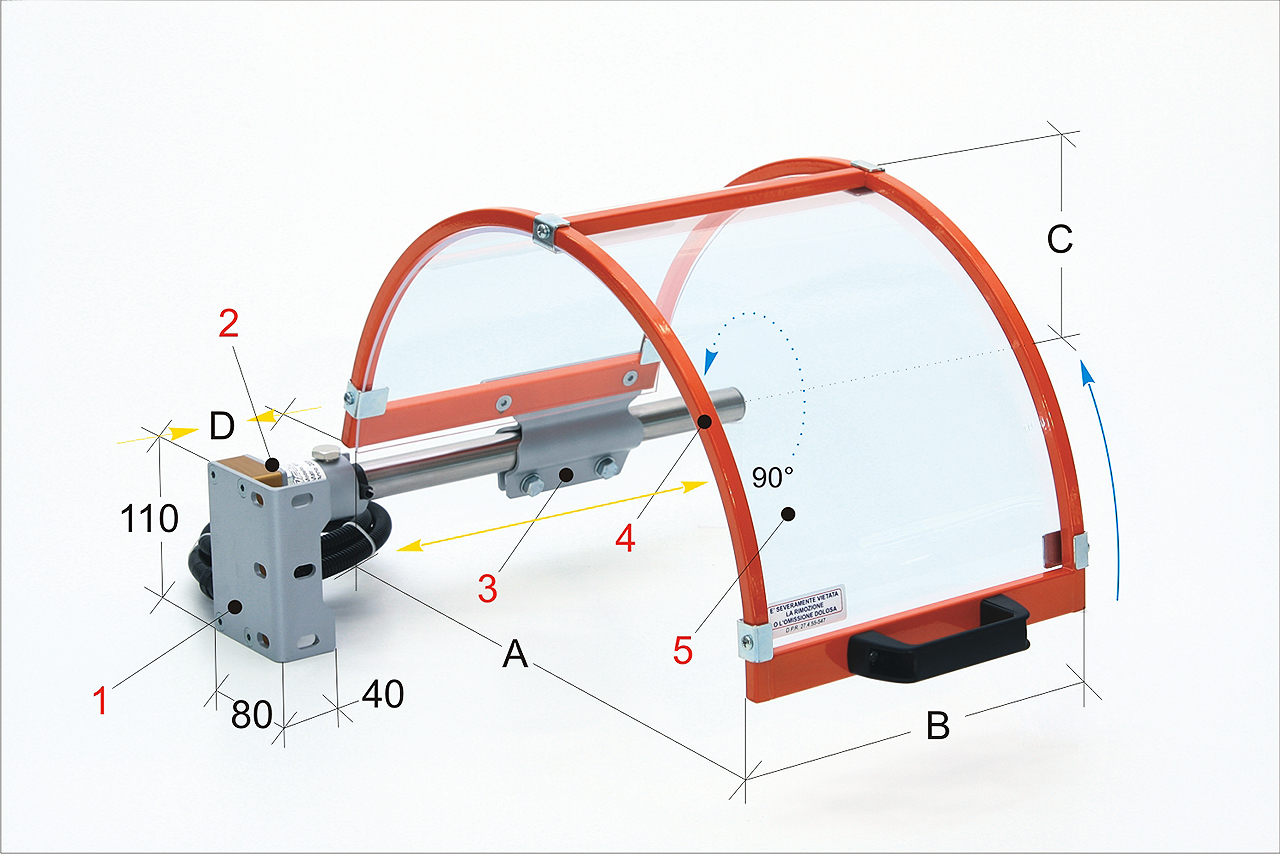

Technical details Safety guards for lathe Bernardo PTO 01/400

A	B	C	D	Weight
400	235	230	0-150	4,1 kg

1 fixing bracket at the front and side
2 Safety microswitch, rotatable by 90° and with 2 opening contacts
3 Clamp holder made of sheet steel with support arm
4 Frame of the protective cover made of tubular steel
5 Hot-moulded protective shield - made of impact-resistant and oil-resistant plastic material
