Protective devices for lathe Bernardo PTO 01/300
Protective devices for lathe Bernardo PTO 01/300
Protective devices for lathe Bernardo PTO 01/300

Protective devices for lathe Bernardo PTO 01/300

Product No.:
57-1050
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
3.6 kg per piece
474,81 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PTO 01/300

  • Classic guard with a steel frame made of high-quality, transparent plastic, which is mounted directly on the spindle head.
  • This model is available in various sizes and protects the operator from direct contact with the lathe chuck and from hot chips, oil or cooling splashes.
  • Equipped with a semi-circular protective screen, the protective bonnet can be fitted to the side or rear of the spindle head.
  • The model is equipped with a safety microswitch.

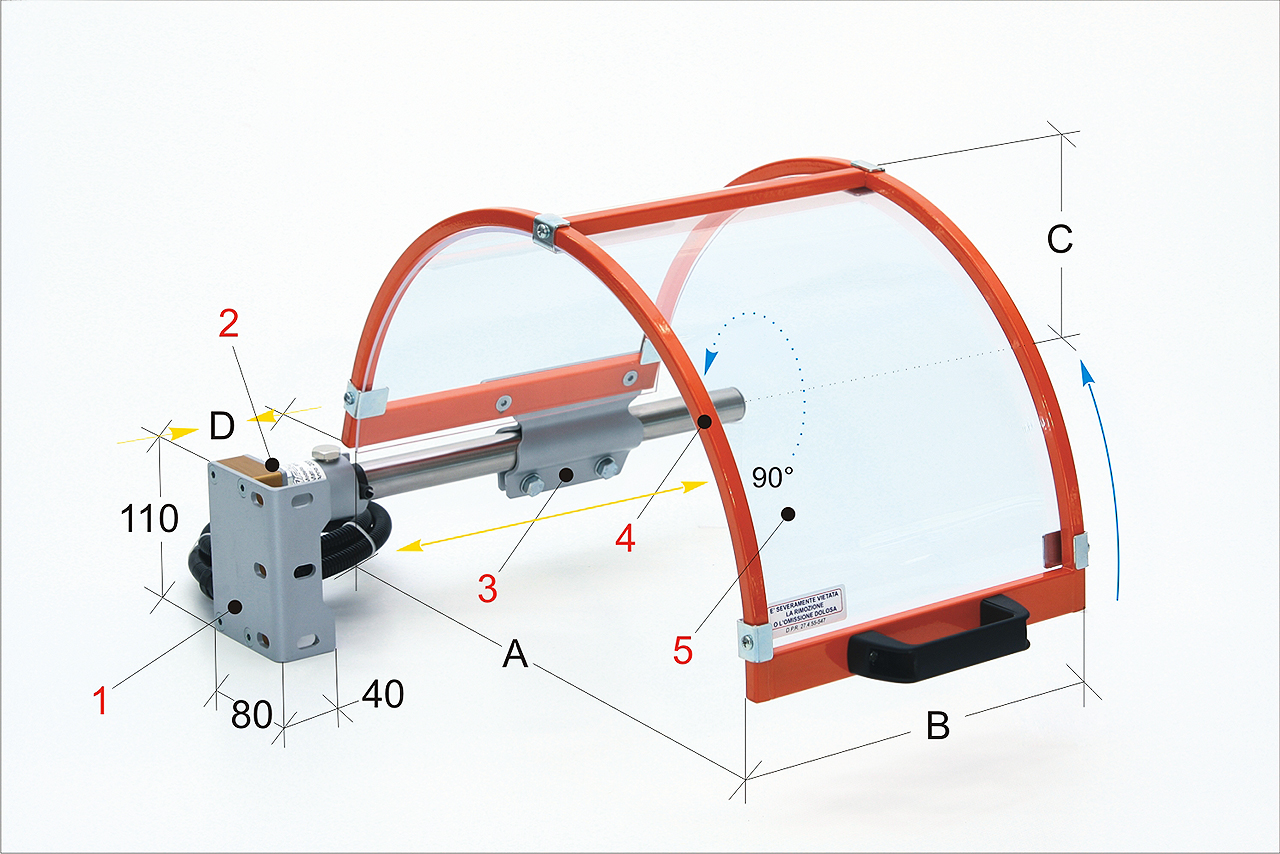

Technical details Safety guards for lathe Bernardo PTO 01/300

A

B

C

D

Weight

300

200

180

0-215

3,6 kg


1 fixing bracket at the front and side
2 Safety microswitch, rotatable by 90° and with 2 opening contacts
3 Clamp holder made of sheet steel with support arm
4 Frame of the protective cover made of tubular steel
5 Hot-moulded protective shield - made of impact-resistant and oil-resistant plastic material
