Protective devices for lathe Bernardo PLT 02/360
Protective devices for lathe Bernardo PLT 02/360
Protective devices for lathe Bernardo PLT 02/360

Protective devices for lathe Bernardo PLT 02/360

Product No.:
57-1111
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
1.9 kg per piece
566,38 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PLT 02/360

  • Universal safety lever for the direction of rotation of the main spindle
  • This lever is suitable for machines with one or two levers. It is supplied as a single piece and serves as a replacement for the original lever. If your machine is equipped with two levers, replace the lever that is used most frequently
  • The safety lever is equipped with a universal levelling plate in which you can drill the hole for the neutral centre position. This ensures that the safety bolt engages in the centre position and prevents unintentional starting of the main spindle
  • The main spindle is started in two steps:
    • 1° - Move the control lever to the right
    • 2° - Move the control lever up or down
  • To switch off the main spindle, move the control lever to the centre position until the safety bolt automatically engages in the hole.

Technical details Safety guards for lathe Bernardo PLT 02/360

  • Weight: 1.9 kg

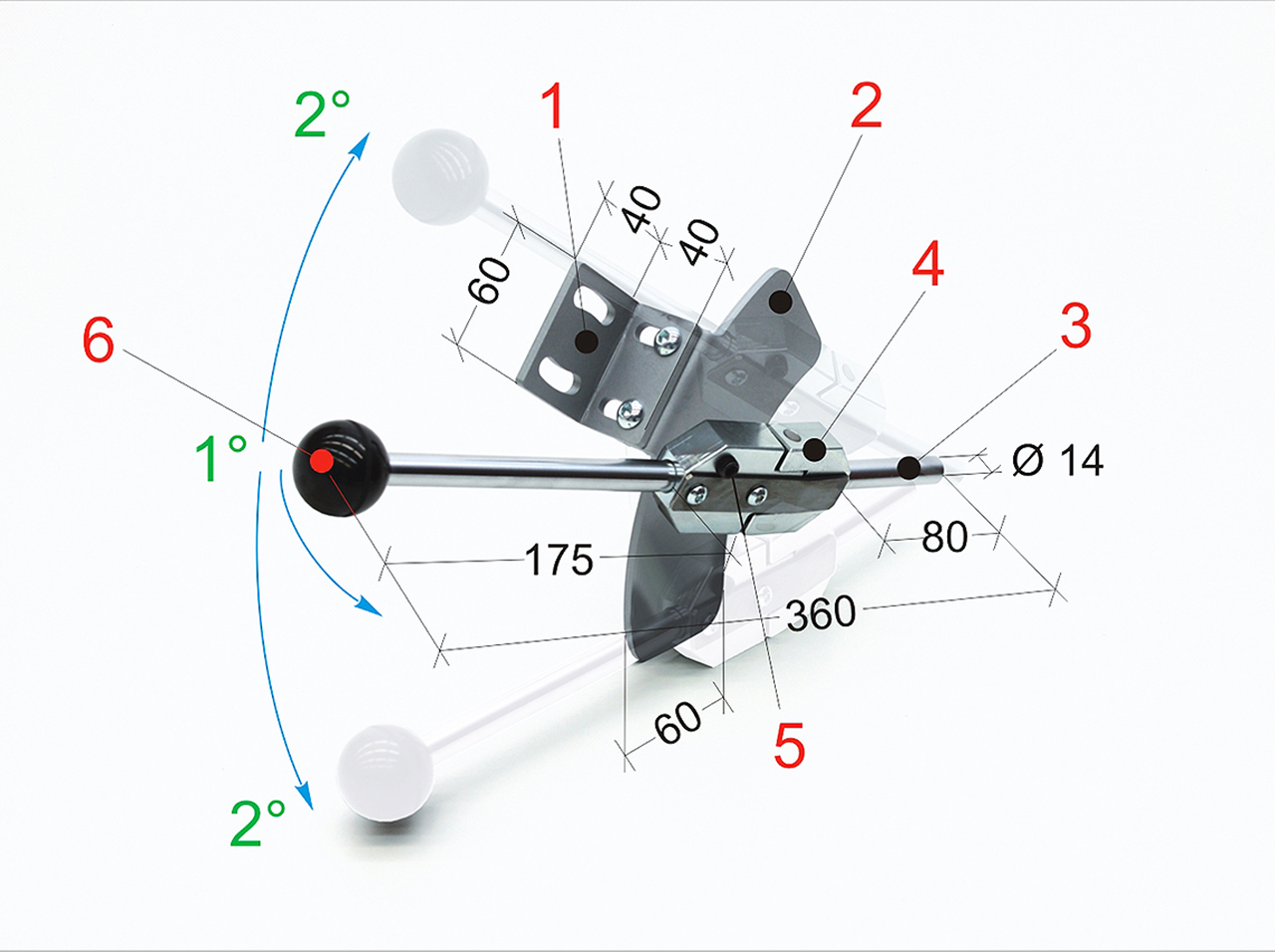

1 Adjustable sheet steel mounting bracket
2 Levelling plate made of sheet steel to drill the hole for the safety bolt
3 Steel shaft to be inserted into the original connecting piece of the chuck
4 Safety swivelling device with steel return spring
5 Adjustable safety bolt
6 Shift lever with round knob
