Protective devices for lathe Bernardo PAT 01/150
Protective devices for lathe Bernardo PAT 01/150
Protective devices for lathe Bernardo PAT 01/150

Protective devices for lathe Bernardo PAT 01/150

Product No.:
57-1106
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
5 kg per piece
1.009,54 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PAT 01/150

  • Consists of two self-retracting belts, with drip and oil-resistant coating
  • Protects the operator from direct contact with the lead and pull spindles and avoids the risk of work clothing being caught
  • The roller cover consists of two parts, which are attached to both ends of the bed slide as well as to the headstock and the end of the bed
  • The cover strip is made of a strong textile material that is resistant to coolants and abrasion. During the movement of the longitudinal slide, the two parts roll up and down and thus continuously cover the lead and traction spindles
  • Note: The mounting plate with the roller must be attached to the machine bed

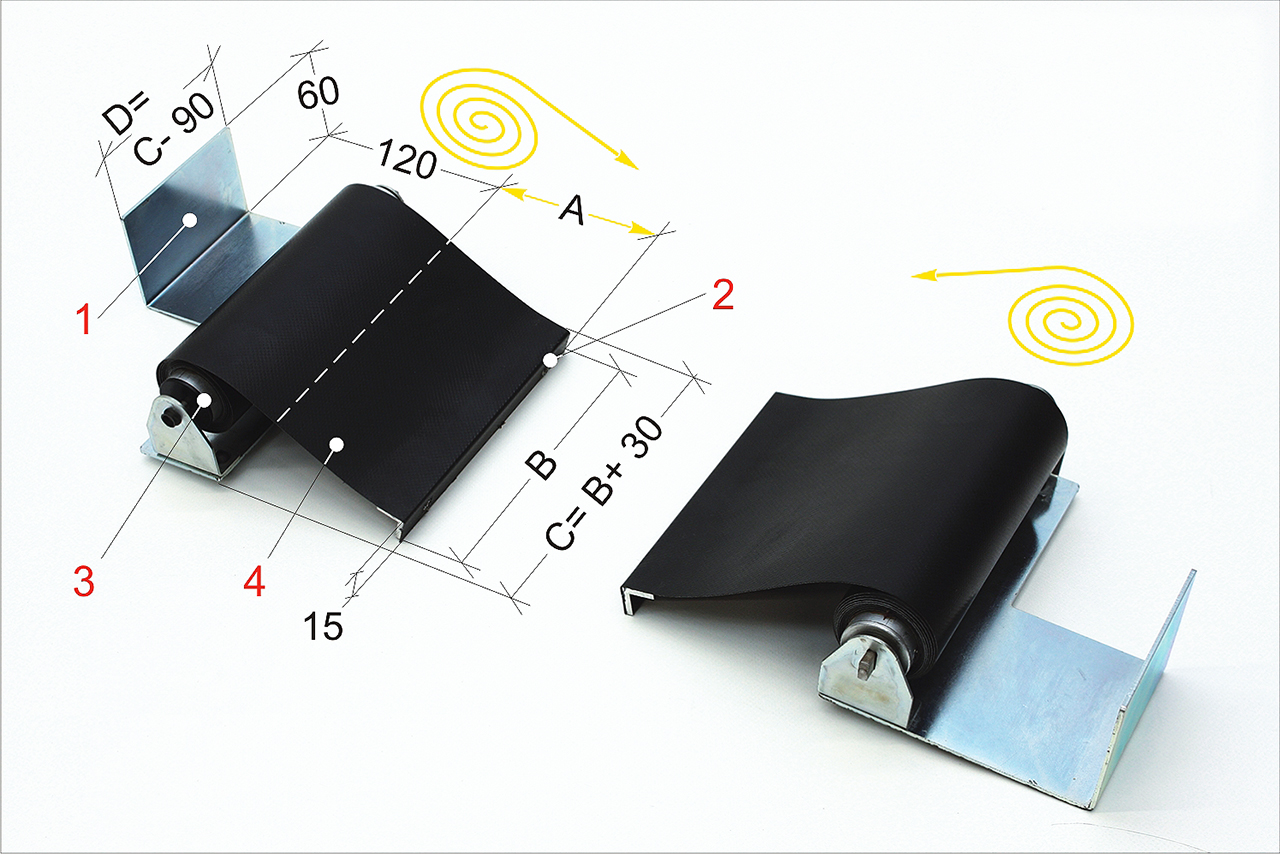

Technical details Safety guards for lathe Bernardo PAT 01/150

A

B

C

D

1500

200

230

140

1 bracket/mounting plate for attachment to the machine bed
2 Mounting plates for attachment to the aluminium bed slide
3 Self-retracting due to internal torsion spring. The roller is made of steel and aluminium
4 Robust belt made of heat-resistant material
