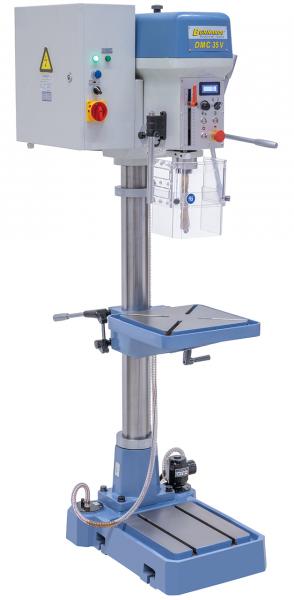

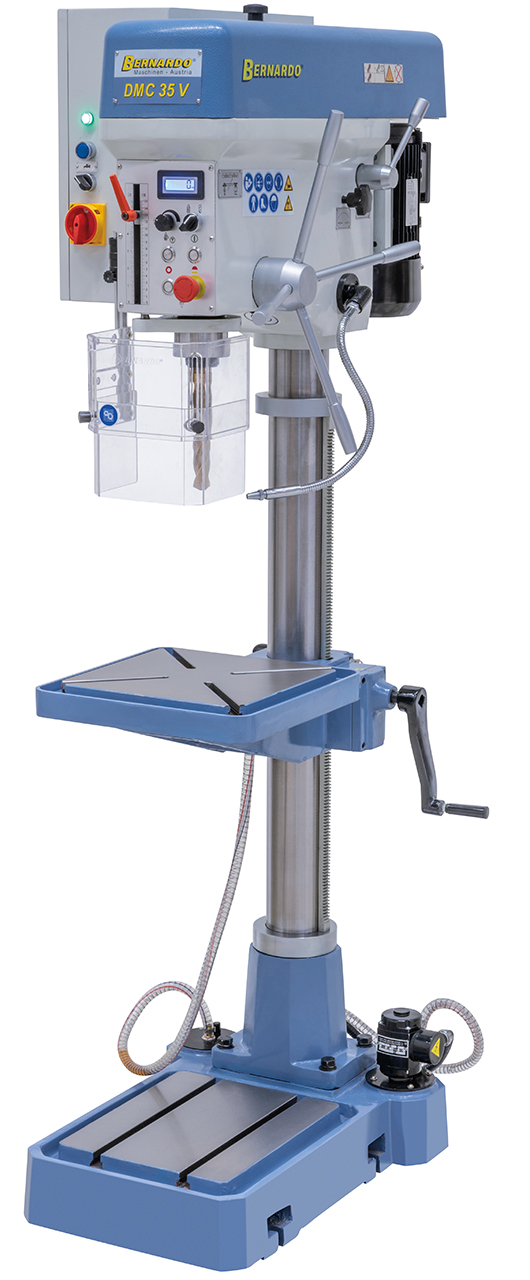

Pillar drill Bernardo DMC 35 V

Scope of delivery Pillar drill Bernardo DMC 35 V

• Keyed chuck 5 - 20 mm / B 22
• Chuck mandrel MK 3 / B 22
• Reducing sleeve MK 3 / MK 2
• Digital speed display
• Coolant device
• Thread cutting device
• LED machine light
• Height-adjustable protective cover

Features Pillar drill Bernardo DMC 35 V

The DMC 35 V column drill is equipped with stepless speed control as standard, allowing the cutting speed to be optimally adjusted to the workpiece. This model is used in repair shops, mechanical workshops and also in training facilities.

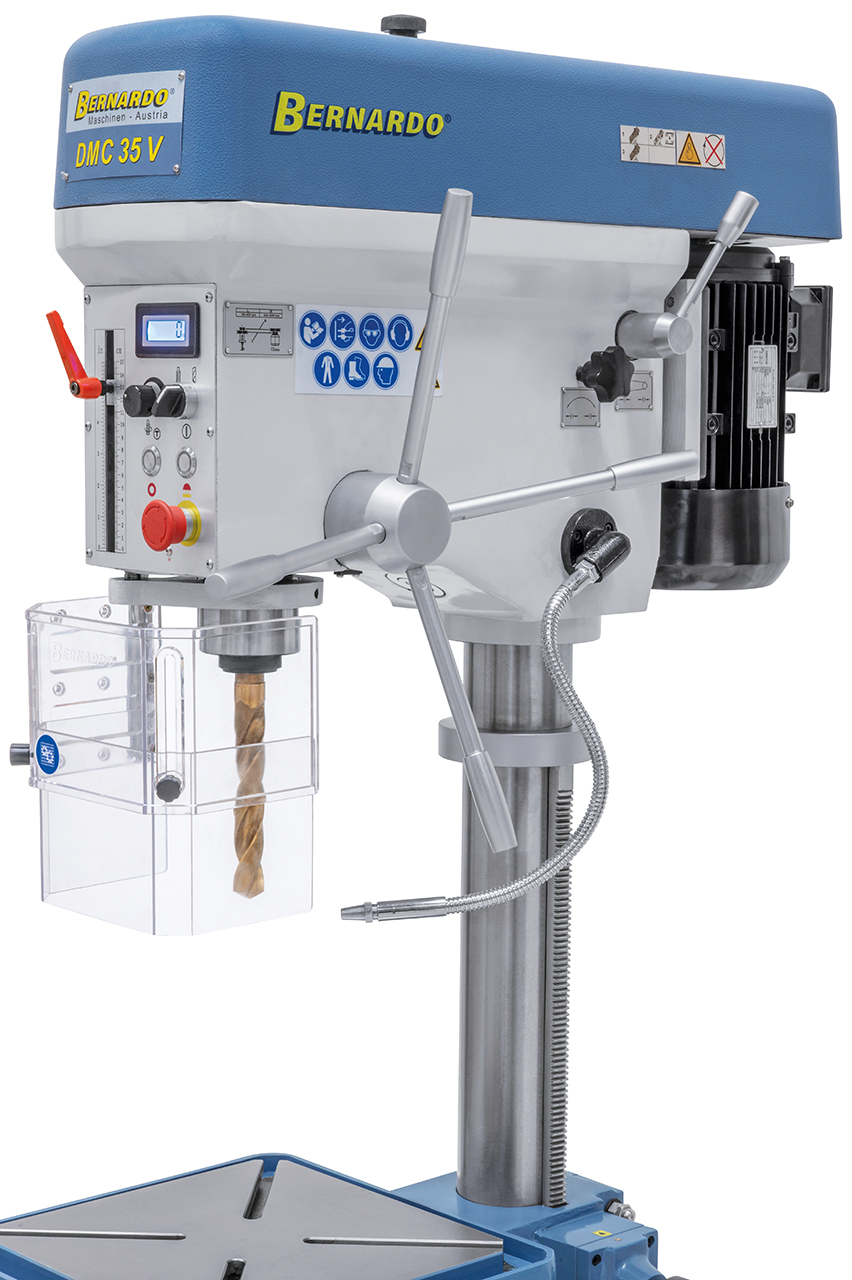

• Protective cover in accordance with CE standard, adjustable to the respective drill length
• Surface-finished work table, height-adjustable via rack and pinion and hand crank

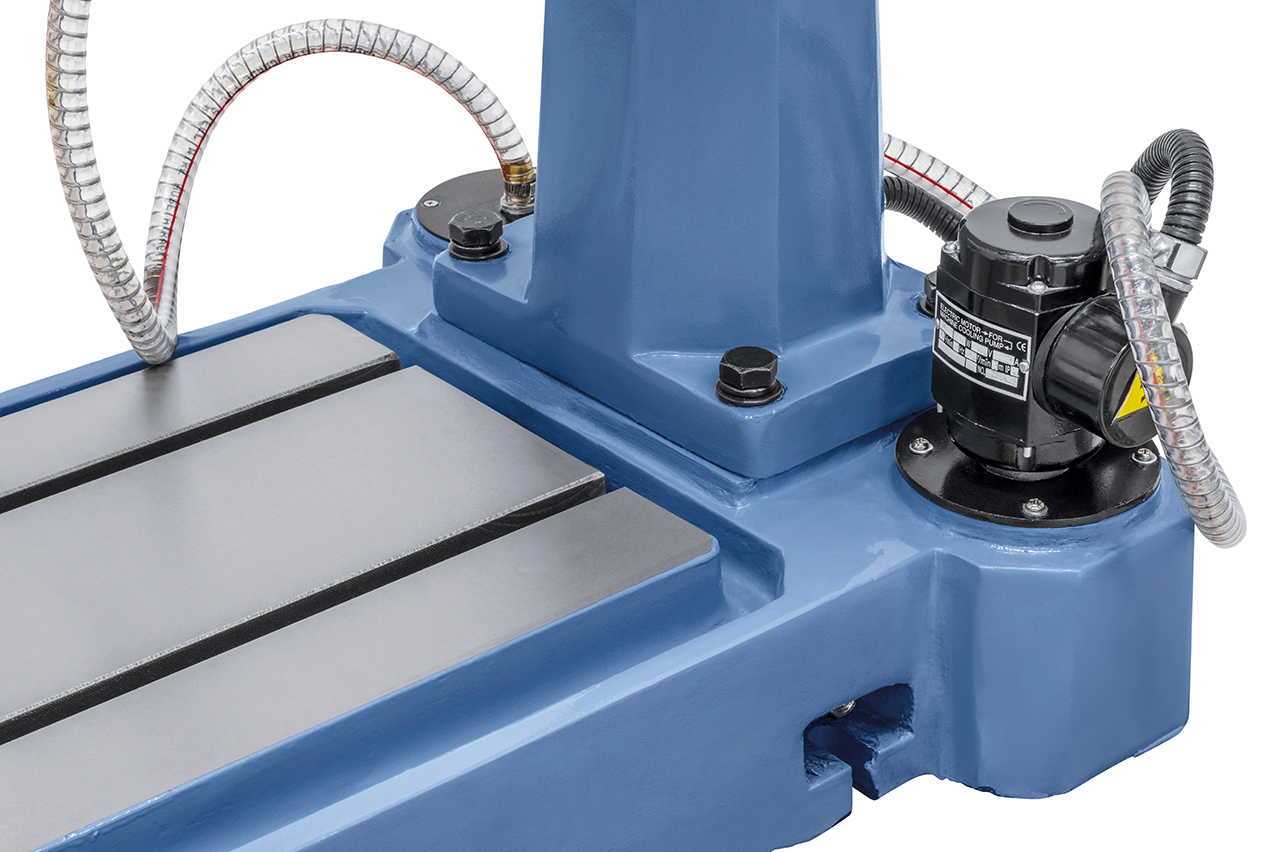

• Precisely machined base plate with T-slots and integrated coolant pump

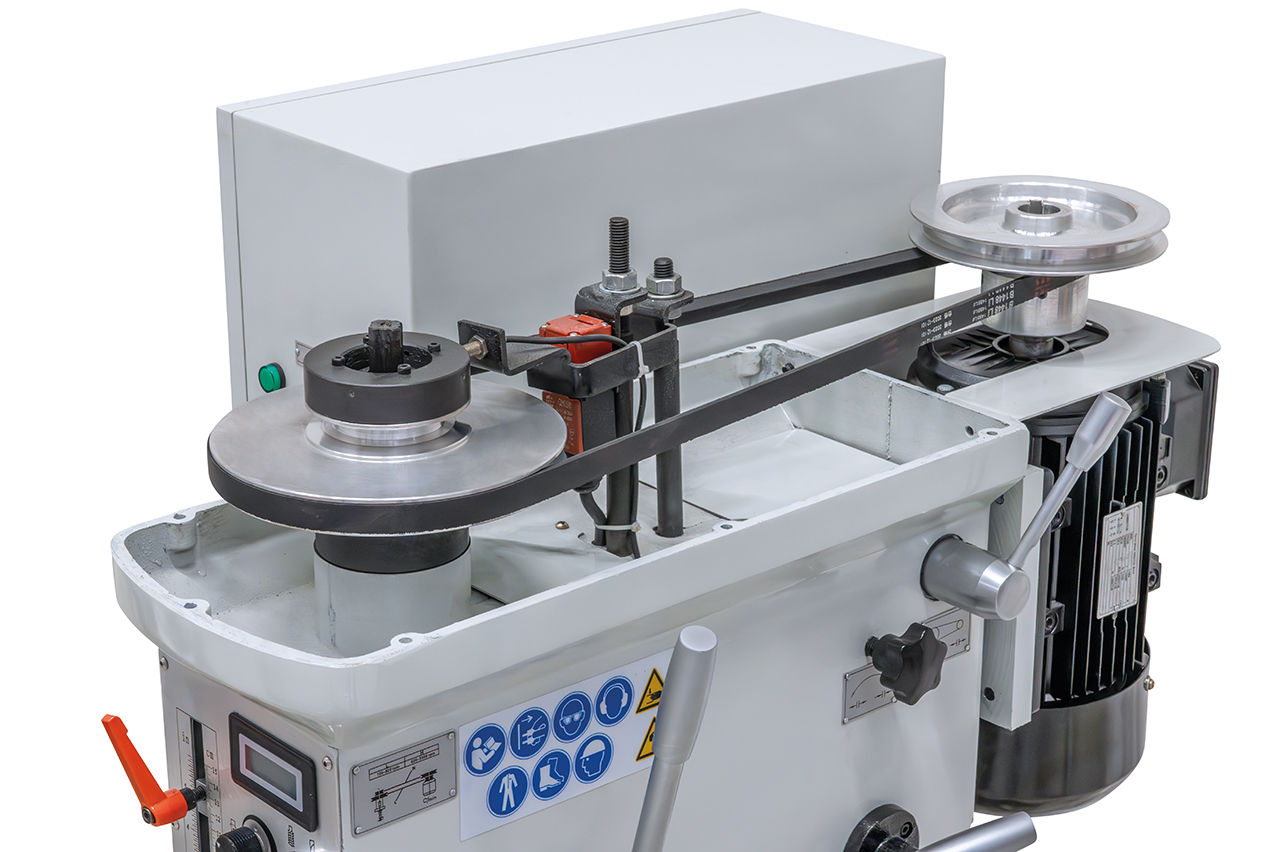

• Infinitely variable speed control, ideal for setting the desired cutting speed
• Adjustable drilling depth stop for precise feed of the quill
• Guaranteed concentricity ≤ 0.02 mm measured in the quill

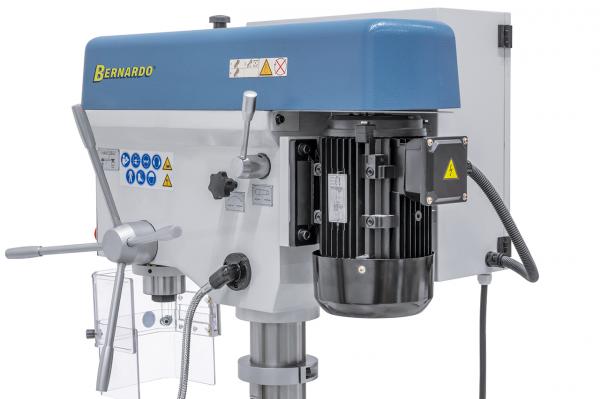

• Powerful drive motor even during continuous operation
• Robust and powerful drilling machines for heavy-duty use
• Includes automatic direction reversal for thread cutting

Technical details Pillar drill Bernardo DMC 35 V
