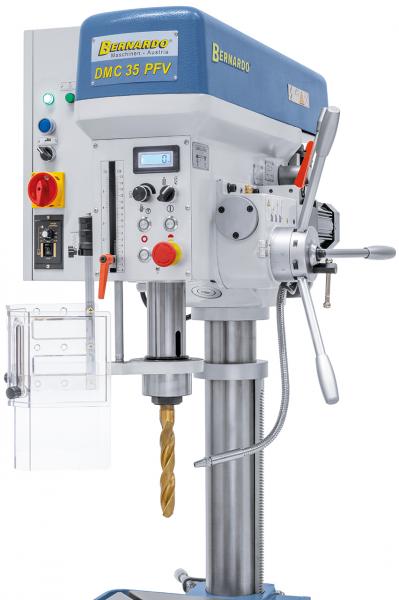

Pillar drill Bernardo DMC 35 PFV
NEW
Scope of delivery Pillar drill Bernardo DMC 35 PFV
- Keyed chuck 5 - 20 mm / B 22
- Chuck mandrel MK 3 / B 22

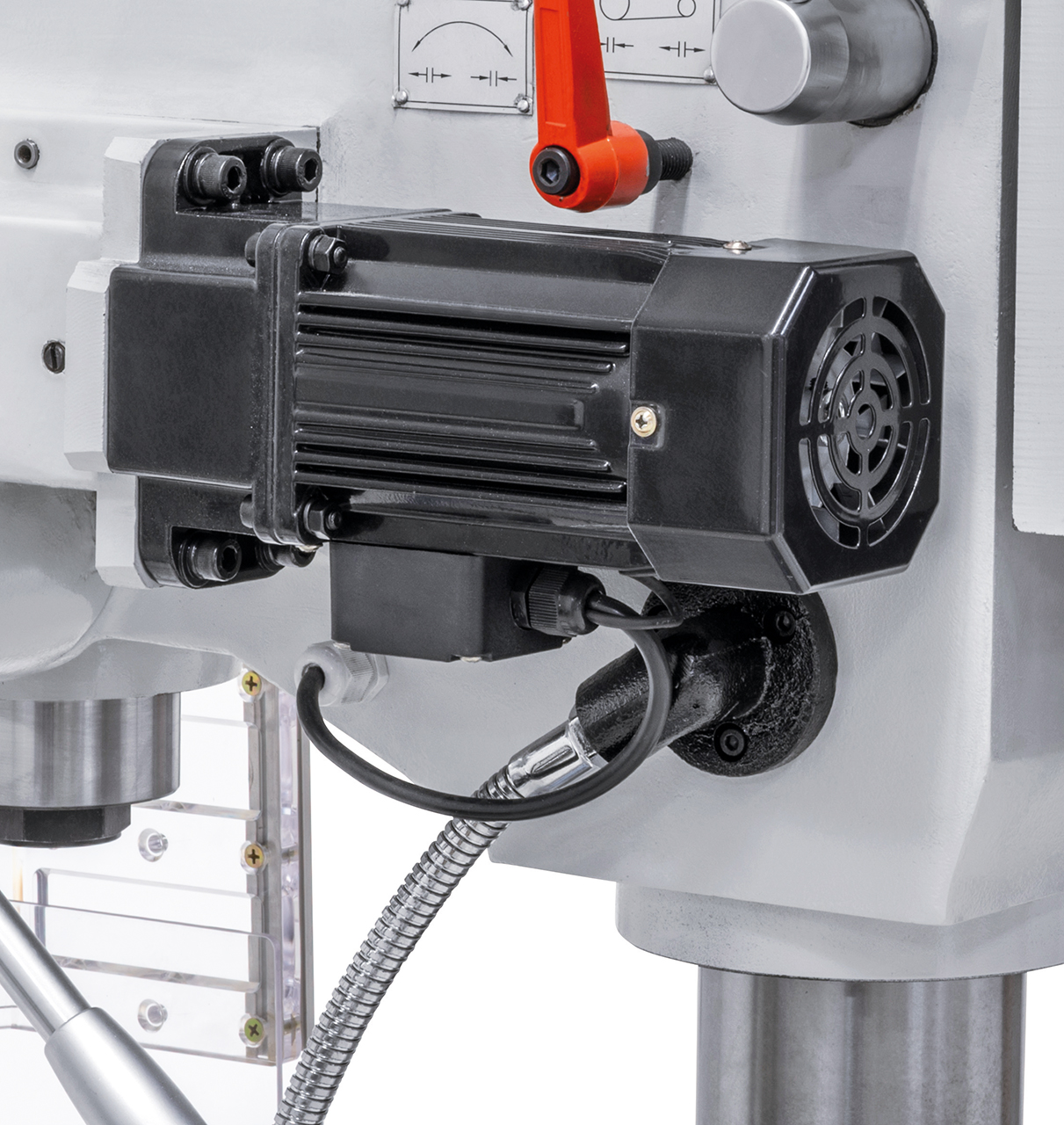

- Automatic quill feed
- Reducing sleeve MK 3 / MK 2

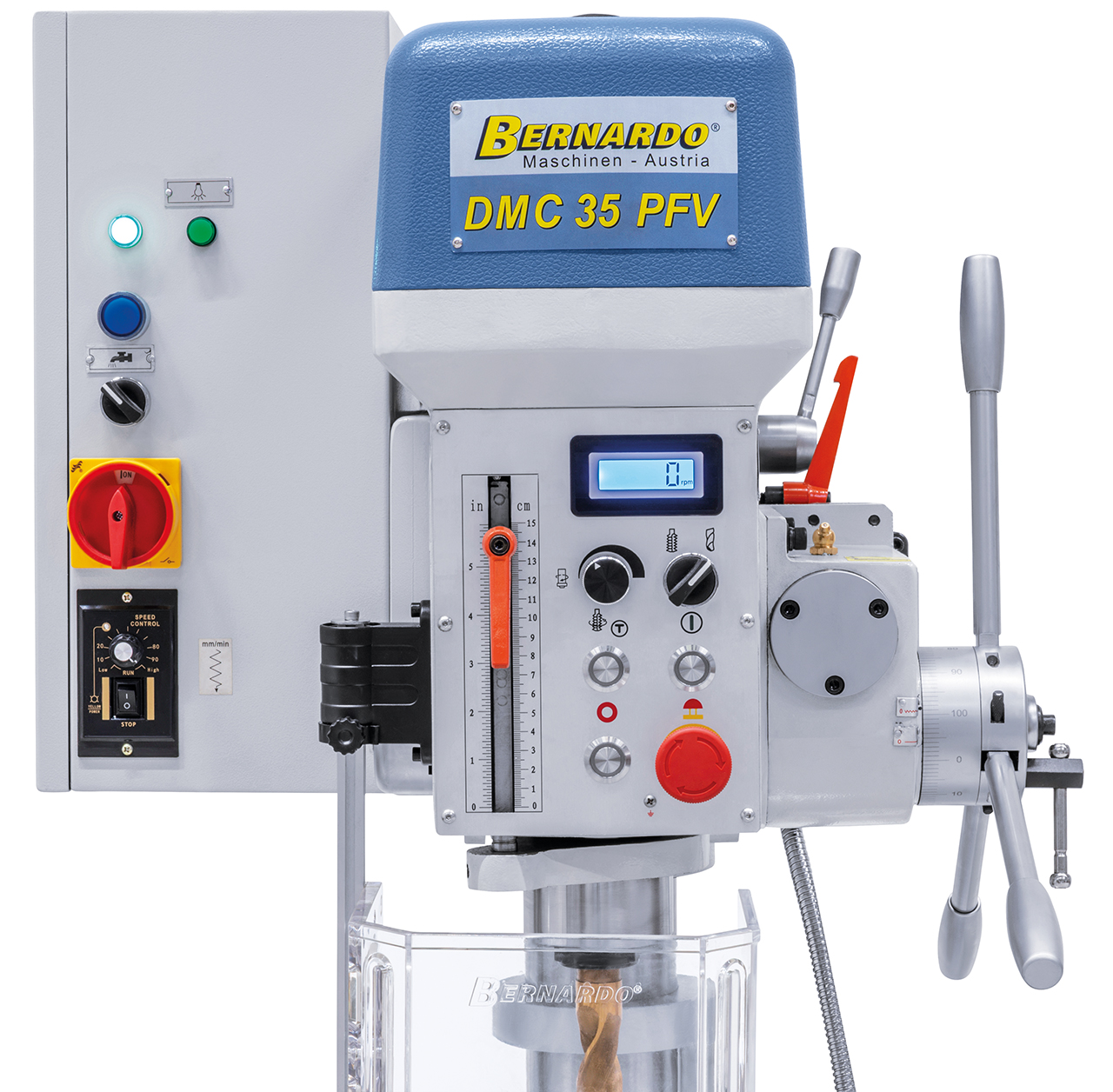

- Digital speed display
- Coolant device
- Thread cutting device
- LED machine light
- Height-adjustable protective cover
Features Pillar drill Bernardo DMC 35 PFV
The DMC 35 PFV column drilling machine is equipped with a thread cutting device and automatic drilling feed as standard. The infinitely variable speed control allows the cutting speed to be optimally adjusted to the workpiece.
- Protective cover in accordance with CE standard, adjustable to the respective drill length
- Surface-finished work table, height-adjustable via rack and pinion and hand crank
- Infinitely variable speed control, ideal for setting the desired cutting speed
- Precisely machined base plate with T-slots and integrated coolant pump
- Automatic quill feed as standard
- Adjustable drilling depth stop for precise feed of the quill
- Guaranteed concentricity ≤ 0.02 mm measured in the quill
- Powerful drive motor even during continuous operation
- Robust and powerful drilling machines for heavy-duty use
- Includes automatic direction reversal for thread cutting
Technical details Pillar drill Bernardo DMC 35 PFV
| Maximum Drilling Capacity | 32 mm |
| Maximum Thread Cutting | M 24 |
| Morse Taper | MK 3 |
| Spindle Speed, Infinitely Variable | 100 - 620 / 620 - 3300 rpm |
| Throat Depth | 265 mm |
| Distance Spindle / Table max. | 815 mm |
| Distance Spindle / Base Plate | 1240 mm |
| Quill Stroke | 150 mm |
| Quill Feed | 0 - 100 mm/min |
| Column Diameter | 100 mm |
| Table Size / T-Slot Size | 332 x 332 mm / 14 mm |
| Base Plate Working Surface | 382 x 312 mm |
| Motor Output Power S1 100% | 1.5 kW / 400 V |
| Motor Input Power S6 40% | 2.2 kW / 400 V |
| Machine Dimensions (W x D x H) | 600 x 940 x 1900 mm |
| Approx. Weight | 331 kg |
